CNC Turning: The Ultimate Solution for Fast & Precise Crafting!

CNC turning(also known as numerical control turning) is one of the most commonly used techniques in CNC machining. Simply put, it is a subtractive machining method where a metal or plastic material rod is clamped onto a machine and rotated at high speed. Then, a tool is used to gradually cut the material according to a pre written CNC turning program, and finally the desired shape and size are machined.

You may be wondering: what is the difference between a lathe and a turning center, how this technology works, and how it differs from CNC milling.

Let's have a comprehensive understanding together and help you determine whether CNC turning services are suitable for your machining needs.

Figure 1:Close up of cnc turning center machining. Hard alloy cutting tools perform precision turning on rotating workpieces, producing metal chips.

Summary of Core Answers

Core Themes	Content Summary	JS Precision Core Values
Technical Definition	CNC Turning is a precision manufacturing process that uses workpiece rotation and tool linear movement for cutting, specializing in machining rotating parts such as shafts, sleeves, and threads.	Leading Precision: Utilizing advanced equipment and processes, it achieves extremely high machining accuracy of ±0.005mm, meeting the stringent requirements of fields such as medical and aerospace.
Process Flow	Covering the entire chain from CAD design, CAM programming, path simulation to automated machining and precision inspection, ensuring controllable quality from drawing to finished product.	Superior Efficiency: An integrated intelligent quotation system generates quotations within 30 seconds, supporting rapid prototyping and small-batch production, facilitating rapid product iteration.
Difference from Milling	The fundamental difference lies in the mode of motion: Turning involves workpiece rotation, milling involves tool rotation. Turning is suitable for rotating bodies, while milling is suitable for complex curved surfaces and planes.	Comprehensive Solutions: As a one-stop manufacturer, we provide both CNC turning and milling services, recommending the optimal process combination based on part characteristics.
Equipment and Selection	Basic CNC lathes are suitable for simple parts, multi-functional turning centers integrate milling, drilling, and tapping, achieving "one-time setup, complete machining" for higher efficiency.	Powerful Capabilities: Possessing a complete equipment matrix from basic lathes to multi-axis turning centers, it has the comprehensive machining capabilities to handle everything from micro-parts to large workpieces.
Reasons to Choose	-	Professional and Reliable: With over 20 years of industry experience and ISO 9001 certification, it supports 50+ materials, providing high-quality, highly reliable customized production services to global customers.

Why Is This Guide Worth Referencing? Originating From JS Precision's Thousand Hour CNC Turning Production Practical Experience

With over ten years of accumulated experience, more than 10,000 hours in high-precision CNC turning parts mass production projects, JS Precision has fostered deep expertise in CNC turning services.

For instance, we have mass-produced titanium alloy engine components for aerospace clients, reaching stable tolerance control within ±0.005mm by optimizing CNC turning program, with the first-pass yield of over 99.5%.

Our technical approach is designed to ensure process rigor through adherence to relevant technical standards published by the American Society of Mechanical Engineers.

This guide is the culmination of these valuable experiences, aimed at providing you with authentic and credible industry insights to help you make informed decisions in the early stages of project initiation.

With over a decade of EEAT expertise in precision manufacturing, we provide you with reliable assurance. Contact JS Precision engineers immediately for free technical analysis and pricing based on your drawings, allowing professional experience to add value to your project.

What is CNC turning？

CNC turning is basically a manual lathe that existed two thousand years ago. At that time, craftsmen used pedals to energize wood to rotate and used chisels to gradually cut out dishes. Although now it has been replaced with computer control, the principle remains the same - to clamp the material and rotate it, and use a cutting tool to form it.

Nowadays, there are two types of CNC lathes: vertical and horizontal. The material inserted has no certain shape, whether it is a round rod, square material, or hexagon steel. As long as the chuck can clamp it, it can be processed into any shape.

The biggest distinction between the earliest hand cranking and the most recent full automatic machining is accuracy. Manual turning generally requires a half millimeter error, but CNC lathes can easily provide an accuracy of ±0.01mm today.

Although any complex component may be produced by a five axis machine tool, for components such as screws and bearings that may be turned by spinning them in a circle, CNC turning is still fast and cheap.

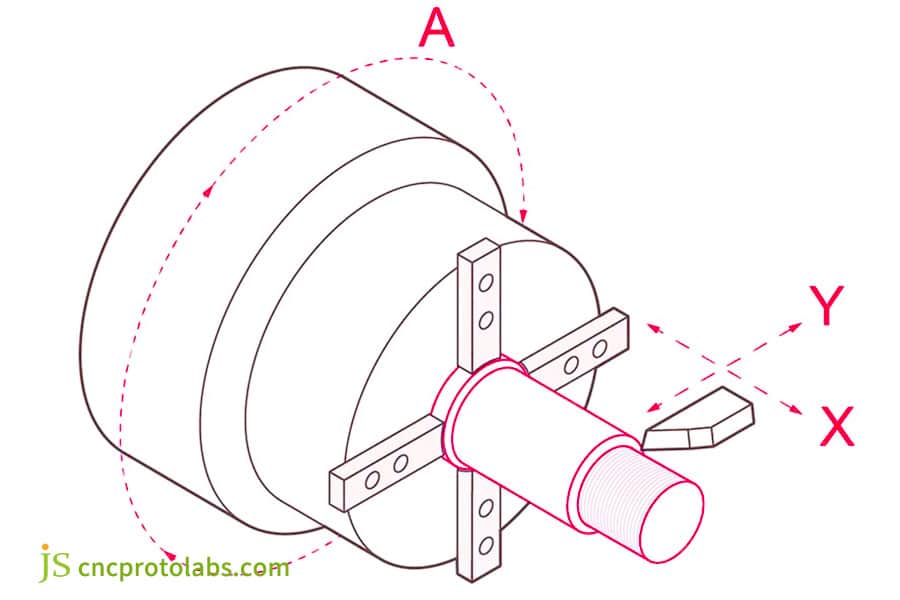

Figure 2:CNC turning center motion diagram. The workpiece rotates along the A axis, and the tool moves along the X/Y axis to achieve linked machining.

What is the machining process of CNC turning parts?

Step 1: Draw Drawings --Design Parts with CAD Software

First, draw the 3D model of the part on the computer utilizing CAD software (e.g., SolidWorks). We usually refer to CNC turning drawing PDF format when designing parts. This is like drawing a construction drawing before one can construct a house, noting down every dimension and angle carefully in order to refer to it later during processing.

Step 2: Format Conversion --Get Machines to Read Design Drawings

Grab the hand-drawn 3D model and transfer it to CAM software such as Mastercam. This process is equivalent to translating the 3D design into a language that the machine tool can understand, telling the machine tool where to cut first and where to cut second, converting the precise content.

Step 3: Tool path planning --Tell the machine the cutting path

Specify the tool path in CAM software:

• Where the tool starts cutting.
• Cutting travel speed (feed rate).
• Material spindle rotation speed.
• Tools to be replaced during different stages of processing.

Similar to routing navigation software between locations and determining the shortest path for the highest efficiency, the purpose of this step is to avoid the obstacles (such as fixtures) and travel via the shortest path for the highest efficiency.

Step 4: CNC turning programming --Write an operation manual for the machine

The CAM software converts the tool path into G-code, which is a sequence of commands consisting of letters and numbers. For example, G01 X50 Z-10 F200 represents: the tool moves straight to positions 50mm on the X-axis and -10mm on the Z-axis, with a feed rate of 200mm per minute.

Step 5: Simulation Testing --Rehearsing before actual combat

Before formal processing, simulate the entire process on the computer. It can detect in advance whether the tool will collide with the fixture, whether the cutting amount is too large, and other issues, avoiding accidents when machining has already begun.

Step 6: Transfer the program --Insert the instructions into the machine tool

Transfer the verified G-code to the machine controller via USB flash drive, local area network, or direct connection. Nowadays, most machine tools also support WiFi transmission, which is as convenient as transferring files from a mobile phone.

Step 7: Material preparation and knife loading --Preparation before startup

• Load the metal rod into the chuck with moderate clamping force (too loose will cause it to fly, too tight will cause deformation).
• Install tools such as external circular cutters, groove cutters, and thread cutters in the order of processing.
• Calibrate the tool reference point (tool alignment), usually with a tool alignment instrument accurate to 0.001mm.

Step 8: Automatic processing

When the program is opened:

• The spindle rotates with material between 500-3,000 revolutions per minute.
• The turret will switch automatically between different cutting tools.
• The outer circular knife cuts out the general shape first, the slotting knife cuts out the groove, and the threading knife threads out the screw design.
• Cutting fluid spraying in real time to cool, iron filings roll and fall off like springs.
• It takes only 10 minutes to process an iron rod into a precise shaft with threading.

Step 9: Size measurement --Only qualified products can be shipped out from the factory

• Vernier caliper: measure plain dimensions such as outer diameter and length.
• Thread gauge: Check whether the screw pattern is as per standard.
• Roughness tester: discovers whether the surface is smooth like a mirror.
• Critical features need to be measured using a coordinate measuring machine (CMM), and in case of an error exceeding 1/10 of the hair diameter (ca. 0.005mm), rework is obligatory.

How to distinguish between CNC turning & milling?

CNC turning & milling are the two most commonly used processes in CNC machining, and their core differences stem from differences in equipment structure, tool motion, and applicable scenarios. Compare from 5 key dimensions:

1.Differences in tool structure

• Turning tool: Use a single edged tool (similar to a pencil cutting blade), with only one tip in contact with the material at a time.
• Milling tool: Multi edge tools (such as drill bits and end mills) are used, with multiple cutting edges distributed around the tool head, which can participate in machining simultaneously.
• Example:
  Our factory always uses the same tool tip to cut a stainless steel shaft during turning. When machining mobile phone casings with a milling machine, a four edge end mill can simultaneously cut with four blades, resulting in a significant improvement in efficiency.

2.Comparison of equipment structures

CNC Turning center can be considered as transitional equipment, more intelligent than lathes, but still weaker in functionality than CNC turning & milling center (which integrate five axis milling capabilities and support complex surface machining):

Comparison items	CNC lathe	CNC milling machine
Spindle motion	Rotate the clamped workpiece.	Drive tool rotation.
Number of processing axes	Usually 2-axis (X/Z-axis).	Starting from 3 axes, high-end models can reach 5 axes.
Typical cost	The entry-level model costs approximately $150,000 to $300,000.	Basic payment of approximately 250,000 to 500,000 US dollars.

3.Suitable for processing shapes

• Proficient in turning: Rotating symmetrical parts such as cylindrical and conical shapes, such as screws, bearing sleeves, and water pipe joints.
• Proficient in milling: Asymmetric structures such as flat surfaces, grooves, and curved surfaces, such as mold cavities, gear tooth surfaces, and electronic device casings.

4.Cutting motion mode

• Turning process: The workpiece rotates, the tool moves in a straight line, and the cutting process is continuous and uninterrupted.
• Milling process: The tool rotates and moves, the workpiece is fixed, and the blade periodically cuts in/out the material.
• Action breakdown: When turning, the material bar rotates like a Mutton shashlik, and the knife advances at a constant speed like peeling an apple skin. During milling, the tool rotates and moves like an electric drill bit, gnawing out shapes on the material.

5.Differences in chip morphology

• Turning chips: Depending on the material, continuous long strips (such as processed aluminum), fragmented pieces (such as cast iron), or broken chips (such as titanium alloy) may be generated.
• Milling chips: Always present as short fragments, and due to the continuous cutting and cutting of the tool, the debris is intermittently splashed.
• Production impact: The long chips from turning are prone to entanglement and need to be cleaned up in a timely manner. The chips from milling are more easily carried away by the chip conveyor, but there is more metal dust.

Please inform JS Precision of the approximate shape and material of your part, and we will recommend the most suitable CNC turning & milling process to save you evaluation time.

Figure 3:Comparison diagram of CNC turning & milling. The left end mill processes a fixed workpiece, while the right turning tool cuts the end face of a rotating workpiece.

CNC lathe and CNC turning center: what are the differences?

CNC lathes and turning centers look like "twins" and do similar work, but the actual ability gap is not small. Simply put, a turning center is equivalent to an upgraded version of a lathe. Here are the core differences between the two from a practical usage perspective to help you quickly determine how to choose:

1.Functional scope

CNC lathes are mainly used for basic turning machining, such as turning outer circles, cutting grooves, and threading, and are suitable for machining simple rotating parts such as shaft sleeves and bolts.

On the basis of turning functions, the turning center has added capabilities such as milling, drilling, and tapping, which is equivalent to a combination of lathe and small milling machine. For example, when machining parts with side holes or keyways, the CNC turning center does not require secondary clamping and can complete all processes in one go, resulting in higher accuracy and faster efficiency.

2.There are three fundamental differences in structural configuration:

The turning and cutting center is fully enclosed, with an automatic chip conveyor and cooling recovery system. The iron chips are tipped straight into the collection box, and the iron chips are not handled by the operator. The lathe is of open structure, with the iron chips being piled beside the machine. It must be shut down and cleaned with a shovel after every 1-2 hours of operation.

The bed of the lathe is tilted 30°-45°, and iron shavings are automatically discharged into the collection tank, and can be run continuously for 8 hours without clogging. The lathe has a flat bed, and the iron shavings will clog the gap of the guide rail. Failure to clean it will result in processing faults.

The turning center turns at 5000-8000 rpm (max 15,000 rpm), and cuts the aluminum bars in 1 minute. Lathe turns at 1000-3000 rpm, which is sufficient for turning the steel parts, but 3-5 minutes will be spent cutting through the same aluminum bar.

Briefly, the turning center is suitable for mass-producing small-sized components in a efficient manner, and the general lathe is suitable for repairing or processing heavy components.

3.Processing accuracy and complexity

The processing accuracy of the lathe is generally ±0.01mm, and the turning center can reach ±0.002mm through a closed-loop control system.

Most lathes have 2 axes (X/Z axes), and turning centers are equipped with 3 axes as standard (adding C-axis rotation). Some models support Y-axis and B-axis, realizing 5-axis linkage processing, and can handle complex structures such as eccentric holes and curved surfaces.

Lathe programming is mainly manual G code; turning centers often use CAM software to automatically generate multi-process compound cnc turning programs.

4.Cost investment and selection strategy

Equipment procurement cost:

The price of an entry-level CNC lathe is about 150,000-500,000 yuan (equivalent to the price of a family car), while the starting price of a basic turning center is $400,000, and the high-end model is more than $1 million.

​​Use and maintenance cost:

The maintenance cost of the hydraulic system and tool magazine of the turning center is relatively high (for example, the single service fee for turret positioning and calibration is about $4,000), but automated production can reduce 70% of labor demand-the work that originally required 3 technicians to work in shifts can now be monitored by 1 person.

​​Typical application scenarios:

• ​​Optimal scenarios for lathes: Suitable for simple parts with a monthly output of less than 500 pieces, such as door and window hinge shaft cores and printer plastic rollers. These products have a simple structure and limited profit margins.
• ​​Advantage scenarios of turning centers: Mass production of more than 2,000 pieces/month of complex parts, such as metal joints for heart stents and motor housings for drones. Taking the automobile turbine housing as an example, the turning center can complete the processing of internal and external threads, cooling fins and sensor mounting holes at one time.

JS Precision's suggestion is:

• For small budget and simple processing requirements, lathes are more cost-effective.
• If the components are multi-process, special-shaped, or produced on 24-hour continuous basis, CNC turning center are utilized.
• In the initial stage, one can rent a turning center for trial production and, upon determining what is needed, purchase it.

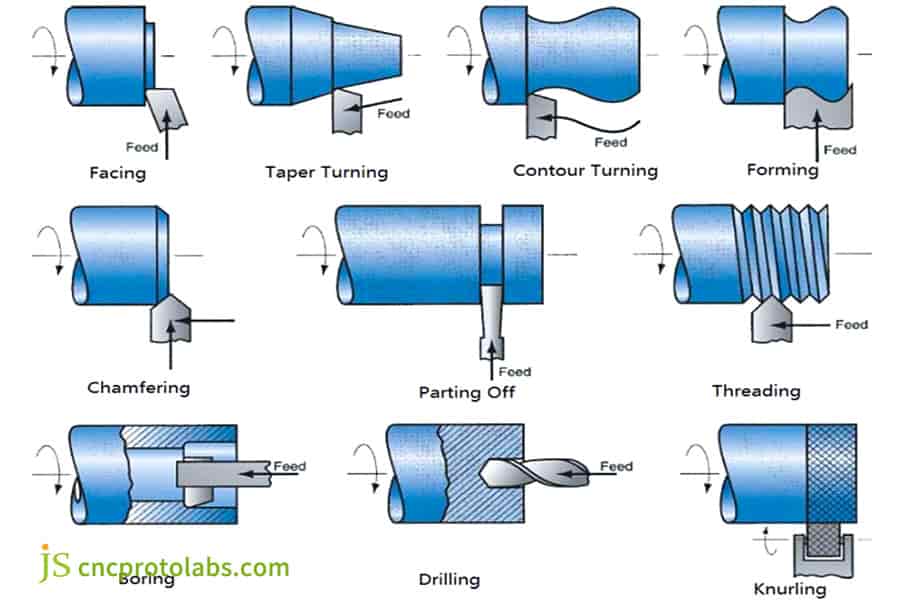

What types of operations are there in CNC turning?

1.Turning

This is the core operation of CNC turning, mainly used to process the outer surface of parts. During operation, the tool will move back and forth along the rotating workpiece, and different shapes will be shaped by adjusting the cutting depth.

For example, when making a cylinder, the tool will move in a straight line (straight line cutting), and when making a tapered part, the tool will be tilted at an angle (taper cutting). Simply put, it is like sharpening a pencil, except that metal tools are used to cut metal materials.

2.Facing

End turning is used to machine a plane perpendicular to the workpiece rotation axis to ensure the flatness of the end face. The tool is fed from the outer circumference to the center horizontally, which can quickly remove the blank allowance (rough machining cutting depth 2-5 mm) or fine trimming (finishing machining cutting depth 0.1-0.3 mm), and widely used for gear end face and sealing surface machining.

3.Straight turning

Use wide-blade cutters to gradually turn down the workpiece diameter to the finished size in one cutting quantity of 3-8 mm maximum, normally with an allowance of 0.2-0.5 mm for roughing. Suitable for batch production of standard parts such as bearing rings and bushing blanks.

4.Taper turning

Used to form sloped components, such as taper-shaped components. By changing the cutting tool path angle or through the use of auxiliary fixtures, a growing diameter can be formed on the workpiece surface. Common applications are machine tool spindle taper holes, tool hardware taper shanks and other cnc turning parts where matching is required.

5.Threading

Use triangular blades or elastic tool bars to cut internal and external threads, and the spindle speed is usually 200-800 rpm. The pitch error of external threads must be ≤0.02 mm, and internal threads must avoid vibration. It is common in bolt and pipe thread manufacturing.

6.Grooving

Use a 2-6 mm wide groove cutter to radially cut into the workpiece. Narrow grooves are formed in one go, and wide grooves are cut in batches. It is used to process back-cut grooves and sealing grooves. Special groove types (such as T-slots) require customized forming tools. The feed speed must be controlled during cutting to prevent chipping.

7.Parting

Use a 2-5 mm wide parting cutter to separate the finished product from the bar stock. The tool must be strictly centered (deviation ≤0.02 mm) and the feed speed is 0.05-0.15 mm/rev. Burrs are easily generated on the cut surface and subsequent deburring is required.

8.Drilling

Although drilling machines are mainly used, CNC lathes can also drill holes directly. Using the tailstock or power turret, holes can be drilled in the center of the rotating workpiece. Advanced models can also process eccentric holes or oblique holes. For example, when processing a gear blank with a center hole, the outer circle and drilling can be completed at one time.

9.Knurling

Use a roller with teeth to press out anti-slip patterns on the surface of a part. This process does not change the size of the part, and is mainly used to increase grip friction or decorative effects. The grid patterns on the surface of wrench handles and instrument knobs that we see in daily life are made in this way.

Submit your CNC turning parts drawings immediately, and JS Precision will provide free manufacturability analysis, including process optimization suggestions, to help you reduce costs and increase efficiency.

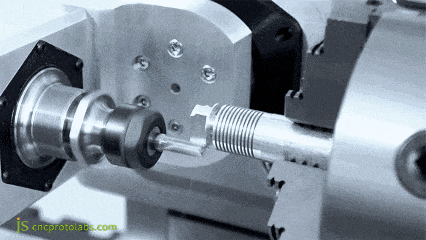

Figure 4:Schematic diagram of CNC turning process.

How to use different types of lathes for CNC turning?

1.Horizontal turning center

• Structural features: Fully enclosed body, spindle horizontally arranged, tool located above rotating workpiece, equipped with automatic chip removal system.
• Core functions: Integrated turning, milling, drilling, supporting lateral machining of power tools.
• Processing advantages: Chips naturally fall into the collection tank due to gravity, increasing cleaning efficiency by 50%.Suitable for small and medium-sized complex parts(such as hydraulic valve bodies), single clamping can complete multiple processes.Typical parameters: spindle speed 3,000-8,000rpm, machining accuracy ±0.005mm.

2.Vertical turning center

• Structural design: The chuck is placed flat on the ground, and the turret is fed from the side. It can be inverted (with the spindle at the bottom and the chuck at the top).
• Applicable scenarios:Processing large workpieces with a diameter greater than 500mm (such as wind turbine bearing rings).Heavy duty parts (with a single weight of up to 10 tons).
• Technical features:Low speed (usually 200-800rpm) ensures machining stability.Inverted design reduces chip accumulation, suitable for large-scale production of aluminum parts.

3.Horizontal CNC lathe

• Basic functions: Standard turning (outer circle/end face/thread), boring.
• Equipment characteristics: Open or semi protective structure, large operating space.Standard 4-8 workstation turret, supporting manual/automatic tool change.
• Application areas: Small and medium-sized production (monthly production of 100-2000 pieces).Processing sleeve and shaft parts (such as engine crankshafts and hydraulic cylinder barrels).Cost advantage: entry-level models are priced at $150,000 to $300,000, with low maintenance costs.

4.Vertical CNC lathe

• Core feature: The workpiece is vertically clamped, and the spindle is driven to rotate from the bottom.
• Core advantages: 40% reduction in floor space compared to horizontal.Suitable for short and thick parts (such as gear blanks, large flanges).
• Processing restrictions:The height of the workpiece is usually less than 800mm (limited by the stroke of the column).Not good at processing slender shafts (prone to bending and deformation).Industry application: Mold industry processing guide columns, large rotating parts of engineering machinery.

Selection Comparison Table

Type	Suitable for parts	Maximum machining diameter	Typical price range
Horizontal turning center	Complex multi feature small and medium-sized components.	Φ300mm	800,000 to 2 million
Vertical turning center	Large/heavy rotating parts.	Φ2000mm	1.5-5 million
Horizontal CNC lathe	Conventional shaft/sleeve components.	Φ500mm	150,000 to 500,000
Vertical CNC lathe	Short and thick/large diameter parts.	Φ1200mm	300,000 to 1 million

Call the JS Precision hotline and let us know your part size and batch size. We will immediately match you with the most suitable CNC turning center model and provide a quotation.

Case study: How JS Precision Solves The Turning Problem Of Precision Tubing For Medical Devices

Industry and Target Part

A stainless steel precision cannula is manufactured by a company for minimally invasive surgery within the medical device industry. This part is a typical rotating body with a high length-to-diameter ratio and requires a mirror-like finish on its inner wall.

Customer's Core Needs and Initial Challenges

There are two major pain points: First, the unit cost is as high as $25 from the existing supplier. Second, the 6-week delivery cycle seriously delays the clinical trial progress of new products. They urgently need a manufacturing partner that can address cost, precision, and delivery speed all at the same time.

Customized Turning Solution by JS Precision

Our precision turning capabilities helped us provide a solution with a target of:

Precision Turning Process: Employed on a horizontal CNC turning center, the super high speed of 3000-8000 rpm and stability are fit for such slender shaft parts, ensuring that the straightness and roundness of the machined parts meet requirements.

Internal Hole Machining Technology: Precision-ground, non-standard tools (some with specific cutting parameters, for example, the feed rate F200) and high-pressure coolant enable a single operation to machine the internal wall to a mirror finish without secondary polishing.

Thread Machining: Precision threads are machined at the end of the sleeve, with the thread turning carried out precisely in accordance with the description given in the text to ensure reliable connection.

Final Results and Value Creation

Results significantly exceeded customer expectations: the unit cost was reduced to US$17, a 35% cut, while delivery time was significantly shortened to 12 working days. More importantly, the first-pass yield rate topped 99.5%, successfully helping the customer's product move into the clinical stage two weeks earlier than scheduled and gain a precious market window.

Do you want to achieve a similar breakthrough for your medical components? Upload the drawings immediately, and experience our efficient CNC turning service. Your first sample can enjoy exclusive discounts.

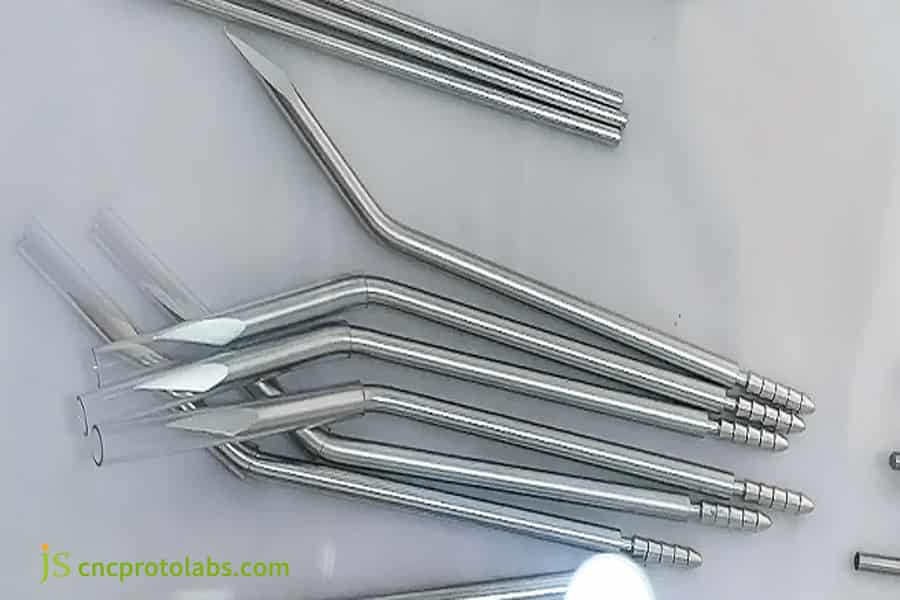

Figure 5:CNC turning stainless steel surgical sleeve

FAQs

1.What are the types of machining motion directions for lathes?

The main motion directions of CNC lathes are X-axis (radial), Z-axis (axial), and advanced models can expand Y-axis (vertical) and C-axis.

2.What are the advantages of CNC turning?

CNC turning has high precision, fast efficiency, and can process complex rotating parts. It has a wide range of material adaptability (metal/plastic), suitable for mass production, high degree of automation, and minimal waste.

3.What is the function of a CNC lathe?

CNC lathes automatically process rotating symmetrical parts (such as shafts and disks) through cnc turning program control, achieving high-precision turning, slotting, threading and other processes, suitable for mass production of metal/plastic parts.

4.What materials are commonly used in CNC turning?

CNC turning commonly uses metal materials such as aluminum, steel, stainless steel, brass, as well as special materials such as nylon, PEEK engineering plastics, titanium alloys, etc., to meet various processing needs.

5.What is the degree of accuracy of CNC turning?

CNC turning has ultra-high precision, which can achieve ±0.005mm in normal conditions. It is especially suitable for high-precision shafts and sleeves. We ensure the stability and consistency of machining results through a closed-loop control system and rigorous quality inspection processes.

6.How do I get a quote? What documents are required?

You only need to upload the 3D drawing files in common formats like STEP or IGES. Our intelligent quotation system will automatically analyze your CNC turning process requirements and generate a clear and transparent detailed quotation in 30 seconds.

7.Can complex structures be formed in one operation?

Of course, our CNC turning & milling center integrates all the processes of CNC turning, milling, and drilling into one, which allows complex parts to be clamped once and formed, effectively reducing positioning errors caused by secondary clamping.

8.What are the special requirements for machining titanium alloys?

The processing of titanium alloy requires the use of special tools and cutting fluids. Besides, it is necessary to strictly control the parameters of rotation speed and feed rate to avoid overheating of the material. We have extensive experience with such difficult-to-machine materials and can achieve high-quality turning.

Summary

Numerical control turning technology has completely changed the traditional machining mode through digital control and has now become an important pillar of the manufacturing industry. Whether it is a small studio or a large production enterprise, mastering this technology can significantly improve efficiency while ensuring quality, helping enterprises gain an advantage in market competition.

Why choose our CNC turning service? ​​

After understanding the process characteristics of CNC turning, you may need a reliable partner. JS is equipped with a new generation of intelligent lathes and independently developed process systems, providing the best CNC turning services that can help you achieve:

• Complex structure processing: It can handle anything from a micro shaft with a diameter of 0.5mm to a heavy-duty roller with a length of 1 meter.
• Material Diversity: Supports over 50 types of materials including aluminum alloy, titanium alloy, PEEK engineering plastics, etc.
• Accuracy guarantee: The tolerance of key dimensions can be controlled within ± 0.005mm (equivalent to 1/5 of the diameter of red blood cells).

JS Precision completes the three steps of custom processing:

1. Upload your 3D drawings (supporting common formats such as STEP/IGES).

2. The intelligent system instantly analyzes the process route and generates a quotation list within 30 seconds.

3. After confirming the order, production can start within 8 hours at the earliest (supporting small batch orders of 50 pieces or more).
