Custom Injection Mold Tooling Services
- CNC Protolabs delivers professional Injection Mold Tooling for rapid prototypes and end-use production.
- Achieve high-precision mold manufacturing with tolerances as tight as ±0.02mm and obtain your custom molds in as fast as 7 days.
Upload Your Design & Get an instant Quote Now!
Get instant pricing, project lead times, and DFM feedback
STEP | STP | SLDPRT | STL | DXF | IPT | X_T | X_B | 3DXML | CATPART | PRT | SAT | 3MF | JT files
Max. 50MB per file
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
Trusted bynumerous companies
CNC Protolabs has produced over 300,000 unique parts for more than 1,000 clients worldwide, helping bring their custom projects from concept to reality.

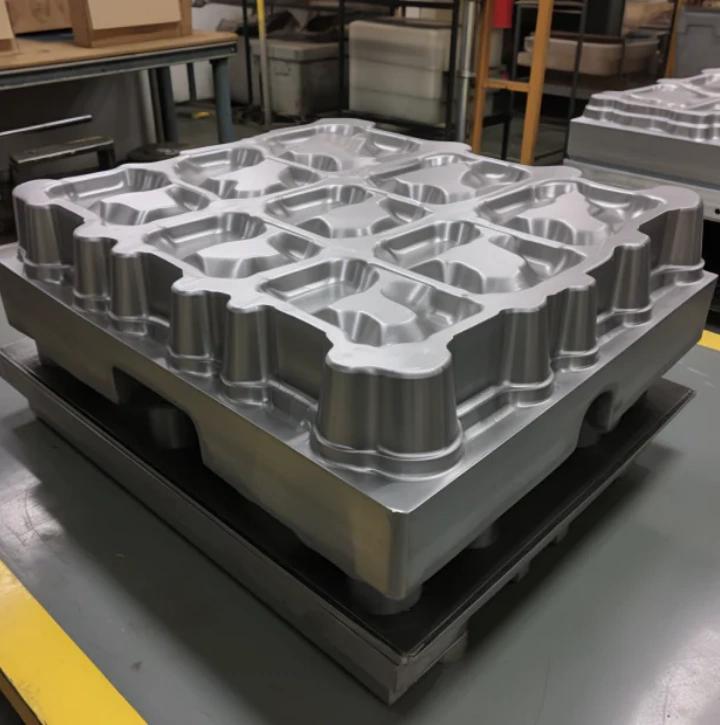

What is Tooling inInjection Molding?
Tooling is the backbone of injection molding production. Below we outline what it means and how CNC Protolabs supports your project.
Definition of Tooling
In injection molding, tooling refers to the design and manufacturing of precision molds that are essential for producing high-quality plastic components. This foundation is critical for the entire production process.
CNC Protolabs's Service Expertise
CNC Protolabs specializes in custom injection mold solutions. We collaborate closely with clients to translate project requirements into precise, performance-optimized designs. Our deep technical expertise ensures we manage every manufacturing complexity, guaranteeing mold reliability, durability, and repeatability for demanding projects.
End-to-End Client Value
We offer comprehensive development, from prototype tools to high-volume production molds. Our optimized processes and accelerated lead times enable faster iteration and a quicker path to market, all at competitive pricing. Partner with us to transform your vision into a manufactured reality.
When to Choose Rapid Tooling: Rapid Tooling vs. Production Tooling
Rapid tooling and production tooling are complementary manufacturing solutions. The optimal choice depends on your product development stage, project budget, and production volume requirements.
| Key Factor | Rapid Tooling | Production Tooling |
|---|---|---|
| Stage | Prototyping, low-volume batches, market testing | Mass production |
| Mold Cost | $1,000 - $20,000 | $20,000 - $100,000+ |
| Lead Time | 5 - 28 days | 8 - 16 weeks |
| Mold Lifespan | 100 - 10,000 cycles | 100,000+ cycles |
| Design Flexibility | High (easy modifications) | Low (costly changes) |

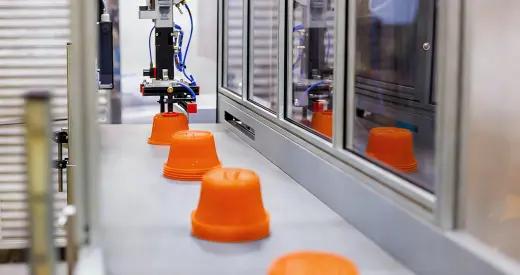

Typical Applications for Rapid Tooling:
- Product Validation: Produce 50-500 functional prototypes for swift design and market testing.
- Agile Iterations: Accommodate frequent design changes, ideal for fast-paced industries like consumer electronics.
- Bridge Production: Manufacture 1,000-5,000 units for initial launch to validate demand with minimal risk.

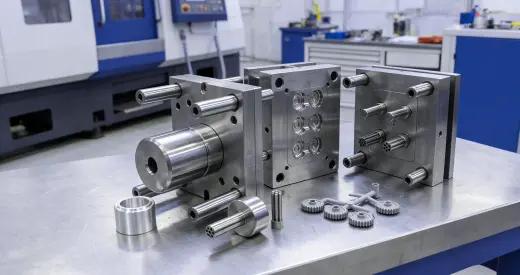

Typical Applications for Production Tooling:
- Large-Scale Manufacturing: Economically produce 100,000+ units for optimal per-part cost.
- High-Precision & Durability: Fabricate demanding parts (e.g., automotive, medical) requiring extreme precision, tight tolerances, and superior mold longevity.
- Long-Term Demand: Support stable, forecasted production lasting several years for durable goods.
Types of Injection Molds
We provide a comprehensive range of precision injection mold tooling solutions, tailored to your project specifications and production volume. From rapid prototyping molds to high-volume production systems, CNC Protolabs delivers reliable, performance-driven mold engineering for your manufacturing needs.

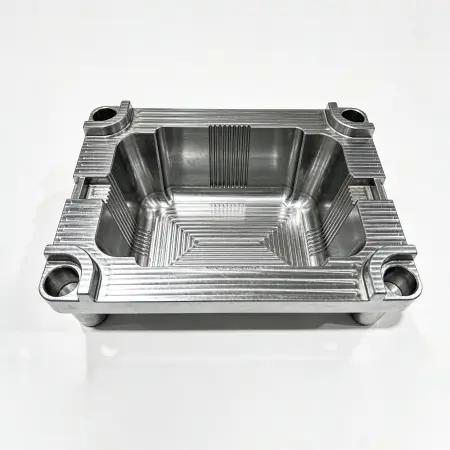

Single Cavity Mold
Achieve precision and control in low-volume plastic parts production with our high-quality single cavity molds. This cost-effective injection molding solution is ideal for prototyping, testing, and small batch runs, ensuring meticulous attention to detail and consistent part quality throughout the manufacturing process.

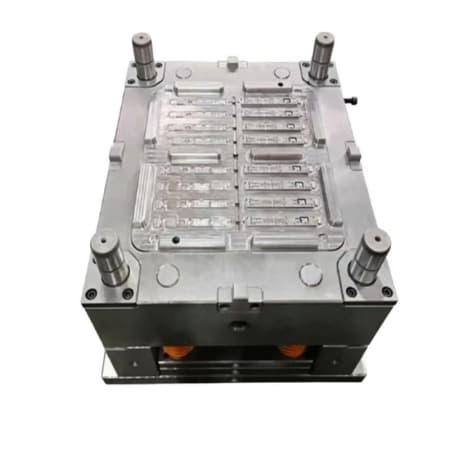

Multi-Cavity Mold
Maximize productivity and efficiency with our advanced multi-cavity injection molds. Designed for high-volume plastic parts production, these molds produce multiple identical parts per cycle, significantly reducing cost per unit and optimizing cycle time while maintaining superior dimensional accuracy and repeatability.

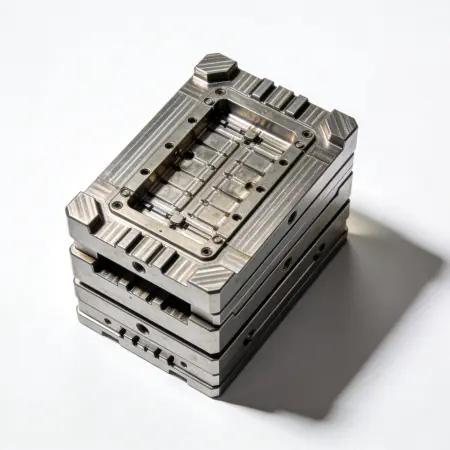

Stack Mold
Double your output without increasing machine footprint through our innovative stack mold technology. CNC Protolabs engineers high-efficiency stack molds to enhance molding capacity and reduce overall part cost. Our designs can feature equal or varied cavity configurations across parting surfaces, enabling complex multi-component assemblies in a single cycle.

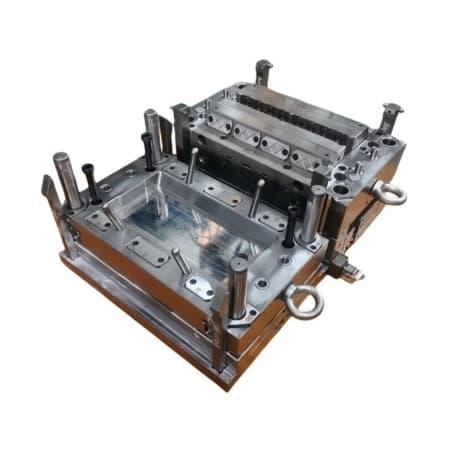

2K Injection Mold
Integrate two different materials or colors seamlessly with our professional 2K injection molding tooling. This advanced process allows the combination of soft and rigid plastics within one product, streamlining assembly, improving functionality, and reducing total production costs through consolidated, precision molding operations.
Injection Molding Capabilities
CNC Protolabs designs and manufactures precision custom injection molds using high-performance materials, ensuring exceptional consistency and part-to-part repeatability. We deliver durable and reliable mold solutions for both prototyping and high-volume production, with fast lead times, competitive pricing, and full compliance with international quality standards.
| Class | Purpose | Shot Life | Tolerance | Cost | Lead Time |
|---|---|---|---|---|---|
| Class 105 | Precision molds for the most demanding high-volume production of critical components. | Under 500 cycles | ± 0.02mm | $ | 1 week |
| Class 104 | High-durability production molds for complex applications requiring extended life. | Under 100,000 cycles | ± 0.02mm | $$$ | 1-2 weeks |
| Class 103 | Robust production molds for commercial parts with optimal cost efficiency. | Under 500,000 cycles | ± 0.02mm | $$$$ | 1-2 weeks |
| Class 102 | Bridge tooling for pre-production validation and moderate-volume batches. | Medium-volume Production | ± 0.02mm | $$$$$ | 1-2 weeks |
| Class 101 | Rapid aluminum tooling for accelerated functional prototyping and market testing. | Over 1,000,000 cycles | ± 0.02mm | $$$$$$ | 2-3 weeks |
Your Precision, Built to Scale.
Upload Your CAD FileMaterials for Injection Mold

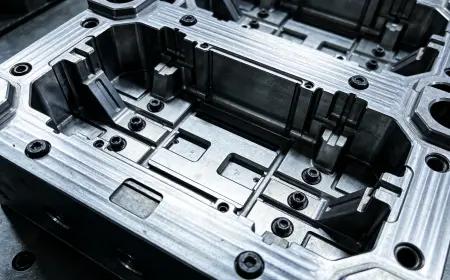

Tool Steel
Tool steel provides exceptional durability, wear resistance, and thermal stability, making it the preferred material for high-volume, precision injection molds. Its ability to maintain tight tolerances and superior surface finish ensures consistent part quality across extended production runs, delivering reliable performance for demanding applications.

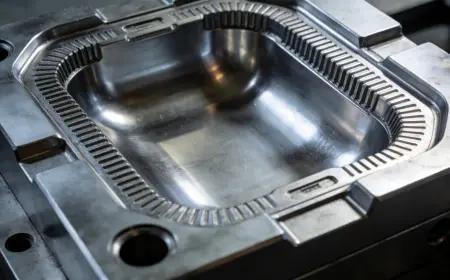

Stainless Steel
Stainless steel offers superior corrosion resistance and excellent polishability, essential for molds used in medical, optical, and food-grade applications. While representing a higher initial investment, it ensures long-term mold integrity and part purity in corrosive or highly regulated environments.

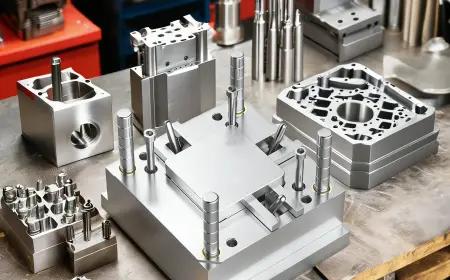

Aluminum
Aluminum molds enable cost-effective rapid tooling with significantly shorter lead times. Ideal for prototyping and low-volume production, they facilitate fast design validation and market testing. Their high thermal conductivity allows for quicker cycle times, though with a more limited operational lifespan compared to steel molds.
Mold Making Processes
Mold making is a skilled precision engineering process. Following established best practices ensures each injection mold meets performance and durability standards for optimal plastic part production.
DFM Analysis
We perform Design for Manufacturability analysis to confirm part feasibility, determining optimal parting lines and gate locations for efficient injection molding.
Mold Design & Flow Simulation
Using advanced CAD and mold flow analysis software, we simulate material behavior to optimize cooling and gating systems, ensuring quality and manufacturability.
Precision CNC Machining & EDM
Mold components are fabricated with high-precision CNC machining and EDM from selected steels or aluminum, ensuring accuracy and surface finish.
T1 Sample Validation
First articles are molded and inspected to validate dimensions, finish, and functionality, providing a tangible preview of final production parts.
Design Optimization
Based on T1 sample analysis, we implement necessary refinements to the mold design or machining to meet all specifications before final approval.
Production & Delivery
The approved mold undergoes final assembly and quality inspection, then ships to your facility or enters our production line for manufacturing.

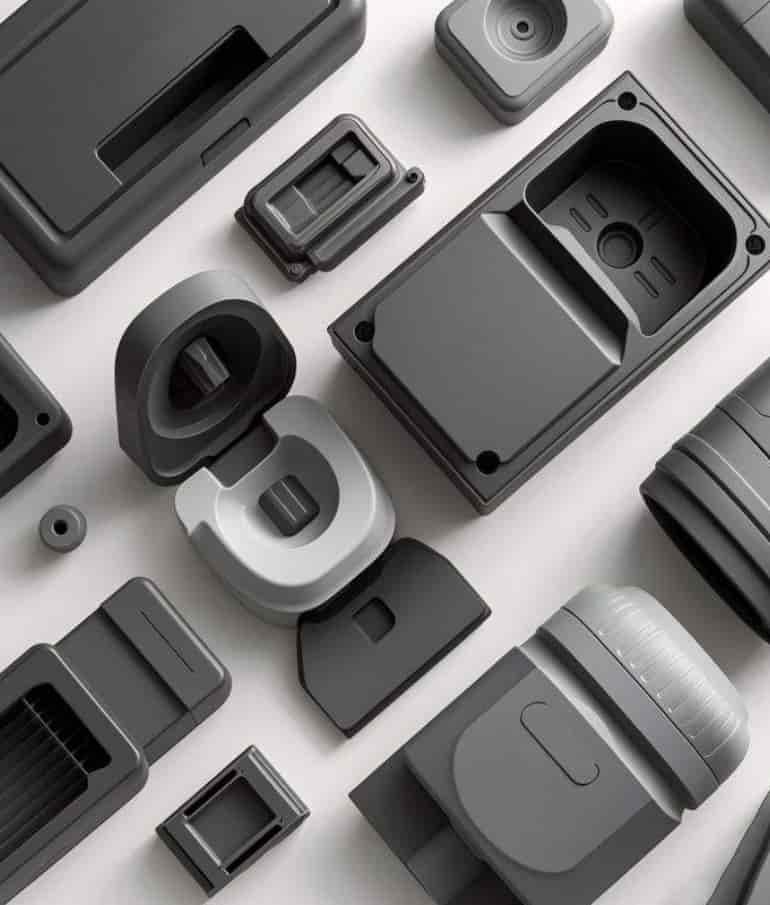

Advantages of Prototype Tooling
Prototype tooling enables rapid iteration and validation using production-grade materials, significantly reducing development time, cost, and risk before full-scale production.
1. Faster Time-to-Market
Functional prototypes can be produced in days, accelerating design verification and product launch timelines compared to traditional tooling.
2. Cost Efficiency
Lower initial investment versus production molds minimizes upfront costs while providing critical data for design and manufacturing decisions.
3. Design Flexibility
Engineers can quickly modify part geometry, materials, and features based on test results, optimizing manufacturability and performance early in the process.
4. Risk Mitigation
Early identification of design flaws, material issues, or production challenges prevents costly modifications in high-volume tooling.
5. Functional Validation
Prototype tooling yields end-use quality parts suitable for rigorous performance, durability, and fit testing under real-world conditions.
2000+ Happy Customers
ISO 9001
2015 certification
Why Choose CNC Protolabs For Rapid Tooling Service?
At CNC Protolabs, we leverage our engineering expertise and advanced manufacturing technology to deliver precision rapid tooling solutions for prototyping and low-volume production. We partner with you to develop custom injection molds that meet stringent technical specifications and accelerate your time to market. Our comprehensive capabilities ensure a seamless transition from rapid tooling to full-scale production molding.
Top Quality
Our rapid tooling process yields high-quality prototype moldings that achieve near-production or final-production grade standards. We ensure dimensional accuracy and superior surface finish from the first article.
Better Price
Through optimized design for manufacturability and efficient material selection, we provide cost-effective rapid tooling solutions. Our process engineering minimizes waste to deliver high-value tooling without compromising on performance.
Faster Delivery
With our in-house machining facilities and streamlined supply chain, we execute rapid tooling projects with industry-leading lead times. This integrated approach ensures your prototypes and initial production batches are delivered in days.
Quality Guaranteed
We implement rigorous quality control protocols throughout the tooling process. Every component undergoes comprehensive inspection by our QC engineers, including dimensional verification and functional testing, before shipment.

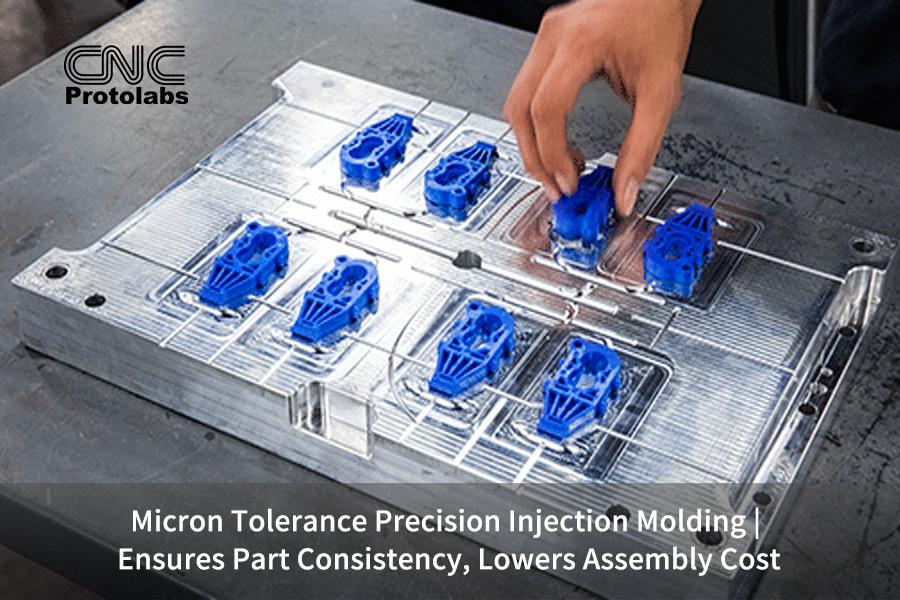

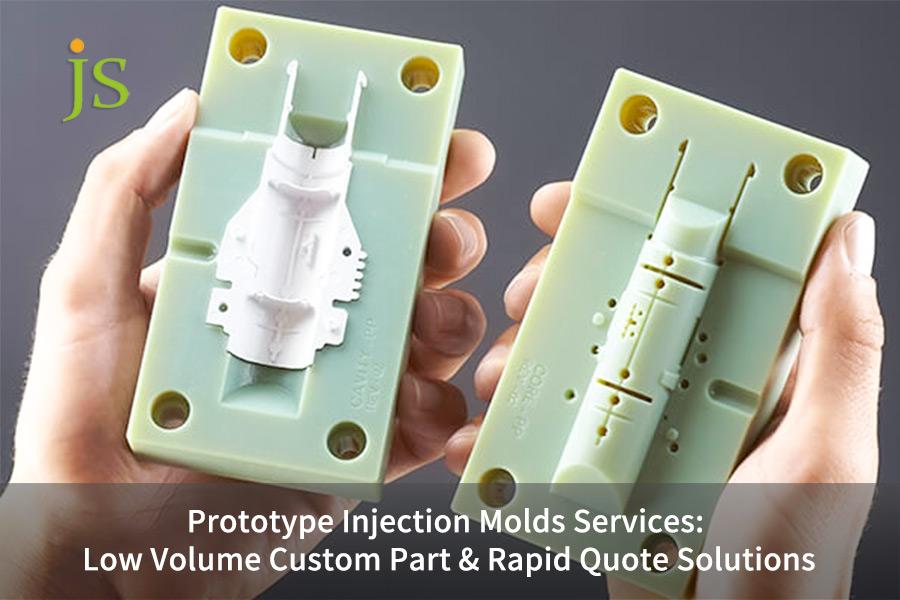

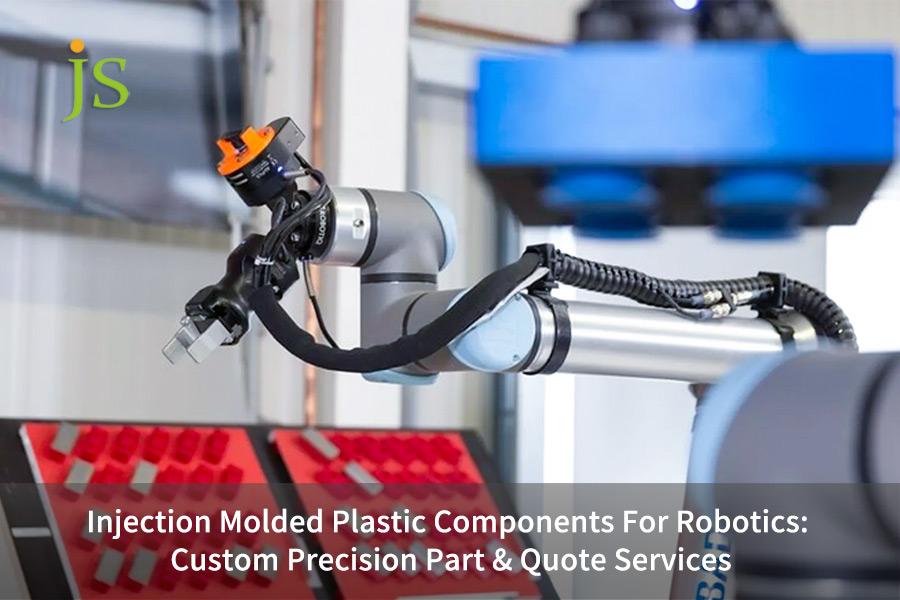

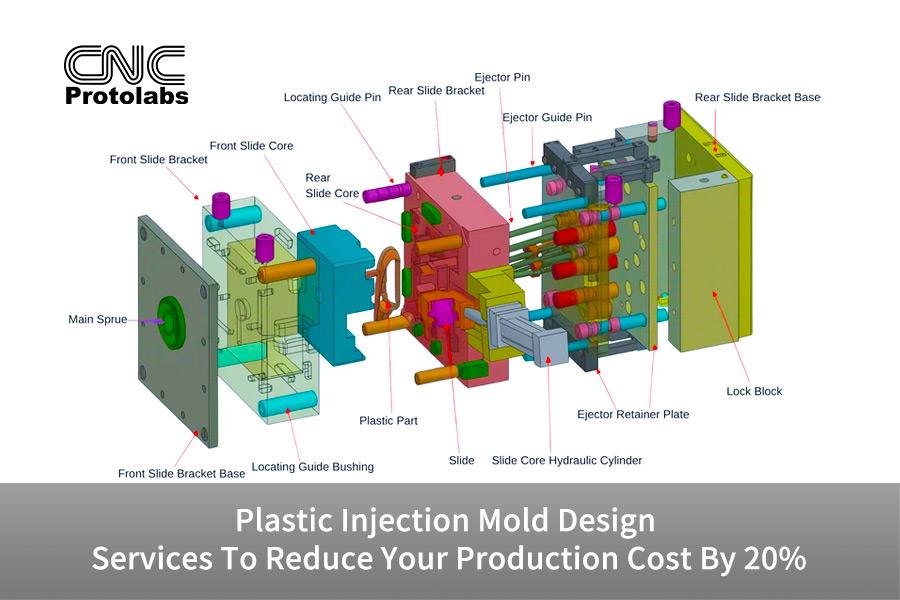

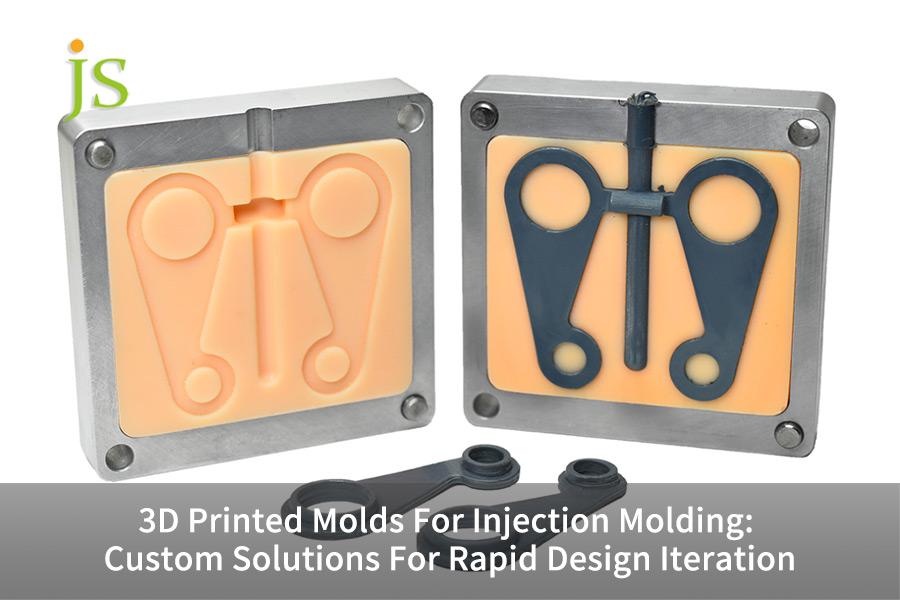

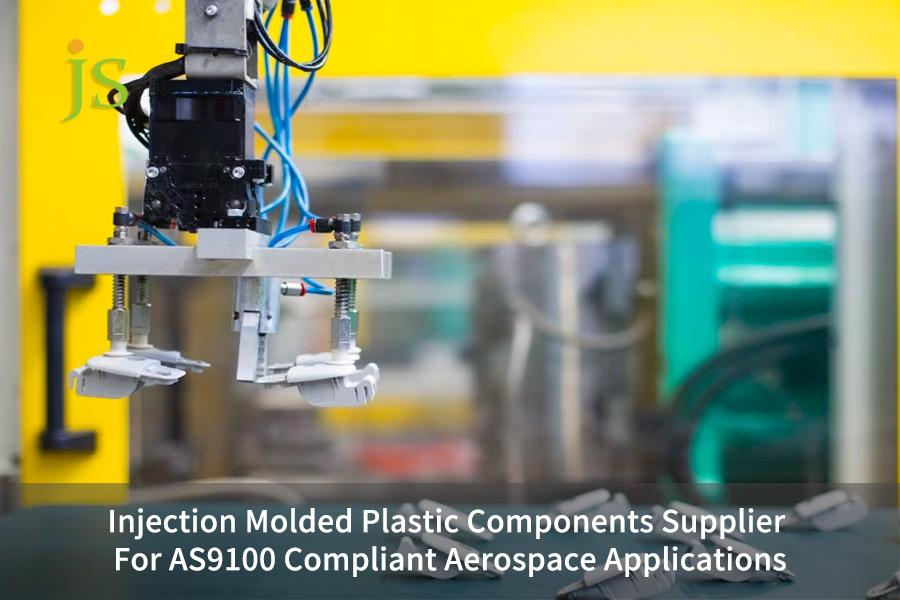

Injection Mold Tooling Latest News
Stay informed with the latest updates and announcements from CNC Protolabs. Learn about our most recent projects.
Injection Mold Tooling FAQs
The standard lead time for production-grade injection molds at CNC Protolabs is 3-5 weeks, depending on design complexity and cavity count. Our rapid tooling service offers expedited timelines for prototyping and bridge-to-production tooling, accelerating your product development cycle and reducing time to market.
We utilize premium-grade mold steels, including P20, H13, and S136, selected for superior hardness, wear resistance, and polishability. This material selection ensures long-lasting durability for high-volume production tooling and excellent surface finish for cosmetic plastic parts.
We start with a thorough Design for Manufacturability (DFM) analysis. Advanced CAD software and mold flow simulation are then employed to predict and optimize polymer flow, cooling efficiency, and part ejection before machining, minimizing potential defects and ensuring robust mold performance.
Mold lifespan is determined by its class, material, and maintenance. Production molds (Class 101/102) are engineered for over 1,000,000 cycles. Proper care and compatible plastic materials are key to achieving maximum longevity and sustained part quality.
Yes, we specialize in engineering high-precision multi-cavity and family molds. Our expertise in runner balancing and cooling system design ensures consistent part quality and high yield rates across all cavities, which is essential for cost-effective, high-volume manufacturing.
Our rapid tooling service enables functional testing and design validation with low-volume batches. This scalable approach allows for crucial refinements before the larger investment in a full-production mold, de-risking the transition to mass manufacturing.
We provide comprehensive custom mold making services, from single-cavity prototypes to complex multi-shot, stack, and unscrewing molds. Our solutions serve diverse industries, including automotive, medical devices, consumer electronics, and industrial components.
Every mold undergoes a stringent quality assurance protocol. This includes CMM inspection of critical dimensions, first-article inspection (FAI) of molded samples, and comprehensive testing of functionality, ejection, and cooling to guarantee performance before delivery. CNC Protolabs is committed to precision and reliability.
