Pattern & Tooling Design
Perform detailed part analysis and precision tooling design to ensure optimal casting geometry, material suitability, and manufacturability.
Custom Sand Casting Services
We deliver precision sand castings in aluminum, bronze, and specialty alloys. Our advanced sand molding techniques produce components with high dimensional accuracy and superior mechanical properties for automotive, aerospace, and industrial applications.
- Fast Quote & Feasibility: Receive timely assessment, mold solutions, and competitive pricing with 3D analysis.
- High-Integrity Castings: Achieve dense microstructure and enhanced strength, heat-treatable to T6 condition.
- Full Engineering Support: Integrated services from design and optimization to quality control.
- Volume Production: Cost-effective for medium-large batches with durable tooling and consistent output.
Upload Your Design & Get an Instant Quote Now!
Get instant pricing, project lead times, and DFM feedback
STEP | STP | SLDPRT | STL | DXF | IPT | X_T | X_B | 3DXML | CATPART | PRT | SAT | 3MF | JT files
File size: 15MB
All uploads are secure and confidential
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
15+Years in Sand Casting
200,000+Sand Castings Delivered
98.8%On-Time Delivery Rate
≤1.2%overall defect rate
Trusted bynumerous companies
JS Precision provides metal casting services. With 15+ years years of experience, we ensure a 98.8% on-time delivery rate and maintain a defect rate of ≤1.2% to achieve reliable manufacturing.

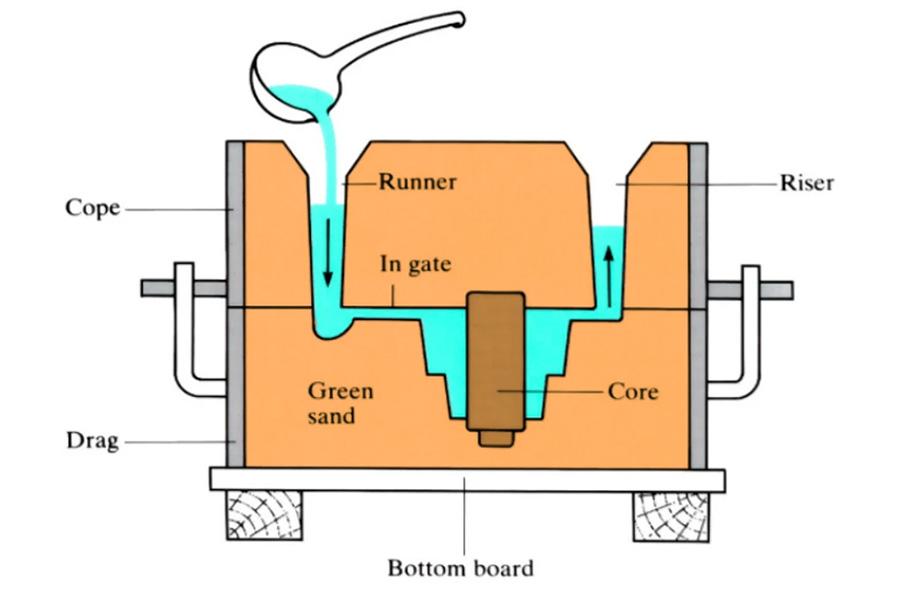

What is Sand Casting?
Sand casting creates metal components by pouring molten metal into sand mold cavities, accounting for over 60% of all metal castings worldwide.

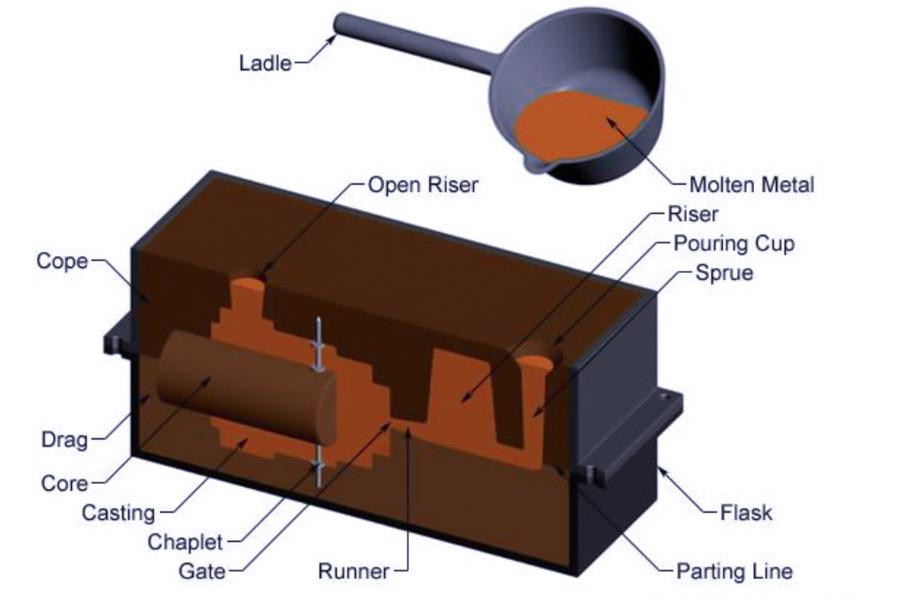

This process involves pattern making, mold preparation with sand mixtures, pouring molten metal, cooling, and shakeout to retrieve the final part. Valued for its cost-effectiveness and flexibility, it produces parts ranging from 0.1 to 300 tons, serving industries like automotive, aerospace, and heavy machinery.
The global aluminum sand casting market was valued at $6.52 billion in 2025. Modern advancements include 3D-printed sand molds and AI-driven process optimization.
Sand Casting Core Technical Parameters
Below are the key technical parameters for our sand casting services (primarily resin sand), which can be customized according to client specifications. All processes comply with ISO 9001 and relevant ASTM/EN industry standards.
| Casting Material | Pouring Temp. (°C) | Tensile Strength (MPa) | Hardness (HB) | Dimensional Tolerance (CT) |
|---|---|---|---|---|
| Ductile Iron (QT500) | 1360–1420 | ≥500 | 170–230 | CT8–CT10 |
| Carbon Steel (SC450) | 1520–1600 | ≥450 | 190–250 | CT9–CT11 |
| Aluminum Alloy (A360) | 710–760 | ≥240 | 70–95 | CT7–CT9 |
| Stainless Steel (304) | 1550–1620 | ≥520 | 150–200 | CT9–CT11 |
| Brass (CZ121) | 1020–1080 | ≥340 | 80–110 | CT8–CT10 |
General Process Parameters
- Casting Weight Range
- 0.3 kg–60 t
- Max Mold Dimensions
- 8000 x 6000 x 3000 mm
- Surface Roughness
- Ra 12.5 – 25μm (optimizable to Ra 6.3μm)
- Dimensional Tolerance
- ±0.3 mm to ±1.0 mm
- Tooling Options
- Wood, metal, and resin patterns
- Sand Systems
- Resin sand, sodium silicate sand, quartz sand
Melting and Casting Parameters
- Melting Equipment
- Medium-frequency induction furnace (1–10t)
- Pouring Methods
- Manual or mechanized pouring systems
- Solidification Control
- Cooling time from 4 to 48 hours
- Heat Treatment
- Annealing, normalizing, quenching & tempering
- Quality Standard
- Compliant with GB/T 9444-2019 for defect control
- Production Capacity
- 100-10,000 pieces per month
How to Execute the Sand Casting Process
Our sand casting process is a systematic and precision-focused manufacturing method designed to deliver high-integrity metal components with consistent quality and dimensional accuracy.
2
Mold & Core Fabrication
Fabricate robust molds and complex cores using advanced resin sand systems and CNC-assisted methods for superior dimensional stability.
3
Molding & Assembly
Prepare and assemble sand molds with precise core placement to form complete cavities, ensuring structural integrity for metal pouring.
4
Melting & Controlled Pouring
Melt alloys under strict thermal control and execute precise pouring protocols to achieve complete fill and minimize defects.
5
Solidification & Shakeout
Manage controlled cooling cycles to attain required metallurgical properties, followed by efficient mold removal and casting extraction.
6
Finishing & Quality Assurance
Apply finishing treatments and conduct rigorous quality inspections, including dimensional verification, to ensure final product compliance.
Post-Casting CNC Machining
We provide integrated CNC machining solutions for sand cast components, delivering final precision and optimized manufacturability. Our engineering team determines the optimal balance between as-cast features and machined surfaces, utilizing mold flow analysis and advanced simulation to ensure part integrity.
Our precision finishing services include:
- Complex Part Machining with Multi-Axis CNC Centers
- Fine-Detail Machining using Wire EDM Technology
- Graphite Machining for Detailed Electrodes and Molds
Sand Casting Quality Assurance
Quality is integral to our custom sand casting services, rigorously applied from design to delivery and certified under ISO 9001:2015, ISO 14001:2015, and IATF 16949:2016 standards.
Advanced Inspection Equipment
Our verification employs precision instruments including spectrometers for material chemistry, CMMs for 3D geometry, surface testers for finish, and ultrasonic testers for internal integrity.
Comprehensive Testing Procedures
Every component undergoes multi-stage validation: metallurgical analysis, mechanical property testing, pressure tightness checks, and full dimensional inspection.
Proven Quality Standards
We achieve a first-article inspection pass rate above 94%. Any non-conformance is promptly rectified with rework or replacement, with final audit clearance required before shipment.
Compliant Manufacturing Services
This systematic approach ensures reliable casting solutions for automotive, industrial, and heavy equipment sectors.
Why Choose JS Precision for Custom Sand Casting?
/01
Professional Sand Casting Solutions
Choose JS Precision for reliable sand casting services that deliver superior dimensional accuracy, consistent quality, and expert engineering support for every custom project.
/02
High-Quality Sand Castings
We combine advanced foundry techniques with controlled production processes to ensure components with precise tolerances, excellent surface finishes, and reliable mechanical properties.
/03
Guaranteed Lead Times
Our optimized workflow supports projects from prototype to volume production, with most standard orders completed within 3-7 business days for dependable scheduling.
/04
Expert Casting Engineering
Our team provides specialized design for manufacturability (DFM) analysis and process optimization, ensuring efficient production of high-integrity cast components.
/05
Flexible Production Capabilities
We accommodate orders from prototype quantities to high-volume runs, utilizing scalable manufacturing solutions and versatile alloy options for diverse industry needs.
/06
Proven Industry Applications
Our castings meet stringent specifications for automotive, industrial machinery, and heavy equipment applications, ensuring performance and compliance in demanding environments.
APPLICATIONS
Sand Casting for Industrial Applications
Sand casting delivers large, complex metal components with cost-efficiency and design flexibility for demanding sectors.
Automotive & Transportation
Engine blocks, cylinder heads, and transmission housings requiring high strength and thermal stability.
Aerospace & Defense
Lightweight structural brackets, engine mounts, and defense components meeting rigorous performance standards.
Heavy Machinery & Equipment
Pump casings, valve bodies, and gearboxes built for durability in mining, construction, and agricultural machinery.
Industrial Machinery & Automation
Heavy-duty frames, gearboxes, and custom enclosures serving as foundational components for automated systems.
Energy & Power Generation
Turbine housings, valve bodies, and structural parts for power plants and renewable energy systems.
Pump & Valve Manufacturing
High-integrity impellers, pressure-rated casings, and fluid control components for industrial applications.
Advantages and Disadvantages of Sand Casting
Advantages
- Accommodates complex and large part geometries for custom components.
- Compatible with a wide range of ferrous and non-ferrous casting alloys.
- Cost-effective pattern making suitable for prototype and short-run production.
- Manufactures very heavy and oversized components not feasible with other methods.
- Enables quick design iterations and functional testing for product development.
Disadvantages
- Typically requires secondary machining to achieve smooth functional surfaces.
- Offers less precision than investment or die casting processes.
- Slower cycle times compared to high-pressure casting methods for volume runs.
- Relies on skilled labor for pattern making and mold assembly.
- Generates higher gating and riser waste, impacting overall material efficiency.
Success Stories of Sand Casting
JS Precision partners with leading manufacturers across the automotive, heavy machinery, energy, and industrial equipment sectors, delivering high-integrity sand castings for demanding applications worldwide.
Automotive Industry
JS Precision & Global Automotive OEM: High-Performance Engine Block Casting
When a major automotive manufacturer required a lightweight, high-strength aluminum alloy engine block for its next-generation powertrain, they selected JS Precision. The challenge involved achieving complex internal cooling channel integrity, stringent porosity control, and maintaining CT8 dimensional tolerances under high-volume production.
±0.25mmDimensional Accuracy
25%Weight Reduction vs. Iron
99.5%Quality Yield Rate
Heavy Machinery Industry
JS Precision & Mining Equipment Leader: Durable Gearbox Housing for Extreme Conditions
A leader in mining machinery needed a massive, wear-resistant ductile iron gearbox housing capable of withstanding extreme shock loads and abrasive environments. Our solution involved advanced simulation for solidification control and a customized gating system to ensure sound internal structure and consistent mechanical properties.
CT10Dimensional Standard
30%Extended Service Life
12 MonthOn-Time Delivery
Energy Sector
JS Precision & Renewable Energy Systems Provider: Large Valve Body for Hydroelectric Power
A provider of renewable energy systems required a large, corrosion-resistant stainless steel valve body for a major hydroelectric dam upgrade. The key challenges included achieving pressure tightness in thick-walled sections and managing distortion during heat treatment for a component weighing over 3 tonnes.
50 BarPressure Zero Leakage
100%Ultrasonic Testing Pass Rate
18-WeekCritical Path Deadline
Industrial Equipment
JS Precision & Packaging Machinery Manufacturer: High-Cycle Frame for Automated Assembly Line
A manufacturer of high-speed packaging systems needed a rigid, vibration-dampening cast iron frame to serve as the foundation for a new automated line. The requirement focused on exceptional as-cast surface finish to minimize machining, alongside superior damping properties to ensure positioning accuracy at high cycle speeds.
Ra 12.5μmAs-Cast Surface Finish
40%Reduction in Machining Time
99.8%Uptime in Operation
Sand Casting Latest News
Stay informed with the latest updates and announcements from JS Precision. Learn about our most recent projects.
Sand Casting FAQs

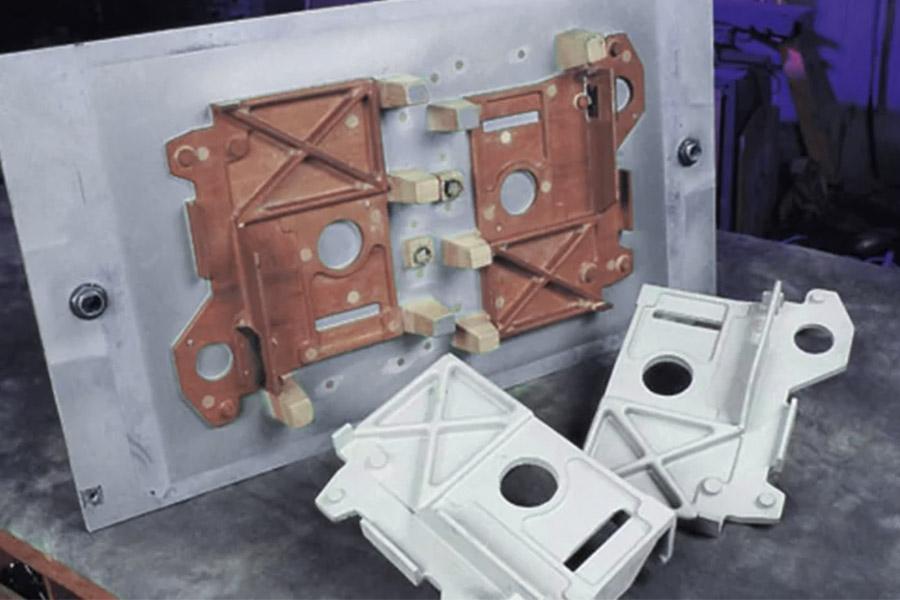

We provide comprehensive material solutions including aluminum alloys, ductile iron, carbon steel, stainless steel, and specialty bronzes. Our foundry services include alloy selection guidance to optimize performance for wear resistance, corrosion protection, or high-temperature applications in your specific industry.
Our advanced molding systems consistently achieve CT8 to CT11 tolerance grades per ISO 8062, with critical dimensions maintained within ±0.25mm to ±1.0mm. Precision machining services are available to reach tighter tolerances where required for component assembly and performance.
Our streamlined workflow ensures rapid prototyping in 2-4 weeks and production lead times of 4-8 weeks based on complexity. We provide dedicated project management with milestone tracking to guarantee on-schedule delivery for your manufacturing timeline.
Yes, our scalable manufacturing solutions efficiently handle orders from 50 to 50,000+ pieces. We optimize tooling strategies and production planning to provide cost-effective solutions across different volume brackets without compromising quality standards.
Our technical team provides complete Design for Manufacturability analysis, including gating system design, solidification simulation, and cost optimization recommendations to enhance casting quality and production efficiency before tooling commitment.
We implement rigorous process controls including real-time thermal monitoring, advanced gating design, and slag prevention systems. Each batch undergoes non-destructive testing to verify internal integrity before shipment.
Our integrated services include shot blasting, heat treatment, precision machining, surface coating, and non-destructive testing. We provide complete component finishing to deliver ready-to-install parts for your assembly lines.
Our flexible engineering approach allows rapid pattern modifications through digital design adjustments and efficient tooling revisions. We maintain clear change management protocols to implement design updates with minimal disruption to your production schedule.
All shipments include comprehensive documentation including material certificates, heat treatment records, first article inspection reports, and dimensional verification data compliant with ISO 9001 and industry-specific certification requirements.
