The core of a refined drone prototype is a high-precision aluminum alloy center disk, enveloped by a sculpted carbon fiber bracket and seated in a precision-threaded brass connector.

In a traditional development cycle, this would require three or four vendors and weeks of lead time. But with the masterful application of the "dynamic duo" of CNC milling and turning, all this can take mere days to go from a computer model to a handheld, testable, functioning prototype.

This tutorial will discuss how this couple is the linchpin for CNC rapid prototyping,while providing a detailed explanation of the CNC prototyping advantages to help you understand how they shorten development cycles, reduce costs, and create prototypes that are close to the final product.

Key Answer Summary

Comparative Dimensions	CNC Milling	CNC Turning
Core Technology	Subtractive manufacturing, where a rotating tool cuts a stationary blank.	Subtractive manufacturing, where a rotating blank is cut by a fixed tool.
Motion Axes	Multi-axis (3-axis, 5-axis), with complex tool motion.	Typically 2 axes, with the blank rotating and the tool moving linearly.
Suitable Geometries	Parts with complex curves, grooves, holes, and 3D contours.	Rotationally symmetrical parts with cylindrical, conical, or circular features.
Typical Prototype Applications	Drone bodies, gearbox housings, custom heat sinks, medical device housings.	Shafts, gears, bolts, nuts, sleeves, laser lens barrels.
Raw Material Forms	Block shaped and plate-like materials.	Rod shaped and tubular materials.

Why Trustworthy? JS Precision's Rapid Iteration Experience

Why should you believe this CNC milling and turning guide? Because it's based on over 15 years of JS Precision's real-world experience with rapid iteration.

In the aerospace sector, we help customers manufacture aluminum-titanium alloy drone parts with 30% less single-piece processing time. In the medical device sector, we utilize CNC turning to produce high-precision threaded parts. We deliver over 500 rapid prototyping projects annually, helping customers reduce their product development cycles by over 40% on average.

We have also handled numerous emergency orders for "10 complex prototypes in 2 weeks," and through every project, we have learned the art of process enhancement and cost management.

This book is a culmination of actual experience, from technical checking to cost control, all verified by real projects, which can help you have a clearer understanding of the CNC prototyping advantages and provide reliable references for your rapid prototyping needs.

If you require professional CNC turning and milling services to drive your project forward, JS Precision offers a full-process service from design optimization to production delivery. Once you place an order, our engineers will respond quickly and develop a customized machining plan.

CNC Milling And Turning: The Central Function In Quick Prototyping

Having established the reliability of this guide, let us first establish the basic role of CNC milling and turning in rapid prototyping.

• CNC milling utilizes multi-axis tool motion to cut away material and sculpt complex profiles from solid material. The process is often used in the aerodynamically formed load-carrying members of drone fuselages.
• CNC turning does not, however, rotate bar stock, which allows the tool to "sculpt" symmetrical round pieces. Components like bearing mounts and shafts employ this method for precision.

Both are employed heavily in rapid prototyping because they can easily translate 3D models into real-world prototypes in quick time and are simple to render flexible so that they can be used to work with a wide range of materials, making it easy to machine from aluminum alloys to stainless steel.

As a simple contrast between the two, the following is a comparison table:

Technology Type	Processing Principle	Applicable Part Types	Core Benefits (Rapid Prototyping Application)
CNC Milling	Multi-axis tooling "cuts" solid material.	Special-shaped structural components, enclosures, asymmetric components.	High capability to handle complex geometry, versatile with a wide range of materials.
CNC Turning	Rotating bar material+ cutting tool "shaping".	Axes, threaded parts, rotating bodies.	Symmetrical parts have high precision and fast processing speed.

Revealing The Difference: A Fundamental Comparison Of CNC Turning And Milling For Rapid Prototyping

Having understood the basics of CNC milling and turning, now let us go into their basic differences to further help you make a right technology choice for your project.

The CNC milling secret is "multi-axis motion." 3-axis and 5-axis machining centers, for example, allow the tool to engage the material from multiple directions, allowing asymmetrical parts with grooves, keyways, and compound curved surfaces such as "carving" the precise shape of a drone fuselage into an aluminum ingot.

The nature of CNC turning is "material rotation." The bar is being turned at high speed on the spindle as the tool cuts in a predetermined path. CNC turning performs particularly well in turning symmetrical parts such as cylindrical and conical shapes. For example, the cylindrical inner bore of a bearing mount can be turned with CNC turning in order to achieve a higher roundness.

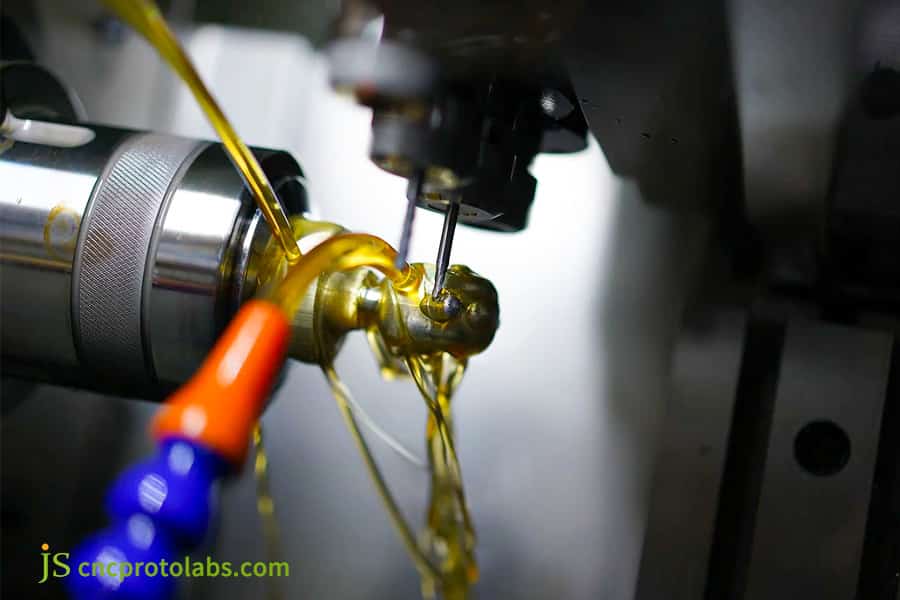

But modern multi-task machining centers—CNC turning and milling machines—have dispensed with the limitation of choosing a single technology. It integrates CNC milling and turning capability on one machine for complete machining of parts from symmetrical round features to intricate, bespoke-shaped structures in one setup.

As an example, in shaft parts machining with keyways, there is no need to first manufacture the shaft body on a CNC turning machine and then transfer it to a CNC milling machine to manufacture the keyway. All this is possible in one operation on the combined machine, with reduced setup time and removal of accuracy errors associated with secondary setups.

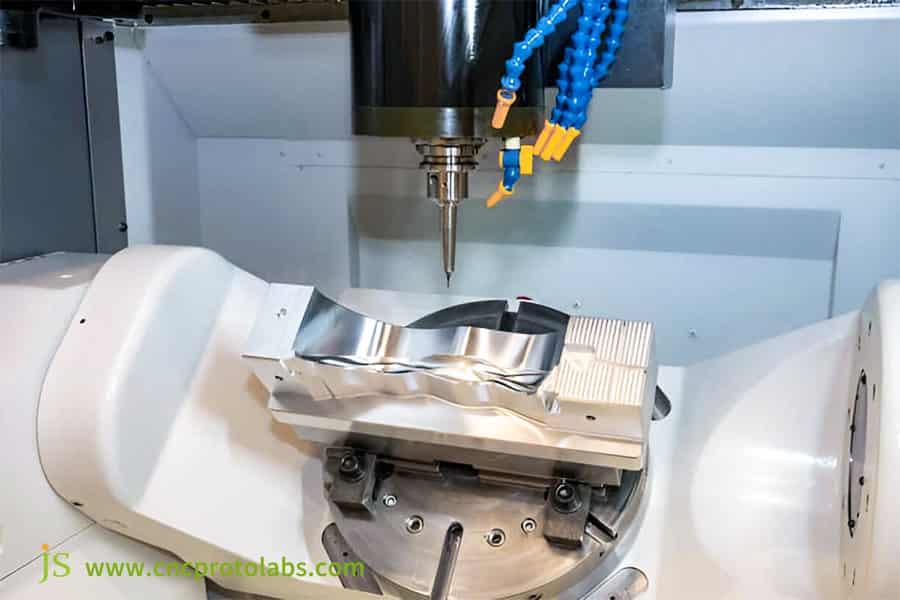

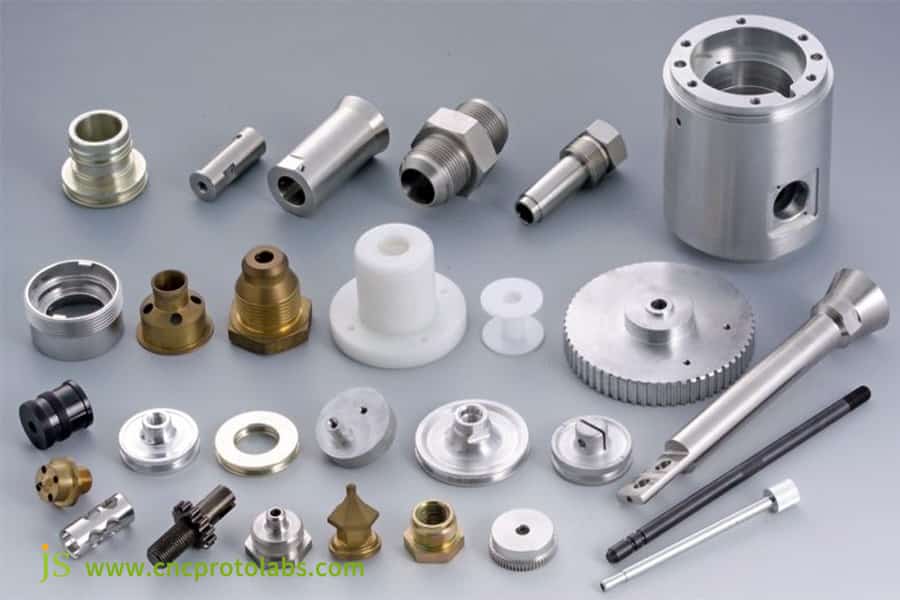

Figure 1: This demonstrates the high-precision rapid prototyping achieved through CNC milling and turning processes manufactured by JS Precision.

Synergy: Four Typical Scenarios Reveal When To Combine Milling & Turning Technologies

Since CNC milling and turning are both beneficial when used separately, and there are also combined machines that can perform both, what specific circumstance warrants combining these two technologies? The subsequent four usual situations are capable of being clear references:

1. Parts with non-rounded features on shafts:

Most of such parts are symmetrical and require CNC turning to achieve roundness and concentricity. Non-rounded features such as keyways and flat portions on the sides of the shaft cannot be achieved through turning and must be "carved" through CNC milling. Output shafts of motors normally have this design.

2. Housings with precision threaded holes:

Housings are typically irregularly shaped and must be CNC milled to create the overall contour and mounting cavity. Housings' precision threaded holes can be tapped out by using the tapping feature of a CNC turning center, providing higher thread accuracy than plain milling and preventing screw jamming during subsequent assembly.

3. Asymmetric rotating elements:

The main outline of the element is rotationally symmetrical, say a roller with an eccentric groove. The cylindrical main body of the roller is initially rotated on CNC. The asymmetric groove can be only machined by multi-axis CNC milling to ensure correct groove positioning.

4. Parts requiring single fixture setup with high precision:

When part precision demands are extremely high, say ±0.025mm tolerances, secondary clamping is likely to introduce errors. In these cases, all the turning and milling is carried out in one setup utilizing a CNC milling and turning machine, whereby the highest precision is ensured. This is particularly applicable in aerospace precision connectors.

In such situations, it is impossible for a single technology to fulfill all requirements for parts. A combination of milling & turning is the only way to quickly produce competent rapid prototypes.

JS Precision has rich experience in milling & turning combined processing. Based on your part's characteristics, we can decide whether the two technologies are required and work out an optimized process plan to guarantee rapid prototypes meet precision demands and reduce delivery time.

Precision Limits: CNC Turning And Milling Machines Enable Micron-Level Prototypes

In rapid prototyping, precision can often single-handedly determine whether a prototype is able to withstand testing and assembly requirements. The high precision provided by CNC turning and milling machines is one of the most prominent reasons why firms consider this technology.

High-quality CNC turning and milling machines typically can provide machining precision of ±0.025mm, whereas certain premium equipment even possess the ability beyond ±0.01mm.

This degree of accuracy is sufficient to meet the majority of aerospace, medical, and automotive prototype requirements. For example, drone bearing mounts require accurate roundness to prevent bearing seizure, which can easily be achieved with CNC turning.

Nevertheless, CNC machining accuracy depends on numerous factors. The following is a list of primary influencing factors and their corresponding control mechanisms:

Factors Affecting Accuracy	Specific Impact	Control/Optimization Method
Machine Tool Type	Conventional 3-axis machines are not as precise as 5-axis or multi-function machines.	Choose a 5-axis CNC milling machine or CNC turning and milling machine.
Tool Selection	Tool wear and rigidity issues could lead to deviation in dimensions.	Use high-speed steel or carbide tools and regularly check tool condition during machining.
Programming Quality	Poor tool path planning may increase errors.	Use the right programming software and optimize the path based on actual machining experience.
Material Properties	Material deformation (e.g., heat dissipation deformation of aluminum alloys after machining).	Choose materials with stable properties and perform aging treatment after machining.

Apart from the above typical factors, "dynamic precision compensation" is an even lesser-known advanced technology that can detect automatically in real time machining errors, such as size deviation because of tool wear, and adjust machining parameters accordingly to further improve precision and stability.

If you must machine prototype parts to micron levels of precision, JS Precision's CNC turning and milling machines with dynamic precision compensation technology can accommodate your high-precision requirement. From process to equipment, we have complete control over precision details from start to finish.

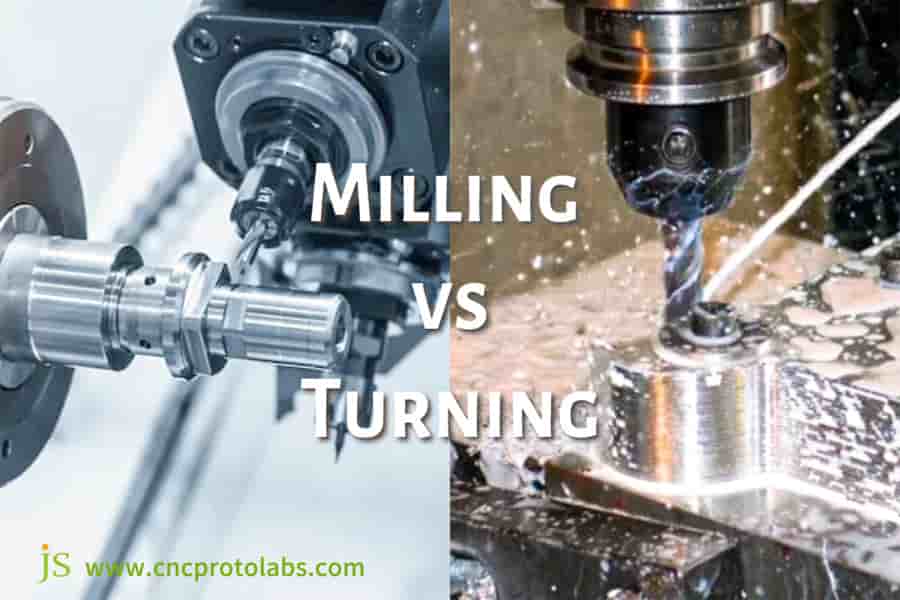

Figure 2: Comparison between CNC Turning and Milling Machine.

Accelerating Innovation: How CNC Rapid Prototyping Shortens Product Development Cycles

One of the basic requirements of rapid prototyping is "fast." CNC Rapid Prototyping allows businesses to accelerate innovation and reduce product development lead times in several distinct manners.

First, CNC technology allows for quick iteration. If redesign of prototype tests are required, merely change the CNC programming parameters without re-making the mold. For instance, a car parts business altered a prototype's measurement and produced a new prototype through the use of CNC machining in three days, as opposed to over two weeks with traditional mold-making techniques.

Secondly, CNC machining reduces the cost of molds. Prototypes in small batch sizes (e.g., 10-50) usually entail molds, whose costs are thousands or tens of thousands of dollars. CNC machining skips the use of molds, thus reducing these costs.

At the same time, CNC machining integrates computer design. 3D CAD models can be directly imported into CNC programming software, skipping middleman conversion processes and saving more time.

Statistics confirm that companies using CNC rapid prototyping have gained an average cycle reduction of over 50% in developing their products, with certain emergency projects reducing the cycle by as many as 70%.

Besides that, "virtual prototyping" merged with CNC is increasingly becoming a new trend. Software simulates CNC machining ahead of creating a physical prototype to verify tool path conformity and part geometry. This reduces the number of physical prototype tests and avoids time-consuming iterations.

For example, JS Precision used to work for an electronics company earlier and utilized virtual prototyping to detect part machining interference issues well in time, enabling them to create an expert prototype in one shot and deliver it five days ahead of plan.

For reducing the product development time with the help of CNC rapid prototyping, JS Precision offers full-process services from virtual prototyping to actual part machining, thus you can speed up your design becoming a prototype and seize market opportunities.

Figure 3: CAD drawings of drone components and CNC machined solid parts.

Turning Expertise: Rapid Prototype Part Types Most Ideal For CNC Turning

In CNC milling and turning combined, CNC turning offers priceless experience, particularly when cutting some rapid prototype components.

Firstly, shaft components such as motor shafts and drive shafts, must be maintained to very close roundness and concentricity. CNC turning, through rotating the bar stock around its central axis, has equal dimensions throughout all cross-sections and a high surface finish typically equal to Ra 0.8μm or less, reducing the need for secondary grinding.

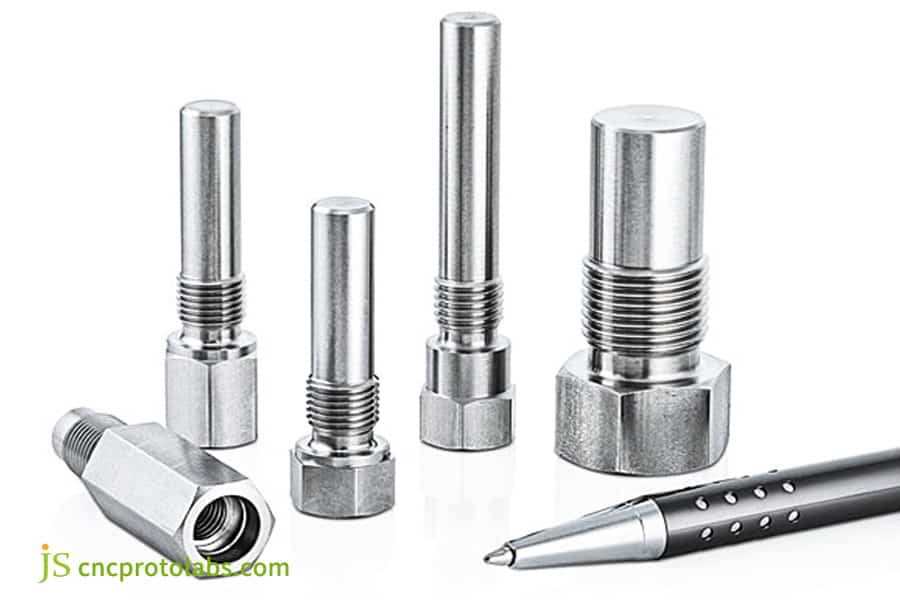

Second, threaded parts, such as bolts, nuts, and threaded fittings, require precise thread pitch and depth without the precision error of manual tapping. This makes it ideal for prototypes that have to be assembled and tested often.

In addition, for rotating parts, such as rollers and bearing sleeves, with rotationally symmetrical outer diameters or inner bores, CNC turning possesses great processing speeds and can achieve dimensional consistency per batch of prototypes.

In addition to the common applications, asymmetric turning is a less common but helpful approach in CNC turning. It can be utilized to turn asymmetric rotary parts, such as discs with eccentric holes. By keeping the material in a special fixture, the CNC turning machine is able to turn the eccentric feature during rotation, meeting specialized prototyping demands.

For example, JS Precision previously turned a roller prototype with an eccentric groove for an automation equipment producer. With asymmetric turning technology, the operation was carried out in one step, bypassing the complicated subsequent milling step and reducing machining time by 20%.

If you need prototype CNC machining, such as shafts and threaded parts, JS Precision's technical capabilities and equipment can use their technical expertise to provide you with high-precision and high-efficiency machining services.

Case Study: The High-Performance UAV Project

The following example demonstrates how CNC milling and turning were applied in a rapid prototyping project and how JS Precision solved a client challenge.

Client Needs

An industrial inspection drone technology company needed to come up with a prototype mid-frame for a new generation drone. Two key specifications were needed for the prototype:

• The metal used should be high-strength and light weight, and therefore the employment of 7075 aircraft aluminum alloy was undertaken.
• The manufacture had to be within the strict schedule of producing 10 sets in two weeks for field testing.

To further complicate the task, the component also had a advanced, non-standard load-bearing structure (to hold up the flight vibrations of the drone) and six closely coaxial bearing mounts (to prevent bearings from sticking together during assembly). This task was impossible with CNC turning alone or CNC milling alone.

JS Precision's Solution

1.For the middle frame's unique-shaped bearing structure, we applied 5-axis CNC milling technology.

With this technology, we have the ability to mill material from different sides and precisely machine the complex cavities and support structures of the middle frame. We also optimized cutting parameters of the 7075 aluminum alloy so as to offer structural strength without leading to material deformation in the process of machining.

2.For the bearing mounting seat, we transfer it to a CNC turning and milling machine for precision machining.

The bearing mount requires a 10mm diameter inner hole with a roundness tolerance of ±0.01mm. Turning gives a higher guarantee of this accuracy, and machining on a multi-tasking machine eliminates secondary clamping, hence minimizing clamping mistakes.

3.Our CNC turning and milling services team optimized toolpaths, such as merging common milling and turning operations.They also applied intelligent layout to put multiple parts together on one sheet of 7075 aluminum alloy, minimizing material waste. Lastly, processing time per part was reduced by 30% from 4 hours to 2.8 hours.

Results

Lastly, the customer was also provided with all 10 prototypes within 10 days, ahead of schedule by four days. Testing confirmed that the prototypes met the design load-bearing strength levels (capable of supporting a 50kg static load), roundness tolerance of the six bearing mounts within ±0.008mm, and smooth rotation of the bearings during assembly without jerkiness.

Not only did the customer manage to perform field testing with these prototypes successfully, but due to their already established quality, they were utilized directly for trial small-batch manufacturing, accelerating three weeks of product testing and saving valuable time for subsequent market launch.

Figure 4: High-strength aluminum alloy drone frame prototypes were manufactured using CNC milling and turning processes.

Cost-Effectiveness: Maximum Savings Through CNC Turning And Milling Services

Choosing CNC milling and turning for rapid prototyping not only ensures speed and precision, but also maximizes the savings by benefiting from professional CNC turning and milling services, and this is why firms place this technology at the top of their priorities. Four aspects matter:

Design for Optimization (DFM)

JS Precision engineers will review your part design before machining and recommend optimization to reduce machining cost and complexity.

For instance, they can turn a narrow, deep groove into a wide, shallow one to eliminate the requirement for unique tooling, or divide a complicated internal cavity into two lesser ones and connect them together in order to minimize machining time. One client has saved part machining expense by 15% with our DFM optimization.

Intelligent Layout and Material Efficiency

Before machining, we position parts best on a sheet or bar depending on part size and material grade. On a 1000mm x 500mm aluminum alloy sheet, layout can accommodate two or three additional parts, reducing material waste and increasing material efficiency by as much as more than 20%, directly reducing material cost.

Batch Effect

For even small batches of prototypes (e.g., 10-30 units), effective process planning also saves setup time and cost. For example, by processing similar parts in batch, tool adjusting and programming can be performed simultaneously, avoiding repeated tool changing and parameter adjustments, and decreasing per-part processing costs by approximately 10%.

Secondary Operation Avoidance

Specialized service providers can carry out all the operations, such as milling, precise turning of holes, tapping, and grinding, in one operation to prevent searching for other suppliers for further secondary processing and prevent secondary transport and communication expenses.

For example, a sample customer originally needed to search for three suppliers for milling, turning, and tapping. By visiting us, they were able to achieve it in one shot, saving a whopping 25%.

The table below is a reference to the actual effects of different cost-saving techniques:

Cost Saving Methods	Average Savings Ratio	Suitable Scenarios
Design for Manufacturing (DFM)	10%-20%	First-time machining prototypes, intricate structures.
Intelligent Layout	15%-25%	Small-batch high-volume prototypes.
Batch Effect	8%-15%	Prototypes of 10 or more small-batch.
Avoiding Secondary Operations	20%-30%	Parts requiring multiple steps, intricate parts.

FAQs

Q1: Is CNC machining incapable of handling complicated internal cavities?

CNC tools have to touch the machine surface to cut, so 3D printing might be a more suitable choice for extremely complicated internal cavities. But JS Precision circumvents such challenges through inventive process design, completing more complex cavity processing than imagined, and meeting most prototype requirements.

Q2: How do you choose the most suitable material for your prototype using CNC machining?

Material selection depends on application requirements for your prototype, with four key issues being considered: strength-to-weight ratio, wear resistance, corrosion resistance, thermal/electrical properties. JS Precision experts will recommend materials based on your specific needs.

Q3: What is the minimum detail size that can be achieved using CNC machining?

Minimum detail size in CNC machining is essentially controlled by the tool. CNC milling can typically produce details of 0.1mm, e.g., fine grooves or holes. Thin and deep grooves are difficult to machine due to tool stiffness. For finer features, micro-milling operations are used. Designers should consider the minimum diameter of the tool to avoid failure of machining.

Q4: I only have an idea or a concept sketch. Can I use your service?

Of course. However, to ensure machining accuracy, we recommend you provide a completed 2D drawing or 3D CAD model. If you only have an idea or initial model, JS Precision's design team would be glad to help you to turn your idea into standardized design documents. We will accompany you every step through the design process to ensure smooth CNC machining.

Summary

CNC milling and turning are far more than traditional manufacturing techniques, they are both formidable and indispensable tools within the business of contemporary CNC rapid prototyping.

They do deliver the ideal marriage between the absolute freedom of computer design and the real performance of actual materials, providing the most reliable and fastest route from proof of concept through to market launch.

Whether your item requires sophisticated shapes for turning, or precision rotated components for milling, or both, our full CNC turning and milling services are available at your service.

Upload your CAD file today, experience professional manufacturability analysis, and get an instant quote within minutes. Let's work together to accelerate your innovative ideas to reality.
