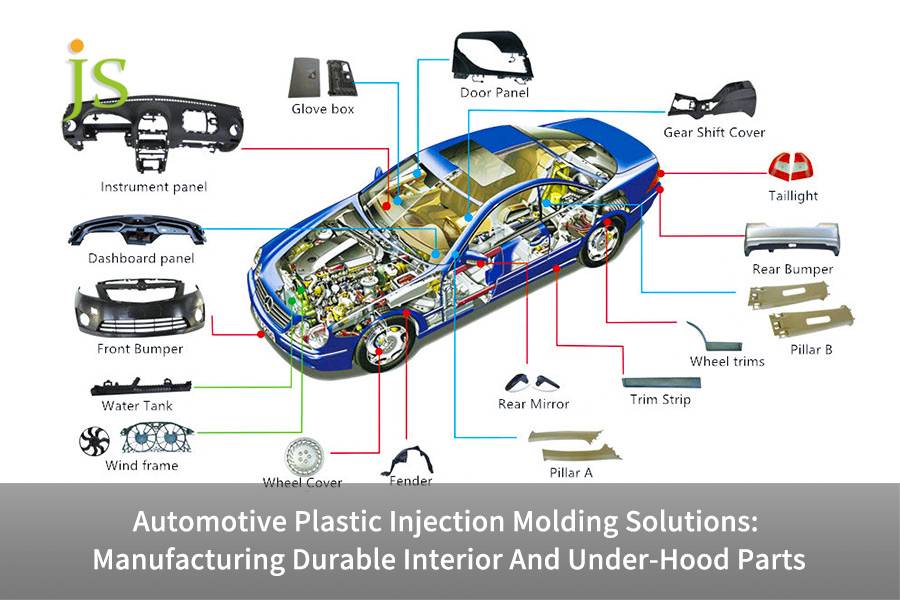

汽车塑料注塑解决方案：制造耐用的内饰和引擎盖下零件

关键要点：

• 制造发动机舱部件，一般选择PPS（>260C HDT）和PA66+GF30，耐化学性方面也要经过ESC测试。
• 处理内饰部件时要考虑的 VOC 控制的三个主要要素：低气味材料、氮气脱挥发分和露点控制。
• 如果手动进行自由曲面检测，则必须通过 ATOS 蓝光全区域扫描进行。 CMM 点表示法无法全面评估 DTS 差距。
• IATF 16949 认证和 CQI-23 审核被视为选择供应商的先决条件。
• 模流分析可提供翘曲和熔接线结果，使其成为成本控制非常重要的预处理过程。

为什么相信 JS Precision 的汽车注塑成型？专业汽车零部件制造

寻找可靠的汽车塑料注塑制造商应该是您的首要任务，以确保您的汽车零部件项目的成功实施。

事实上，JS Precision 是全球 OEM 和一级供应商最可靠和首选的合作伙伴之一，因为它为您的协作提供具体且可验证的性能保证。

因此，您可以完全信赖我们为您的产品提供符合汽车标准的产品。 JS Precision 拥有 IATF 16949:2016 和 ISO 9001:2015 等国际认可的认证，还能够提供最高质量的汽车零部件，并符合 ISO 13485:2016 医疗级质量标准，为她锦上添花！

我们的锁模力为 60-1600 吨的生产机器可以根据您的要求准确定制不同的汽车注塑生产方法。

我们还提供技术支持，帮助您解决与我附近的注塑成型工作相关的人才和技术匹配需求，我们的专业模流分析团队和 ATOS 蓝光测量设备可以帮助您提前规划，防止成型缺陷，从而确保零件形状正确并降低因返工造成的损失。

近期，JS Precision协助有类似需求的欧洲Tier 1供应商解决了PPS注塑件开裂问题，将ESC测试通过率从60%提高到100%，从而使他们能够按时交付SOP，避免逾期付款的惩罚。

此外，我们还为当地一家整车厂完善了内饰件的VOC控制，将气味水平降至3.0以下，大大降低了投诉率，维护了品牌声誉。

因此，如果您选择JS Precision，您将能够准确解决注塑生产的主要挑战，降低成本，减少操作时间，甚至使项目运行更加顺利。

如果您正在为您的汽车注塑项目寻找可靠的合作伙伴，请联系我们的技术团队，获取定制的项目评估和解决方案，以降低合作风险。

如何为高热发动机舱中的塑料注塑汽车零件选择合适的材料？

本章探讨与在高温区域运行的零件材料选择相关的问题。位于发动机舱内的注塑零件必须评估其短期耐热性、长期耐热性、耐化学性和湿度敏感性。

注塑汽车零部件与注塑汽车零部件之间的材料相容性要求直接决定了零部件的使用寿命。 PPS、PA66+GF30等材料必须根据使用条件进行匹配。

HDT 和 UL RTI 有何不同以及它们在材料选择中的作用

HDT（热变形温度，ASTM D648/ISO 75）测量短期耐热性，因此，短期工作温度应比 HDT 低约 10℃。UL RTI 测量长期耐热性，因此，发动机舱部件的长期工作温度应低于材料的 UL RTI 值。

耐化学性的框架和材料行为

发动机舱内的部件会接触不同来源的化学品。这就是为什么耐化学性已成为汽车注塑件的主要特征。

其中，PPS是最好的，因为它具有优异的耐化学性，可以在高达240℃的温度下长期保存。同时，PA66+GF30如果要承受冷却剂环境，就必须具有耐水解性。

另一方面，PPA+GF 具有很强的耐燃油性，而 PBT+GF 仅适用于不接触强化学物质的情况。

物料含水量对机械性能和干燥参数的影响

含水量高的工程塑料会发生水解，机械性能变差：PA66成型品含水量0.20%，拉伸强度下降10-15%，冲击强度下降20-30%，PPS含水量应为0.05%，PC含水量应为0.02%。

干燥条件：PA66在80℃下干燥4-6小时至0.10%。 PPS 在 120-150°C 下干燥 3-4 小时至 0.05%。 PC 在 120°C 下干燥 3-4 小时至 0.02%。

耐高温材料选用对照表

为高温区域选择合适的材料是汽车塑料注射成型成功的第一步。如果您不确定零件要使用哪种材料，请联系我们获取免费的材料选择白皮书，以便快速找到正确的解决方案。

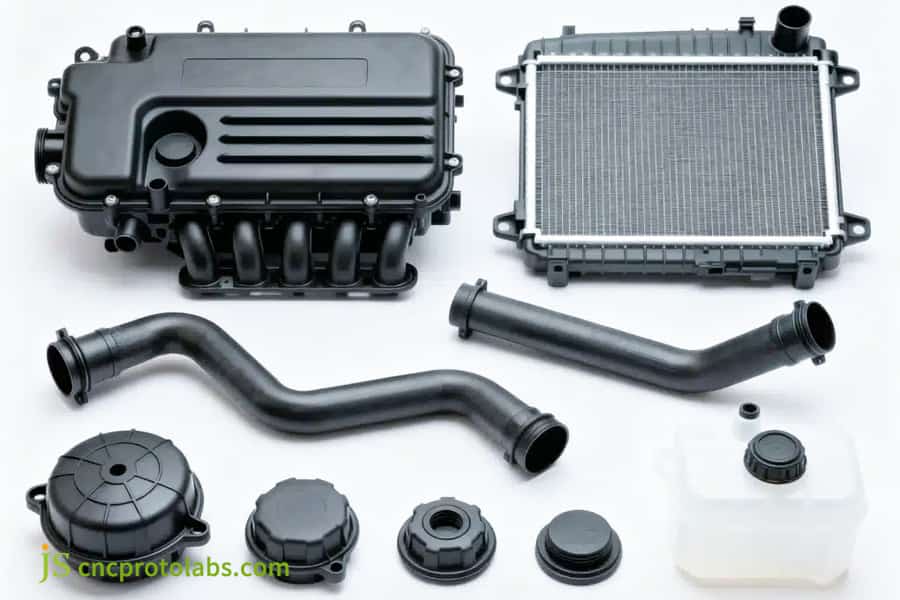

图 1：一家公司的主页，展示注塑汽车发动机舱和内部塑料部件，例如进气歧管和散热器式部件。

汽车塑料注塑如何确保高温引擎盖下零件的耐用性？

决定合适的材料绝对是非常重要的一步，但是，塑料注射成型汽车中的过程控制确实是保证零件在高温条件下使用寿命的核心。它涵盖了从模具设计到大规模生产监控的一切。

ESC环境应力开裂测试方法和标准 - 简要概述

如果您想验证汽车注塑所用塑料的质量，必须根据 ASTM D1693 进行 ESC 测试。

获得注塑件后，将其在80-120℃的温度范围内浸入冷却剂和油的50:50混合物中500-1000小时。验收标准为拉伸强度保留75%、无裂纹、无膨胀。

化学品暴露后所需的强度保持水平

保持强度与部件的功能相匹配：冷却系统接触部件 75%，与油接触的部件 70%，以及不直接接触的部件 80%。

例如，未改性的PA66+GF30零件，在120°C的冷却液中浸泡1000小时后，只能保持原有强度的65%，如果对零件进行改性，则可以提高到>80%。

跟踪玻璃纤维增强材料在高温老化下性能的退化

进行高温老化时，主要关注的指标是：拉伸强度退化率25%、缺口冲击强度保留率60%、尺寸变化率0.5%。

在 150°C 下热老化 1000 小时后，PA66+GF30 显示出 15%-20% 的强度损失，而 PPS+GF40 仅显示出 5%-8% 的强度损失。

发动机舱零件耐久性验证指标

塑料注射成型汽车内饰件的主要质量挑战是什么？

汽车内饰注塑件面临VOC排放超标、尺寸精度不够、表面缺陷三大问题。 这些与车内空气质量和视觉吸引力直接相关。

作为注塑塑料汽车零部件的重要群体，他们也是汽车零部件注塑生产投诉的主要原因之一。

内饰件中的VOC来源和VDA278测试标准

聚合物、加工化合物中的残留单体以及注塑过程中树脂的热降解是内饰件中 VOC 的主要来源。 VDA 278 是基于热解吸分析的基本测试标准。您必须确认总 VOC 含量为 100 ppm。

低气味PP材料的改性路径及效果

低气味PP改性可用于VOC合规：氢改性替代降解，VOC减少76.5%。 20%-30%滑石粉填充使VOC下降40%以上，5%沸石吸附剂可以非常有效地捕获挥发物，最终达到气味水平（VDA 270）3.0。

氮气辅助挥发工艺原理及实施效果

氮气辅助挥发是减少VOCs的关键汽车塑料注射成型方法。向料筒内通入99.9%纯氮气，带走挥发物，并进行改性，VOCs可额外减少30%-50%，是大型内饰件的最佳方法。

自由曲面检测：CMM 与 ATOS 精度比较

借助 ATOS 蓝光扫描（精度 0.02mm，单次扫描 0.2 秒），传统 CMM 逐点测量仍然无法实现。它生成可与 CAD 进行比较的 3D 点云，甚至可以精确测量 DTS 间隙。 这绝对应该是A级曲面内饰的首选方法。

内饰部件的典型缺陷和修复

• 熔接线：它们是熔体流分流然后合并的结果。改变浇口位置和提高模具温度可能是解决这个问题的方法。模流模拟可用于进行预测。
• 缩痕：由于壁厚不规则和缺乏保压而产生。可以优化壁厚，并增加保压压力和时间以达到更好的效果。
• 翘曲：这是由于冷却不均匀和分子取向差异造成的。模流仿真可用于预测和改进冷却系统。
• 光泽不均匀：由模具温度变化和 模具表面光洁度不足造成。严格的温度调节和模具抛光可以解决这个问题。

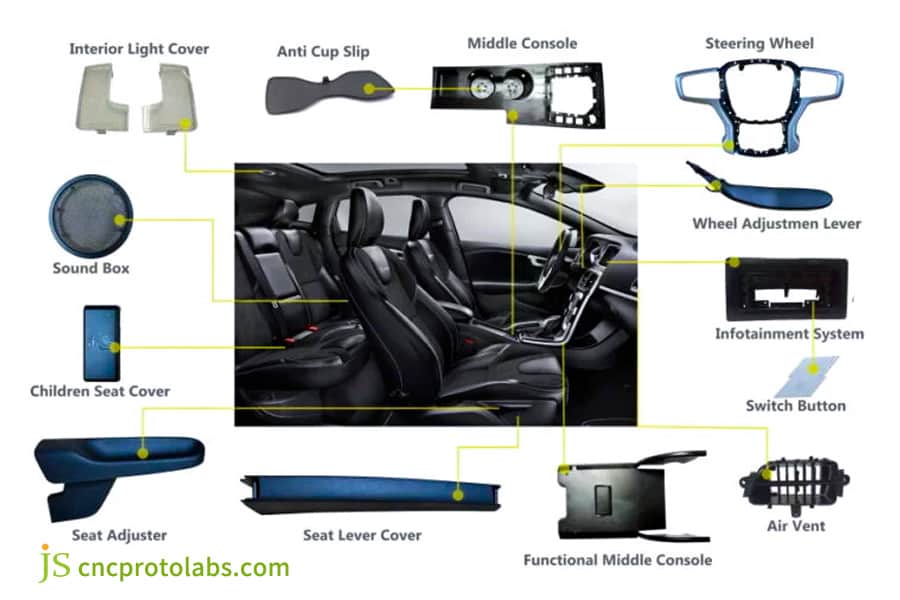

图 2：带有标记的汽车内饰塑料部件（例如方向盘、中控台和通风口）的分解图。

汽车注塑企业如何控制质量并确保合规？

质量控制是汽车塑料注塑成型的核心。汽车供应链中注塑零件的质量标准体现在三个不同的层面：系统、流程和产品。

汽车塑料注塑企业需要严格遵循要求执行的汽车塑料注塑标准。

CQI-23 审核中的除湿和露点控制

CQI - 23 是评估堆积系统的重要工具，露点控制是丰田核心分析的关键活动之一：

尼龙露点 -30°C，PC 和 PPS -40°C。 未达到露点要求可能会导致材料水解，导致VOCs增加，并成为机械性能恶化的原因。

PPAP 3 级文件提交清单和审核重点

PPAP 3级是生产线启动的最低先决条件，需要移交18份核心文件。主要活动是检查过程能力 Cpk 1.33，它要求保留先前参数更改的记录。

作为汽车供应链的一部分，获得 IATF 16949 是一项基本要求。 注塑工艺预计满足APQP、PFMEA和PPAP等七个条件，才能确保零件的可靠质量。

SPC关键参数监控要求

批量生产必须关注核心工艺参数，例如每 2 小时的熔体温度 (5°C)、每班的注射压力 (5%)、每班的保压压力切换位置 (0.5mm)、每 2 小时的零件重量 (0.5%) 以及每班的临界尺寸 Cpk (1.33)。

简单地说，这是在零件生产中建立“标准化操作红线”。只要参数水平保持在限制范围内，每个注塑件的质量就会保持一致，从而避免批次缺陷。

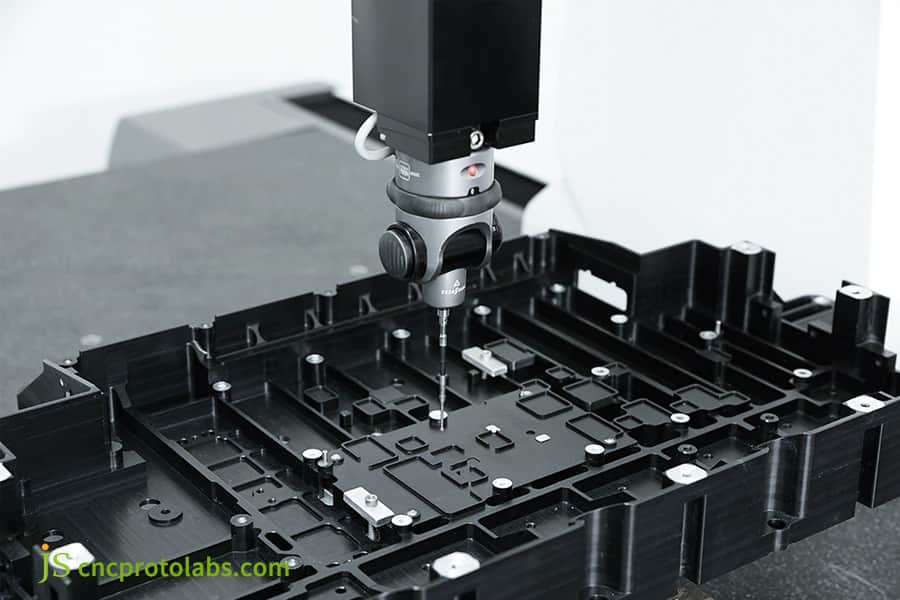

Figure 3: A Coordinate Measuring Machine (CMM) performing a precision inspection on a black automotive injection molded component in an industrial setting.

Why Is Mold Flow Analysis Essential For Plastic Injection Molding Automotive Projects?

Mold flow analysis is essentially "digital trial molding" for automotive plastic injection molding projects. It cuts down on trial molding expenses and shortens lead time, as it can prevent over 80% of possible defects by crossing them out beforehand through Moldflow software.

In other words, the whole molding process is filmed at the computer level, thereby doing away with mold opening and trial production. In this way, it is possible to locate potential problems beforehand and avoid the exorbitant costs and time wasted in remodeling.

Moldflow Warpage Prediction Accuracy and Verification Data

It is about 8%-12% for Moldflow warpage prediction error. For instance, predicting 2.3mm warpage on a dashboard while experimentally it's 2.5mm, it is feasible to reach the warpage limit of 1.0mm by fine-tuning holding pressure and cooling water channels.

The Impact of Gate and Cooling Water Channels on Shrinkage Uniformity

Gate location can determine how the polymers are aligned, on the other hand, cooling water channels are responsible for the cooling rate.

These two, via mold flow analysis, have to be installed in a way that the shrinkage rate difference between various parts is 0.1%, thereby avoiding part deformation.

Case Study: Mold Flow Analysis for Large Parts Bumper Grille

Using the Moldflow method, a 5-factor 5-level orthogonal test design was conducted on a commercial vehicle bumper grille. According to the results, the sequence of the warpage influence is:

Injection time > Melt temperature > Mold temperature > Cooling time >Holding pressure switching.

The best set of parameters are: melt temperature 240°C, mold temperature 60°C, injection time 6 seconds, and cooling time 16 seconds. These not only led to a 62% decrease in the warpage but also to a substantial shortening of the trial molding cycle.

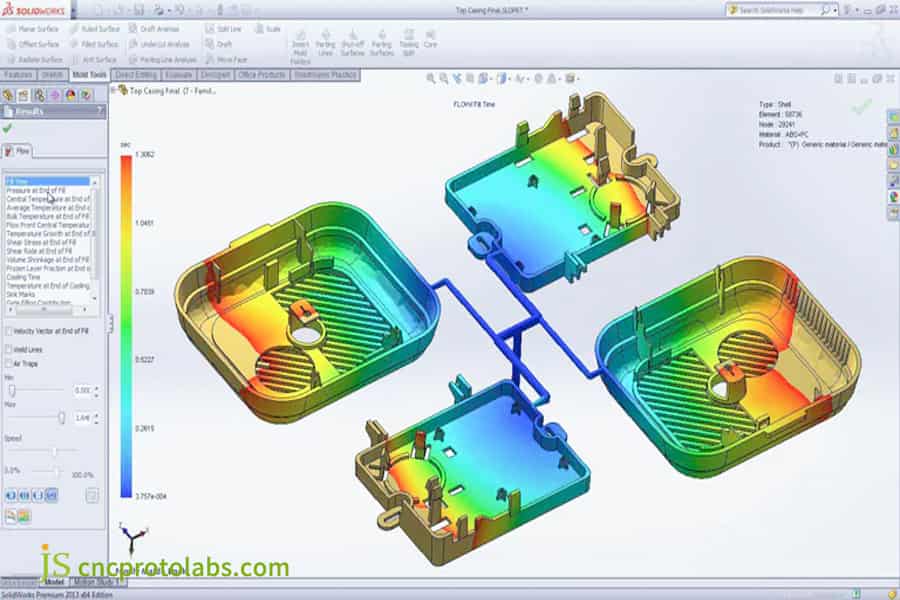

Figure 4: A software interface showing a color-coded mold flow analysis simulation for automotive plastic components.

How Can You Optimize Costs Without Sacrificing Quality In Plastic Injection Molding Automotive Projects?

Cost optimization is one of the most important aspects of plastic injection molding automotive projects. It involves making considered and targeted reductions in cost from the four main areas of design mold mass production, and supply chain, while still maintaining quality.

DFM Wall Thickness Optimization Minimizes Material Usage and Molding Cycle

DFM wall thickness optimization is the foundation for cost reduction in plastic injection molding automotive parts.

For example, reducing the wall thickness from 3.5mm to 2.8mm results in a 20% material saving while at the same time, the molding cycle can be shortened by 15%-20%. On the other hand changes such as removing the undercuts, can lead to a 10%-15% reduction in mold cost.

Hot Runner Systems Lead to Better Material Utilization and Higher ROI

Hot runner systems allow to increase the material utilization from a range of 60%-70% to more than 95%. If the annual production volume is 500,000 medium-sized injection molded parts, the ROI period is only 6-12 months. Further, it contributes to more even filling of the mold and defects are practically eliminated.

Pre-Mold Flow Analysis Minimizes Mold Modification Charges

Performing pre-mold flow analysis can eradicate over 80% of potential defects later on. Normally, 1 mold change costs from $5,000 to $15,000 and thus by decreasing the number of trial moldings from 3-5 to 1-2, you not only save $20,000-$50,000 but also reduce time by 4-8 weeks.

Summary of Cost Optimization Methods at Each Stage

If you want to optimize project costs while ensuring quality, please provide the part specifications and production volume, and we will calculate the cost optimization potential for plastic injection molding automotive parts for you free of charge.

What Key Indicators Should You Evaluate When Selecting Automotive Plastic Injection Molding Companies?

Selecting automotive plastic injection molding companies requires to check their quality system, technical capabilities, supply chain stability, and project experience. These factors are the main selection criteria for the plastic injection molding automotive industry and the fundamental requirements of the cooperation in this field.

IATF 16949 Certification Cycle and Surveillance Audit Requirements

IATF 16949 is a must-have selection criterion. The certification validity period may range from 6-12 months. Once certified, annual surveillance audits become mandatory along with the renewal audits every three years. The failure in passing the audit will impact the supply chain cooperation.

Injection Molding Equipment Tonnage Range and Part Compatibility

The formula for the calculation of clamping force is: Clamping force (tons) Projected area (cm) Cavity pressure (kg/cm) 1000. Cavity pressure is considered about 300-500 kg/cm.

We recommend that you only select suppliers with tonnage capabilities between 60 and 1600 tons.

Testing Capability Requirements

The trustworthy suppliers should have comprehensive testing capabilities: dimensional inspection (CMM, 0.005mm), freeform surface inspection (ATOS, 0.02mm), and material and environmental reliability testing. If a company owns their laboratory and testing facilities can decrease the testing cycle by more than 50%.

Supply Chain Stability Assessment Key Points

Supply chain stability needs to be assessed based on: long-term cooperation with original material manufacturers/authorized agents, a robust batch traceability system, and a secondary supplier management mechanism. On-time delivery rate for the past 12 months must be ≥98%.

The stability of the supply chain will be evaluated based on: continuous cooperation for a long time with original material manufacturers/authorized agents, having a strong batch traceability system, and the existence of a secondary supplier management mechanism. The on-time delivery rate for the last 12 months should be 98%.

JS Precision Case Study: Analysis And Solution Of Chemical Cracking Resistance Failure Of PPS Injection Parts

The following practical cases can help you intuitively understand how JS Precision addresses complex challenges in automotive plastic injection molding.

Client Background

One of the European Tier 1 suppliers who supply PPS + GF40 engine compartment coolant piping connectors to OEMs posted an annual volume of 800,000 pieces. Testing with the first batch of trial molds revealed that only 60% of the units which had passed the ESC test, and the project was facing the possibility of SOP postponements.

Problems

The sudden change in the wall thickness of the connector brought about the stress concentration. The ESC testing conditions were very rigorous (120°C, 1000 hours of coolant immersion, tensile strength retention 75%). The weld line lay at the stress concentration spot, so it was very susceptible to the cracks.

Actions Taken

Our technical team did not hesitate to take a step in the matter and addressed all the hitch by optimization from different directions:

1. Using Moldflow mold flow analysis, the gate position was re optimized from a single side gate to a symmetrical layout of double point gates, completely eliminating the problem of weld marks located in stress concentration areas.

<强>2。 Optimize the pressure holding curve, adjust from one pressure holding section to three pressure holding sections, ensure sufficient shrinkage of the thin-walled thick walled transition zone, and improve the density of the parts.

<强>3。 Raise the mold temperature from 130°C to 145°C to improve the melt flowability and weld bond strength.

4. Increase the R-angle transition in the stress concentration area to reduce the stress concentration factor. The fifth is to optimize the material drying process, reduce the moisture content to 0.03%, and avoid performance degradation caused by hydrolysis.

Final Results

Following the fine-tuning, the parts' tensile strength retention rate in the ESC test rose to 84%, weld line strength went up by 50%, the critical dimension Cpk grew to 1.48, the annual defect rate dropped to 0.3%, the project met its schedule completion (SOP), and the customer placed additional similar orders.

If you are also facing similar issues such as cracking or substandard performance in injection molded parts, you can submit 3D drawings of the parts and your requirements. We will customize an exclusive automotive plastic injection molding solution for you to help your project be successfully implemented.

FAQs

Q1: How long does the development process for automotive injection molded parts typically take?

Part development from T0 trial molding to SOP mass production will generally take around 12-20 weeks in total, including mold manufacturing, trial molding optimization, and PPAP submission. However, this schedule may vary depending on the complexity of the parts, and we are able to offer tailored cycle planning.

Q2: Should a supplier of automotive injection molding have an IATF 16949 certification?

Indeed, IATF 16949 is merely an entrance gate for getting into the automotive supply chain. It would be impossible to collaborate without certification. We have this certification at hand and fulfill your supply chain requirements immediately.

Q3: Which materials are mostly used for injection molded engine compartment parts?

PPS (HDT>260°C) and PA66+GF30 are the most favored, next would be PPA+GF and PBT+GF. Your part's working conditions and your cost budget will determine the final choice.

Q4: What are the major factors causing interior parts' VOC to surpass standards?

Residual monomers, processing byproducts, and thermal degradation during injection molding are cumulatively responsible for VOC emissions. To ensure quality, one must first select low-odor materials and then maintain nitrogen devolatilization through the injection process.

Q5: Which injection molding defects can Moldflow analysis detect?

Moldflow analysis is able to identify five primary defects, such as warping, weld lines, and sink marks. It can help avoid more than 80% of issues, apart from reducing trial molding costs.

Q6: How can I rapidly find out the reason for warpage deformation of injection molded parts?

Moldflow analysis can be used to determine the direction of deformation. If there is uneven cooling, the warpage will be symmetrical. On the other hand, the shrinkage due to orientation is along the direction of flow of the melt. So, it is possible to do a targeted optimization.

Q7: How long do automotive injection molds typically last?

The lifecycles of mass production molds are estimated to be between 500,000 and 1,000,000. cycles With the use of top-quality mold steel and following a proper maintenance schedule, it is possible to extend these lifetimes to over 2,000,000 cycles. We are also able to provide mold maintenance support.

Q8: What is the lowest number of automotive injection molded parts that I can order?

Normally 5,000-10,000 pieces/year. If you want less quantity, then rapid prototyping or CNC machining can be considered. We have several models of cooperation.

摘要

Automotive plastic injection molding is fundamentally a systems engineering endeavor. Each phase directly impacts the reliability and regulatory compliance of the components.

Selecting an appropriate partner might allow you to not only circumvent unnecessary routes but also to lower prices while enhancing productivity. JS Precision offers a one-stop solution to assist you in resolving various injection molding-related issues that have been causing you difficulties.

Contact the JS Precision technical team immediately to get a tailor-made material plan and cost evaluation for your projectby simply sending 3D drawings to the specified email address, you will be able to get a DFM report and quotation within 24 hours. Together, let's make your automotive injection molding project run smoothly.
