Sheet Metal Bending Services: Precision & Tolerances for Formed Parts

Sheet metal bending services transform flat sheet metal parts using automated press brakes (CNC) to create structural brackets and enclosures. They normally provide industrial standard dimensional tolerances of ±0.020" ( ±0.50mm) and 1.0°, while better configured equipment can do highly accurate bends with dimensional accuracy reaching as close as ±0.008" ( ±0.20mm) and ±0.2° to ±0.3°, using closedloop laser angle compensation.

Sheet Metal Bending Services Precision & Tolerances Quick Overview

Parameters	Standard Grade	JS Precision Precision Grade	Key Control Factor
Bend Angle Tolerance​	±1.0°	±0.2° – ±0.3°	Laser real-time angle measurement + dynamic crowning
Linear Dimension​	±0.020" (±0.50mm)	±0.008" (±0.20mm)	6-axis CNC back gauge + datum alignment
Hole-to-Bend Distance​	±0.015" (±0.38mm)	±0.005" (±0.13mm)	Relief slot design + pre-deformation algorithm
Process Capability (Cpk)​	Cpk < 1.00	Cpk ≥ 1.33	Closed-loop angle monitoring + yield strength sampling

Data source: JS Precision 2025 process capability database; DIN 6935:2020 sheet metal bending tolerances.

Key Takeaways:

Sheet metal bending services use CNC press brakes to form flat sheet into 3D parts. Standard tolerances: ±0.020", ±1.0°; precision systems (laser angle + dynamic crowning): ±0.008", ±0.2°–±0.3°.

For Cpk≥1.33 direct assembly, three rules apply: compensate springback with K-factor (0.33–0.45) and rolling direction; set flange height ≥4t and hole-edge ≥2.5t+r; use single absolute datum to eliminate stacking.

What Are the Real Tolerance Limits in Precision Metal Bending Service?

Precision metal bending service gives industrial bending tolerance of ±0.020" linear error and ±1.0° angular offset. Yet, a combination of CNC five-axis positioning with fine micrometric corrections and super-fine precision grind of tooling can push the final limits into ±0.008" (±0.20mm) linear deviation and only ±0.2° to ±0.3° angular variation.

Forming Process Comparison and Stress Mechanism

1. Air Bending: Highly versatile, best suited for small workloads, angular tolerance ranges normally from ±0.5° to ±1.0°, ideal for multi-type, small-batch production.
2. Bottom Bending: die bonding reduces tolerance to ±0.2°to ±0.3° .Though the cost of die changeover is quite high.
3. Coining: Extremely pressure is applied to the part to completely remove springback and accuracy can be achieved up to ±0.1°,the process also increases greatly the die wear together with the tonnage requirements.

Material and Thickness Tolerance Classification

From the ISO 2768-m standard, different materials and thicknesses will have different standard and precision tolerance grades. From the actual application in the medical device housing project, it was realized that deviations in raw material thickness can result in a change of unfolded dimensions of 0.3mm–0.8mm. One more thing, empirical springback calculation, i.e. Empirical one, is very much prone to the errors resulting from misalignment.

Material	Thickness (mm)	Standard Linear (mm)	Precision Linear (mm)	Standard Angle	Precision Angle
5052-H32 Al	0.5–1.5	±0.50	±0.20	±1.0°	±0.3°
SUS304 SS	1.0–3.0	±0.50	±0.20	±1.0°	±0.2°
SPCC CRS	1.5–6.0	±0.50	±0.20	±1.0°	±0.3°

Data source: ISO 2768-m general tolerances; JS Precision 2025 bending trials.

The ISO 2768-m standard mentions: For linear dimensions, the tolerance range for precision class m will be ±0.2 mm to ±0.5 mm, according to the basic dimension range.

In evaluation of the sheet metal bending tolerances, JS Precision mainly adopts ISO 2768-m as a foundation and simultaneously adjusts the developing factor as the measured yield strength of the material. If the drawing needs very narrow dimensional limits, the engineering personnel of JS Precision will generally propose using techniques under the stress of pressure forming or embossing so that the outcome is uniform.

If you would like to have your drawing dimension tolerances crosschecked in terms if they can be realized, contact the JS Precision engineering staff for a free DFM tolerance calibration and process recommendation report.

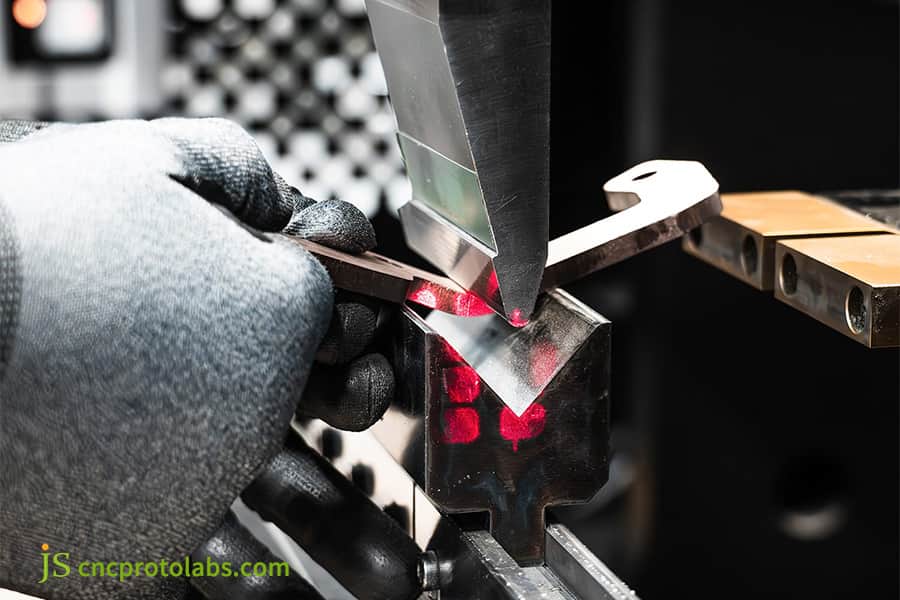

Figure 1: Worker aligning sheet metal for precision bending with laser guide.

How to Control Bend Angle Tolerance and Material Springback Scientifically?

Bend angle tolerance is a material characteristic dependent on tensile strength and bend ratio (radius over thickness). Going from standard 1.0 degree to precision 0.2–0.3 degree bend relies on using over-bend compensation and having a means to dynamically measure the laser angle.

Springback Mechanism and Compensation Formula

• Elastic Recovery Principle: upon completion of metal forming operations, it is the recovery of the crystals' elastically deformed lattice, which results in angular deviation in the workpiece. For 304 stainless steel, the springback angle is 3°–5°, and for 6061-T6 aluminum alloy, the springback angle is 2°–4°.
• Compensation Formula:

Bending Angle = Target Angle + Springback Angle

Springback angle Δα ≈ (3σ_y × R) / (E × t), with σ_y being the yield strength, E is the elastic modulus, R is the inner radius, and t stands for the thickness of the plate material.

• Lower die opening selection: Suggested V = 6t–8t. Overly small openings cause the springback to worsen while overly large openings may create a loss of the shape at the corners.

Rolling direction and batch consistency:

• Bending along-the-grid: susceptible to cracking and experiences major variations in springback (above ±0.5°).
• Perpendicular or at 45 degree to the grain: leads to an even distribution of strain while keeping springback fluctuations to within ±0.25°.
• JS Precision dynamic compensation: uses a CNC bending machine fitted with hydraulic dynamic deflection compensation (Crowning) and laser angle measurement to continuously and automatically correct springback deviations of each part resulting in stable angle tolerances within ±0.2° for custom sheet metal bending mass production.

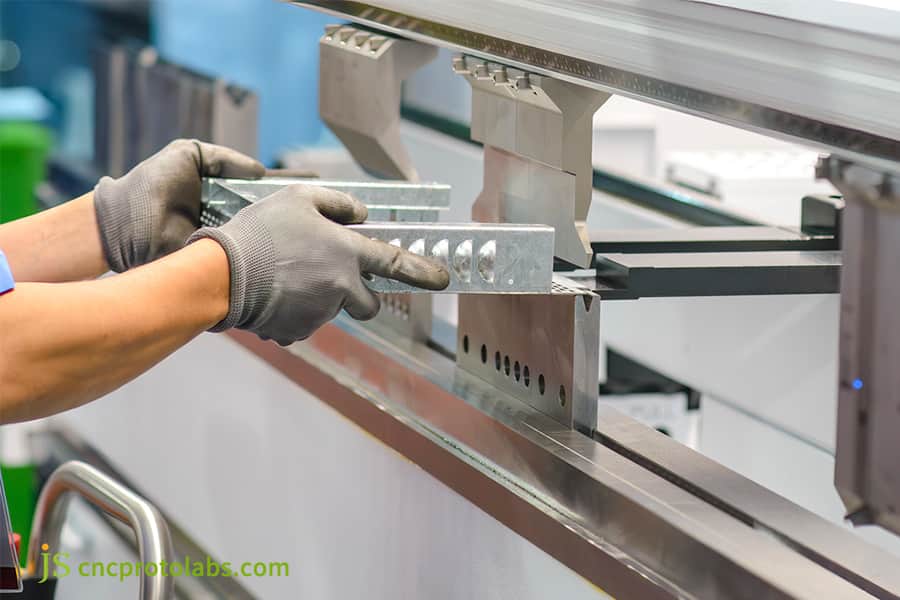

Figure 2: Worker controlling bend angle tolerance on press brake machine.

How to Optimize DFM Rules to Prevent Hole Distortion in Custom Sheet Metal Bending?

Minimum hole-edge distance in custom sheet metal bending needs to be at least d≥2.5t + r and minimum flange height to be b_min≥4t + r to stop interference from occurring. Laser cutting of relief areas or pre-bending would need to be performed in situations where the clearance distances are not sufficient.

Stress in the Deformation Zone and Deformation Prevention Schemes

• Hole Tension and Edge Concavity: when the hole edge distance is less than two times thickness, tensile stress concentration causes deformation of the hole.
• Three countermeasures:

1. Use of pressuring relief hole in pre-punching process (diameter ≥ 1.5t).
2. Carry out bending operation before laser cutting with secondary operation (high-precision holes).
3. Use clearance mold which customizing to increase of local clearance space.

• Minimum bending inner radius R_min: 1.0mm for SUS304 sheet thickness, 2.0mm for 2.0mm, and 3.0mm for 3.0mm (Data source: JS Precision 2025 DFM guideline).

JS Precision Automated DFM Check

JS Precision performs an automatic DFM risk check during the quote phase. This step allows the identification of defects like minimal hole edge gap, and very small flanges. Modification suggestions are made and returned to the client within a 24-hour period. Through DFM checks for metal bending for formed parts, the manufacturer can avoid 80% of the prototyping issues.

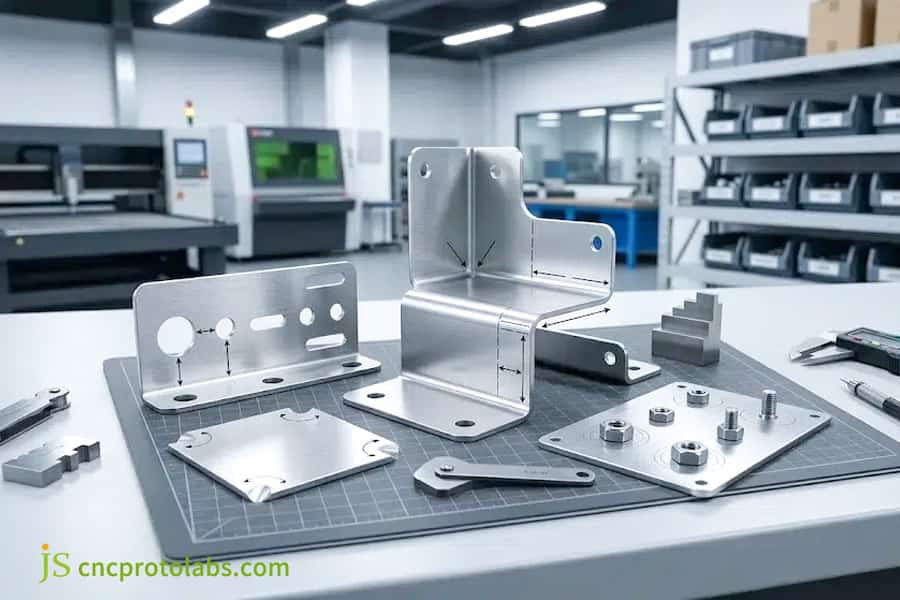

Figure 3: Various custom sheet metal bending parts optimized with DFM rules.

How to Eliminate Tolerance Stacking in Sheet metal bending services for Complex Enclosures?

Sheet metal bending services suffers from cumulative tolerance based on back-gauge datum drift and bend deduction error. In the case by unified measurement datum and sequence improvement, CTE can be minimized from the traditional tolerance range of ±1.5mm to precision ±0.008" (±0.20mm).

Dimension Chain Transfer and Positioning Methods

• Chain Positioning: each bend is positioned referring to the preceding bend so that the deviations keep compounding with every next bend leading to an overall accumulated deviation exceeding ±1.5 mm.
• Absolute Coordinate Positioning: One reference edge and positioning pin hole are used for the entire workpiece and the cumulative error caused by the chain method is entirely avoided while dimensional deviation remains well within ±0.20 mm.
• 6-Axis Backgauge Configuration: through a 6-axis backgauge independently controlling (X1/X2, R1/R2, Z1/Z2) axes as well as a 3D process interference simulation the positioning accuracy of each bend remains highly stable.

JS Precision Reference Optimization Scheme

Based on our real-life project of designing an analyzer chassis, the initial drawings made a use of chain-style annotations which caused a 1.2mm deviation of the alignment holes after 7 bends. The JS Precision engineering team made the base plate positioning pin holes the primary reference and altered the bending sequence so that the expansion of parts goes from the center outwards lastly, the formed part precision improved to be within ±0.15mm, and the Cpk got to 1.41.

Do your multi-bend assemblies have a problem with alignment? Try out our free cost estimation. JS Precision will offer you a dimensional chain analysis and process improvement advice.

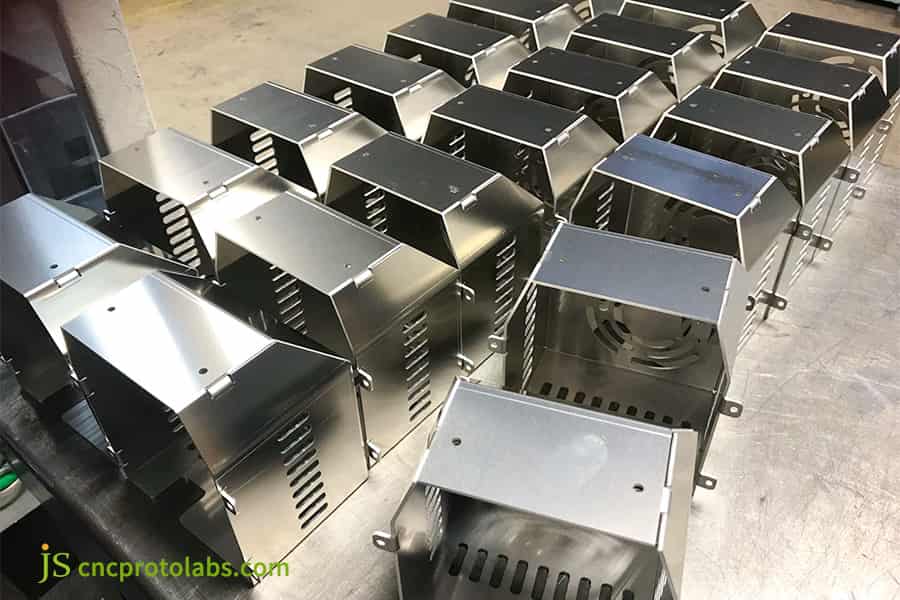

Figure 4: Batch of complex metal enclosures produced by sheet metal bending services.

Custom Sheet Metal Bending vs Secondary CNC Machining: Which Offers Better ROI?

Custom sheet metal bending can be customized for parts needed with precision-grade tolerances of ±0.20 mm (±0.008") and can be much more profitable. It can even reduce production expenses by 45–60%, while lead time may be cut down by 70% compared to traditional rough bending and then secondary CNC milling.

Process-Tolerance-Cost Decision Matrix

Decision Scenario	Recommended Process	Cost per Part (USD)	Lead Time (days)
Tolerance≤±0.05mm	Full CNC machining	$12–$25	5–8
Tolerance ±0.05mm – ±0.20mm	Laser cut + precision bend + ream	$6–$10	3–5
Tolerance≥±0.20mm	Precision bending only	$3–$6	1–3

Data source: JS Precision 2025 cost analysis for 1.5mm SUS304 chassis (volume 2,000 pcs).

Economic Scope of Hybrid Process Techniques

1. Instrument Housing: the unit cost is dropped by precision bending which does away with hollowing out aluminum lumps via CNC machines, from $18 to $7. Cycle time has also been reduced from 6 days to 2 days.
2. Load-bearing Pallet: it is possible to manufacture a piece by direct bending without having to weld and mill, saving 50% on cost, when the product tolerance is ±0.25 mm.
3. Medium Precision Solution: A combination of laser cutting and precision bending of keyholes with precision reaming creates an equilibrium between precision and economy. Precision bending of metal is most profitable in this sector.

Medical Chassis Case Study: How JS Precision Solved Fit-up Alignment for Multi-bend Formed Parts?

Metal bending for formed parts was affected by a 1.2mm cumulative deviation of the bending in a frame that was 7 bends and 304 stainless steel. JS Precision changed the sequence of operations and also took advantage of laser technology to make a correction so that the concentricity of the alignment holes was within ±0.15mm.

Customer Challenges

The metal frame is comprised of: 7 bends and 12 coaxial optical holes.Stainless steel SUS304 1.5mm is used.The original supplier handled its fabrication per standard sheet metal practices but the final part showed hole positions 1.2mm off at both ends of the bent parts. Sensor installation became impossible, and 28 percent of assemblies scrap.

JS Precision Solution

• Tensile Test of Material: Yield strength is 235 MPa. The adjusted bending deduction BD proved to be 2.65 mm (the original theoretical value was 2.40 mm)
• Changing the Bending Sequence: bending the chain was turned into an opening/expanding sequence which started at the middle and spread towards both sides; two positioning holes pre-drilled for this were present on the strip.
• Laser dynamic Compensator: to perform accurate dynamic bending, the machine was equipped with hydraulics for compensation and an optical laser device to measure angles. The error of a single-bend angle remained no more than ±0.2°.

Lessons Learned from Failures:

During the first sample testing, the third bent was compressed to almost an out-of-roundness of 0.1mm of the hole due to a very small die clearance of 0.8mm. A replacement of the tool to use a segmented gooseneck cutter to be exact designed for the task was made by engineering to prevent contact and maintain quality.

Final Results:

Key assembly accuracy was kept to within 0.15mm, hole coaxiality yielded Cpk = 1.41, a first-pass yield rate of the whole machine achieved 99.6%, and there was a reduction of 35% in the time needed to produce items.

Based on DIN 6935:2011 it states: in regard to multi-bend sheet metal components, the standard cumulative tolerance for chain bends is ±0.8mm to ±1.5mm, based on how many bends there are and the material thickness.

JS Precision limited the formed part precision to ±0.15mm in this project. That is more than 70% improvement for accuracy over the standard range of DIN 6935.

Need a solution for a similar multi-bend alignment problem? Send in your blueprints to JS Precision to get a tailored manufacturing process optimization together with free sample testing.

What Technical Audits Are Essential When Selecting a Precision Sheet Metal Bending Supplier?

Sheet metal bending tolerances depend on checking the supplier's back-gauge axes (≥4 axes), their dynamic angle measurement, and crowning settings; it should also include the use of CMM and 3D optical scanning full-inspection capability.

Five Core Indicators in Factory Audits

• Machine repeatability: ≤±0.01mm or less accuracy of the machine so each bend is consistent.
• Die Hardening Grade: HRC56–60; resistance to die wearing will impact precision over time.
• Process Capability Index: Critical dimension Cpk≥1.33, the sign of a well-balanced and predictable production process.
• First Article Inspection (FAI): Dimensional measurement report showing conformity with the given tolerances.
• Material Test Report (MTR): A source document that can identify and trace specific material lot from a steel mill back.

JS Precision Quality Control System

JS Precision is certified as ISO 9001:2015 and IATF 16949 standards. The precision parts will be fully inspected by Coordinate Measuring Machine (CMM) and will be accompanied by dimensional reports that are complete. Precision metal bending service evaluation criteria give the buyers a fast means of selecting trustworthy suppliers.

FAQs

Q1: What is the minimum flange length that can be bent in precision sheet metal?

The minimum flange length required to bend a sheet with a width less than twice the thickness is b_min = 4t+r. For instance, a 2.0mm aluminum sheet needs a minimum flange width of 8.5mm to 9.0mm to assure stable sheet fixing and avoid slipping during forming.

Q2: Why does the same sheet metal part show angle variations across different production batches?

Variations in yield strength (ΔRp ≥30 MPa) and thickness tolerances of raw material batches directly affect the springback. Angle deviations of 0.5° to 1.5°, without laser angle measuring and dynamic pressure compensation, may be caused by different punching stroke of same tool.

Q3: How does JS Precision ensure consistent tolerances across high-volume bending runs?

JS Precision is using combined batch stretching raw material calibration and a full-process SPC with a laser real-time angle measuring system, and an automatic deflection compensation CNC bender machine which ensures that critical dimensional tolerances at precision level of ±0.008" remain stable with Cpk≥1.33 on high volume production runs.

Q4: What is the difference between air bending, bottom bending, and coining in terms of precision?

Bending angle tolerance in air bending is standard grade (±0.5° to ±1.0°); bottom bending is tightened up to (±0.2° to ±0.3°); coining bending can go down to ±0.1°, although it results in considerable tool wear and higher tonnage requirements.

Q5: Can holes and cutouts be placed directly next to a bend line without distortion?

You can't safely put a hole edge so close to a bending line that the distance d is less than 2.5t+r. During bending, the surrounding material of the hole stretches, causing distortion. If you have to make a product with such a design, you can either create a pressure relief groove through processes in that area or choose to bend the part and then make two separate laser cuts of the holes afterward.

Q6: How are custom sheet metal bending quotes calculated at JS Precision?

JS Precision calculates costs per material usage, cutting cycles, bending operations required, special mold investment, and surface finishing of the final product. After the client sends 3D CAD and 2D drawings with dimensions and limits of tolerances, the engineering team will give a DFM quote with detailed information within the next day.

Q7: What standard K-factor values should be used when calculating flat pattern blanks?

Standard values of K-factor vary from 0.33 for bending soft aluminum in air to 0.45 for bending cold rolled steel in bottom bending. During high accurate flat pattern calculations (like DXF flat pattern) must have implemented calibration based on empiric bend deductions (BD).

Q8: How does grain rolling direction impact formed part reliability?

Where bending occurs parallel to the rolling grain, the strain is concentrated and the part will be more susceptible to orange-peel cracking on the outer surface or gauge while springback will vary, where bending occurs perpendicular to the rolling grain or at a 45 angle, load is distributed and the angular tolerances will usually remain constant to a ±0.2° to ±0.3° accuracy.

Summary

The accuracy in bending of sheet metal is achieved through the K-factor unfolding calibration, the dynamic springback compensation, the die stress balance, and the regulation of the dimensional chain to a reference point. The transition from tolerances to the precision tolerances (standard:±0.020", ±1.0°, precision: ±0.008", ±0.2°–±0.3°) avoids dihedrals, edge tearing, hole distortion, and accumulative errors at design time, greatly reduces expensive rework, secondary machine processing.

Are you planning multi-pass high precision bending chassis, equipment bracket, and load bearing structural parts? Please submit your 3D CAD(STEP/IGES), 2D engineering drawings at JS precision quotation system. DFM manufacturing solution will be provided by our engineering team in 24 hours including unfolding tolerance calibration, interference avoiding analysis and machining cost estimation.
