Custom Sheet Metal Fabricating for High-Strength Aluminum Parts

Custom sheet metal fabricating of high-strength aluminum parts is an engineering manufacturing process that involves laser-cutting, forming, and building-up hardened structural alloys like 6061-T6 without causing bend fracture or dimensional failure. The process prevents the serious springback deviations (up to 8°) and crackings at tight radius in such heavy-duty battery enclosures, automated equipment frames and robotics brackets so that linear dimensions remain locked in 0.15 mm while angular dimensions are restricted in ±0.5°.

6061-T6 vs 5052-H32 Bending Parameters for Custom Sheet Metal Fabricating

Core Consideration Parameter	General Bending Aluminum (5052-H32)	Structural High-Strength Aluminum (6061-T6)	Workshop Execution Plan & Engineer Design Avoidance Suggestions
Yield & Tensile Strength​	Yield 195 MPa / Tensile 230 MPa	Yield 276 MPa / Tensile 310 MPa	6061 load capacity increases by ~40%, but plastic reserve is extremely low
Recommended Min Inside Bend Radius (R/t)​	1.0t (easy small-radius bending)	3.5t to 5.0t (prone to brittle fracture)	For 2.0mm thickness, inside radius must be ≥ R7.0mm; sharp corners strictly prohibited in 3D drawings
Bend Angle Springback Range​	1.5°–2.5° (small linear springback)	5.0°–8.0° (large non-linear springback)	Requires CNC servo press with dynamic angle sensor closed-loop compensation
CAD Unfold K-Factor Recommendation​	0.38–0.42 (conventional calculation)	0.44–0.48 (outer fiber tension in large radius)	Must verify bend deduction with manufacturer in advance to avoid short blank length
Hole-to-Bend Line Safety Distance​	≥ 2.5t + R	≥ 4.0t + R (affected by large V-opening)	If spacing too small, must bend first then mill hole, or cut stress relief groove on bend line

According to JS Precision Internal Database:2025, JS Precision 1,200+ European projects validate that 6061-T6 laser cutting with high-purity nitrogen achieves zero dross and ≤0.1 mm flatness.

The essence of 6061-T6 aluminum sheet metal forming is mainly about design-wise prevention of compact, sharp corners, together with simultaneous use of vertical rolling direction, large-opening dies, laser in-situ angle correction, and high-purity nitrogen cold-cutting in the working environment.

Why Does 6061-T6 Aluminum Sheet Metal Crack During Bending?

Custom sheet metal fabricating for 6061-T6 aluminum sheet metal cracks during bending because artificial aging locks precipitation-hardened Mg2Si structures, reducing elongation from 25% down to 8%–10%.When tensile stress at the outer bend radius exceeds the material yield boundary, cleavage fracture occurs across the grain lines unless engineers apply enlarged tooling radii and transverse orientation.

Artificial aging and elongation decay mechanism

• 6061-T6 shows an artificially-aged locked precipitation-hardened Mg2Si type crystal structure which makes the elongation of the material down to 8% to 10% with a negligible plasticity reserve.
• Cleavage type fracture starts along the boundary of a grain only after tensile stress at the surface reaches the yield stage.
• The use of a greater die radius paired with a cross rolling arrangement is the only way to eliminate cracking.

Anisotropy of rolling and bending direction

• The likelihood of crack generation is higher when the grain boundary direction is aligned parallel to the main tensile stress in the rolling mill direction.
• A bend line is moved to the rolling mill direction at 90°. The limiting bending moment could be enhanced by using the transverse grain slip.
• JS Precision forces all bend lines to be perpendicular to the transverse rolling texture during nesting.

Aluminum Temper State	Tensile Strength (MPa)	Elongation (%)	Min Bend Radius (R/t)	Crack Risk in Cold Bending	Recommended Application
6061-O (Annealed)	150	20–25	1.0t	Minimal (<1%)	Complex contours, tight radii
6061-T4	240	15–18	2.0t	Low (5–10%)	Moderate forming
6061-T6	310	8–10	3.5–5.0t	High (up to 45%)	Structural, high-load

ASTM E8/E8M-24 Standard Test Methods for Tension Testing of Metallic Materials provides minimum elongation and yield strength requirements for 6061-T6 aluminum alloy at 2.0mm thickness.

Facing the risk of high-strength aluminum bending and cracking? Immediately send your STEP drawings to JS Precision to obtain a free DFM audit report from senior engineers, ensuring your material cutting process meets standards on the first try.

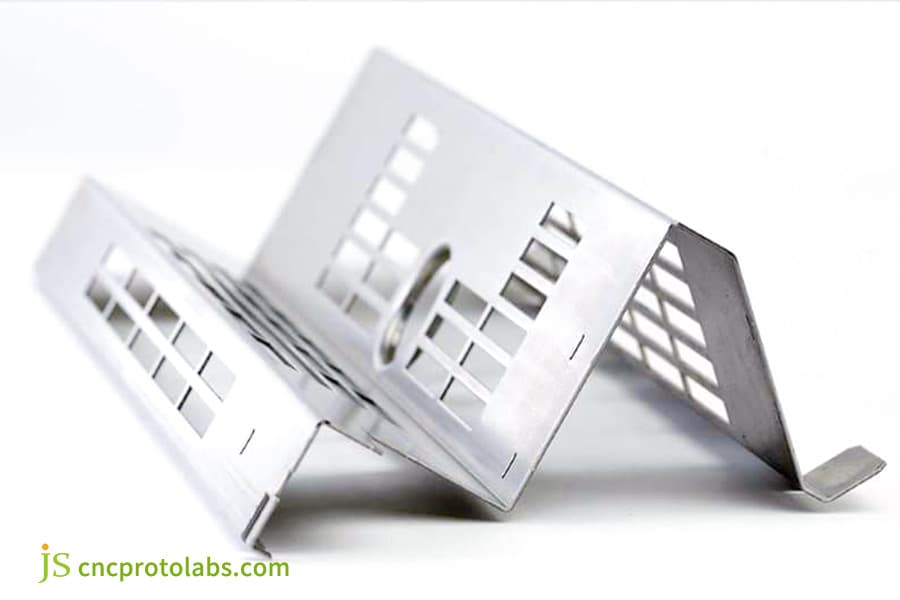

Figure 1: Bent aluminum sheet metal brackets with slots.

How to Calculate Safe Bend Radii and Flat Patterns for High-Yield Aluminum?

Calculating safe bend radii for high-strength aluminum sheet metal fabrication requires setting the inside bend radius between 3.5t and 5.0t, paired with an adjusted K-factor of 0.45 in sheet metal CAD settings. Standardizing these values ensures tensile fiber strains remain under 10%, preventing visible micro-fractures while guaranteeing that flattened cut lengths precisely match folded dimensions after mechanical springback recovery.

Minimum inner bend radius calculation and tolerance compensation

• The recommended safe inner bending radius is approximately 3.5 times to 5.0 times the plate thickness. So for a 2.0mm thick plate, the inner radius should be R7.0 to R8.0mm.
• Designing a sharp corner (R ≤ 1.0t) would require utilizing annealed 6061-O forming then re-quenching and aging.
• The custom sheet metal fabricating workshop prioritizes reviewing whether the inner bending radius meets the specifications when receiving drawings.

K-factor adjustment rule and neutral layer shift

• Engineers manually tweak the K-factor value for 3D software in the range of 0.44–0.48.
• A large bending radii will shift the neutral layer outwards, thereby causing the material length being 1.0–2.0 mm shorter if computed based on the conventional value of 0.38.
• Before production, consult with your machine manufacturer about your bending deduction so that you do not have an assembly problem caused by the material coming out too small.

Lower mold V-shaped opening selection and surface protection

• Bending should also be combined with an appropriately large punch with rounded edges. Besides that, the lower die V opening width is increased from 6t of normal sheet metal to 8t–12t.
• Decreasing shear stress per unit length is effective in the prevention of surface scratches and microcracks.
• As for JS Precision high-strength aluminum sheet metal fabrication line of products, it is standard to have 10t–12t wide V-mouth lower punches.

Material Thickness (mm)	Inside Bend Radius (3.5t–4.5t)	Recommended V-Die Opening (8t–12t)	CAD Unfold K-Factor (0.44–0.48)	Bend Deduction Reference (mm)
1.5	R5.25–R6.75	12–18 mm	0.44–0.46	2.40–2.60
2.0	R7.00–R9.00	16–24 mm	0.45–0.47	3.20–3.50
3.0	R10.50–R13.50	24–36 mm	0.46–0.48	4.80–5.20
4.0	R14.00–R18.00	32–48 mm	0.47–0.48	6.40–6.80

ASTM B209-14 Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate specifies mechanical properties and dimensional tolerances for 6061-T6 sheet up to 6.0mm thickness.

Tired of dimensional scrap due to K-factor errors? Contact JS Precision engineers for a free cost estimate for your thin sheet laser cutting. We will provide the optimal bending parameters based on your drawings.

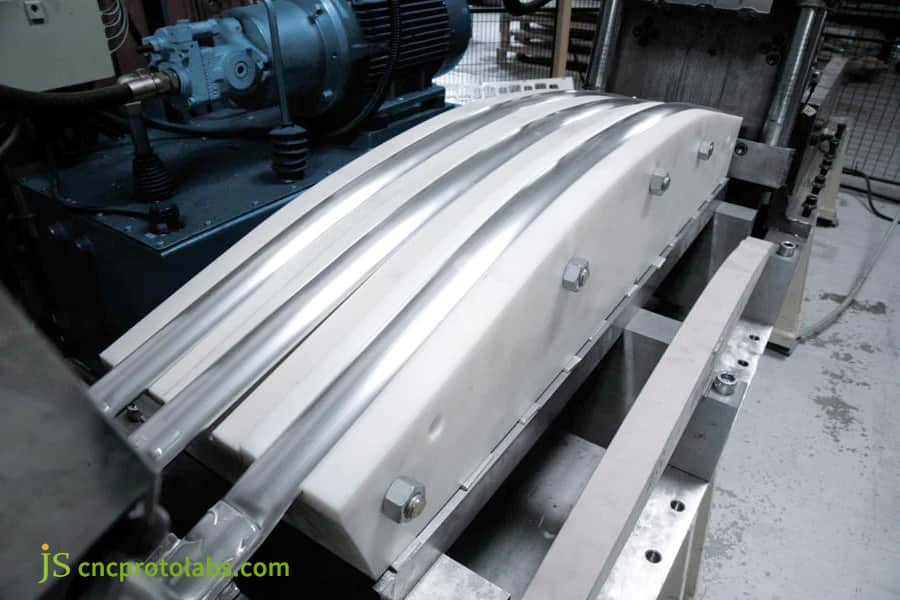

Figure 2: Machine bending high-strength aluminum sheet metal.

How to Eliminate Springback in Aluminum Sheet Metal Bending Operations?

Eliminating springback in aluminum sheet metal requires dynamic angular overbending, wider V-die geometries, and CNC servo presses equipped with real-time laser measurement loops.High-yield aluminum experiences up to 8° of elastic recovery when forming a standard 90° angle, meaning fabricators must compress the flange to 82°–84° using closed-loop pressure corrections to hit target geometry upon stroke release.

Comparison of elastic recovery mechanism and modulus

1. 6061 - T6 has an elasticity modulus of 70 GPa, it displays a non-linear springback of 5.0°–8.0° upon unloading.
2. The variation in the microstructure of the same batch of sheet metal leads to a ±1.5° variance error, standard dies are unable to cover this deviation.
3. High-End sheet metal forming operations need to make use of on the fly angle measuring devices for error cancellation.

Dynamic over-bend compensation and laser angle measurement

1. The CNC servo bending machine with dual laser angle sensors scans the angle continuously. It automatically executes an over-bending of up to 82°–84°.
2. The CNC system dynamically corrects the compression depth based on the measured springback amount, thus achieving closed-loop control.
3. JS Precision's precision sheet metal fabrication services lock angular tolerances within ±0.3°.

Bottom Dead Point Pressure Holding and Micro-creep Control

1. Using a mold with an acute angle of 78°–80°, and keeping the holding pressure at bottom dead center for 1.5–2.0 sec, it seems, causes the microscopic creep of the crystal lattice.
2. Keeping the pressure also helps in distributing the internal stress in the material evenly, and it reduces the amount of material being released as elastic rebound.

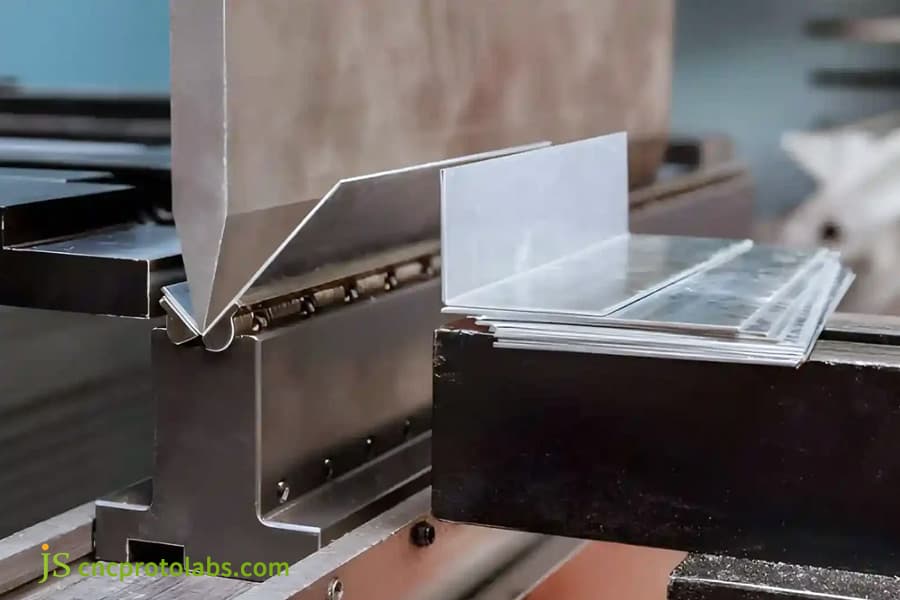

Figure 3: Press brake bending aluminum sheet metal part.

Should You Bend Pre-Hardened Aluminum or Anneal Before Heat Treatment?

Choosing between pre-hardened forming and post-forming heat treatment for custom aluminum sheet metal parts depends directly on component geometry, flange compactness, and tolerance allowances. Forming directly in the 6061-T6 temper avoids distortion but requires large bend radii, whereas complex deep contours or tight radii demand forming in the ductile O-temper, followed by solution quenching and artificial aging back to T6 specification.

Pre-hardened plate cold bending route and tolerance risks

• Directly buy 6061-T6 cold rolled sheets pre-hardened for cold bending so that no quenching is needed. Though, the radius should be R ≥ 3.5t.
• With a large radius, if it is acceptable, manufacturing will be the fastest and cheapest.

Annealed forming and solution aging recovery

• If the room inside the metal part is so tight that only a very small radius of 1.5t can be made, then for stamping and forming the 6061-O annealed sheet (elongation ≥ 20%) is recommended.
• After that, it was placed in a vacuum heat treatment furnace for solution quenching at 530°C and it was artificially aged at a temperature of 175°C for 8 hrs to make it again into the T6 condition.
• Quenching wave warping can happen due to this sequence. The error has to be eliminated by using, during heat straightening, a hydraulic special-purpose conformal fixture.

Cost, delivery time, and modification decision-making logic

• Going the pre-hardened plate way means you save on heat treatment expense but you have to pay higher the material price unit.
• Annealing heat treatment route causes a cost increase of 25%–45% but the design can be kept more compact.
• As JS Precision's actual experience in an inspection robot chassis project in 2025, using the pre-hardened material saved a total of 34% per unit and cut off 9 delivery days.Choosing high-quality aluminum sheet metal manufacturing services has to be based on a well-thought-of trade-off between both of these parameters.

ASTM B918/B918M Standard Practice for Heat Treatment of Wrought Aluminum Alloys specifies solution quenching at 530°C and artificial aging at 175°C for 6061-T6 temper restoration.

Facing a dilemma in choosing a high-strength aluminum bending process? Send your STEP drawings to JS Precision now to receive a free DFM review report from senior engineers.

How to Prevent Micro-Cracks and Dross in High-Precision Laser Cutting?

Preventing micro-cracks and dross in aluminum laser cutting relies on high-power fiber lasers driven by ultra-pure nitrogen gas at pressures between 1.6 and 2.0 MPa. Nitrogen displacement expels molten slag instantly without forming brittle aluminum oxide edges, preserving clean grain boundaries that withstand subsequent heavy-duty forming stresses without generating fracture initiation notches.

The Influence of Nitrogen Purity and Pressure on Edge Cutting Quality

• Workshop should use high-purity liquid nitrogen with a purity of ≥ 99.999% to purge auxiliary equipment, while maintaining the gas pressure between 1.6–2.0 MPa.
• Metal droplets expelled at extremely high velocities give rise to a surface that is almost completely free from oxidation or discoloration and has a roughness Ra ≤ 3.2μm.
• With custom sheet metal fabricating, the nitrogen purity in direct proportion to the resistance to bending crack.

Oxidized slag layer and stress concentration fracture source

• During compressed air cutting, a layer of extremely hard and brittle alumina slag forms a microscopic serrations. These are slag that attaches to the cuts.
• A bending and tensing causes the stresses to concentrate at the tooth marks. This concentration creates a tear source that expands to a macroscopic crack.
• JS Precision entirely stops compressed air cutting of high-strength aluminum, which means only high-purity nitrogen can be used.

Assist Gas Type	Purity / Pressure	Edge Roughness (Ra)	Dross Formation	Bending Crack Risk	Workshop Recommendation
Compressed Air	Oil-water sep. / 0.8–1.2 MPa	Ra 6.3–12.5μm	Heavy Al2O3 slag	High (stress concentration)	Strictly prohibited for 6061-T6
Oxygen (O2)	99.5% / 0.5–0.8 MPa	Ra 3.2–6.3μm	Oxidized burrs	Very High (embrittlement)	Not applicable for structural aluminum
Ultra-Pure Nitrogen	≥99.999% / 1.6–2.0 MPa	Ra ≤3.2μm	Zero dross	Minimal (smooth edge)	Mandatory for high-strength aluminum sheet metal fabrication​

According to JS Precision Production Data: 2025, JS Precision 3,000+ laser-cut 6061-T6 parts verify that nitrogen pressure 1.8 MPa achieves Ra ≤3.2μm and zero dross.

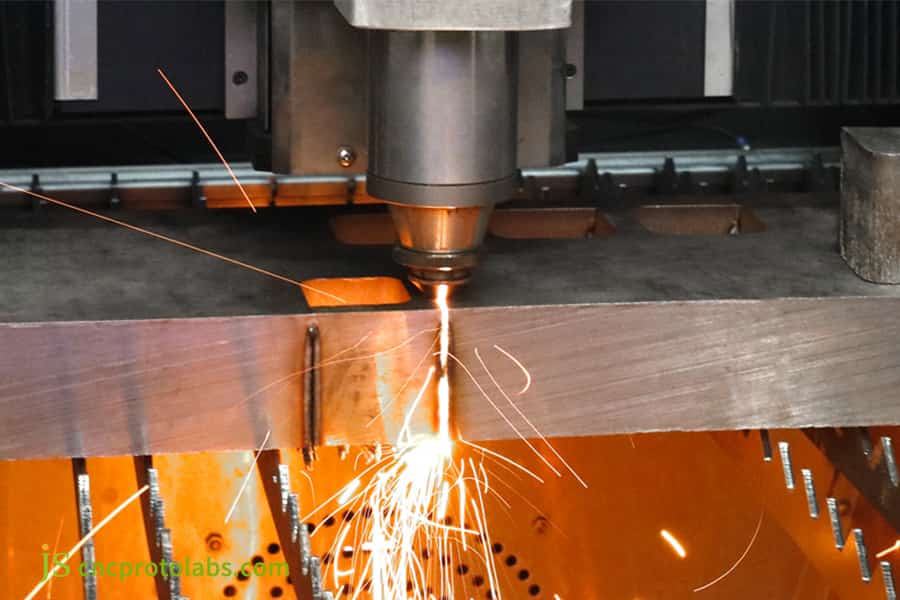

Figure 4: Laser cutting aluminum sheet metal with sparks.

Why Mechanical Fastening and Clinching Replace Welding in Structural Aluminum?

Mechanical fastening and PEM hardware replace traditional fusion welding in structural aluminum because heat input permanently destroys artificial precipitation tempers, reducing heat-affected zone strength by up to 40%. Riveting, cold clinching, and self-clinching studs deliver repeatable structural joints without introducing thermal warping, weld porosity, or the need for expensive post-weld solution re-aging treatments.

Analysis of Strength Degradation and Deformation in Heat-Affected Zone

• Due to welding arcs high temperature, the precipitated phase in the heat affected zone undergoes coarsening and hardening thereby making the steel weaker by 30% to 40%.
• Thin metal plates bend unevenly, develop waviness problems and do not lie flat adequately after bending.
• To prevent heat deformation, sheet metal fabrication experts have turned fully to cold bonding methods as a replacement.

Selection of Press-fit Fasteners and Chamfering Rules for Bottom Holes

• This is a high-hardness stainless steel press-fit nut (PEM fastener), which shall be implanted by CNC automatic press-fit machine only.
• Adhere strictly to the standard process of a 0.2 mm x 45° bottom hole chamfer.
• JS Precision conducts a 100% chamfer check during the riveting process to stop the occurrence of installation cracks.

Synergistic process of self-piercing riveting and structural adhesive

• The box structure is connected through the combination of self-piercing riveting (SPR) and high-modulus structural adhesive (Weld-Bonding).
• It is highly effective in withstanding shear and peel loads and is thermal deformation-free.

Facing the challenge of warping during thin steel sheet welding? Immediately send your STEP drawings to JS Precision to receive a free DFM review report from senior engineers, providing manufacturability optimization solutions within 24 hours.

How Do Anodizing and Chemical Passivation Impact Tight Mechanical Tolerances?

Controlling finishing tolerances in precision aluminum parts requires calculating exact anodic film build-up ratios and reserving critical feature clearances prior to chemical plating. Hardcoat anodizing creates a 25–50μm oxide layer that penetrates 50% into the substrate and builds 50% outward, requiring machinists to mask tight dowel holes and tap threads to preserve engineering assembly fits.

Trivalent chromium conversion coating and conductive passivation specifications

• The trivalent chromium chemical conversion coating has a thickness just barely less than 1.0 μm and is in line with RoHS and MIL-DTL-5541F standards.
• It protects against corrosion under salt spray for 168–336 hours while hardly affecting hole and thread tolerance measurements.
• Precision sheet metal fabricators are the primary users of this finishing method for tight-tolerance assemblies.

Hard anodized film growth and subtraction logic

The hardened film thickness by MIL-A-8625 Type III can reach 25–50 μm. Most of all, half of the film, i.e.50%, penetrates the material; and the other half, 50%, grows outside the material so one side of the outer shape becomes larger (an increase of 12–25 μm) and the inner hole becomes smaller, by 25–50 μm.

For these reasons, the machining workshop is responsible to conduct, before bending and blanking, tolerance compensation for small-specification threaded holes as well as positioning holes of precision.

Practical application of shielding and tolerance compensation

• During the oxidation process, acid-resistant rubber stoppers are mainly used for physical shielding and protection to prevent any variation in the hole size inside.
• Accuracy positioning holes were first rough-bored with a compensating margin before bending, then reboring to the target size after oxidation.
• Based on JS Precision's practical experience in medical aluminum component projects in 2025, shielding protection stabilizes the fit tolerance at ±0.05mm.

JS Precision Case Study: Manufacturing 6061-T6 Chassis for Industrial Inspection Robots

JS Precision delivered a high-strength chassis fabrication solution for an industrial inspection robotics client, achieving ±0.1mm dimensional alignment across 16 folded facets in 2.5mm 6061-T6 aluminum. By replacing risky fusion welding with structural PEM fasteners, applying a 4.0t inside bend radius, and tuning CNC overbending parameters, the team eliminated previous 45% scrap rates caused by brittle edge cracking.

Customers face difficulties

1. The old supplier utilized conventional steel mold and air laser cut, and so the cracks rate in the bending parts was at 45% and the accumulation of springback was up to 4.5°.
2. Since the holes for the chassis motors didn't align well coaxially, trial production had to stop, which put the customer's production line at risk of a delay.
3. The custom sheet metal fabricating process chain has been broken, which needs urgent full-process DFM optimization.

JS Precision Solution

• For DFM, we strongly suggest that the customer replace the customer's original 3D drawing R2.0mm compact fillet with an amplified R10.0mm (R/t = 4.0), and also pre-cut the stress relief grooves along the bending line for the irregularity-affected holes.
• The placement is such that all the bending lines are at 90° to the transverse rolling texture of the sheet metal.The cutting of blanks is carried out by a 10kW fiber laser, 1.8 MPa high-purity nitrogen gas.
• We set the press to 83.2° and overbent before the material was pressure-held to 2 seconds for a 6.8° springback measurement. Welding was entirely substituted by using SP-grade stainless steel press fit studs for fastening, and the surface was passivated by using trivalent chromium.

Failure experience and lessons learned

The microcrack originated during the trial run when an operator transferred the unfinished prototype part to the bending machine before completing the deburring stage. A tiny crack of 0.8mm was found to emanate from the laser piercing starting site due to the tensile stress of cold bending.

The technical department then implemented a mandatory process: following the laser cutting of high-strength aluminum parts, their edges are to be entirely deburred with a micro-blunting method done using an eccentric roller grinding machine before they can be moved to the bending stage.

Final result

• A hundred percent of the 150 chassis deliveries were flawless with no cracks whatsoever. And, the main mating hole dimensions are strictly within ±0.08mm range. The chassis passed 500kg static load and 100-hour vibration durability testing.
• The weight of new chassis was only 65% of the original steel ones, and the final assembly time was cut from 4 hours to 45 minutes.

Data source: JS Precision Internal Engineering Report Project QA Report: Industrial Inspection Robot Chassis Batch #2025-ROBOT-08.

Facing challenges with thin-plate taper designs like battery trays? Send your STEP drawings to JS Precision now to receive a free DFM review report from senior engineers, with manufacturability optimization solutions provided within 24 hours.

FAQs

Q1: Why does 6061-T6 aluminum crack easily during cold bending?

After artificial aging, 6061-T6 only shows an elongation of around 8–10% and a very low plasticity. The moment the outer edge is under tensile strain that is higher than the fracture toughness of the brittle grains, intergranular cracks will form.

Q2: What is the recommended minimum bend radius for 6061-T6 sheet metal?

The minimum bend radius for 6061-T6 should be at least 3.5 times the sheet thickness which means 7 mm for R2 mm plates. Yet, if the desired shape includes a sharp corner (R ≤ 1.0t), the workpiece must be stamped with 6061-O material followed by the necessary reheat treatment in the form of quenching and aging.

Q3: How does springback vary between 5052-H32 and 6061-T6 during press braking?

In press brake operations 5052-H32 springback is just 1.5°–2.5° while 6061-T6 springback reaches 5.0°–8.0° due to higher yield strength.Springback control for aluminum sheets usually involves either dynamic compensation by a computer numerical control (CNC) servo bending machine or employing an angle measurement laser in line.

Q4: Can structural 6061-T6 enclosures be assembled using traditional TIG welding?

Welding should be avoided for load-bearing structural components.The high temperature of welding causes a 30%–40% loss in the strength of the heat-affected zone and makes it prone to warping; self-piercing riveting (SPR) and press-fit fasteners combined with structural adhesives and other cold connection processes are recommended.

Q5: What CAD K-factor should be configured for high-strength aluminum unfolding?

It is recommended to increase the sheet metal unfolding K-factor from the default 0.33 to 0.44–0.48. The outward shift of the neutral layer during high-strength aluminum large-radius bends, calculated using the original value, will result in undersized blanks and out-of-tolerance forming dimensions.

Q6: How much does custom 6061-T6 sheet metal fabrication cost compared to mild steel?

The total processing costs are generally between 25% and 45% higher. The reason is more expensive for 6061, slightly less efficient layout material utilization, more consumption of pure liquid nitrogen cutting gas, and longer times on the CNC machines for bending and fine tuning.

Q7: What documentation does JS Precision require to generate a formal quote?

The client should send a complete 3D CAD model (STEP/IGES) and 2D engineering drawings (PDF) with key tolerance, crimped parts models, and surface treatment standards indicated. JS Precision will deliver a free DFM and an itemized quotation within 12 hours.

Q8: How does JS Precision ensure consistent angular accuracy across volume production?

JS Precision employs a set of CNC bending machines having laser angle measuring online system for reading springback angels in milliseconds and making closed loop corrections. On top of that, sampling of feed hardness and first-piece inspection by coordinate measuring machine, the angle tolerance in the batch is controlled to ±0.3°.

Summary

Precision machining of high-strength 6061-T6 aluminum sheet metal requires a holistic approach, integrating design and workshop processes: internal bending radius ≥ 3.5t, bending lines perpendicular to rolling texture, high-purity nitrogen cold cutting to eliminate micro-cracks, and dynamic compensation for 5.0°–8.0° springback. Small-radius stamping and welding are abandoned in favor of cold assembly processes to ensure reliable part placement.

If your equipment rack is facing bending, cracking, or angular deviations, please contact the JS Precision engineering team. Upload your 3D CAD drawings (.STEP/.IGES), and a senior engineer will provide a DFM analysis and tiered quote within 12 hours, ensuring reliable quality for mass production.
