Domestic vs. China Injection Molding: A Complete Cost & ROI Comparison for OEMs

Domestic vs China injection molding is not just about price per part,it's about total cost of ownership. China injection molding service can help you reduce the capital expense on upfront tooling by 40%-60%, and at the same time unit price is also reduced by 30%-60%.

So basically, if you have volumes in more than 5,000 units a year, sourcing a product in China will deliver maximum return. This guide posts some of the insights gathered from experience like steel grade, DFM guidelines, tariff calculations, and a simple cost formula you can use repeatedly in your sourcing decisions.

Domestic vs China Injection Molding Cost & ROI Matrix

Assessment Factor​	Domestic Molding​	China Injection Molding Service​	ROI & Cost Impact​
Tooling Cost	$30,000–$80,000+	$12,000–$35,000	China saves 40%–60% upfront
Steel Grade & Life	P20, H13 (local)	S136, NAK80, LKM base	Upgrade to SPI Class 101 within same budget
Part Unit Cost	High (labor/overhead)	Low (automation + supply chain)	>5,000 pcs: unit cost ↓40%+
DFM & Tolerance	±0.05 mm (standard)	±0.005 mm (JS Precision level)	DFM cuts post-proc. cost 15%+
Total Lead Time	2–4 weeks (proto)	4–6 weeks (T1 + ocean)	Air-shipped proto balances speed & cost

Key Findings

• Overcoming the mold opening hurdles: By opting for injection molding services from China you could save about 40% to 60% on mold investment, lowering the risk linked to a new product launch for the OEM.
• Break-even Point: If your annual purchase is more than 5,000 pieces or there's a requirement for multi-cavity/ complicated inserts, Chinese-made goods will give the maximum return on investment.
• Essential factor for TCO decisions: Assessing ROIs is about the Total Cost of Ownership (TCO) model which covers 25% Section 301 tariff, ocean freight logistics and Design for Manufacturability (DFM) optimization.

Why Trust The Comprehensive Cost Advantages Of JS Precision’s China Injection Molding Service?

According to our team who has spent 15 years working with cross-border injection molding engineering projects, those suppliers that can clearly point out the differences between domestic and China injection molding costs and benefits can only do so when they have a closed data loop involving the three major areas of mold steel selection, DFM mold flow optimization and tariff implementation costs.

Our customer of a automotive connector part in North America first quoted $58,000 for one cavity of 4 (P20, HRC30), local production. Annual demand is 120,000 pcs, so per mold amortization is about $0.48. We changed to LKM base + S136 hardened steel (HRC 50), and mold making cost decreased to $19 500 per piece amortization $0.16, unit cost reduced from $4.20 to $2.65.

ISO 9001:2015 states: An organization shall make sure that the processes, products and services from any external suppliers will not have adverse effects on its ability to deliver consistent, conforming products to the customer.

We have four levels of cross-border project control at our end: DFM pre-audit, mold steel certificate check, T1 sample FAIR (Cpk≥1.33), and pre-shipment sampling inspection, AQL1.0, minimizing the probability of any dispute over delivery through the ocean to the point basically zero.

The approach has been incorporated in the form of JS Precision's database of 400+ OEM cross-border projects (in areas of automotive medical industrial), and TCO savings of 32%-55% have been reported by our clients.

Download the OEM Cross-Border Injection Molding TCO Calculation and DFM Cost Reduction White Paper now to master mold thinning algorithms, Section 301 tariff calculations, and break-even point formulas, and assess the ROI potential of your domestic vs China injection molding projects in advance.

What Are The Tooling Cost Differences Between Domestic And China Injection Molding Service?

China injection molding service and domestic injection molding mainly differ in mold-opening fees because of toolmaker wages per hour and mold base purchase costs, these can be as high as 150% - 300% in China. China lowers the barriers through an integrated supply chain.

Mold Cost Comparison (1-out-4-car connector mold as an example)

The benefit for getting a mold from the company offering China injection molding service goes beyond their prices, China manufacturers are backed by a mature system of LKM standard mold bases and S136 hardened steel that support their work.

The table below shows a typical comparison:

Cost Item​	Domestic (NA/EU)​	China (JS Precision)​
Mold base	DME/Hasco local	LKM standard
Steel (cavity)	H13, HRC 48–52	S136, HRC 48–52
Tooling quote	$45,000–$65,000	$16,000–$22,000
Lead time	6–8 weeks	3–4 weeks
Est. life	500k–1M shots	500k–1M shots

Single-piece mold yield calculation

Based on our practical experience in an electronic casing project, with a mold opening cost of $20,000 and a production run of 100,000 pieces:

Single-piece mold yield = 20,000 ÷ 100,000 = $0.20/pc

Hot runner vs. cold runner incremental return

1. Cold runner: The cost is the lowest at the mold stage Though the runner scrap rate is about 15% - 30%, and you still have a huge volume of expensive PEEK material getting thrown away.
2. Hot runner: Mold cost has gone up by $2,000 but production of 100,000 units will make you able to save a total of 18% of the amount of resin being wasted.
3. Payback time: When using ABS 3g/kg and one runner is about 20g, it is calculated that making 100,000 units gives a saving of $1,080 of the material, meaning the hot runner's extra cost can be covered within less than 3 months.

Drawing a comparison of mold costs between domestic vs China injection molding is a matter of understanding that the hot runners' benefit that accumulates over the years outweighs the upfront cost of their implementation.

Upload your CAD drawings (STEP/IGES), and JS Precision engineers will provide an analysis list including mold life guarantees and a precise mold opening quote within 12 hours.

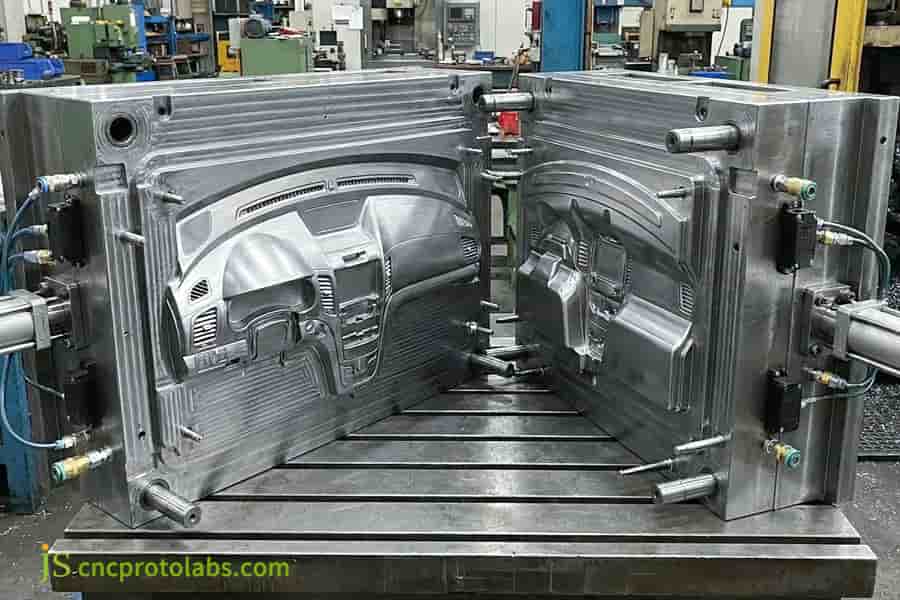

Figure 1: Automotive interior mold tooling in a factory setting.

How To Calculate Total Landed Cost Including Tariffs For China Injection Molding Service?

The real difference in China vs US injection molding cost must be calculated by converting the factory price, sea/air freight, insurance, customs clearance, and Section 301 tariffs into the landed unit price in order to see the true ROI.

Total Landed Cost Formula:

Landed Unit Price = Pexw + Focean + (Pexw × ttariff) + Ddomestic

Where: Pexw= ex-factory unit price, Focean= freight per unit, ttariff = tariff rate, Ddomestic = domestic land transportation cost.

The real difference in China vs US injection molding cost lies in factoring in the costs like ex-factory price, sea/air freight insurance customs clearance, and section 301 tariffs to determine the true cost per unit.

Example: 20,000 ABS+PC Electronic Housings

Cost Layer	Unit Cost ($/pc)	Note
China Factory Price (EXW)	$1.20	JS Precision quoted
Sea Freight (LCL) Allocation	$0.15	LCL, Door-to-Warehouse
Section 301 Tariff (25%)	$0.30	$1.20 × 25%
Customs Clearance + Last-Mile Delivery	$0.03	Local Trucking
Final Price	$1.68	—
North American Domestic Processing Price	$3.10	Reference

Detailed Explanation of Tariff Impact

The project still net a cost savings of 45.8% even after all the logistics and the 25% tariff were added. Basically, it just illustrates how, once the year production exceeds 5,000 units, the tariffs will no longer be a problem, and the Chinese supply chain will be the lowest unit price available. The comparison between China vs USA injection molding cost shows that the total cost of implementation is the only criterion for decision-making.

Why Does DFM Optimization In Custom Injection Molding Service Directly Boost Project ROI?

DFM (Design for Manufacturability) in custom injection molding service corrects uneven wall thickness, insufficient draft, and shrinkage hazards before injection molding, eliminating over 80% of mold rework and material waste from the source.

Main aspects of DFM:

• Difference in wall thickness ≤±10%: Reduces the chance of sink marks and warping by avoiding delayed cooling in the areas with thick walls.
• Draft angle 1°-2°: Polished surfaces ≥1°, textured surfaces ≥1.5°, ejection scratches are avoided, defects rate is reduced to below 0.5%.
• Moldflow analysis: Enhances filling time, packing pressure and cooling water channels to identify potential weld line locations.

DFM in custom injection molding service delivers a key benefit that if a design change is done right, then about 80% of mold trial rework can be saved.

Comparison of DFM Parameters Before and After Modification

Parameter​	Pre-DFM​	Post-DFM​	Δ​
Cycle time	35 sec	22 sec	↓37%
Cooling	Straight drill	Conformal channel	Cavity ΔT ±1.5°C
Scrap rate	3.2%	0.4%	↓2.8 pts
Draft angle	0.5°	1.5°	Ejection safe

Conformal cooling systems effectively even out the temperature across the mold cavity surface by up to 1.5℃, thereby shortening the mold cycle time by nearly 50% from 35 sec to 22 sec leading to a reduction in individual part production cost by 27%. This is precisely the variable in injection molding cost comparison that is easily overlooked but has a huge impact.

When comparing the differences in China vs USA injection molding cost by looking at unit prices, the price drops that happen because of DFM optimization are usually larger than tariff differences.

Send your 3D model to receive a free DFM mold flow analysis report from JS Precision's senior engineering team.

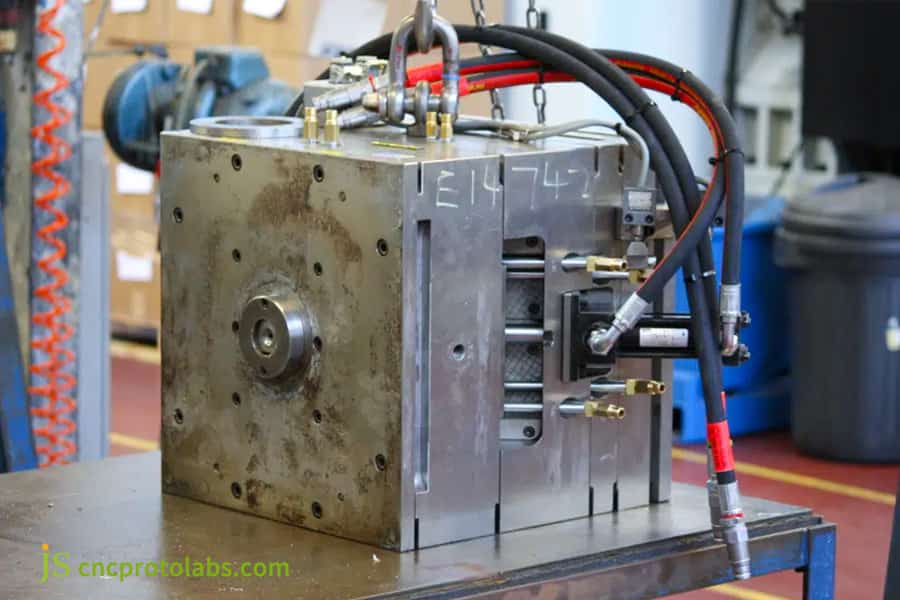

Figure 2: Small mold tooling with pneumatic cylinders.

How Can China Injection Molding Service Ensure Precision Injection Molding Tolerance Of +/-0.005mm?

It takes more than just words to guarantee a ±0.005mm tolerance in injection molding manufacturing services in China, the real secret lies in having top-notch machinery and processes like fully electric injection molding machines, CMM (Chemical Mold Maker), and mold processing chain.

The Equipment and Process Control Chain

• Japanese FANUC fully electric injection molding machine: Repeat screw position ±0.01mm, and coverage capability of clamping force from 50T to 650T.
• Cavity pressure sensor: It allows monitoring filling peak and V/P switching point with <2 percent error.
• Engineering plastic shrinkage control: shrinkage 0.2%-0.8% for PEEK, 0.3%-0.8% for PA66+GF30, 0.2%-0.6% for PPS and mold-flow reverse compensation.
• Zeiss CMM full sampling: T1 sample full dimensional FAIR, regular production batches Cpk ≥1.33.

Getting a tolerance of ±0.005mm in China injection molding service calls for having all this machines and control methods.

High-Precision Injection Molding Inspection Process:

1. First molding trial at T1 stage: Full-dimensional FAIR report for the first piece with measurement details of each part of the item against 2D drawings.
2. Cpk confirmation: 30 samples consecutively taken, released only if the part is such that critical dimension Cpk≥ 1.33.
3. Sampling Inspection before Shipment: Random sampling is done from each shipment for re-examination based on AQL 1.0 standards.

Per ISO 20457:2018 Tolerances for Molded Plastics:The tolerances for molded parts shall be a classification based on function requirements, precision tolerances are within ±0.05mm.

In high-precision medical components, we have even tightened the standard to the minimum of the tolerance which is ±0.005mm, and kept CPK certification. This is how technical injection molding manufacturing services of the company that has an in-depth understanding of precision fields.

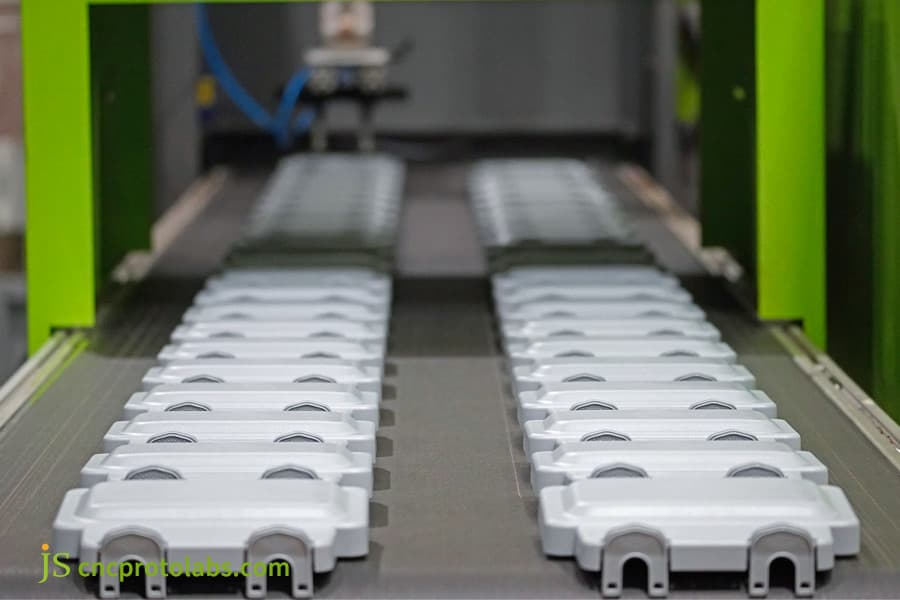

Figure 3: White plastic parts on automated production line.

When Should OEMs Transition From Domestic Production To China Injection Molding Manufacturing Services?

When to switch your OEM injection molding service can depend on product lifecycle and the annual quantity needed. With small scale production, NPI, domestic production is easier to accommodate. Still, when it comes to larger volumes that exceed 5,000 units yearly production, for example PVT, China is the better choice as it offers many benefits.

IF-THEN Decision Logic

• If annual demand is less than 1,000 units and drawings are changed weekly→Select Domestic rapid prototyping.
• If annual demand is more than 5,000 units and drawings are frozen→Select China Sourcing to maximize ROI.
• If includes overmolding, ultrasonic nuts and multi-cavity 16/32-cavity products→Chinese supply chain has a significant advantage.

Timing of switching OEM injection molding service depends on the product lifecycle and annual demand. For early-stage NPI (National Injection Molding) production, domestic production is flexible, for PVT (Production Transformation) mass production (>5,000 units/year), China has an advantage.

Three Highly Adaptable Scenarios

• The projects with high labor costs include overmolding, manual quality inspection and packaging, ultrasonic nut embedding.
• Advanced multi cavity tooling like 16 cavity, 32 cavity or stack molds are possible with the help of Chinese mold bases and processing fees as advantages.
• The price of materials is very high, e.g. RoHS/REACH certified resin pellets are available in China and procurement prices there are 15-25% lower than prices in North America.

In these situations it's common for injection molding manufacturing services to achieve economies of scale.

How To Mitigate Supply Chain Risks When Sourcing China Injection Molding Service For OEMs?

China injection molding service cross-border procurement risks are addressed with a three-layer protection system: intellectual property agreements, staged payments and ISO-certified partners.

Risk Control SOP

• IP Defence: Sign the NNN protocol (Non disclosure, Non use, Non circle vention), protected by Chinese law and international arbitration, and mark the drawings by category before mold opening.
• Quality check points: T1/T2 trial molding benchmarks are fixed. AQL sampling method is used for FQC inspection.SPI mold files and trial molding setup sheets are handed over.
• Safe inventory management: A safe-buff inventory policy is adopted and suppliers keep two to-four weeks safety stock in the warehouse for responding to change in sea freight.

The cross-border procurement risks of China injection molding service are handled through a three-layer protection system involving IP agreements, phased payments and working with ISO-certified partners.

Logistics and Inventory Strategies

1. Air Freight Urgent Orders : For sample T1, air route is available for expedited delivery at door within 3-5 days.
2. Sea Freight Forwards: Mass production uses sea freight LCL/FCL for the lowest cost.
3. Safety stock: JS Precision keep 2-4 weeks of safety stock for customers to avoid feed stock.

Generally, risk costs are underestimated in the comparison of China vs USA injection molding cost, which ranged from the lost result of individual IP dispute or batch return to one year's mold saving. JS Precision has passed ISO 9001:2015 & IATF 16949:2016 certification.

The used mold steel is traceable to the Chief of Original Company S136 / NAK80 quality certificate. All CAD drawings have been stored on a separate internal network and shall not be released or subcontracted without proper written authorization.

This is the key of such risk management system for custom injection molding services to achieve a long term cooperation.

Figure 4: Supply chain management with laptop and components.

How JS Precision Helped a Medical OEM Client Reduce Injection Molding Costs by 42%

JS Precision improved the injection molding technique for a North American medical OEM's high-precision fluid distribution valve, thereby bringing down the costs related to mold opening by 45%, and raising the delivery pass rate to 99.8%

Client Challenges

First of all, the client wanted that the PEEK injection molded valve having 12 precision microfluidic channels should be produced in North America, and that the local mold cost should be $85K. But the big shift in wall thickness from 1.2 to 3.5.mm turned out to be a disaster as the T1 trial mold was plagued by shrinkage and warping that was 0.03mm beyond the tolerance. So the project stood still for 4 months.

JS Precision Solution:

• DFM Structural Reconstruction: After carrying out a Moldflow analysis, a sharply thickened wall thickness was replaced by a homogenous 2.0mm thickness. In addition, interior strengthening ribs were incorporated for preventing thermal contraction defects.
• Mold Steel and Conformal Cooling Channels: Uddeholm S136 hardened steel from Sweden (HRC 52) and 3D printed conformal cooling channels, cavity temperature difference ±1.5℃.
• Micro-hole Refinement: Sodick wire EDM + high-speed CNC, key runner 0.003mm.

Lessons Learned from the Failure:

Insufficient PEEK dehydration in the first trial mold resulted in defects (silver streaks, air marks) on the part surface and a failed quality check. By increasing both mold temperature (170℃) and dry heat content from dehumidified air dryer, the team was able to fix the problem related to uneven crystallinity.

Final Results

• Mold Cost: 85,000 → 46,000 (↓45%)
• Single-Piece Processing Cost: ↓38%
• Project ROI: Increased by 2.3 times
• Development Cycle: Shortened by 3 weeks

Encountering similar complex injection molding challenges? Submit your problem to the JS Precision engineering team for a solution.

Why Choose JS Precision As Your Preferred Partner For China Injection Molding Service?

JS Precision is your go-to for precision injection molding with a team that has 15 years experience in mold manufacturing as well. We guarantee transparency throughout engineering, use strict international standards, and we are all-around very cost-effective, so that we can develop for world-class OEMs a high-ROI supply chain.

Four Core Strengths

• Full Industry Chain Integration: One-stop CNC prototyping service, mold manufacturing, precision injection molding, and secondary processing (SPI mirror finish, pad printing, ultrasonic welding).
• Robust Quality Control and Machinery: Over 15 Japanese FANUC all-electric machines (50T, 650T), Keyence imaging System + Zeiss Coordinate Measuring Machine batch CpK≥1.33.
• Seamless Integration & Project Management: Dedicated project managers who understand English provide 24/7 Support, daily updated videos showing the progress and trial molds data that are open to your view.
• High ROI Commitment: DFM + mold flow report FREE and no MOQ set up which enable us to help clients reach the most reasonable TLC implementation costs.

The competitiveness of China injection molding service comes from the system integration of the four hard strengths mentioned above.

Client Success Stories:

1. Automotive Connectors: Only mold expenses dropped by 62% and the item price fell by 37%.
2. Medical Fluid Valves: Mold expenses decreased by 45%, and the product quality rate was at 99.8%.
3. Industrial Sensor Housings: Only 0.35mm warpage remained as warpage is a part of the process but the company reduced it to 0.08mm using JS Precision.

OEM injection molding service is not based on finding a cheapest manufacturing plant offshore but on leveraging engineering data to transparently compute the costs of tariffs, logistics, and mold, so that the entire budget is devoted to precision and delivery time. It is of thinking about the business that sets JS Precision above the others.

FAQs

Q1: What is the typical lead time for custom injection molding service at JS Precision?

The company spends 10-15 working days to make the mold sample and T1 sample for normal LKM mold bases. If it is about an SPI class 101 production mold, the process will take 20-30 calendar business days. Sample approved production will be completed within 7-12 days.

Q2: How does JS Precision calculate its China vs. US injection molding cost quote?

JS Precision produces the quoted using a transparent BOM setup that incorporates resin material cost per kilogram, machines labor hours for clamping force (50t-650t), S136/ NAK80 mold steel cost, secondary processes charge, ensuring no hidden markups. You can directly upload your drawings to get a quotation.

Q3: Can China injection molding service achieve the same quality as North American molders?

Chinese manufacturers like JS Precision are Really a quality match. We have FANUC all-electric injection molding machines, Yushin robotic system, Zeiss Coordinate Measuring Machine (CMM) inspection equipment available in the production environment. By careful choosing of imported steel and strict implementation of ISO9001 System, we can regularly maintain tolerances within ±0.005mm.

Q4: What resin materials are available for custom injection molding service?

We can work with general plastics (likeABS, PP), engineering plastics (for example PC PA66+GF, POM), as well as premium materials (e.g. PEEK, PPS). Our supplier materials comply with RoHS, REACH, FDA, and the certification of the product comes with a safety data sheet (MSDS).

Q5: How do tariffs affect the total ROI when sourcing injection molding from China?

Apart from the 301 Tariff of 25%, it is still possible for medium and large size orders to get 30% -45% net cost savings. A Chinese mold could be the saving of 20,000-50,000 dollars in upfront investment, while at the same time the diluted unit cost could easily outweigh the tariff.

Q6: What is the minimum order quantity (MOQ) for OEM injection molding services?

JS Precision does not enforce a minimum order quantity(MOQ). We are equally happy producing a market or transitional samples of as low as 100-1000 pieces or carrying out a fully automatic large-scale run of over 500,000 pieces. As the production goes up, the cost per piece goes down.

Q7: How does JS Precision protect intellectual property (IP) for overseas OEMs?

JS Precision secures a client's IP with Non-Disclosure (NNN) agreements. CAD drawings are kept on separate internal servers, and there is no way that designs get leaked or handed over without getting the written consent from anyone.

Q8: What design modifications yield the biggest savings in injection molding cost comparison?

Designing a consistent wall thickness ( ±10%), going to one or two degree more of the draft, getting rid of very deep undercut, a multiple cavity mold as well as making a number of design optimizations from early DFM stage can help you save up to 30%, and in some cases 15-30%.

Summary

A thorough cost and ROI comparison of domestic vs China injection molding reveals that overseas sourcing is not simply a price game, but a comprehensive supply chain strategy encompassing upfront mold investment, single-piece processing efficiency, DFM (Dual Factor Manufacturing) optimization, and total cost of production (TLC). When OEMs' needs extend beyond small-batch, rapid prototyping, choosing a Chinese injection molding partner with precision manufacturing capabilities and a transparent quality management system can effectively reduce capital expenditure by up to 50% and significantly shorten product launch cycles.

Don't let high local mold budgets hinder your product innovation and project implementation. JS Precision is ready to safeguard your projects with its robust engineering capabilities. Simply send your 3D CAD drawings (STEP/IGES format) to our engineering team, and we will provide you with a free DFM manufacturability analysis report and a detailed China vs. Domestic cost comparison quotation within 12 hours.
