5 Axis Industrial Applications: From Automotive Parts To Medical Device Manufacturing

"5 axis machining near me" serves as a popular search term which manufacturing companies use to find advanced machining equipment.

The combination of multiple clampings with traditional three-axis machining centers fails to achieve a tolerance of ±0.01mm yet the high-efficiency 5 axis vertical machining center presents itself as a solution which enables operational progress.

This article will analyze the core applications of 5-axis machining in the automotive and medical fields, providing a complete guide from equipment selection and process matching to local supplier selection, helping you get parts right the first time.

Core Answer Overview

Core Dimensions	Core Solutions
Equipment Selection	A 5 axis vertical machining center which operates in automotive and medical applications requires the selection of spindle power components that exceed 18,000 rpm and need a complete closed-loop feedback system which delivers ±2µm accuracy.
Process Matching	The machining efficiency of a 5 axis rotary table depends on its performance while torque motor direct drive technology enables systems to operate without backlash which results in more than 30% faster surface response time.
Fitting Solutions	5 axis workholding uses zero-point quick change and dovetail groove design, which can reduce clamping time by 90% and achieve true five-sided machining.

Key Takeaways

• Precision Determines Success: Medical implants require positioning accuracy of ±0.004mm, so engineers must choose 5-axis vertical machining centers which include closed-loop optical encoders for their projects.
• One-Time Fixture Creates Profit: Automotive subframes enable multi axis CNC machining to decrease clamping requirements which results in 99.8% accuracy of dimensional measurements.
• Local Services Reduce Risk: When searching for 5 axis machining near me, request suppliers to provide laser interferometer calibration reports and case studies of machining similar parts.

Why Choose 5 Axis CNC Machining Services? Based On JS Precision's Experience

High-end manufacturing operations depend on 5 axis CNC machining as their fundamental technological system. JS Precision has worked in this industry for 15 years to deliver services to leading automotive and medical enterprises across more than 30 global markets.

We company achieved its core value demonstration through 5 axis CNC machining services by completing over 100,000 complex parts.

Also, we developed a solution for the automotive sector which fixed dimensional deviations that occurred during multiple clamping processes on aluminum alloy subframes used by a renowned OEM.

We used multi axis CNC machining to create a single-clamp forming process which decreased the processing time from 72 hours to 22 hours. This process achieved 99.8% dimensional accuracy which enabled the customer to obtain their contract for 10 million units per year.

We implemented high-precision machining with a 5 axis vertical machining center to control the surface finish of titanium alloy hip implants for a European medical device brand at Ra < 0.3µm. This process resulted in batch scrap reduction from 8% to 0.5% while fully meeting ISO 13485 certification requirements for medical devices.

The ISO 9001:2015 standard provides authoritative industry data which shows that 5-axis machining increases production efficiency for complex parts by over 40%.

The 5 axis CNC machining services of our company offer equipment benefits and we have an entire process research and development team which develops tailored machining solutions that cover all steps from choosing tools to planning paths and verifying through simulation.

Our company offers clients three major benefits which help them overcome core problems that include insufficient accuracy and extended processing times and excessive material waste when handling complex components.

Want to achieve high-precision, high-efficiency machining of your automotive or medical parts? Contact JS Precision's process engineers now, tell them your part material and machining requirements, and you can receive a free, customized 5 axis CNC machining solution precisely matched to your production needs.

How To Choose The Most Suitable 5-Axis Vertical Machining Center For Complex Surface Machining?

"5 axis machining near me" produces multiple results. The successful machining process for automotive and medical components needs the appropriate 5 axis vertical machining center selection.

The system achieves its operational accuracy and performance through its fundamental design. The section presents essential selection criteria which need to be evaluated.

How do core specifications affect the processing range?

The automotive and medical industries require specific table dimensions and spindle strength for their operations. Medical titanium alloy implants are suited to Ø500-600mm tables while automotive subframes require >800mm tables. The recommended spindle model is the 18,000-20,000rpm HSK63A which can effectively cut titanium and aluminum alloys.

What methods exist to attain exact results?

The automotive and medical industries require equipment that operates with absolute accuracy. The system needs a fully operational closed-loop feedback mechanism which includes both linear encoders and rotary encoders that connect to HEIDENHAIN or Siemens 840D systems which meet ISO 10791-6 precision standards.

What methods exist to assess dynamic capabilities?

The actual machining abilities of a system cannot be determined through its static performance indicators. The supplier needs to provide RTCP test reports and laser interferometer inspection reports which demonstrate that positioning accuracy meets the requirement of ≤±0.008mm.

Core Parameter Requirements for 5-Axis Machining in Different Industries

Industry	Part Type	Positioning Accuracy Requirements	Surface Finish Requirements	Compatible Table Size
Automotive	Subframe/Control Arm	±0.01mm	Ra<1.6µm	>800mm
Medical	Orthopedic Implants	±0.004mm	Ra<0.4µm	Ø500-600mm
Energy	Valve Body/Pump Housing	±0.008mm	Ra<0.8µm	>700mm
Molds	Injection Mold Cavity	±0.005mm	Ra<0.2µm	Ø600-800mm
Aerospace	Turbine Blades	±0.003mm	Ra<0.3µm	Ø500-600mm

What Are The Essential Advantages Of Multi Axis CNC Machining Compared To Traditional Machining?

Multi axis CNC machining achieves its primary value through its improved operational machining system. The system provides a complete solution to the difficulties which arise during the production of complex components.

• Why is "one-time clamping" a qualitative leap?

The traditional process of three-axis machining for complex parts needs three separate clamping processes which create positioning mistakes. The single clamping system of multi axis CNC machining maintains exact measurements because it prevents the build-up of tolerances throughout the entire process.

• How to improve material removal rate using trochoidal milling?

The combination of five-axis attitude adjustment and Mastercam Dynamic Motion technology achieves a 40% improvement in material removal rate together with 30% reduction in tool wear and decreased machining expenses.

• When to choose between 3+2 positioning and full five-axis linkage?

The combination of 3+2 positioning with full five-axis linkage enables a 90% decrease in machine collision risk. The process of 3+2 positioning serves roughing purposes whereas full five-axis linkage enables the finishing of complicated curved surfaces.

5-Axis Machining Common Tool Parameter Compatibility Table

Tool Type	Compatible Material	Recommended Spindle Speed ​​(rpm)	Feed Rate (mm/min)	Compatible Machining Center Spindle
Carbide End Mill	Aluminum Alloy	18000-20000	1500-2000	HSK63A 18000rpm
Solid Carbide Ball End Mill	Titanium Alloy	8000-10000	300-500	HSK63A 20000rpm
Twist Drill	Gray Cast Iron	6000-8000	200-300	HSK63A 18000rpm
Bore Boring Tool	Stainless Steel	5000-7000	100-200	HSK63A 20000rpm
Reamer	Medical Titanium Alloy	4000-6000	50-100	HSK63A 20000rpm

How To Achieve All Machining In One Clamping Process Through a 5-Axis Rotary Table?

The 5 axis rotary table is the main body of the multi axis CNC machine tool and directly influences the efficiency of the machine. It is particularly important for single-setup machining of automotive and medical parts.

• How does the quality of the transmission method influence accuracy?

Three types of mainstream transmission methods for the 5 axis rotary table have been applied to different conditions. The main differences between them are described in the table below. The selection of the method can be made according to the types of parts.

Transmission Method	Core Advantages	Core Disadvantages	Suitable Scenarios
Worm Gear	High rigidity, large clamping torque	Backlash exists, slow response	Heavy cutting of large automotive parts
Torque Motor Direct Drive	Zero backlash, high dynamic response	Slightly weaker rigidity	Curved surface machining of precision medical parts
Roller Cam Mechanism	Curved surface machining of precision medical parts	Higher cost	High-end automotive/medical precision machining

• Why is the load-bearing and braking performance critical to the success of the task?

Operators need to apply sufficient clamping torque during the machining process of large automotive aluminum alloy die-cast parts. The multi-plate braking system delivers 1200 N·m of torque which stops the workpiece from moving and vibrating.

• How to ensure long-term stable operation?

The production area encounters intense chip impacts which happen when medical parts undergo machining operations. The 5 axis rotary table needs to achieve IP67 protection level because it requires a sealed design which will provide operational stability for extended periods.

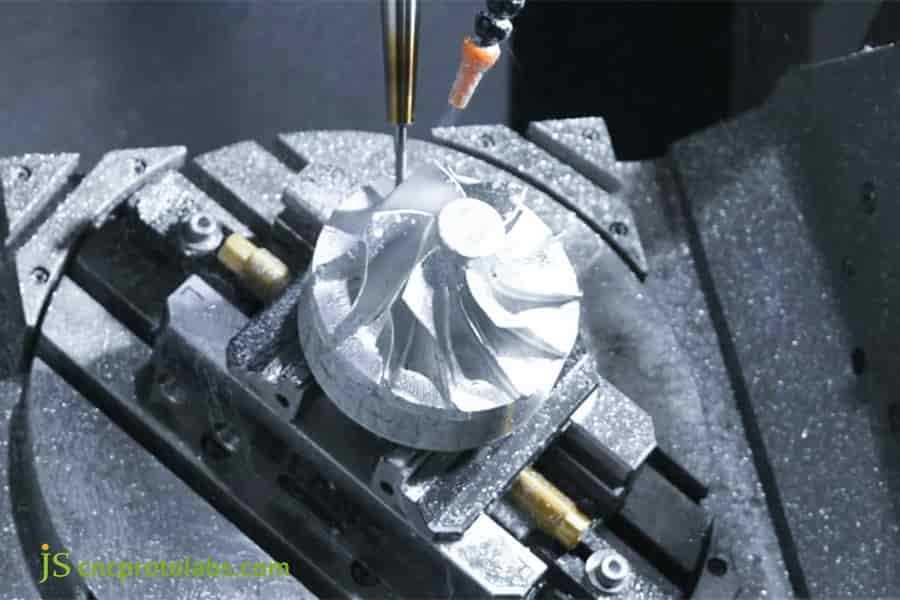

Figure 1: A 5-axis vertical machining center precisely mills a complex aluminum die, with coolant flowing and metal shavings present.

How To Optimize 5-Axis Workholding To Unleash The Full Potential Of 5-Axis Equipment?

High-quality equipment needs to be paired with appropriate 5 axis workholding to unleash its performance. The use of wrong fixtures during manufacturing processes will reduce machine capabilities while creating dangerous situations which could lead to collisions.

• How to eliminate interference and realize the ultimate proximity?

Multiple components need their individual fixtures to solve the problem of tool interference during operation. The manufacturing process requires Dovetail groove fixtures to perform intricate undercut machining operations. Vacuum adsorption technology helps reduce the amount of bending that occurs when manufacturing thin parts.

• How can a zero-point quick change system enhance efficiency?

The HSK interface zero-point quick change system allows mass production to achieve workpiece replacement times of eight seconds. The machine operates at an accuracy level which achieves ±0.005mm.

• What should we consider when we upgrade the automation?

When we upgrade the automation equipment on the production line, we should consider the compatibility between 5 axis workholding and robot loading/unloading. Pneumatic detection can eliminate collision and enhance stability.

Want to optimize your 5 axis workholding solution? Review JS Precision's fixture case studies to get fixture design ideas suitable for your parts and improve clamping efficiency.

Figure 2: A metal 5-axis workholding fixture with green and gray clamps securely holds an orange component for precise multi-axis machining.

How To Find Reliable Local Suppliers Within The Budget For 5 Axis Machining Near Me?

After searching for 5 axis machining near me, the key is to screen the reliable local suppliers. When the local supplier is reliable, they can offer support for the entire process.

• How to verify qualifications and equipment?

The process of supplier qualification and equipment verification needs you to check whether their equipment matches what they say it does and verify their industry approval certificates which include IATF 16949 for automotive and ISO 13485 for medical equipment.

• How to conduct in-depth case analysis?

The selection process for local suppliers requires you to obtain their records which demonstrate their ability to machine identical parts together with their finish and dimension inspection reports.

• How to evaluate communication and response?

The key advantage of the local supplier is the quick response. It is necessary to ensure the transparent delivery and 24-hour response time for the technical issues.

How To Evaluate Whether The Technical Strength Of 5 Axis CNC Machining Services Can Meet The Requirements Of Three Key Components?

Service providers who offer 5 axis CNC machining need to prove their ability to create parts because this capability represents their core competency. For JS Precision, standardized solutions are available for the following types of core parts:

Automotive Parts: Subframe/Control Arm

Automotive subframes include complex curved surfaces which need to survive more than 150,000 fatigue cycles during testing. 5-axis optimized paths and elimination of tool marks can satisfy the demands.

Medical Devices: Orthopedic Implants (Hip/Knee Joints)

Medical orthopedic implants need titanium alloy materials which prove to be costly while demanding surface finishes below 0.4µm and must remain safe for human body contact. The requirements can be fulfilled through a single setup which uses 5-axis online measurement technology.

Energy Equipment: Valve Body/Pump Housing

Energy valve bodies/pump housings have deep cavities and are difficult to machine. A combination of plunge milling and trochoidal milling can resolve the chip removal issue. 5-axis linkage can ensure accuracy in the sealing surface.

Want to verify whether our 5 axis CNC machining services can machine your parts? Upload your part drawings to JS Precision to receive a free machining feasibility analysis and accuracy assessment.

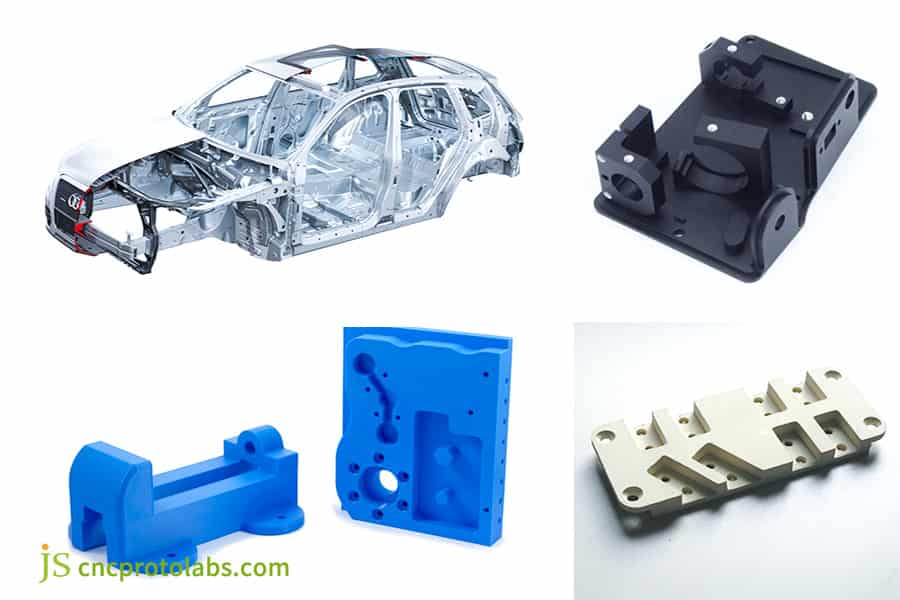

Figure 3: Two blue, complex-shaped parts with multiple holes, precision-crafted for industrial use, likely through multi-axis CNC machining.

JS Precision Case: Breaking Through Efficiency Bottleneck In Five Axis Machining Of Heavy Duty Diesel Engine Cylinder Blocks

Challenge

A European engine customer needed to machine a test cylinder block for an HT250 gray cast iron heavy-duty diesel engine. The dimensions of the cylinder block are 600x400x300mm, with multiple angled oil holes, water passages of irregular shapes, and precise spindle bores.

The traditional process requires 4 sets of equipment for 8 clamping times, with a processing time of 42 hours. The coaxiality deviation leads to a scrap rate of 12%. The customer urgently needs to shorten the delivery cycle and seeks cooperation with local 5 axis CNC machining services.

Solution

JS Precision provides customized solutions which enable their clients to receive tailored services that fit their individual needs. The following are the main configurations and processes:

1. Equipment:

The equipment setup at JS Precision includes our 5 axis vertical machining center which operates with a German Kessler electric spindle that uses an HSK-A100 tool holder and runs at 15000 rpm while delivering 250 Nm of torque.

The system operates with a torque motor 5-axis rotary table which enables 5-axis machining for the cylinder block through its B-axis motion of ±110° and continuous C-axis rotation of 360°. The machine operates with a single setup to process all five surfaces of the cylinder block while maintaining positioning accuracy within ±0.005mm.

2. Process:

The milling operation for layered roughing employs Trochoidal milling which achieves 2-3mm depth of cut while maintaining radial width at 25% of tool diameter.

The process uses a 70bar high pressure spindle which cools internally to produce an 80L/hr chip removal rate that resolves the cylinder block chip removal challenge. The five-axis linkage boring system achieves hole machining precision because its coaxiality error remains below 0.008mm which satisfies the required tolerance.

3. Simulation:

The full machine simulation in VERICUT software enables users to simulate cutting paths when tools extend 150mm beyond their normal reach during the simulation.

The system prevented three different interference issues which could have occurred at any point in time. The simulation produced errors which stayed below 0.003mm while the system prevented any machine collisions from happening during the batch processing stage.

Results

• Efficiency: The production speed for one unit dropped to 15 hours while the system achieved a 180% increase in operational efficiency and the testing components arrived at their destination after seven business days instead of three weeks.
• Accuracy: The spindle hole achieved a stable coaxial accuracy which measured 0.008mm while the sealing surface received its direct assembly.
• Cost: The manufacturing process achieved a scrap rate reduction which reached 1.5% and the customer opted to send all their batch processing work for this cylinder block model to JS Precision.

Want to achieve breakthroughs in both efficiency and accuracy in the machining of your complex parts? Contact JS Precision now, noting "cylinder block machining solution," to receive a free 5-axis CNC machining process reference for similar parts.

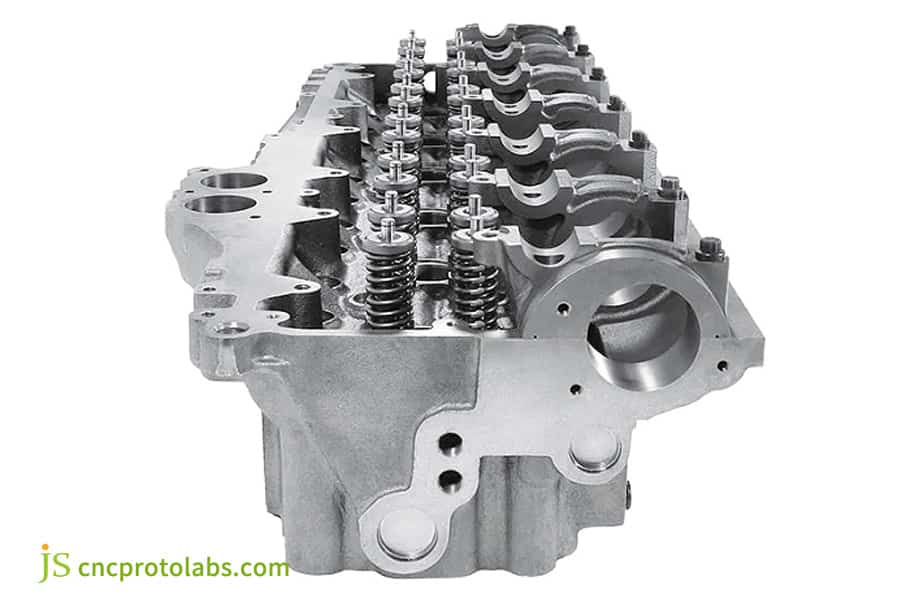

Figure 4: A precision-machined HT250 gray cast iron engine cylinder block with inclined oil holes and irregular cavities, produced via 5-axis machining.

FAQs

Q1: What is the cost savings possible with 5-axis machining of automotive parts?

5-axis CNC machining produces cost reductions for automotive parts because it decreases the need for fixtures and clamping operations and reduces scrap production and tool deterioration which results in about 20-30% overall part cost savings.

Q2: What is the positioning accuracy of a 5 axis vertical machining center?

The grating ruler full closed-loop feedback system in a high-end 5 axis vertical machining center enables the machine to achieve ±2µm positioning accuracy during stable machining operations.

Q3: How to select the worm gear and torque motor for the 5 axis rotary table?

The worm gear system operates best with large automotive components which need substantial machining work but the torque motor system suits medical industry components which have small curved shapes.

Q4: How to verify the dynamic accuracy of the 5-axis machine tool?

The most crucial thing is to require the supplier to provide the RTCP test report, otherwise, the report will not reflect the true dynamic machining accuracy of the 5-axis linkage.

Q5: What is the biggest challenge with the machining of automotive subframes?

The major obstacle involves creating a product which achieves a minimum of 150,000 fatigue cycles. 5-axis linkage machining systems remove tool marks from surfaces while preventing stress build-up on manufactured components.

Q6: What is the minimum residual height (surface roughness) that can be achieved with 5-axis machining?

For 5-axis vertical machining centers, a mirror surface with surface roughness (Ra) 0.2µm is achievable for mold steel materials and 0.1µm for aluminum alloys.

Q7: What is the minimum tool diameter that can be used for 5-axis machining on deep cavities?

The system requires an extended tool holder which allows 5-axis CNC machining to perform stable micro-deep feature machining with 0.5mm diameter tools that reach depths of five times their diameter.

Q8: How long is the delivery time for JS Precision?

The delivery time for automotive and medical parts prototyping takes 5-7 business days. The delivery schedule for mass production operations spans between 12-15 business days. The company accepts orders which require immediate processing.

Summary

The need for lightweight automotive components and medical equipment with precise manufacturing requires 5-axis CNC machining to address the difficulties of producing elaborate parts. From the selection of the 5 axis vertical machining center to the matching solution, each step determines the machining accuracy and efficiency.

We have spent fifteen years delivering 5-axis machining solutions to customers before evolving into a complete service provider who understands why companies need to get their products right from the start to fulfill their equipment upgrade or parts outsourcing requirements.
