Top 7 5-Axis CNC Machining Services for Complex Geometric Parts in 2026

5-axis CNC machining service providers selecting for complex geometric parts in 2026 require strict evaluation of simultaneous interpolation accuracy, dynamic tool-axis calibration, and thermal growth compensation.

Machine shops that opt for top-rated 5-axis CNC machinists from renowned suppliers like JS Precision will be able to hold tighter tolerances on critical feature geometries of parts like impellers, thin-walled manifolds, and freeform surfaces down to ±0.005 mm. Below we present a thorough analysis of the top 7 high-complexity 5-axis manufacturing partners for precision manufacturing in 2026.

2026 Top 5-Axis CNC Machining Service: Core Decision Matrix

Supplier​	HQ / Model​	Core Tech Edge​	Key Feature Accuracy (mm)​	Best-Fit Projects​
Protolabs​	USA / Digital network	Auto DFM, rapid proto	±0.050	Micro-batch proto validation
Xometry​	USA / Dynamic outsourcing	Elastic capacity dispatch	±0.025	Simple-structure multi-region batch
JS Precision​	Dongguan CN / In-house	5-axis simultaneous, thin-wall & deep-cavity anti-chatter (CMM closed-loop)	±0.005 (bearing holes / pins)​	High-precision industrial custom parts
Fictiv​	USA / Hybrid platform	Digital workflow, CMM QC	±0.020	Mid-batch controlled outsourcing
STAR Rapid​	Zhongshan CN / In-house	Super-alloy 5-axis, PowerMill	±0.010	Complex curved surfaces in hard metals
WayKen​	Shenzhen CN / In-house	Multi-surface single-setup, finish	±0.015	Automation housings, aesthetic protos
Jabil​	USA / Global mfg	Industrial-scale mass production	±0.010	Global enterprise high-volume std orders

Key Takeaways

• Tolerance layering requirement: Surface of freeform over a ±0.015 mm variation. At the same time, a tolerance level of ±0.005mm is kept for key features like bearing seats/mating holes.
• Five-axis linkage vs. 3+2 positioning: By using five-axis linkage, the issue of multiple clamping can be prevented and surface position accuracy is ensured.
• Deep cavity and thin-walled vibration damping: A tooling set at an incline cuts the workpiece overhang by 50%+ thereby minimizing both the deformation and the chatter.
• Closed-loop inspection and quality assurance: High-tolerance parts must be checked by a CMM in a 22℃ constant temperature testing chamber and a full report has to be handed out.

Why Trust JS Precision For High-Precision 5-axis CNC Machining Service?

With over 15 years on the precision machining front, our team feels that a supplier with 5-axis CNC machining capability must have full capabilities in machine tool dynamic accuracy, thermal compensation, and CMM closed-loop engineering across three aspects.

In working on a new energy motor cooling housing project, we discovered that the first prototypes had 0.012 mm warping which led to 12% rejection rate since it was from residual stress release. We decided to introduce stress-relief annealing process at 180℃ for 4 hours right after roughing process and changed to DMG MORI 5-axis linkage + hydraulic expansion jig. The key bearing seat location Cpk=1.42, with the dimension tolerance stabilized at ±0.005mm after changes, so the yield increased to 99.4%.

ISO 230-1:2012 specifies: The A/C axis repeatability shall be 2 arcsec as the 0.005 mm spatial position accuracy requirement is an engineering requirement of five-axis linkage.

JS Precision whole series of 5 axes machining centres are endowed with Heidenhain fully closed-loop linear encoders thereby guaranteeing the A/C axis repeatability of ≤±2 arcsec to support the dimension tolerance.

Download the Five-Axis Machining Tolerance Control and Thermal Deformation White Paper now to understand the RTCP verification steps and the checklist for constant temperature workshop construction in advance, avoiding high trial-and-error costs caused by thermal drift.

Why Do Complex Geometric Parts Require Precision 5-Axis CNC Machining Service?

Precision 5-axis CNC machining service can complete multi-faceted complex feature cutting in a single setup. Five-axis CNC machining eliminates coordinate superposition errors by dynamically adjusting the tool and workpiece angles, precisely locking key mating feature tolerances within ±0.005 mm.

Technical Distinctions Between 3+2 Positioning and Continuous 5-Axis CNC Machining:

• 3+2 positioning: Once the A/C axes are locked, three-axis cutting can only be done at that fixed position. To change direction, the workpiece will have to be reclamped causing a datum error cumulative to 0.010-0.030 mm.
• Continuous 5-axis CNC Machining: While cutting, all five axes work at the same time. With the lead/tilt capability of the tool, the zero speed toolpath cutting area is avoided and reduces the force of cutting fluctuations by 35% approximately.
• In-house vs. Protolabs Flow Automation: Protolabs' strength in fast prototype (±0.050 mm) lies in their digital network-mediated business, but deep cavity and complex continuous surfaces require workshop+CMM closed-loop for achieving of ±0.005 mm accuracy.

When seeking a precision 5-axis CNC machine service, it is necessary to make sure that the provider of the service can demonstrate their simultaneous five axis cutting capabilities.

Tolerance Boundary Clarification

1. Free-form surface unmeasured tolerances: ±0.015 - 0.020 mm (usual 5-axis capabilities)
2. The tolerances of 0.005 mm applies if: Full closed-loop linear encoders machine tool + stress-relief treatment + work temperature held at 22℃ constantly, restricted to local critical mating parts like those for bearings and precision pins.

The principle of tolerance stratification for 5-axis machining for complex parts: The buyer shall make the supplier aware during the DFM stage which parts have to have a deviation range of only ±0.005 mm and those which can be allowed up to ±0.015 mm, thereby the problem of over/specification and associated higher costs can be avoided.

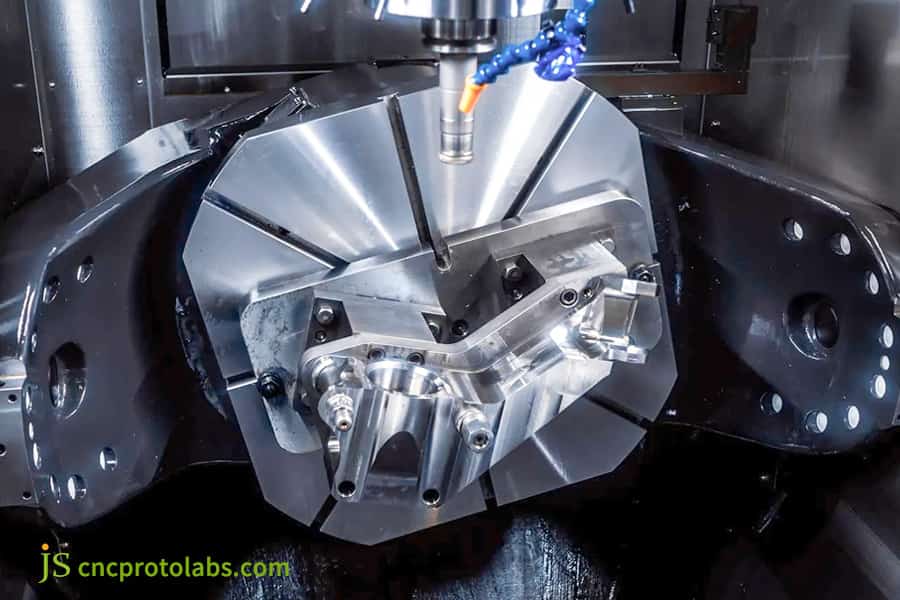

Figure 1: 5-axis CNC machine milling complex metal component.

How to Evaluate and Choose Top 5-Axis Machining Services?

Evaluating top 5-axis machining services requires a focus on verifying the factory's dynamic axis calibration capabilities. As a professional 5-axis CNC machining provider, it is recommended that purchasing personnel conduct on-site audits of the machine tool's RTCP response speed, closed-loop CMM inspection system, and constant temperature workshop standards.

Supplier Audit Four Key Engineering Indicators:

• The dynamic and static machine accuracy: The A/C axis repeatability ≤±2 arcsec, and the machining equipment is fitted with Heidenhain closed-loop linear scale.
• RTCP reaction speed of a CNC machine: Delay of a tool tip tracking < 2 ms, overcut during high-speed, small-segment interpolation is to be avoided.
• Interference prevention when CAM simulation is done: HyperMill/Mastercam is a very effective tool that conducts full-path collision detection with a 0.1mm safety distance.
• Complex Surface CMM Point Cloud Comparison: Zeiss CMM + GOM optical scanning, characteristic features of such features Cpk ≥1.33.

With the most top 5-axis machining services these are all four indicators. The fastest RTCP response which will influence directly on surface contour accuracy.

Xometry vs. In-House Factories

Xometry's distributed outsourcing network can offer advantage of flexible scheduling, but engineering changes (ECO) increase the length of the outsourcing chain making it hard to trace tolerantances. However, in-house factories like JS Precision are able to engineer solutions by making CAM + inspection reproducible within 24 hours after an ECO. Qualified 5-axis CNC machining providers should be equipped to react to ECOs and CAM path updates within the time frame of 24 hours.

Therefore, when you are choosing 5-axis CNC machining companies make sure your first choice is their in-house facilities and engineering teams' speed, which directly influences the speed of engineering changes processing and tolerance stability.

How Does Custom 5-Axis CNC Machining Service Solve Thin-Wall and Deep-Cavity Challenges?

Engineers engaged in the custom 5-axis CNC machining service can reduce cutting tool overhang lengths through tilting axis angles. In 5-axis machining of complex geometries, a good way is to adjust the direction of the cutting vector such that machine vibrations at deep cavities are suppressed and 0.8 mm thin walls can be machined without bending.

Tool Overhang Bending Deformation Formula:

δ = (F × L³) / (3 × E × I)

Where: F = cutting force, L = overhang length, E = elastic modulus, I = moment of inertia of section.

The core value of custom 5-axis CNC machining service lies in reducing L by shortening the tilt angle, thus reducing δ to 1/8, which is the theoretical basis for thin-walled deep cavity machining.

Physical Benefits of 5-Axis Tilt Angle:

• L decreased by at least half: At Lead 15°/Tilt 10°, overhang changes from 60 mm to 28 mm.
• Decreased by 1/8: The L³ term is dominant, halving L results in 1/8 of the original, and Ra at the bottom of the deep cavity can be reduced from 3.2 to 0.8.
• 70 Bar high-pressure internal cooling (validated at Fictiv supply chain management): Boosts deep cavity chip removal efficiency by about 40%, and eliminates the need for secondary cutting

WayKen is good for single-clamping of multi-curved surfaces and prototyping of curved parts Though for structural components like 0.8 mm thin-walled parts with deep-cavity helical flow channels, a self-operated workshop with hydraulic expansion fixtures and layered helical paths is required. This is precisely the engineering location of vibration isolation technology in complex geometry 5-axis machining.

Submit your deep-cavity part drawings, and a senior engineer from JS Precision will provide a free DFM cost reduction solution, helping you identify tool interference risks, optimize overhang lengths, and eliminate vibration and deformation problems at the source.

Figure 2: Precision machined turbine engine components.

What Factors Determine Pricing from 5-Axis CNC Machining Companies?

An understanding of the pricing strategies of 5-axis CNC machining companies can be very helpful in designing and optimizing part structures. To reduce fixing times and the development of special fixtures professional CNC machining on 5-axis machine tool is able to save 20-30% of the total production cost by reducing these factors.

Cost Breakdown of 5-Axis Machining

Cost Item​	3-Axis (Reference)​	5-Axis (JS Precision)​
Machine hour rate​	$35–$55/h	$80–$150/h
Fixture dev & amort.​	$800–$2,000/set	$0–$400（Done in One with fewer fixtures）
Setup & changeover​	2–4 times (multi-side)	1 time (single-setup)
Total labor hours (complex part)​	12–18 h	5–8 h
Effective unit cost​	Baseline	↓20%–30%

In the pricing models of 5-axis CNC machining companies, machine hour is an explicit item, but the real difference lies in the implicit costs of fixtures and changeover time.

Jabil vs. In-house Factories:

Jabil's advantage lies in spreading out the machine time costs over the production of the ultra-large batches consisting of millions of pieces, they can offer low cost per piece. On the other side, for small-batch customization (1 to 500 pieces), the medium-sized private factories (like JS Precision) have no Minimum Order Quantity (MOQ) restrictions, a high reuse rate of fixing tools, etc.

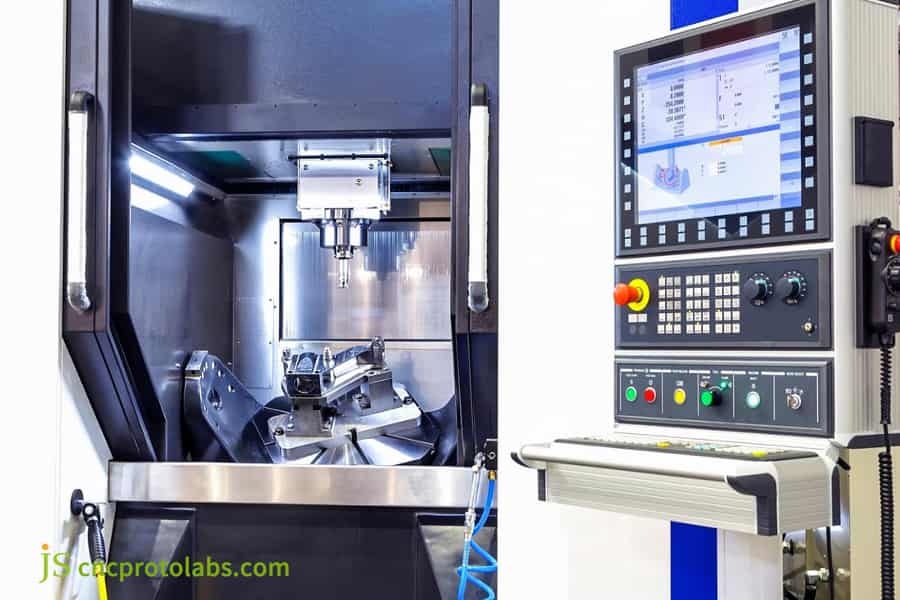

Figure 3: CNC machine with control panel and milling interior.

Which Materials and Applications Suit 5-Axis Machining for Complex Parts?

5-axis machining for complex parts is extensively applied in the sectors of industrial automation and fluid control. Given a custom 5-axis CNC machining facility, intricate parts crafted from materials like Al 7075-T6, SUS316L, and PEEK may be accurately machined.

Three main industrial application scenarios

1. Fluid control: custom-designed impeller and valve body, 5-axis linkage ensures ±0.1° precision of the blade inlet and outlet angles.
2. Industrial robots: Precision joints and reducer housing, coaxiality ≤ 0.008 mm.
3. Analytical instrument: complex fluid distribution manifold, internal flow channel Ra≤0.4 and no dead ends for cleaning.

Use of 5-axis machining for complex parts is standard procedure in these applications since only 5-axis linkage machining can provide the multi-angle features through a single operation (clamping).

Material cutting characteristics comparison

Material​	Stress Relieve​	Tool Wear Coefficient​	Typical Use​
Al 7075-T6​	Roughing + natural aging 24h	1.0 (baseline)	Robotic joints
SUS 316L​	Roughing + 180°C/4h annealing	2.8	Marine / medical
Ti-6Al-4V (Gr5)​	Roughing + 600°C vacuum anneal	3.5	Aerospace
PEEK​	Drying 150°C/4h + low cutting heat	1.6	Semiconductor

STAR Rapid has established process libraries for 5-axis specialized alloys and programming through PowerMill, its own factory can respond quickly to multiple materials and switch proofing from AlSUSPEEK within the same week. The more process parameters are available in library of custom 5-axis CNC machining service, the the cycle for debugging when changing materials.

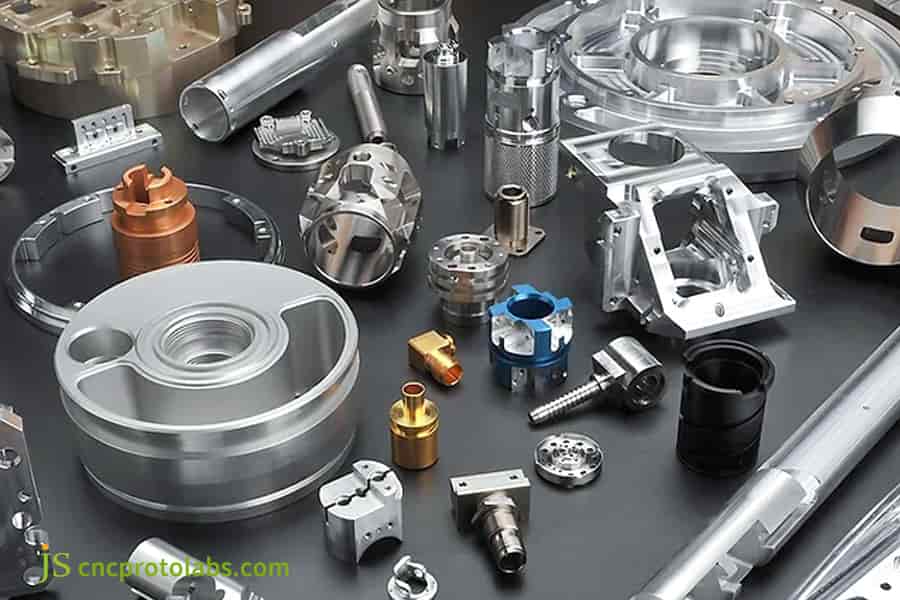

Figure 4: Various precision machined metal components.

How Do Leading 5-Axis Machining Providers Eliminate Thermal Deformation?

Qualified 5-axis CNC machining providers are required to be equipped with a machine tool thermal compensation system. When providing precision 5-axis machining service, the laser tool setter and constant temperature workshop can effectively curb the thermal drift of the spindle during long-term processing.

4 physical landing conditions for high tolerance control

• Workspace environment: a climate-controlled space with fixed temperature and humidity of about 22℃±0.5℃. Since aluminum's thermal expansion coefficient is 23.6×10⁻⁶/℃, one can predict that with a 1℃ temperature difference between 100 mm the deformation will be 0.0024 mm.
• Stress: Rough machining will be followed with stress-relieving annealing at 180℃ for 4 hours to get rid of the metal's internal cutting strain or residual stress.
• Machinery: The use of fully closed-loop grating ruler combined with Renishaw NC4 laser tool setter allows for the compensation of cutting tool thermal expansion in real-time. The achievable compensation precision is +00.001 mm.
• Testing procedure and certificate: After a machining cycle, the piece will be stored in a constant temperature testing room for 4 hours. Full sizing by Zeiss CMM and GOM point cloud measurement is also offered, plus the delivery of products a Cpk ≥1.33 report.

An expert 5-axis CNC machining providers fulfilling these four prerequisites all at once and missing one is a must have no compromise.

ASME B5.54-2005

ASME CNC Machine Tool Performance Evaluation (B5.54-2005) says that It is the thermal drift test should done with full load cutting for 4 consecutive hours and the axis positioning drift should be ≤0.010 mm/4h.

JS Precision keeps this parameter in check internally at a level of ≤0.006 mm/4h. The thermal compensation capability of this precision 5-axis CNC machining service is the equipment guarantee for achieving a tolerance of ± 0.005 mm.

Case Study: Achieving ±0.005 mm Tolerance for EV Cooling Housings

In the complex geometry 5-axis machining project, JS Precision eliminated the interference problem in deep cavity flow channels, and the key matching bearing position tolerance was stably controlled within ± 0.005 mm.

Customer difficulties

A novel energy components manufacturer is using a deep hole spiral cooling channel + a 1.2 mm thin walled 6061-T6 special-shaped bearing housing. The spacing tolerance of the bearing fitting hole is ±0.005 mm. After the first proof run the part was 0.012 mm warped, a problem that was attributed to the residual cuts stresses releasing, which increased the number of rejects to 12 percent. This project demands a very good thermal deformation control in high-precision 5-axis CNC machining services.

JS Precision Solution

• Stress relief before stress: stress relief treatment at 180℃/4h by rough machining, the remaining stress is less than 30 MPa.
• Machines and tooling: DMG MORI 5-axis simultaneous machine with a hydraulic expansion adaptive fixture, tool clamping deformation is <0.002 mm.
• Toolpath: 70 bar internal high-pressure cooling + step-down spiral cutting (ap 0.3→0.12 mm) leads to a reduction of cutting heat about 40%.

In complex 5-axis machining of geometry it is hard to get rid of the interference in flow channels. We use angular path planning to prevent the risk of collision between the cutting tool and the cavity wall.

Final results (CMM test certificate)

22℃ constant temperature inspection room, Zeiss CMM + GOM optical scanning full size: key bearing position Cpk=1.42, tolerance within ±0.005 mm, one-time pass rate 99.4%, passed 1.5 MPa air tightness test.

Customer feedback: JS Precision's 5-axis technical depth and dynamic CMM inspection saved our production deadline.

Upload your complex drawings immediately, and the JS Precision engineering team will issue you an exclusive DFM and tolerance evaluation report, verifying the manufacturability of key features in advance to ensure that the ±0.005 mm tolerance is achieved at one time.

Why Choose an In-House Manufacturer as Your 5-Axis CNC Machining Partner?

Quality control can be more easily achieved by selecting a self-operated physical factory when choosing the top 5-axis machining services. A highly skilled 5 axis CNC machining service is managed at close range by a team of senior engineers who can provide inspection reports and fast delivery service.

The core difference between self-operated factories and online intermediaries

Compared to Xometry outsourcing networks, ECO response requires cross supplier coordination and a long tolerance traceability link. The self operated factory is directly connected by the technical director Leila Wu and engineers, with DFM → CAM → inspection of the same factory closed loop, and ECO re issuing the plan within 24 hours. When evaluating the top 5-axis machining services, the engineering response speed of self operated factories is a key bonus point.

JS Precision's four self-operated values

• 100% self-operated and engineers working directly: Our team of engineers led by tech director Leila Wu carries out the DFM analysis with you directly, we don't let translation inaccuracies cause problems.
• 5-axis equipment from abroad and Zeiss CMM: Our German and Japanese 5-axis linkage machines as well as CMM full-size reports are supplied together with the goods.
• 30%-50% cost-cutting versus Europe and US local factories: Dongguan self-operated workshop + mature process library.
• Most difficult samples can be provided in 3 days at maximum: For the simple part of Al 7075-T6, it is possible to compress T1 into 72 hours

Choosing 5-axis CNC machining service you can have a self-operated factory to manage the production speed and quality control, which is Most of all a good fit for highly complex projects requiring quick modifications.

Send your STEP/IGES files to the JS Precision engineering team and get a free DFM analysis report and competitive quotation within 12 hours - no need to wait, quickly lock in the five-axis machining solution that best suits your project.

FAQs

Q1: What is the difference between 3+2 axis and continuous 5-axis machining?

3+2-axis locked position milling, continuous five-axis linkage and five-axis real-time collaboration. The linked five-axis eliminates cumulative reference errors caused by multiple mountings and is a necessary process for impellers, unconventional-shaped, free-form surfaces and seamlessly continuous smooth surfaces.

Q2: How much does a 5-axis CNC machining service cost for complex parts?

The hourly cost for a five-axis machine is 80-150 USD. Although the cost per hour is higher than for three axes, the fixtures and setup time costs are reduced by 80% due to a single clamping operation, and overall manufacturing cost of complex parts is lowered by 20%-30%.

Q3: Is achieving ±0.005 mm tolerance realistic for 5-axis machined complex parts?

It is impossible for full body curved surfaces to reach these mentioned precision. But at 22℃ constant temperature + fully sealed-loop gratings system + 180℃ aging + Zeiss CMM closed loop, it is absolutely possible to have 0.005 mm for a single key feature like a bearing hole.

Q4: Why choose JS Precision for custom 5-axis CNC machining services?

JS Precision's self-operated factory + Zeiss CMM under technical Director Gloria Xu. The key tolerance is ±0.005 mm and overall cost is 40% less than that of Western suppliers.

Q5: Which materials are most commonly processed in complex 5-axis machining?

Al 6061-T6/7075-T6, SUS 304/316L, Ti-6Al-4V, and PEEK are popular. Five-axis dynamic avoidance helps reduce wear of the tools on hard materials and also prevents deformation due to thermal stress.

Q6: How does 5-axis CNC machining improve geometric part tolerance?

Multi-side cutting with one fixture (Done-in-One) minimizes error of the position loss due to repeated positioning by reference matching loss elimination, greatly raising the spatial position and coaxiality accuracy.

Q7: What CAD/CAM file formats are required to receive a 5-axis machining quote?

At minimum, 3D model of the part in STEP (.stp) or IGES (.igs) files is required and it is advisable to have a set of the 2D PDF engineering drawings with all the details of the part like dimensional tolerances, threads, or surface finishes. Submit your drawings to obtain a quotation.

Q8: Can 5-axis machining handle deep cavity features without tool chatter?

It can be done. As the formula δ=F·L³/3EI, the five-axis tilt angle cuts down the tool stick-out up to 50%+, resulting in very low deformation and significant improvement in the Ra value at the bottom of the deep cavity.

Summary

Choosing the appropriate 5-axis CNC machining service for complex geometric parts is the key to determining dimensional tolerance and assembly performance. Although the digital intermediary platform provides flexible production capacity, manufacturers with experienced engineering teams and self-operated equipment have more advantages in tolerance control, thermal drift compensation and overall cost savings. Prioritizing the evaluation of suppliers' five-axis dynamic calibration and CMM closed-loop inspection capabilities is the core basis for accurate delivery of difficult parts.
