From lightweight, aerospace-grade drone components to precision connectors in medical devices, to the casings of your everyday electronic devices, all of these very different products could come from the very same efficient and precise method of manufacturing called aluminum CNC turning.

Aluminum alloys, having an excellent strength-to-weight ratio, superior thermal conductivity, and being easy to work with, have always been a favorite in modern manufacturing. When combined with high-precision CNC turning centers, they unleash astonishing production potential.

The following guide will provide a comprehensive understanding of aluminum CNC turning, covering technical principles, machining techniques, and case studies.

It will also help you avoid common pitfalls, find efficient and precise machining solutions, and reveal how JS Precision has perfected this classic process, offering you aluminum CNC turning parts that combine superior quality with cost-effectiveness.

Core Answer Summary

Topic	Key Information	Advantages	Application Examples
Essence of 5-Axis CNC Machining	Addition of two rotary axes, such as A and B axes to the X, Y, and Z linear axes, allows multi-angle machining.	Completion of complex parts in a single setup reduces cumulative errors and shortens production cycles.	Suitable for complex curved surfaces such as aerospace parts and medical implants.
Precision and Efficiency	Achieve an accuracy of ±0.005mm owing to reduced setup, shorter tooling, and professional calibration.	Enhanced quality of parts, surface roughness Ra≤0.8μm, saving time by up to 40%.	35% weight reduction for drone fuselage supports, reducing the production cycle of joint medical parts from 15 to 8 days.
Material Adaptability	It supports metals such as titanium alloy, engineering plastics like PEEK, and composite materials.	Optimizing the machining parameters in order to avoid material deformation or delamination and ensuring strength with quality.	It has applications where requirements are very high, such as in the automobile, electronics, and medical sectors.
JS Precision Service	12 years of experience providing one-stop services from design optimization to quality inspection, quote within 24 hours.	Reduces clients' costs and speeds up project progress by allowing clients not to buy equipment on their own.	Service more than 6000+ customers, including customization for medical and drone industry customers.

JS Engineers Share: The Key To Precision In Aluminum CNC Turning

When it comes to aluminum CNC turning, "precision" is not just an empty slogan.

In the past 15 years, from 0.5mm ultra-thin aluminum rings for smart wearables to 200mm diameter aluminum flanges for aerospace applications, with the utmost precision, JS Precision's engineering team has executed every order and delivered over 1 million pieces of CNC turning aluminum parts, 99.8% of whose products are within ±0.05mm tolerance.

We are equipped with more than 30 CNC turning centers provided by FANUC of Japan and DMG MORI of Germany. A proprietary machining parameter library has been established for various aluminum alloys such as 6061 and 7075. We once helped an automotive electronics client shorten the aluminum parts machining cycle by 30% while reducing tooling cost by 15%.

Every point in this guide originates from our experience in solving real-world problems. For instance, the methods for handling chip removal from "soft and sticky" aluminum materials, and controlling the deformation of thin-walled parts are repeatedly verified and effective solutions you can completely trust.

If you are seeking a partner who can reliably deliver high-precision aluminum CNC turning parts, JS Precision, with its abundant experience and professional equipment, is able to meet your needs. Please only provide your drawings and requirements, and we will develop a process plan and begin production as soon as possible.

What Is CNC turning? Redefining Modern Precision Manufacturing

If you are wondering "what is CNC turning", it's like a tireless craftsman with "absolute skill."

That "craftsman" is the CNC turning center. It takes a digital blueprint-in other words, a CAD model-and precision cutting tools to painstakingly "sculpt" a rotating aluminum material into a pre-set geometric shape, like a cylindrical aluminum bushing or threaded aluminum joint. This is the basic principle of CNC turning.

Specific working method is clear:

• The aluminum raw rod is clamped by the spindle, and rotated at a high speed, which can be adjusted from 1000 rpm to 8000 rpm.
• Then, the computer-controlled tool moves linearly along various axes, such as along the X and Z axes, to cut away extra material with high precision.
• It essentially forms conical shapes, threads, grooves, and other features. The whole process happens under the full control of a digital program.

The core value of CNC turning is embodied in "digital repeatability" and "extreme efficiency." For example, a batch of 1000 aluminum parts could have the dimensional error of each part controlled within ±0.025mm, and the processing efficiency can reach 3-5 times that of a traditional lathe.

That makes it a very good option for mass production of round, symmetrical aluminum CNC turning parts and also allows aluminum CNC turning to occupy an important position in the field of precision manufacturing.

Whether you need small-batch prototypes or large-scale production for any circular symmetrical part, a line of CNC turning centers guarantees precision and efficiency at JS Precision. We would be happy to provide a processing feasibility analysis within 24 hours after receiving your 3D model.

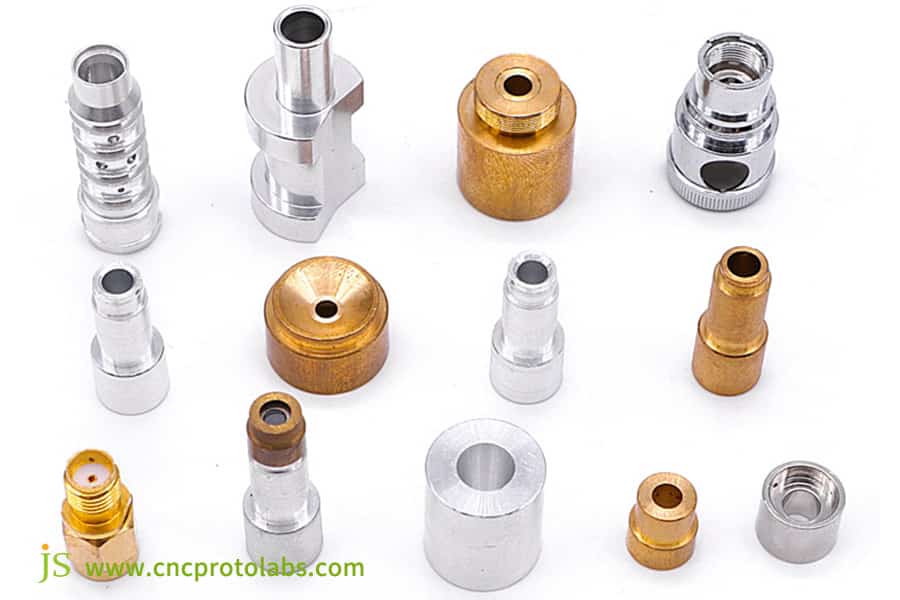

Figure 1: With advanced CNC turning center featuring multi-axis capabilities, complex contoured components can be efficiently produced.

Better Craftsmanship Than Any Other: How Advanced Is The China CNC Turning?

Most people still hold on to the stereotype of "low cost, low precision" about China CNC turning. But long before, China changed from the "world's factory" into a "precision manufacturing center," something that JS Precision has felt especially strongly while serving customers all over the world.

The current level of China's CNC turning technology relies on three key technological foundations:

1. Advanced Equipment: Most of the leading manufacturers, like ours, apply advanced CNC turning centers from Japanese FANUC, German DMG MORI, Swiss Charmilles, and top domestic brands, which ensure stable processing accuracy.

2. Mature Supply Chain: From high quality 5052, 6061 aluminum bars to precision aluminum cutting tools from Kennametal (USA), matching coolants, highly efficient and complete ecosystem formed, enable rapid response to production needs.

3. Professional Engineering Team: more than 8 years of experience on average for our engineers in the field of aluminium CNC turning, proficient in solving various problems from programming to machining.

Being at the forefront of such a transformation, as a company, we have combined top-class hardware and software to such a level that "China CNC turning" would mean "precision CNC turning." We have served over 50 top clients from the US, Germany, and Japan, delivering aluminum CNC turning parts with tolerances as low as ±0.0127mm.

If you're looking for high-performance precision CNC turning services at a competitive price, JS Precision represents Chinese precision manufacturing, which supports a full-process from design optimization through to mass production and delivers within 7-15 days after order placement.

Achieving Perfect Parts: What Are The Machining Techniques In Aluminium CNC Turning?

To manufacture perfect aluminum CNC turning parts, targeted machining techniques are needed, as the "soft and sticky" nature of aluminum could lead to poor chip removal or a rough surface. Here, we summarize three core techniques that can be followed:

Addressing the "Soft and Sticky" Nature of Aluminum

• Tool Selection: Employ only specifically designed aluminum tools with sharp edges, large rake angles, and polishing grooves for smooth chip removal without built-up edge.
• Parameter Optimization: Adopt a high-speed strategy with high rotational speed (4000-8000 rpm), large feed rate (0.1-0.3 mm/r), and shallow depth of cut (0.1-0.5 mm) to ensure efficiency while maintaining control of cutting forces and deformation.
• Cooling and Lubrication:Use oil-based coolants, MQL technology, etc., to achieve a smooth surface and tool life extension.

Ensuring Precision of Thin-Walled Parts

• Fixture Innovation: Using elastic sleeves, hydraulic clamps, etcetera, to achieve high clamping force and low deformation. For example, the hydraulic mandrel we use in processing 0.5mm ultra-thin aluminum rings.
• Milling-Turning Composite Application: Complex parts can be turned, milled, drilled, and tapped in a single clamping operation without any error caused by secondary clamping.

JS Precision's Expertise

We have established different proprietary machining parameter libraries for various aluminum alloys, such as 6061, 7075, and 5052. For instance, when machining 7075 aluminum alloy, the parameters are set as: Spindle speed-5000rpm, feed rate-0.2mm/r, depth of cut-0.3mm, thus guaranteeing that every batch of aluminum CNC turning parts will be in perfect condition.

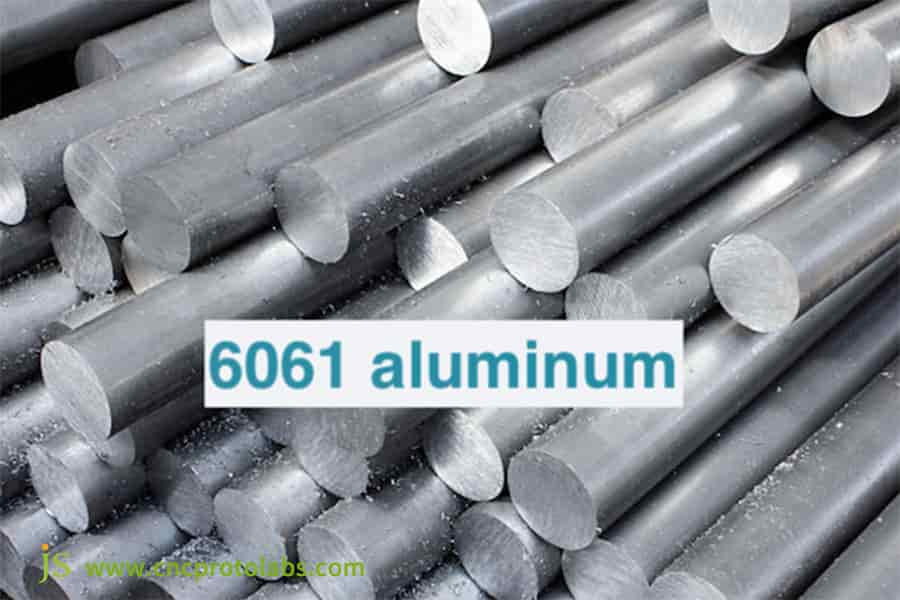

Figure 2: 6061 aluminum is ideal for precision cnc turning parts requiring strength and durability.

Why Is Aluminum The Best Option For Precision CNC Turning? Its Comprehensive Comparison To Other Metals

Why is aluminum the ideal choice for precision CNC turning? Comparing the key characteristics of aluminum to those of stainless steel, brass, and titanium alloys clearly shows why it is superior:

Metal Type	Weight (g/cm³)	Machining Difficulty	Tool Life	Material Cost (USD/kg)	Core Advantages	Core Disadvantages
Aluminium (6061)	2.7	Low	Long	2.5-3.5	Lightweight, easy cut, low cost.	Lower strength compared to stainless steel and titanium alloys.
Stainless Steel (304)	7.9	Medium	Medium	3.8-5.0	High strength, good corrosion resistance.	Severe work hardening, heavy weight.
Brass (C36000)	8.5	Very low	Very long	6.0-8.0	The material is easily cut and gives a good surface finish.	Heavy weight, high cost.
Titanium Alloy (TC4)	4.5	Very high	Short	30.0-50.0	High strength-to-weight ratio, good biocompatiblity.	Difficult to machine, extremely high cost.

It can be seen from the comparison that aluminum has remarkable advantages in terms of weight, processing difficulty, and cost.

For instance, compared with stainless steel, it is lighter, results in less tool wear, with the material cost being around 30% lower, compared with brass, it is stronger, 68% lighter, and more than 50% cheap, while compared with titanium alloy, it has better machining performance and only costs 1/10 of them.

Therefore, for most applications that require lightweight, good strength, high efficiency, and excellent surface finish, such as smart wearable devices and automotive electronic components, aluminum CNC turning is the best way to balance performance and cost.

If you're unsure about which metal to use for precision CNC turning, then JS Precision can suggest an aluminum alloy suitable for your application and propose a machining solution to help balance performance and cost.

What Are The Key Factors For A Successful Aluminium CNC Turning Operation?

A successful aluminum CNC turning operation requires full control from early planning to process control, and any negligence in any link may result in product failure.

Initial Planning

1. Design Optimization: Avoid sharp corners, the rounding radius is suggested to be higher or equal to R0.1, design proper relief grooves with width at least 1.2 times larger than that of tool radius, standardization of thread specification-for example, all M3 threads, simplify types of tools and reduce tool change time.

2. Material Condition: Choose the right grade and heat treatment condition of the aluminum alloy for your needs. For example, 7075-T6 is used for very high strength, while 6061-O is best for easy machining.

Process Control

1. Tool Management and Monitoring: Through the tool life management system of the CNC turning center, real-time monitoring of tool wear is carried out, and a scientific tool change cycle is established. Usually, aluminum tools need to be inspected after processing 1000 pieces.

2. Precise Tool Alignment and Compensation: Using the machine tool probe system, automatic tool offset compensation is performed to ensure that the position error of each tool is within ± 0.005mm.

3. Online Detection: During the processing, use a measuring head to measure key dimensions on the machine. For example, check every 50 pieces processed and adjust deviations in a timely manner.

JS Precision's Quality System

We follow the principle of "doing it right the first time."

Guided by Standard Operating Procedures and multi-level quality control in each operational stage, such as incoming raw material inspection, the first-piece inspection during machining, patrol inspection during mass production, and full finished-product inspection, the precision at each link in manufacturing is well controlled.

During the past three years, the product qualification rate for aluminium CNC turning has always remained above 99.5%.

If you are concerned about quality control issues during Aluminum CNC Turning, JS Precision's full process quality inspection system can eliminate concerns. You can keep track of production progress at any time and provide detailed inspection reports before delivering the finished product.

Pushing The Limits: What Challenges Are There, And What Solutions Can Be Found For High Precision CNC Turning?

In the precision turning industry, higher precision always poses a challenge, yet one might find methods to overcome such limitations.

Challenge 1: Micro Scale Deformation Control

Most thin-walled workpieces, like aluminum parts, would be subject to deforming during the machining process owing to the effect of cutting forces. For example, a 0.5mm ultra-thin aluminum ring could result in 0.1mm ellipticity after being machined.

Solution: Predict deformation by using finite element analysis software. Optimize clamping methods, such as using hydraulic clamps instead of a three-jaw chuck, and optimize cutting forces by reducing the depth of cut to 0.1mm. Use a symmetrical machining strategy, such as simultaneously cutting inner and outer circles to cancel out any deformation effects.

Challenge 2: Achieve Mirror Level Surface Smoothness

Some clients require a surface with Ra below 0.4, which cannot be achieved using traditional methods of machining.

Solution: Refine the toolpath in order to reduce the cutting marks, use diamond tools for finishing, as the high hardness gives a smoother surface, adjust the speed-feed rate, for example, using 6000 rpm in speed and 0.05mm/r in feed.

Challenge 3: Machining Micro-Deep Holes

For instance, deep holes of 1mm diameter and 20mm depth are prone to chip evacuation problems that can result in either tool breakage or rough hole walls.

Solution: Use high-pressure internal cooling tool holder (with a pressure of up to 30 bar for forced chip removal), adopt pecking drill cycle (retreat once every 2mm drilled), and customize non-standard deep hole drill (optimized blade angle of 135 °).

JS Precision Approach: We treat these challenges as business as usual. Solutions are developed right from the design stage by our engineering team. We once helped a medical device customer resolve a deep hole machining problem - diameter 0.8mm deep - and increased yield from 60% to 98% to make their aluminum CNC turning parts competitive.

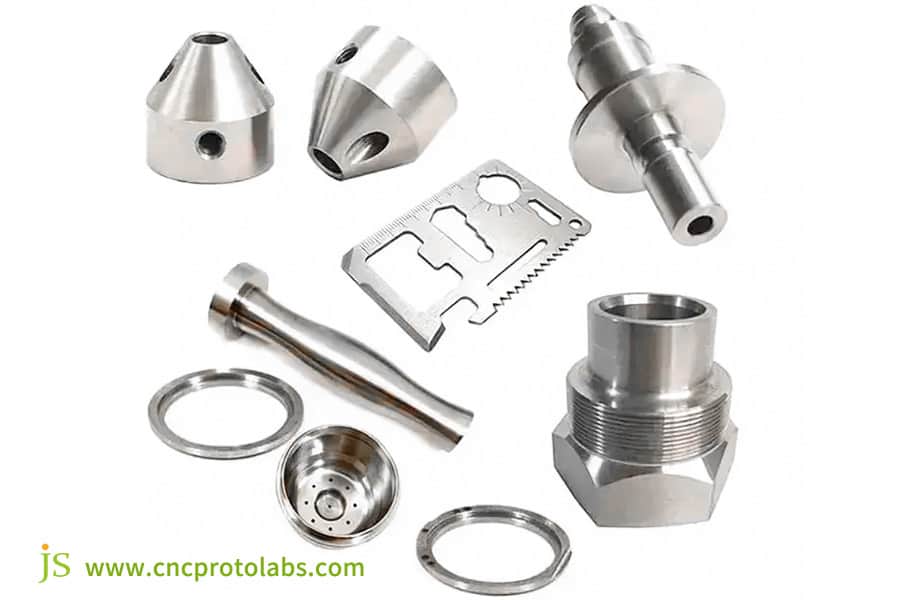

Figure 3: Specifying the correct surface finish in CNC turning is critical to both function and appearance.

Case Study: How JS Precision Solved The Deformation Challenge Of A 0.5mm Ultra-Thin Aluminum Ring

Client Challenge

A leading smart wearable device company required an ultra-lightweight aluminum ring for a watch body. The part was made from 7075-T6 aluminum alloy, with a wall thickness of only 0.5mm and a height of 20mm.

The requirement was that the wall thickness should be within ±0.05mm along the whole circumference, no clamping marks or scratches were supposed to be present on the surface, and the monthly batch delivery was to be 10,000 units.

It was mentioned that the client had contacted two suppliers previously, but either the deformation tolerance exceeded the limit due to clamping or the products were returned due to clamping marks on the surface, causing the stalling of the project.

Solution by JS Precision

By analyzing the core challenges, JS Precision came up with three solutions:

1. Customized Clamping: We have designed an elastic material hydraulic mandrel, which can inflate and evenly wrap the inner hole of the aluminum ring and provide radial clamping force after inflation. This avoids the disadvantages of deformation and clamping marks brought about by a traditional three-jaw chuck. The roundness error after clamping is within ±0.01mm.

2. Contouring Turning Strategy: Using a simultaneous internal and external cylindrical turning toolpath, the internal and external tools cut simultaneously to offset the thin-wall vibrations caused by the cutting forces, and control the machining amplitude below 0.005mm.

3. Micron-Level Parameters: High-speed machining at 6500 rpm, with a low feed rate of 0.08 mm/r, specially ground diamond tools, and MQL micro-lubrication technology can reduce the impact of cutting heat on the surface.

Results and Value

First-batch parts passed all first-time customer inspections, wall thickness tolerances all within ±0.04mm, surface finish reached Ra 0.3, and a yield rate of 99.8% achieved.

In subsequent mass production, the efficiency was improved by using automatic loading and unloading equipment, which reached a stable 12,000 pieces per month. Therefore, it helped customers reach their ultimate product lightweighting goal and ensured a smooth global launch for their products. The customer has also listed us as a core supplier.

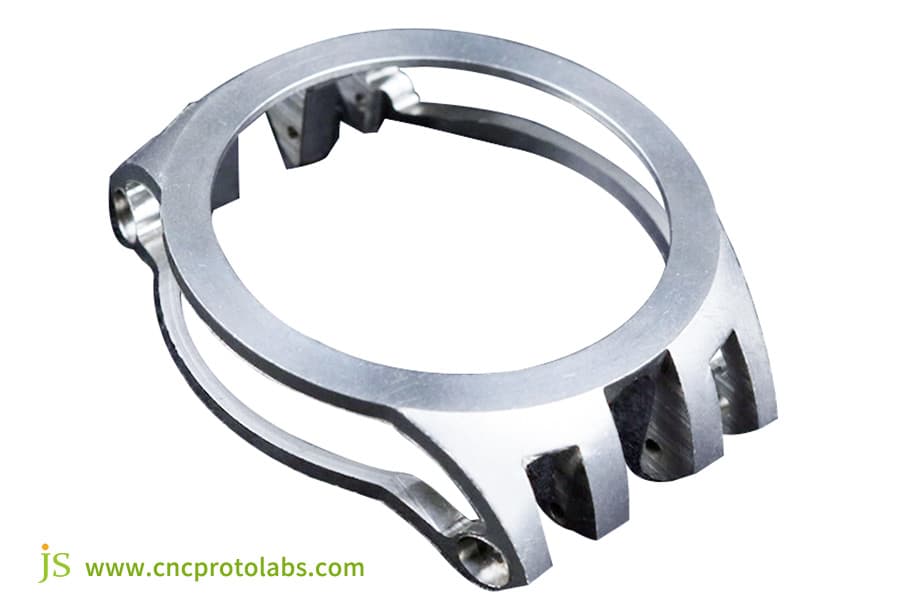

Figure 4: CNC machining aluminum mechanical watch case

How To Get A Clear And Transparent Aluminium CNC Turning Quote?

You need to supply a complete package of information in case you need aluminium CNC Turning services and want a quotation that is clear and transparent. In this case, we are able to calculate costs fast and accurately.

Provide a full information package

• 2D Engineering Drawings: Mark all critical dimensions, tolerances (e.g., ±0.05mm), geometric tolerances (e.g., roundness 0.01mm), and surface roughness requirements (e.g., Ra 1.6).
• 3D CAD Model: Preferably in STEP or IGES format. We can automatically program and perform collision detection on the model, reducing process preparation time.
• Material Specifications: Specify grade for aluminum alloy in form,such as 6061-T6, with condition.
• Surface Treatment Requirements: Anodizing including color and thickness, sandblasting, conductive oxidation among others.
• Order Quantity: prototype (1-10 pieces), small batch (10-100 pieces), or large batch (over 1000 pieces).

Key Determinants of Price

• Complexity of Part: Greater the complexity, the longer the time taken and greater the cost. For instance, parts having deep holes and threads are about 30% more expensive than simple cylindrical ones.
• Material Cost: Different types of aluminum alloys have different costs. For instance, 7075 is $1-2 more per kilogram compared to 6061.
• Precision Requirements: The closer the tolerances, the greater the cost. A tolerance of ±0.02mm is 20% more costly than one of ±0.05mm.
• Order Quantity: The larger the quantity, the lower the unit cost. For example, the unit cost for a quantity of 1000 pieces is about 40% less compared to that of 10 pieces.

JS Precision Pricing Advantages: We provide rapid pricing using our AI-based system for an immediate estimate, usually within 2 hours. Our engineers then review the process plan to give a detailed quote with analyses of the processes, clearly showing all costs without hidden fees.

FAQs

Q1: What is the minimum tolerance achievable for aluminum CNC turning?

The minimum tolerance achievable for aluminum during CNC turning under normal machining conditions is ±0.025mm. Under optimized processes, it can even go to ±0.0127mm or tighter for specific features.

Q2: Why do my aluminum turned parts have tool marks or scratches on the surface?

Tool marks or scratches on the surface of machined aluminum parts are normally caused by tool wear, poor chip removal (chip scratches), insufficient cooling, or an inappropriate feed rate. These problems can be resolved by optimizing the process.

Q3: What types of aluminum alloys do you usually use for turning?

We use 6061 and 7075 as common materials for turning, and we also machine 5052, 6082, 2024, etc. We can recommend suitable grades according to your needs.

Q4: Can the CNC turning machine turn out non-circular parts?

Yes, CNC turning is able to manufacture non-circular parts. An example would be if a CNC turning center is fitted with powered tools for milling and turning, parts could have irregular features milled and drilled on either their sides or ends.

Q5: What is the most common surface treatment after turning aluminum parts?

Anodizing is the most common surface treatment after turning of aluminum parts. It provides a wear-resistant and corrosion-resistant surface and is available in different colors. Other treatments include sand blasting and electroless nickel plating.

Q6: How long does it usually take from quotation confirmation to receiving the first batch of samples?

From quotation confirmation to receiving the first batch of samples, simple parts take 3-5 business days, while more complicated ones take 1-2 weeks. We also offer expedited services to cater to urgent needs.

Q7: Is the delivery time and communication for the CNC turning in China reliable?

On-time delivery and transparent communication are two major principles that JS Precision follows for China CNC turning, by means of designating a project manager to every client in order to achieve perfect communication throughout the process.

Q8: Are you capable of turning micro-parts?

We can provide turning for micro-parts, boasting advanced equipment like Swiss-type lathes with micro-tools, and develop expertise in machining precision parts with diameters as small as 0.5mm.

Summary

Aluminum CNC Turning is an art that combines materials science, precision engineering, and digital control. When choosing a partner, you need more than just a machine tool that can turn, you need an expert team who will deeply understand your needs and can transform challenges into perfect aluminum CNC turning parts.

JS Precision is the kind of partner you can trust, with 15 years of experience in this field, providing end-to-end services using professional equipment, an exclusive parameter library, and a rigorous quality control system to help you create perfect aluminum CNC turning parts. Don't let your sophisticated designs stay on paper.

Send your drawings of aluminum parts or ideas to JS Precision now and experience precision, efficiency, and value from China's leading CNC turning services. Then, you will get detailed process analysis and a competitive quote back within 24 hours. Let's work together and make your dream a reality!
