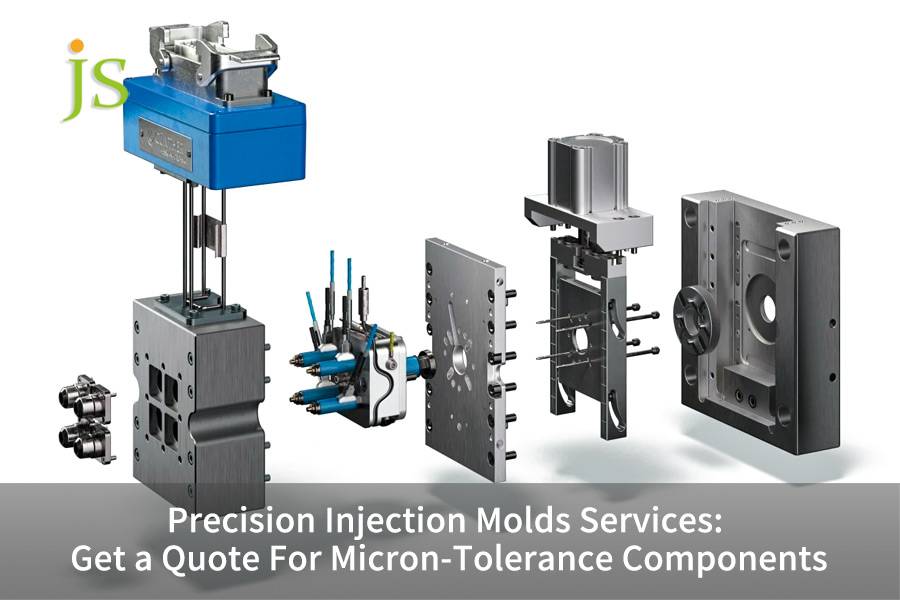

Precision Injection Molds Services: Get a Quote For Micron-Tolerance Components

Precision injection molds are the mainstay of mass producing complex, high value plastic parts. For example, a microfluidic chip you designed may lead to a fluidic pathway failure due to a 0.01mm dimensional deviation.

Or the thin walled structure of a precision connector might go through batch warping post injection molding. Such scenarios indicate that hundreds of thousands of dollars' worth of mold investment and weeks of delivery time will go to waste.

Traditional injection molding tolerances fall short in meeting functional requirements when it comes to structurally complex thin walled parts. It is at micron-level precision that most high value project failures start with being underestimated.

You don't just need a mold supplier but a partner who can turn your design drawings into mass-production-grade, custom plastic parts with precision injection mold services. Professional injection mold tooling is the basis of all these transformations.

Quick Overview

Core Issues	Key Answers
Micron level Precision	Achieving ±0.005mm tolerance ensures the functional integrity of complex parts such as microfluidic components.
Pricing Interpretation	Assess a supplier's strength through full size inspection report commitments, mold repair clauses, and mold steel certificates.
Cost Breakdown	High precision equipment (such as wire EDM) and ultra precision hand grinding are the main factors affecting injection molding tooling cost.
Optimized Pricing	By predicting shrinkage and warpage through DFM reports, gate location can be optimized to obtain a more accurate plastic injection molding quote.
Quality Assurance	Using high quality mold steel (such as ASSAB S136) and employing insert structures ensures dimensional stability in high cycle precision moldings.

Key Takeaways:

• Precision Dictates the Performance:

Consistent microprecision levels (0.005mm) represent the physical certification of the performance of complicated, tailor-made plastic parts including thin walled and microfluidic components.

• Pricing Contains Secrets:

To obtain an accurate plastic injection molding quote, it is necessary that the quote contain the mold steel grade, the commitments for FAI, and clauses for mold repairs.

• Process Is the Main Reason:

The price for precision injection molds is proportional to the duration of wire EDM, mirror EDM, and hand grinding.

• Design and Price are Connected:

Effective DFM is essential not only for controlling injection molding tooling costs but also for avoiding repeated mold repairs.

• Material Defines the Duration of Use:

The mold steel grade (e.g. ASSAB S136) is what sets the capability for a mold to hold precision through mass production of a manufacturing order of over 100,000 cycles.

Why Trust JS Precision's Precision Injection Molds Service?

One of the major factors for high value projects success is careful selection of reliable injection mold manufacturing companies.

JS Precision injection molds service not only focuses on customer benefits, but also uses core technologies and high end equipment to manufacture precision products. We professionalize, gain experience, and become transparent to our clients, thus removing industry barriers and precisely guaranteeing your projects.

Depending on our 15 years of experience in the precision injection mold field and mirror EDM machines and ultra precision grinding machines, for example, you can solve micron-level molding problems without problems.

In various industries, such as medical electronics automotive, our more than 500 clients (including 30+ multinational companies) have effectively used our technology and equipment for their core component projects. Every injection mold tooling process is subject to a stringent chain of precision control.

ISO 9001:2015 quality management system fully governs our services.

Furthermore, the wire EDM processing precision (0.002mm accuracy) and mirror EDM equipment the surface finish (Ra0.1m) are well-suited for building a sturdy base of your custom plastic parts via precision and stability while at the same time ensuring that every process complies with international standards.

For instance, a medical company's microfluidic chip project remained halted for three weeks because of the mold precision shortage, which was caused by a supplier that did not have the high end processing equipment.

You can get a clue from their way outby customized injection mold tooling, together with wire EDM and ultra precision surface grinding technologies, product tolerances were controlled to 0.005mm, which not only enabled a speedy restart of mass production but also saved nearly $100,000 of losses.

Opting for JS Precision implies that you will be granted utterly clear service, quality assurance with an ability to trace, and single contact technical assistance of dedicated engineers.

Besides this, by means of their main processing equipment and technology, you can entirely avoid mold investment risks so that precision injection molds can be a dependable pillar for bringing your designs to life, lowering production costs, and fulfilling mass production needs with high accuracy.

To quickly gain practical experience in precision injection mold making, download the industry white paper for free to help you select reliable suppliers and avoid the risks of mass production of customized plastic parts.

Why Is Micron-Tolerance Essential For Your Precision Injection Molds?

Micron level tolerances (for example, 0.005mm) are essential for the complete performance and reliable sealing of complicated thin walled parts or microfluidic components after assembly. High precision injection molds are fundamental to making this tolerance happen.

Ignoring micron-level accuracy usually results in wasting the initial investment in high priced projects.

The Limit of Traditional Tolerances

Using traditional injection molding tolerances (0.05mm) for medical catheter connectors featuring a wall thickness of 0.2mm, will end up creating assembly interferences or fluid leakages risks, which lead to the failure of custom plastic parts and them not being able to meet precision application requirements.

In simple terms, it's akin to trying to thread a thin thread with a thick needle, misalignment is very likely, resulting in loose connections or leaks.

Case in Point: Microfluidic Chip Channels

Microchannels on microfluidic chips are only 0.1mm wide. If the deviation is more than 0.005mm, it will change the fluid resistance and lead to the errors of the biochemical analysis results. This tolerance is sufficient to also meet the requirements of ASTM D4101-20 for microfluidic components.

Micron level tolerances not only keep your custom plastic parts up to the mark when working in harsh environments, and ensure project risk is kept to a minimum but they also give you a competitive edge in the market, hence, they are not extra requirements.

Have precision injection molding needs? Contact our engineers to receive a free, customized DFM report, predict precision molding risks, and optimize your design.

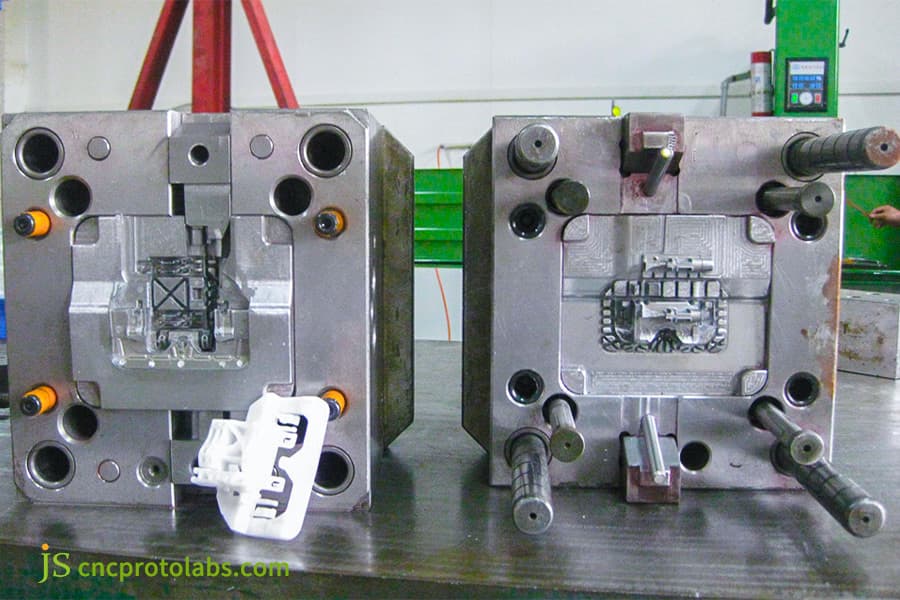

Figure 1: Two complex metal injection molds with cavities and ejector pins are placed on a workbench alongside a finished white plastic part, illustrating the tooling and its output.

How To Decode a Plastic Injection Molding Quote For Complex Parts?

When evaluating a plastic injection molding quote, concentrating only on the price can cause you to miss very important information that will largely help you understand whether your injection molding tooling cost and quality assurance are reasonable.

A reliable quote from a professional should explicitly mention a full size inspection commitment, trial molding and first piece production costs, and mold repair standards.

Technical Indicators Hidden in a Quote

When reviewing a quote, make sure you focus on these three points to not get stuck with extra costs later on:

• Is there a mold flow analysis report included? This is a key piece of proof for evaluating molding risks and will allow you to be able to prevent shrinkage, warpage, and other types of problems to happen.
• Are the mold steel material and origin (e.g. ASSAB S136) specified? This is fundamental to the mold's lifespan and the consistency of precision moldings.
• Will a full size inspection report (FAI) be provided? This is the main piece of evidence supporting the product's dimensional compliance.

Decoding FAI, Trial Shots, and Mold Modification Costs

A trustworthy quotation comes with a full size inspection report, which makes a clear distinction between trial molding (US$800-1500, including 2-4 hours of service) and first piece production (US$500-1000, depending on complexity).

It also sets out the mold repair responsibility, a free adjustment for design issues, and charges for product changes lagen on labor hours.

JS Precision's Transparent Quoting Promise

When you get our clear plastic injection molding quote, you also get the mold steel certificates, mold flow analysis report summaries at your disposal, and mold repair responsibility clearly defined limits, which make every step of your investment transparent, manageable, and without unexpected costs.

Quotation Includes	Cost Range (USD)	Service Description	Required	Customer Benefits
Mold Flow Analysis Report	300-800	Predict molding risks and optimize gate location.	Yes	Avoid later mold repairs and reduce costs.
Mold Trial Service	800-1500	2-4 hour mold trial, provide trial samples.	Yes	Verify mold accuracy in advance and avoid mass production risks.
Full Dimension Inspection Report	500-1000	Inspect all dimensions according to drawings and provide detailed data.	Yes	Ensure product dimensions are qualified and meet design requirements.
Mold Steel Certificate	Free	Provide steel material, origin, and heat treatment report.	Yes	Ensure mold life and precision stability.
Mold Repair Service (Design Issues)	Free	Adjustments due to mold design defects.	Yes	Avoid additional costs and ensure project progress.

Have an unclear quotation? Send it to us, and we'll help you calculate a reasonable injection mold cost, decipher pricing traps, and avoid hidden charges for free.

What Technical Factors Influence The Injection Molding Tooling Cost For Micro-Feature Parts?

The price gap between standard and precision injection molds principally arises from the specialized high end processes needed for micron level accuracy such as wire EDM, mirror EDM and ultra precision grinding.

These are the major factors that determine the injection molding tooling cost.

Why Standard CNC Machining Falls Short for Micron Level Requirements

Standard CNC machining only has an accuracy of 0. 01mm which makes machining the inner sharp corners of R0.05mm impossible. If it is used in precision injection molds the parts will have flash on the parting surfaces, jamming of the parts, which will deteriorate the quality of custom plastic parts and increase rework costs.

To put it simply, it's like trying to measure the thickness of an embroidery needle with a normal rulerit's definitely not precision enough and it will result in burrs.

The Cost Impact of High Precision Machining Equipment

Wire EDM can reach a precision level of 0. 002mm and mirror EDM is capable of producing a cavity surface finish grade of Ra0.1m. However, a single unit of this type of imported equipment costs between half a million and a million US dollars and its depreciation and maintenance costs are directly passed on in the price quote.

Parting Line Grinding: A Time-Intensive Necessity

Ultra precision cutting surface grinding plays an important role in enabling mold closure without any gaps.

The surface grinding process takes 40-60 hours for a set of complex high precision injection molds (which is about 15%-20% of total time), and the grinding technician's hourly wage of $80-$120 will have a direct impact on costs.

Machining Equipment	Accuracy Range	Equipment Cost (USD 10,000)	Hourly Wage Cost (USD)	Applicable Scenarios	Cost Impact Percentage
Ordinary CNC	±0.01mm	10-20	30-50	Ordinary Plastic Parts	15%
Wire EDM	±0.002mm	50-100	80-100	Precision Cavities, Inserts	40%
Mirror EDM	±0.003mm	40-80	70-90	High Precision Cavity Surface Machining	25%
Ultra Precision Grinding Machine	±0.001mm	30-60	80-120	Parting Surfaces, Insert Mating Surfaces	20%

How To Optimize Your Plastic Injection Molding Quote By Solving Common DFM Issues?

When your plastic injection molding quote is too high, one way to bring down the costs is through DFM (Design for Manufacturability) optimization. Our DFM report will help you handle issues like sharp corners, uneven wall thickness, etc. even before making the mold.

Besides this, you can also predict and fix shrinkage and warpage, get an accurate and easy to manage quote, and most importantly, save the cost of fixing the mold later.

Tolerance Failure Avoidance: Elevate Sharp Corners to Even Wall Thickness

A sharp corner is a place where stress is most concentrated and as a result, cracks will start to form in your custom plastic parts. Uneven wall thickness can cause shrinkage marks, both of which not only add to mold repair costs but also delay delivery times.

Our DFM report will suggest replacing sharp corners with R0.2mm rounded corners and that a gradual wall thickness design be used to prevent these problems as well as to lower injection molding tooling cost.

In essence, it's like folding a thin piece of paper into a sharp cornera sharp fold is more likely to break and similarly areas with uneven thickness are prone to wrinkling. By rounding the sharp corners and making thickness even, you are making the parts more robust.

Predictive Engineering: Shrinkage and Warpage Simulation

Using our mold flow analysis, you'll be able to get the exact warpage of various resins (i.e. PC+30%GF, shrinkage rate 0.3%-0.5%) more reliably. We will locate the gate differently for a balanced filling if the warpage comes out higher than 0.1mm in order to have the dimensions of custom plastic parts comply with the standards.

DFM optimization will be the perfect tool for you if you want to reduce plastic injection molding quotes, shorten lead times, increase product yield, and enhance efficiency of the overall project.

Provide your 3D drawings to receive a free professional DFM report, optimize your custom resin mold design, and secure a more reasonable plastic injection molding quote.

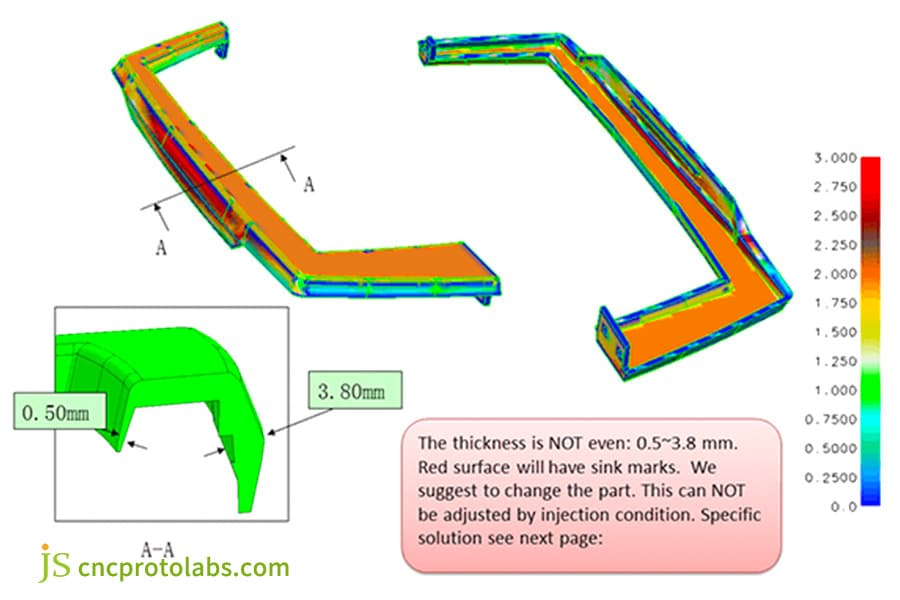

Figure 2: A 3D model of an L-shaped component with a color-coded sectional view (A-A) highlighting uneven wall thickness ranging from 0.50mm to 3.80mm, identifying areas prone to sink marks.

Why Is Steel Grade Selection Critical For High-Cycle Precision Moldings?

For high cycle production surpassing 100,000 cycles, high grade steel variants such as S136 and H13 are recommended to keep the hardness (HRC 52-54) and the corrosion resistance of custom resin molds at a level that allows micron precision without any drift, which will be reflected in the cost-efficiency of your production as well as product consistency.

Preventing Tolerance Drift After 100,000 Cycles

Following 100,000 injection cycles need the usage of an ordinary P20 steel, you will see a drop in cavity hardness, which will cause a 0.01-0.02mm dimensional increase, making the mold replacement necessary and incurring additional costs.

S136, when vacuum heat treated, limits the dimensional variation to 0.003mm after 500,000 cycles which means a continued stable mass production and lower replacement costs.

S136 vs. H13 for Corrosion-Resistant Applications

With resin applications containing glass fiber or other corrosive components, S136 is capable of handling corrosion better than H13. It can produce a mirror finish of A0 grade at HRC 52, which guarantees easy demolding during injection mold tooling, better surface quality for custom plastic parts, and a longer mold life.

Investing in a high grade mold steel does not bring about an increase in costs. On the opposite, it cuts down the long term maintenance and replacement costs, supports the production of stable precision moldings, and significantly increases the competitiveness of your products.

Which Ventilation Strategies Can Improve The Quality Of Custom Plastic Parts?

Tiny custom plastic parts are susceptible to issues like scorching and shortage of materials due to trapped gases, which negatively impact the quality and yield of the products.

Venting steel or vacuum-assisted injection molding technology can be used to release trapped gas at the end, which improves the surface quality of the parts and keeps rework costs down.

Porous Steel Uses for Micro-Feature Vents

Introducing PM35 venting steel (5-10μm micropores) in gas trapping-prone parts of custom resin molds enables gas to vent out while keeping resin from flowing out, resulting in full filling of parts with a thickness of 0. 3mm and product yield going up to 98%+.

Vacuum-Assisted Injection Molding for Thin Wall Components

By vacuuming the cavity to -0.1MPa after mold closing and just before injection, the back pressure is removed, in this way, custom plastic ultra thin parts with a flow ratio (L/T) exceeding 200:1 and a wall thickness <0. 5mm, can be molded without surface defects caused by gas trapping.

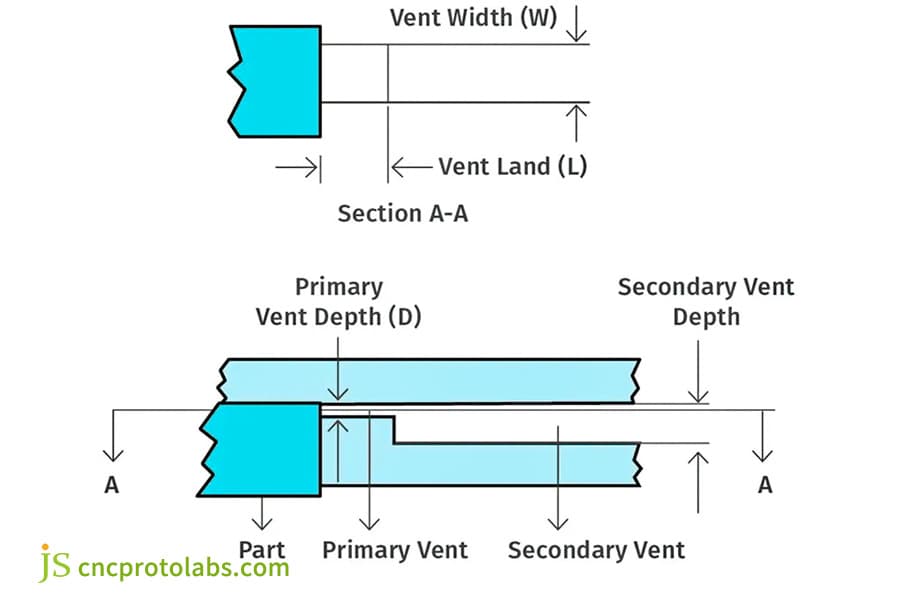

Figure 3: A technical diagram of a precision injection mold's ventilation system, detailing primary and secondary vent dimensions (width, land, depth) in a cross-sectional view.

How Can Injection Mold Manufacturing Companies Guarantee Precision In Thin-Wall Applications?

For extremely thin components, e.g. medical and electrical connectors, you can even think of using the insert structure design of the professional injection mold manufacturing companies.

This method also supports the independent grinding of high precision injection molds, combining strength and elasticity of the material to achieve micron-level accuracy.

Balancing Mechanical Strength with Elasticity in Ultra Thin Molds

Once the wall section is thinner than 0.4mm, the strength of the mold cavity significantly diminishes. Insert layout, made by HRC 54 super-tough powder metallurgy steel, is capable of eliminating deformation after high pressure injection molding hence guaranteeing the accuracy of personal plastic parts as well as the durability of injection molding tools.

Achieving Micron Level Tolerances with Insert Structure Fitting

We employ an insert design layout where each insert is hand-ground individually. A 16-cell connector mold is, for instance, an original piece of which the insert matching sizes can be controlled within a range of 0.002mm, as a result, this ensures the uniformity and mass production stability of all the cell sizes for custom plastic parts.

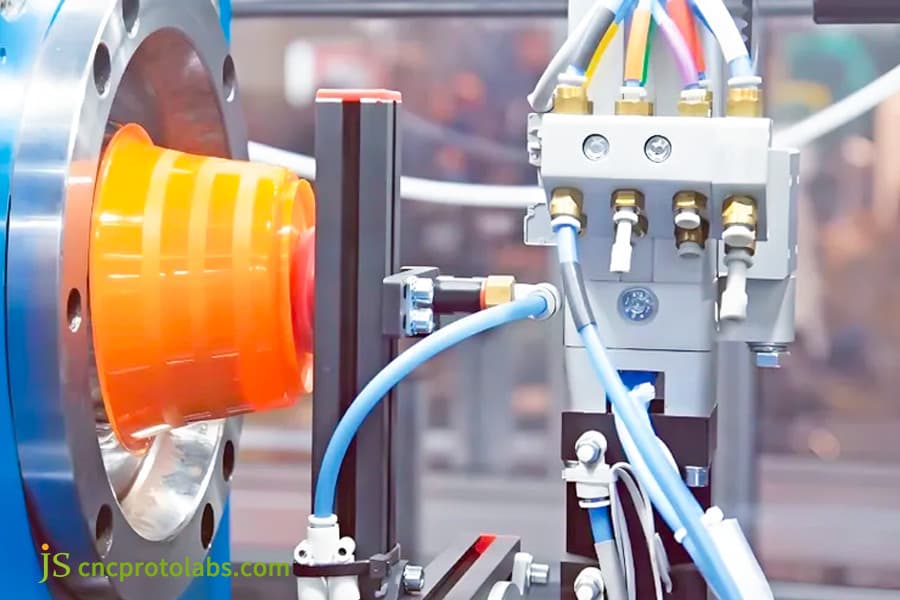

Figure 4: An industrial injection molding machine with various colored hoses and valves, shown producing a smooth, orange plastic part.

JS Precision Case Study: Micro Scale Precision Mold Helps Medical Connector Project

The dimensional accuracy of medical connectors determines the level of medical device safety. The case study below will show in a pictorial manner how we use precision injection molds services to assist clients in minimizing project risks and resolving mass production issues.

Challenges Encountered:

A medical client business project of a 16-pin connector equipped with 16 0.5mm pitch terminal sockets required a tolerance of 0.01mm and a high production yield of 95%.

However, the original supplier's molds had low mold surface accuracy which led to batch flash, terminal hole positional drift of more than 0.02mm, and a yield of only 65%. Due to the project halt and a loss of $2000 per day, they decided to get in touch with us.

Solution:

For this client, we developed a tailored precision injection mold optimization plan that not only tackled the main challenges but also expedited the project's completion through the following points:

1. Mold Structure & Design:

We resolved the positional drift problem at the root by designing the cavity as 16 separate inserts, machining them each with slow wire EDM to keep the dimensions of the inserts identical, and thus drastically cutting the difficulty in mold repair through later steps.

2. Material/Steel Upgrade:

We chose to use ASSAB S136 for the mold steel which was vacuum heat-treated to HRC 52 along with deep cryogenic treatment for internal structure stabilization and to minimize dimensional deformation during molding. This resulted in a mold life extension to more than 500,000 cycles.

3. Grinding Work:

Flatness was controlled to a tolerance of 0.002mm by means of ultra precision planar grinding on the parting surface, while manually grinding and compensating each insert under a tooling microscope lead to zero clearance and completely getting rid of flash issues.

4. MoldFlow Simulation:

The gate position was shifted from a single side to a symmetrical distribution after Moldflow analysis, which not only balanced the melt flow but also brought the warpage down from 0.03mm to 0.008mm. Therefore, the dimensions of the terminal hole were within the design requirement of 0.01mm.

Final Results:

Using this precision injection mold system, the client was able to produce the first piece of each run that was fully compliant with dimensional First Part Inspection (FAI).

The client achieved a CPK value of 1.33 for the critical terminal hole position accuracy, continued delivering stable and quality performance after 300,000 mold cycles, and maintained a custom plastic parts yield rate consistently above 98%.

Besides finishing the project on time, the client saved almost $100,000 in losses and also reduced future maintenance costs.

Faced with similar precision molding challenges? Submit your project requirements and drawings, and we will customize a dedicated precision injection mold solution to help you achieve successful mass production.

FAQs

Q1: What are the tolerance limits you can process?

You can rely on our high precision injection molds, capable of standard tolerances of 0.005mm and critical dimensions to 0.003mm, to help you produce even the most complex custom plastic parts. Additionally, a complete dimensional inspection report can be provided to ensure perfection throughout the process.

Q2: What is the biggest factor affecting injection mold cost?

The major elements determining production cost for injection molding tooling are the type of mold steel, the number of cavities, and the machining time at micron-level precision, which in turn affects the mold quality and its lifespan.

Q3: How can I obtain an accurate plastic injection molding quote?

Supply complete 3D and 2D drawings. With the help of our DFM report, you will be able to get an accurately priced plastic injection molding quote after a thorough process and material analysis.

Q4: What is a full dimensional inspection report?

After the first unit is manufactured, a full dimensional inspection report is created using the measured data from the drawings. This report is the primary quality reference to confirm that custom plastic parts meet the required dimensions.

Q5: What causes thin walled parts to warp so easily?

Thin walled parts get warped because the different layers inside them don't get filled evenly with the molten material which causes an imbalance in the internal stresses. Later on, when the material slows down the release of these stresses, the parts will get warped. You can really get rid of this problem by our DFM optimization and mold flow analysis.

Q6: How long can a mold typically last?

When injection molds are made from high grade steel like S136 and kept well, they can go for 500,000 to 1,000,000 cycles without losing precision, whereas ordinary steel molds generally last 100,000 to 300,000 cycles.

Q7: Are you able to work with glass fiber reinforced plastics?

Sure, we can work with glass fiber plastics. You may take advantage of our extremely wear-resistant steel and well-thought-out gate layout to minimize wear and maintain the accuracy of your custom plastic parts.

Q8: What is the duration from mold design to first piece delivery?

A normal manufacturing time for a precision injection mold is 4-6 weeks. In case of urgent jobs, our production schedule is so optimized that design and first piece delivery can be done within 3 weeks.

Summary

Micron level accuracy is the most fundamental advantage of precision injection molds. It not only plays a decisive role in how stable your custom plastic parts will be against tough conditions, and whether the project will be successful or not, but it also impacts the injection molding tooling costs and how competitive the products are.

A clear plastic injection molding quotation is a proof of the technical capabilities of injection mold manufacturers. By choosing JS Precision, you will get high accuracy customized resin molds, clear service, and expert technical support that will allow you to move forward with your projects without any hesitation.
