Semiconductor CNC machining is one of those behind-the-scenes but crucial links in the chain of chip manufacturing.

Imagine a metal part with an error margin less than one-hundredth of the diameter of human hair, installed on hundreds of millions of dollars' worth of semiconductor manufacturing equipment operating stably for years with nanometer-level precision under extreme conditions of high temperature, ultra-vacuum, and strong corrosion.

This is not science fiction, it's the daily reality of modern semiconductor manufacturing. In this microscopic world, it is the extreme precision and absolute reliability of every macroscopic component that directly determines performance and yield of the chip.

The guide explains why semiconductor CNC machining is the cornerstone of this miracle and shows how JS Precision, through its semiconductor-grade CNC machining services, has earned a reputation as a valued partner among global leaders in semiconductor equipment manufacturing.

Key Answer Summary

Comparison Dimensions	Core Technical Challenges	JS Precision's Solutions	Core Value for Customers
Precision and Tolerances	It needs sub-micron tolerances to avoid particle contamination and stress.	Semiconductor CNC precision machining with in-machine measurement and temperature compensation is used.	This ensures perfect component integrations into the equipment, boosting yield.
Material Handling	Special material handling of both aluminum and stainless steel requires cleanliness and stability in processes.	Several other materials used in handling CNC machined parts possess proprietary processes that enable control over semiconductor requirements.	Extending life with corrosion resistance and reducing the risk of equipment failure.
Processes and Flows	Standards far exceed conventional machining with end-to-end contamination control.	CNC machining services also include cleanroom assembly and specialized packaging to meet semiconductor-grade standards.	Allowing one-stop access to reliable, ready-to-use, no-clean parts that minimize the supply chain complexity.
Technology Applications	Complicated cavities, electrostatic chucks, and other components demand multi-axis operation and micro-milling.	State-of-the-art technologies in high-precision semiconductor machining include 5-axis milling.	Such technologies allow for complex designs and critical components for semiconductor equipment manufacturing.

Why Trust The JS Guide? Core Technologies In Semiconductor CNC Machining

For 12 years, JS Precision has involved deeply in semiconductor CNC machining. Our quality management system strictly follows the International Organization for Standardization (ISO) ISO 9001:2015 standard, which provides a framework for our process stability and continuous improvement.

During the years, our team has been providing CNC machining services for over 200 semiconductor equipment manufacturing companies all over the world, processing over 100,000 CNC machined parts, including key components such as etching chambers, vacuum flanges, and gas manifolds.

Within one year, we reached a record of no quality complaints within 12 consecutive months while machining CVD equipment chamber parts for our European client. The client thus improved its equipment yield by 4.2%. At the same time, three semiconductor processing technology optimization projects led by our engineers found their place in the industry spotlight.

It is not a theoretical guide at all, but rather summarized experience from over 500 real-world projects processed by the JS Precision team, including solutions to various machining challenges and practical techniques. You can fully trust the professionalism and practicality of this guide, as it will give you truly valuable knowledge in semiconductor CNC machining.

Interested in learning more about our semiconductor manufacturing success stories? Immediately get in touch with our customer service and mention "Case Request" to receive a complete collection of client collaboration case studies free of charge, thus gaining a deeper understanding of our technical capabilities.

What Is Semiconductor CNC Machining? Beyond Standard Precision

The first step in mastering this technology is understanding the essence of semiconductor CNC machining. The essential difference between semiconductor CNC machining and ordinary CNC machining determines its core position in the semiconductor manufacturing process.

Definition: Engineering Technology Born for Chip Manufacturing

Semiconductor CNC machining refers to ultra-high-precision CNC machining, necessary to provide service for semiconductor equipment manufacturing, conducted in cleanroom environments.

The process is not merely "cutting metal" but a way of preparing "containers for vacuum, plasma, and ultra-pure environments." Many of the parts it manufactures by CNC determine chip quality and yield directly, without this, advanced chip manufacturing processes would not be achieved.

Fundamental Difference from Ordinary Machining

The important differences in key performance indicators lie between semiconductor-grade CNC machining and conventional CNC machining. The detailed comparison is shown in the table below:

Indicators	Traditional CNC Machining	Semiconductor-Grade CNC Machining
Tolerance Range	Typically ±0.05mm - ±0.1mm	Generally ±0.005mm, key features ±0.002mm.
Surface Finish	Ra 1.6μm - Ra 3.2μm	Can achieve a mirror-like finish with Ra < 0.4μm.
Cleanliness Requirements	No special cleanliness requirements.	Process in class 1000 cleanroom environment.
Material Certification	Basic material certification only.	Full original manufacturer warranty and traceability report available.
Document Traceability	Basic machining records available.	Full documentation package available with complete traceability.

Figure 1: Semiconductor parts CNC machining is a widely acclaimed branch of CNC machining, with many advantages such as high precision and accuracy.

The Heart Of Precision: Core Technologies In Semiconductor CNC Machining

If semiconductor CNC machining is the cornerstone of semiconductor equipment, then its core technologies are the soul of that cornerstone. These technologies work together for the realization of high-precision semiconductor machining, which meets the rigid requirements of semiconductor manufacturing.

Multi-Axis Machining Technology

5-axis machining technology is an important part of semiconductor CNC precision machining. It can realize the synchronous processing of complicated cavities, manifolds, and other CNC machined parts by multi-axis collaboration. The key benefit of this technology is that it prevents secondary clamping-related errors and contamination issues.

Micro-Milling & Turning

It is usually employed for the machining of complicated features, like micro-gas channels or sealing grooves. These geometrical features often require very high precision and have a size in the range of micrometers.

High dynamic performance has to be maintained by the equipment, and the cutting tools have to be manufactured from special materials and processes to avoid dimensional defects caused by tool vibration during machining.

On-Machine Metrology

It is a key technology that can guarantee the stability in high-precision semiconductor machining, adopting high-precision probes on the machine tool to detect part dimensions in real time. When a deviation is detected, the tool wear and thermal deformation error are automatically compensated for, hence greatly improving the yield in semiconductor CNC machining.

Want to optimize your semiconductor CNC precision machining process? Request our core technology manual, which details application scenarios and optimization methods of each technology to help you improve machining accuracy.

Figure 2: In order to produce semiconductor components with the required precision and quality, various advanced CNC machining techniques have been adopted.

Why Semiconductor Manufacturing Relies On Ultra-Precision CNC Technology

Semiconductor manufacturing pursues the ultimate in precision, ultra-precision CNC technology is the core means to meet this pursuit, playing a crucial role in ensuring yield and coping with extreme environments, addressing the irreplaceable nature of such technology.

The Guardian of Yield: How Precision Directly Affects Chip Output

Yield is the central indicator of profit for semiconductor manufacturing companies, and semiconductor CNC machining precision has a direct influence on yield.

Just one defective CNC machined part will lead to particle contamination, a vacuum leak, or temperature inconsistency, thus making the entire wafer unusable and causing huge losses. High-precision semiconductor machining effectively avoids these problems.

Extreme Environmental Requirements: Vacuum, Plasma, and Thermal Cycling

The internal environment in semiconductor equipment, such as etching and CVD chambers, is very aggressive: vacuum, plasma, and extreme thermal cycling. All this means that CNC machined parts should feature high corrosion resistance, low outgassing rates, and stability of properties under temperature changes.

Semiconductor-grade CNC machining can meet these requirements by choosing appropriate materials and processing techniques.

The Paradox of Substitutability: Why Other Technologies Like 3D Printing Fails to Complete the Task

Although new technologies such as 3D printing are developing rapidly, it is still difficult to replace CNC machining in the semiconductor CNC machining field for three reasons:

• Density: While CNC machined parts have a density close to 100%, 3D printed parts have a density of about 95% and fail to meet the requirements for vacuum.
• Surface Finish: 3D-printed parts possess low surface finish, needing further processing to meet the standards for semiconductor-grade CNC machining. This increases costs and presents risks of contamination.
• Material Purity: CNC can utilize very pure semiconductor-specific materials, while 3D printing materials include impurities that may affect the quality of chips.

JS Precision Advantage: What Defines Our Semiconductor-Grade CNC Machining Services?

In the field of semiconductor CNC machining, JS Precision enjoys a unique advantage, relying on years of experience and professional services. Our CNC machining services comprehensively ensure part quality from raw material to shipment, which can meet even the most stringent requirements of semiconductor equipment manufacturing.

Pollution-Free Control from Raw Materials to Shipment

JS Precision set up an end-to-end pollution-free control system, equipped with Class 1000 and higher standard cleanrooms, and its environmental control standards (such as cleanroom grades) strictly follow the ISO 14644 cleanroom and related controlled environmental standards of the International Organization for Standardization (ISO), ensuring that every link from raw materials to shipment is under control.

Specialized tooling and oil-free compressed air are used in the processing. After processing, parts undergo a number of cleaning processes and finally are vacuum-packed in the cleanroom to guarantee that CNC machined parts meet cleanliness requirements.

Full Material Certification and Traceability System

Material quality is the backbone of semiconductor-grade CNC machining. Every lot of material received is strictly checked, and we ask that suppliers issue a quality certificate by the original manufacturer.

Meanwhile, we have set up a complete traceability system whereby each part can be traced back to the raw material batch number, supplier, production time, and so on to ensure integrity in material performance.

Quality Documentation: Above Standards

JS Precision provides every order with an industry-leading quality documentation package, including but not limited to First Article Reports, Full-Dimensional Inspection Reports, Material Certifications, and Machining Process Records.

These detailed documents record the whole process of part production, from raw material to finished products, satisfying the needs of customers auditing and reflecting the manufacturer's rigorous attitude toward quality.

Would you like to try our semiconductor-grade CNC machining service? Please submit your part requirements now and get a tailored CNC machining services solution with end-to-end quality assurance.

Choosing The Right Alloys For CNC Machined Parts In Semiconductor Tools

The correct selection of alloy material is directly affecting the quality of semiconductor CNC machining. Different materials have different properties and are suited for semiconductor manufacturing in different applications. Some of the commonly used alloy materials and their uses are as follows:

Aluminum Alloy: First Choice for Lightweighting and Thermal Management

Given the lightweight properties of aluminum alloys and their good thermal management properties, these materials are very common in semiconductor CNC machining.

They can be used to build vacuum chambers and equipment platforms, among other things. Generally, these require anodizing to enhance corrosion and wear resistance, which is usually important in meeting the requirements for semiconductor-grade CNC machining.

Stainless Steel: Cornerstone of Corrosion Resistance and Structural Strength

As one of the most widely used materials, stainless steel features excellent corrosion resistance and great structural strength. It could be applied to parts like gas pipelines, valves, and etching chambers. Electropolishing or passivation treatment is performed depending on the application scenario to improve the corrosion resistance and surface properties.

Special Alloys: Meeting Particular Challenges

In specialized applications, we use special alloys for semiconductor CNC machining. For instance, titanium alloys can be used in parts that require weight and biosafety, while Invar steel, because of its extremely low coefficient of thermal expansion, is suitable for critical components in highly precise measuring instruments and semiconductor equipment.

Conquering The Invisible: Key Challenges In High-Precision Semiconductor Machining

High-precision semiconductor machining still has a lot of "invisible" challenges. These challenges are difficult to detect but directly affect the quality of the parts. JS Precision depends on its expertise and experience to overcome these difficulties and guarantee the stability and reliability of semiconductor CNC machining.

Managing Micro-Deformation

Micro-deformation caused by machining and clamping forces can result in an out-of-tolerance deviation from part drawing specifications. We minimize deformation through material pretreatment, finite element analysis to optimize toolpaths, and multi-stage stress release and stabilization heat treatment.

Achieving Mirror-Like Finishes

Mirror-like surface finishes, less than Ra 0.4 μm, are required to prevent particle adsorption and gas trapping. We meet this requirement along with the dimensional accuracy of parts through optimization of machining parameters, selection of high-precision tools, and employing advanced polishing processes.

Eliminating All Contaminants

Contamination can render CNC machined parts unusable and even affect the entire semiconductor manufacturing process. Therefore, we comprehensively eliminate contamination in various aspects.

These include selecting semiconductor-specific oil-free cutting fluid as a cutting fluid, adopting high-purity cemented carbide as a tool material, and personnel operating procedures such as wearing cleanroom equipment.

Let us help you solve your problems in high-precision semiconductor machining. Schedule a one-on-one technical diagnostic with one of our senior engineers and receive free solutions that will help mitigate production risks.

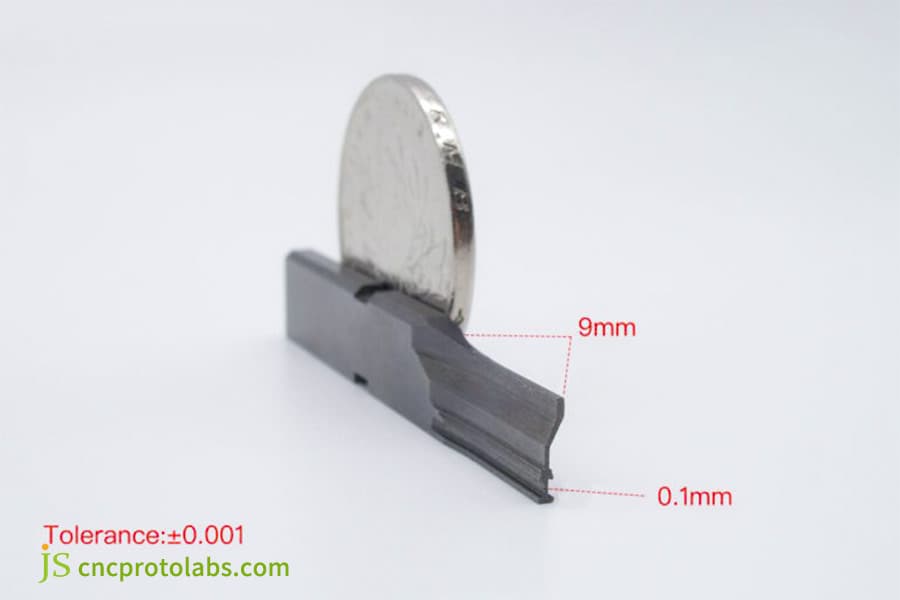

Figure 3: An ultra precision semiconductor component with excellent surface smoothness and durability.

Case Study: Achieving 99.5% On-Time Yield With A Critical Etch Chamber Component

Real-world case studies give the best demonstration of the capability of semiconductor CNC machining. Presented here is a case study of how JS Precision used Semiconductor CNC Precision Machining technology to help a customer improve yield.

Customer Pain Point

One of the leading manufacturers of etching equipment was facing a serious problem. The yield of the core reaction chamber cover fluctuated by more than 5% due to processing stress and thermal deformation, which caused a large amount of waste in parts and very frequent after-sales costs, amounting to over one million US dollars each year.

They tried several different suppliers for CNC machining services, but the problem remained unresolved.

JS Precision Solution

The day we received the request from the customer, we formed a special team for extensive analysis and developing the solution.

1. Material and Design Analysis: FEA analysis was carried out on aluminum alloy materials and the original design of the customer to find out the potential deformation area and points of stress concentration. The main cause of the deformation was found to be asymmetry in the original design.

2. Optimization of Process: A specific semiconductor CNC precision machining strategy was adopted, redesigning the toolpath and using symmetrical milling. Multi-stage stress release and final stabilization heat treatment were added to control part deformation.

3. Precision Assurance: In the temperature- and humidity-controlled workshop, the five-axis machining center was employed together with on-machine measurement to monitor dimensions in real time and perform automatic compensations for errors. The aim was to guarantee that critical flatness and roundness tolerances were within ±5μm.

Final Results

The initial production run of 50 chamber cover plates reached an on-time yield of 99.5% on the customer's production line, far surpassing previous levels. The parts acted stably in the customer's equipment and didn't fail throughout their lifecycle.

This collaboration resolved the long-term quality issues faced by the customer, thus reducing after-sales and wafer scrap costs of over $500,000 annually. We are now the exclusive semiconductor-grade CNC machining supplier for this customer.

Want similar cost reduction and efficiency improvement results? Fill in your project requirements now and let us tailor a semiconductor CNC machining solution for you that helps you increase production efficiency.

Figure 4: CNC machining of reaction chamber cover plate

Partner With JS Precision: How To Initiate Your Project For Success

Through partnership with JS Precision, we apply professional processes to help you smoothly launch your semiconductor CNC precision machining project and ensure successful implementation.

Step 1: Clearly Stating the Technical Requirements

You provide us with drawings with key tolerance annotations, material specifications, surface treatment, and cleanliness requirements. This information enables us to understand the requirements precisely and forms the very basis for the subsequent work.

Step 2: Leverage Our Early Engineering Support

We would strongly recommend communicating with us during the design phase. DFM, or Design for Manufacturability, analysis will be performed by our engineers to optimize the design in order to reduce cost, increase reliability, and prevent any rework associated with design issues.

Step 3: Seamless Quotation and Production Processes

We have an efficient online quotation system and project management system. The whole process, from inquiry to delivery, is transparent and smooth. You can track the project progress in real time to ensure timely delivery and the quality of CNC machined parts.

FAQs

Q1: What is the range of tolerance you can handle?

The general capability in semiconductor CNC machining is ±0.005mm, while the key features can realize a tolerance of ±0.002mm or even tighter to meet the precision requirement of core components in semiconductor equipment.

Q2: Do you have capabilities for cleanroom machining and assembly?

Yes, we have Class 1000 and above standard cleanrooms, exclusively for the final finishing and assembly of semiconductor-grade CNC machining components to ensure that the parts are clean.

Q3: How do you ensure low outgassing rates and cleanliness of parts?

The semiconductor parts are designed for low outgassing rates and cleanliness by making use of high-vacuum-compatible materials, specific cleaning processes like ultrasonic and plasma cleaning, and packaging in a cleanroom environment.

Q4: What are the surface treatment options available?

The offered surface treatments are electropolishing, passivation, and hard and conventional anodizing. All these treatments are made to meet the semiconductor industry standard for corrosion resistance and low outgassing, adapting to the various needs of the parts.

Q5: Are the materials provided by you, or is that coming from the client?

Either is acceptable. We suggest we purchase them to obtain full material traceability certificates to make sure the origin of the materials meets the standards for semiconductor equipment manufacturing and avoids material risk.

Q6: Do you support both small-batch prototyping and large-scale production?

Fully supported. From rapid prototyping to mass production, our CNC machining services process can be flexibly adapted, ensuring quality and efficiency in both prototype validation and mass production delivery.

Q7: Do you have industry certifications like ISO 9001?

Yes, we are an ISO 9001:2015 quality management system-certified company. Because we follow standards applicable for semiconductor industries closely, we assure quality right from the process to product.

Q8: What should my design files contain to get an accurate quote?

Detailed 2D/3D drawings should be provided, including tolerances, materials indicated, surface treatment requirements, annual demand, special cleanliness or testing standards. This will provide the basis of more detailed quotation.

Summary

Semiconductor CNC machining is far from "metal processing", instead, it represents the "microscopic art of precision" upon which semiconductor manufacturing relies. Equipped with 12 years of experience, core technologies, and control in the entire process, every single JS Precision machined CNC part is a "precision benchmark" that can withstand extreme environmental conditions.

With JS Precision, you select to work with semiconductor precision professionals, each collaboration is the beginning of better yield at lower costs. We're here to make sure you get zero-defect components, reliable to semiconductor-grade CNC machining standards, as we enable chip innovation across generations together.

Take action now and upload your part drawings and technical requirements on the JS Precision online platform. You will instantly receive a quote in 60 seconds, which will also include professional advice on DFM. Let's start collaborating to help you convert your most sophisticated designs into the most reliable products.
