CNC Machining Bronze is a bridge that connects ancient materials with modern innovation.

From the massive marine propellers that are resistant to seawater corrosion on an ocean going giant ship, to the complex and self-lubricating gear components in a precision medical equipment, bronze, this alloy with thousands of years of history and witnessed the development of human civilization, is being shaped with incredible precision into a key component driving modern industrial development with the support of today's most advanced computer numerical control technology.

This guide, led by the experts at JS Precision, will delve deep into the mysteries of CNC machining bronze alloys and show how we have surmounted many of those challenges to create perfect custom bronze parts for you. It will also help you make informed choices in global manufacturing.

Key Answer Summary

Comparison Dimensions	Traditional Advantages of CNC Machining Bronze	Added Value of JS Precision
Material Properties	Excellent wear resistance, high corrosion resistance, low coefficient of friction, and high mechanical properties.	Deep understanding of the characteristics of different CNC machining bronze alloys allows us to recommend the best materials for your application.
Machining Accuracy	Achieves extremely tight tolerances and excellent surface finishes.	Equipped with high-end equipment such as five-axis CNC machining, complex CNC bronze parts can be machined in a single setup.
Design Complexity	Capable of producing complex geometries and cavities that are impossible with traditional casting.	Our engineering team provides DFM analysis to optimize your custom bronze part designs and reduce costs.
Conformity and Efficiency	Digital processes ensure high consistency for high-volume CNC machining parts.	Optimized processes and rigorous quality control guarantee fast delivery and zero defects.

Why Refer To This Guide? JS Precision's Experience In Bronze CNC Machining

With more than 15 years of practical experience in bronze CNC machining, JS Precision has provided CNC machining bronze services for over 500 clients around the world in 12 industries, including shipbuilding, aerospace, and energy. We are ISO 9001 and AS9100 internationally certified in quality, undergoing quarterly third-party audits to ensure process compliance.

We have machined aluminum bronze bearings with an accuracy of ±0.0125mm for the world's top 10 shipbuilding companies, produced 500mm underwater production line components for energy companies, and successfully dealt with complex machining requirements for 7 common bronze alloys, such as phosphor bronze, tin bronze, and silicon bronze.

We are familiar with the cutting characteristics of various bronze alloys and can accurately solve problems such as tool sticking and dimensional springback. Up to now, we have finished more than 2000 projects in custom bronze parts with over 99.8% pass rate.

This guide is a distillation of our years of experience-from the selection of materials to process optimization, every suggestion has been validated in actual projects, so you can completely trust its professionalism and practicality.

If you need high-quality CNC Machining Bronze, JS Precision has rich experience in it. Please feel free to contact us to discuss your needs and we will quickly provide solutions and expedite production.

Why Choose CNC Machining Bronze For Your Critical Components?

When it comes to producing critical parts, choosing CNC Machining Bronze is a wise decision since the inherent advantages of bronze, together with CNC machining technology, can maximize its value.

• Bronze boasts good self-lubricating properties, and friction can be greatly reduced without additional lubrication. Thus, bearings, bushings, and other friction-prone parts would especially be suitably made by this material.
• Its resistance to seawater and chemical corrosion is super strong, much stronger compared to any other metal in oceanic and underwater energy equipment.
• Besides, the high strength of bronze allows it to bear high loads, and its excellent electromagnetic shielding properties make it indispensable in electronic equipment.

While conventional processes cannot take complete advantage of these advantages, CNC machining allows for processing tough shapes with precision and accuracy, thereby making bronze parts indispensable in any critical application.

From prototyping in small batches to volume production, CNC machining bronze achieves a balance of quality and efficiency, meeting the most stringent demands for such critical components.

JS Precision focuses on the precision machining of CNC bronze and emphasizes the full advantages of bronze. For critical component production needs, feel free to reach out to us to start a customization process in which we can match you with the optimal process.

A Deep Dive Into Common CNC Machining Bronze Alloys

The first step to CNC machining bronze is choosing the right CNC machining bronze alloy. Each one of the common bronze alloys in the market has its own characteristics and finds an application in various scenarios. Detailed below is a comparison of four core alloys:

Bronze Alloy Type	Main Characteristics	Typical Applications	JS Precision Machining Advantages
Phosphorus Bronze C51000	High elasticity, good conductivity.	Electronic connectors, springs.	Familiar with the springback problem caused by its elasticity, controlling dimensions through optimized toolpaths.
Tin Bronze (C90500)	Wear-resistant, easy to machine.	Valves, gears.	Achieves surface finishes below Ra 1.6 μm, meeting sealing requirements.
Aluminum Bronze (C95400)	Extremely high strength, corrosion resistance.	Propeller shafts, underwater components.	Mastering its high hardness machining techniques, capable of integral milling of complex structures.
Silicon Bronze (C65500)	Excellent cold formability, corrosion resistance.	Fasteners, decorative parts.	Proficient in utilizing its formability to machine complex threads, ensuring connection reliability.

We have adequate knowledge of the machining characteristics of these four alloys. For example, during the machining of aluminum bronze, we would modify the cutting parameter to deal with its high hardness, for phosphor bronze, online monitoring is applied to make real-time corrections in dimensions so that each kind of alloy would result in quality parts.

We also recommend suitable CNC machining bronze alloys in light of customers' application scenarios to avoid material selection errors.

If you are not sure which is the best CNC machining bronze alloy, then let JS Precision advise you professionally. Once identified, we will be efficient in advancing your CNC Machining Bronze project to give you peace of mind.

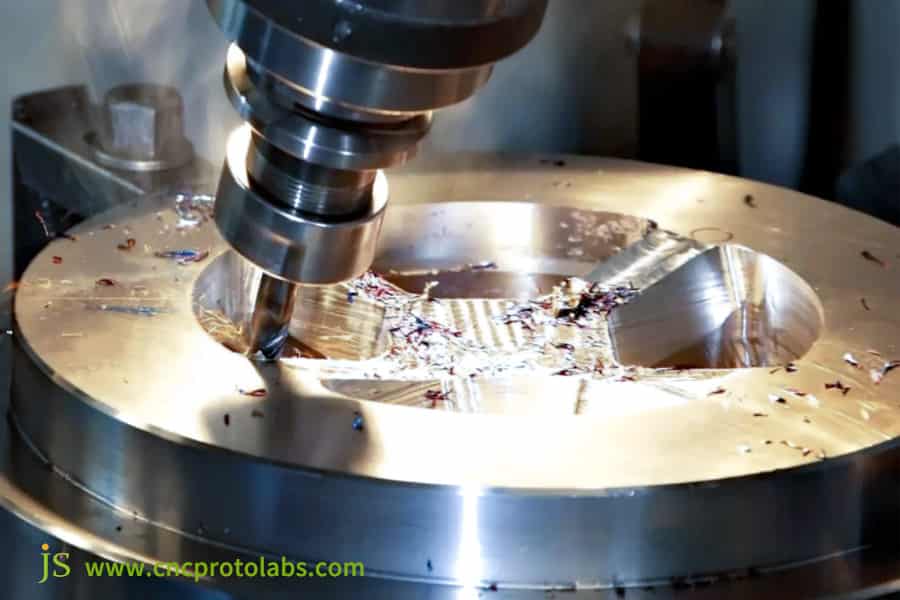

Figure 1:Phosphobronze is a mixture of copper, tin, and a small amount of phosphorus, which can be machined to produce springs, fasteners, and other materials.

What Are The Key Techniques For Effective Machining Bronze?

Mastering professional machining bronze techniques is the guarantee of the quality of CNC Machining Bronze. I will introduce it to you in detail from three core aspects:

The "Golden Parameter" Combination

The cutting speed, feed rate, and depth of cut vary within very wide limits for different bronze alloys. Incorrect parameters result in either insufficient machining accuracy or excessive tool wear. Herein after is the optimal parameter range we have verified:

Bronze Alloy Type	Cutting Speed ​​(m/min)	Feed Rate (mm/rev)	Depth of Cut (mm)
Phosphorus Bronze (C51000)	120-180	0.12-0.20	1.5-3.0
Tin Bronze (C90500)	150-220	0.15-0.25	2.0-4.0
Aluminum Bronze (C95400)	80-120	0.08-0.15	1.0-2.5
Silicon Bronze (C65500)	100-160	0.10-0.18	1.2-3.5

Coolant Strategy

Given that bronze is an alloy prone to sticking in machining processes, machining bronze requires a highly lubricating coolant. A good coolant can reduce tool wear by over 30% and ensure a fine surface finish. We usually cast under high pressure to make the coolant fully cover the cutting area, promptly remove heat and chips, and prevent chips from entanglement in the tool.

Overcoming Obstacles

Dimensional springback and sticking to the tools are usually common problems while machining bronze.

Take, for example, machining phosphor bronze, which is prone to dimensional springback. We allow a 0.05mm compensation margin before machining and adjust in real time through online monitoring to ensure that dimensions of the parts are up to requirements. For tool sticking, tool sharpness is regularly checked and worn tools replaced promptly.

JS Precision is proficient in various machining bronze techniques. We can provide optimal processes for your CNC Machining Bronze project and only need you to tell us what you need.

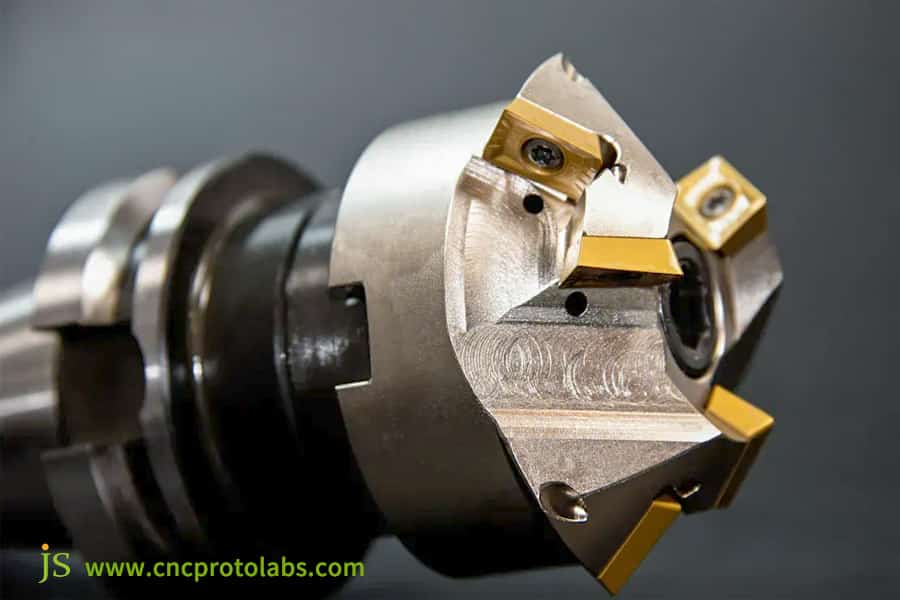

Figure 2:Regular inspection of cutting tools is crucial for high-quality CNC machining.

How To Overcome Challenges In Producing Complex Custom Bronze Parts?

The complex structure of custom bronze parts often presents many challenges, and JS Precision has mature solutions:

Thin-walled Structure Deformation Control

Thin-walled structures are easily deformed due to cutting forces during machining. Specialized tooling fixtures with multi-point support reduce vibration, while at the same time we reduce the cutting speed and feed rate to lower the impact of the cutting forces on the material. During the machining process, check dimensions in every step, correct deviations in time.

Maintaining Accuracy in Deep Hole Drilling

In deep hole drilling, it is difficult to maintain straightness and diameter tolerances. Internal cooling channel drill bits are adopted and used with high-pressure coolant to prevent chips from getting into the holes immediately and causing blockage. Moreover, at an interval of every 5mm, accuracy inspection is performed to keep the straightness error within 0.02mm.

Complex Thread Machining

Misaligned threads and burrs are easily generated during complex thread machining. This is through trying to optimize the toolpath and a layered cutting method whereby the gradual fabrication of the thread reduces the burrs and errors around the thread surface. After machining, full inspection of the thread accuracy will be carried out using a thread gauge.

Employing these methods, we have supplied thousands of intricate custom bronze parts and reached a pass rate of over 99.5% constantly, thus guaranteeing unanimous customer recognition.

What Is The Optimal Tooling For Precision Machining Bronze?

Selection of the right tool is an integral part of precision machining. The emphasis of tool selection varies with the scenario:

Diamond-Coated Carbide Tools

In the manufacturing of most bronze alloys, especially for high-hardness alloys such as aluminum bronze, we prefer diamond-coated carbide tools. The high hardness and good wear resistance it shows provide a tool life of over 30% and a surface finish of Ra 1.6 μm or even better, hence being particularly suitable for parts with high surface quality.

Uncoated Carbide Tools

It is advisable to use uncoated carbide tools when machining easily machinable alloys, such as tin bronze. For such cases, uncoated carbide tools show lower cutting resistance, higher machining efficiency, and about 20% lower cost. Thus, they are suitable for mass production situations where the objective is to save costs.

Tool Geometry Selection

Tool geometry is very important when machining bronze. We normally use a rake angle of 15°-20° to reduce tool sticking. We employ rounded edge transitions to prevent chipping, and in deep hole drilling tools, we select larger chip flutes for easier chip removal.

Where Are CNC Bronze Parts Driving Innovation Across Industries?

CNC bronze parts are driving innovation in many industries, becoming the choice of preference for critical components.

• In the marine industry, CNC bronze parts like propeller shafts and valve cores have extended the maintenance interval from 6 to 9 months owing to their resistance to corrosion by sea water, which can reduce maintenance costs by 40%.
• Bronze sensor casings in automotive applications help reduce the failure rate through excellent electromagnetic shielding performance, thus guaranteeing the stability of operation in electronic systems.
• Wear properties in bronze components extend the life of the equipment by 50% in valve and pump applications.
• In aerospace, CNC bronze bearings and bushings support high load applications and are also self-lubricating, thus requiring little maintenance, making them suitable for aircraft engines and other crucial pieces.
• In the energy industry, bronze parts in an underwater oil wellhead can survive long periods under high pressure in seawater to maintain stability in the operation of oil-extracting machinery.
• In the field of high-performance art and architecture, customized bronze decorations and sculptures have excellent weather resistance and can maintain their beauty for decades without frequent maintenance.

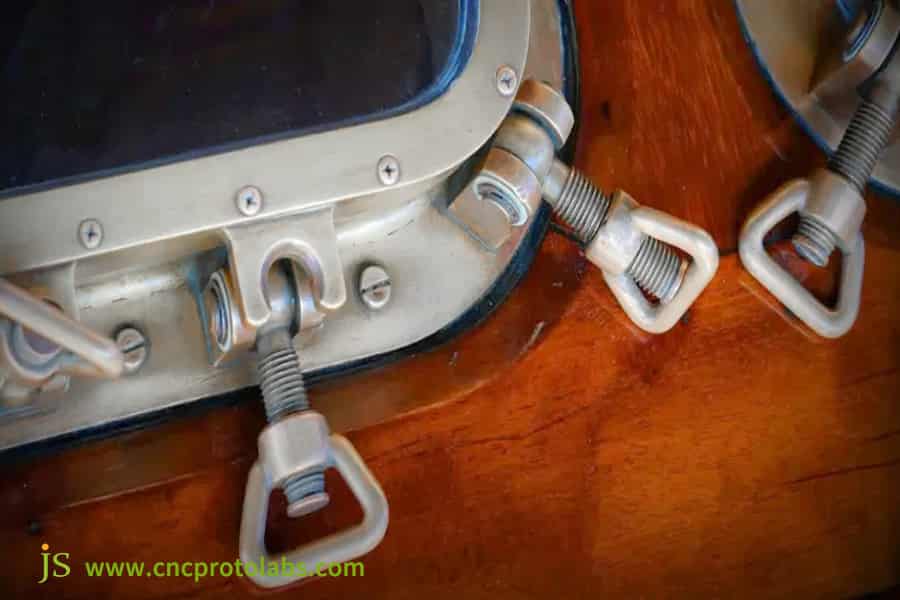

Figure 3:The picture shows a Bronze window cruise.Aluminum bronze is widely used in marine applications due to its excellent corrosion resistance against saltwater corrosion.

Reduce Costs By 40% And Extend Lifespan: CNC Machining Solution For Marine Propeller Shafts

Customer Pain Point

A certain international shipping company uses traditional cast tin bronze propeller shafts that are subject to replacement every 6 months because of their poor corrosion resistance and strength.

Each replacement costs $80,000 in material costs, not to mention the 3-day ship downtime, resulting in losses above $50,000 each. This brings the total annual maintenance cost to $250,000, which has very seriously affected the company's operational efficiency.

JS Precision Solution

We first analyze the root cause of the problem and believe that materials and processes are key. So, we recommend changing the material to aluminum bronze (C95400). This alloy has much higher strength and corrosion resistance compared to normal tin bronze.

Moreover, pre-aging treatment is conducted before machining to avoid internal stress and prevent deformation later on.

Meanwhile, an integral milling process with a 5 axis CNC machining bronze technique is performed, coupled with an online laser inspection system to monitor real-time dimensional deviations.

This means the profile of the blade will be in line with the best hydrodynamic design, reduce water flow resistance, and create a denser internal metallographic structure while reducing casting defects.

Our Final Outcome

The delivered propeller shafts are 15% lighter than before, easier to install, and 25% stronger, capable of withstanding higher loads, calculated lifespan is extended by 50%, from 6 months to 9 months.

By incorporating raw material procurement, processing, and testing processes, we reduced the customer's unit part cost from $80,000 to $48,000, a 40% reduction in total costs, thus saving the customer $100,000 annually.

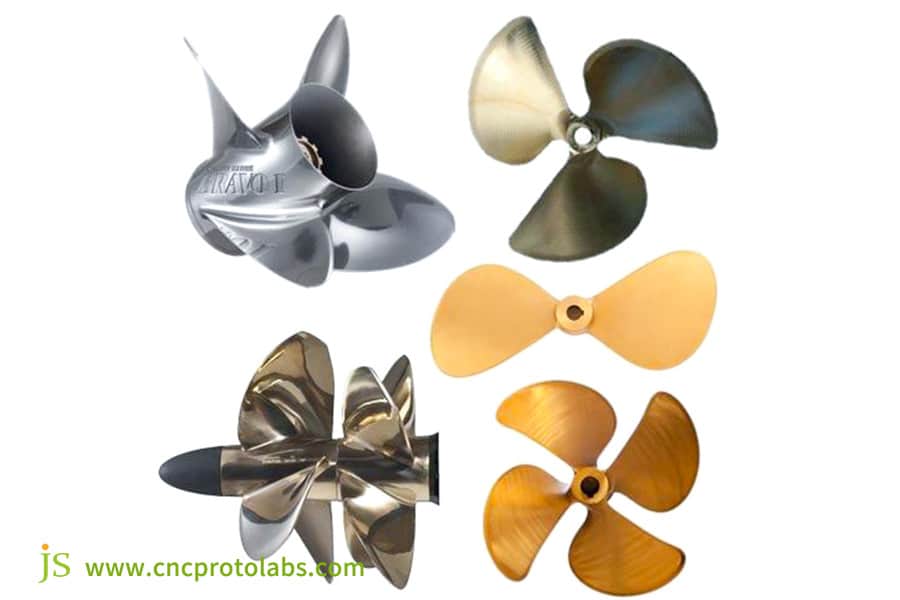

Figure 4:Reduce the cost of custom bronze parts for propeller shafts by 40%.

Key Factors When Selecting A CNC Machining China Supplier For Bronze Parts

Key factors to be scrutinized while searching out a supplier of CNC machining China include the following, which are precisely the core strengths of JS Precision:

• Material Expertise: We understand the properties of the bronze alloy we work with, allowing us to recommend the best CNC machining bronze alloy so that your project does not fail due to the selection of the wrong material.
• Quality Certifications and Standards: We are ISO 9001 and AS9100 certified. We provide a First Article Inspection Report for every batch of parts produced. This helps ensure the quality is up to international standards.
• Communication and Project Management: we have fluent English-speaking account managers who will be able to respond to your needs with ease, and an efficient project tracking system that allows for real-time access.
• Stability of Supply Chain: We have developed high-quality bronze alloy suppliers for more than 10 years so as to avoid being out of stock of materials, which may delay the producing cycle.

We also offer our clients totally transparent service from quotation to delivery, timely feedback at any stage, without any apprehension over communication barriers or lack of transparency.

JS Precision is a good reputation CNC machining China supplier. Specializing in CNC machining parts service. If interested, we can develop cooperation. Please contact us for communication and project promotion.

FAQs

Q1. What are the main advantages of CNC machining bronze compared to traditional cast bronze parts?

The advantages of CNC machining bronze include increased precision, reaching ±0.0125mm, no casting defects, the ability to do complex geometries, shorter production cycles, suitability for prototyping and small-batch production, and better strength.

Q2. How to effectively control chips and avoid the "bird's nest" phenomenon when machining bronze?

Use sharp carbide tools with polishing grooves or coatings and high-pressure coolant to immediately flush the chips away from the work area. This action effectively eliminates chips entangled and forming "bird's nests."

Q3. Is the use of coolant necessary when machining bronze?

Strongly recommend using coolant because it lubricates the cutting tool, reduces cutting temperature, and flushes away chips. High-lubricity coolant in sufficient quantity will help ensure the surface quality.

Q4. What is the maximum size and highest precision of CNC bronze parts that JS Precision can handle?

The size of CNC bronze parts JS Precision can handle reaches up to 500mm. The standard machining precision is ±0.025mm. Depending on the character of the part, the highest precision could reach ±0.0125mm.

Q5. Besides bronze, what other non-ferrous metals does JS Precision excel at machining?

Besides bronze, JS Precision is also proficient in brass, pure copper, aluminum alloys, and zinc alloy machining, possessing extensive practical experience of nonferrous metal CNC machining.

Q6. What level of surface finish can typically be obtained on bronze parts?

JS Precision can achieve a surface finish of Ra 1.6 μm for bronze parts with the optimization of tool type and machining parameters, for some requirements, even better finishes are possible.

Q7. What is the typical lead time that JS Precision takes for CNC machining China services?

For standard complexity CNC machining China orders, the prototype lead time is usually 5-7 days. Mass production lead times depend on order quantity and will be minimized as much as possible.

Q8. How do you ensure the quality of the CNC machining parts exported abroad?

We provide full-process quality control, from raw material certification to first article inspection (FAI) and final shipment inspection, with complete reports to ensure that parts meet international standards.

Conclusion

Modern CNC machining technology brings new life to this ancient art of bronze. From the manufacturing of CNC bronze parts and components to any other nonferrous metal CNC machining parts services, JS Precision will see your needs fulfilled.
