CNC machining bronze brings new life to this ancient metal. Right from the slow and precise process of forging in ancient bronze works of art to the precise functioning of modern ship propellers, the unreplaceable role of bronze in major industrial segments has continued with its distinct strength, superior corrosion resistance, and self-lubricating capabilities.
However, the machining ability with high precision and the achievement of complicated shapes of this robust alloy have always been an issue in manufacturing. But recent advances in CNC machining are bringing back the promise of this ancient material.
This article will give you an in-depth look at the secrets of bronze material selection, the basic processes of large CNC machining, and why Engineers are looking towards China and companies like JS Precision for a perfect blend of cost, quality, and quick turnaround.
Core Decision Reference Table
| Core Decisions | Common Risks | JS Precision's Solutions |
| Material and Process Matching | Thus, improper use of an alloy or a machining parameter results in wear of the parts and a loss of precision. | Depending on the load of application and environment, we would recommend the appropriate type of bronze and then optimize the machining parameters. |
| Large Part Machining | In traditional large CNC machining, there are errors caused by thermal distortion and vibration. | Based on large five-axis gantry milling machines with constant temperature cooling and active compensation through on-line measurement, micron-level accuracy can be achieved for large parts. |
| Cost Transparency and Control | Sometimes, when there are unseen costs for fixture, programming, and scrap, the end result of the CNC machining cost could be shockingly different from what you expected. | Transparency in our broken-down CNC machining quote and control of the cost from the source are done through optimization. |
Key Takeaways
- Bronze is not a material but a family, and there are properties for tin bronze, aluminum bronze, and beryllium bronze. The discovery of the correct material is the basic achievement for success.
- Big size ≠ low precision: By the rigidity of machine tools, thermal management, and online compensation, even large CNC machining can ensure accurate machining within a tolerance of ±0.05mm and above.
- Made in China presents the best possible value for comprehensive capabilities, as best CNC machining service China, operating at the same technical capability level, have world-class ability in cost management, supply chain agility, and engineering service sophistication.
- Collaborations related to early DFM are essential for achieving reduced costs, as carrying out manufacturability design reviews with manufacturers even before seeking formal CNC machining quote can help optimize processing costs and time by a margin of over 20%.
JS Precision: The Key To Improving The Stability Of CNC machining bronze
With extensive experience in CNC precision machining as a custom bronze parts manufacturer, JS Precision boasts an edge in the CNC machining bronze industry owing to our accumulated experience and technology.
We have processed orders from miniatures such as bronze bearings to large marine parts with diameters up to 3 meters, with an in-depth knowledge of machining properties for different kinds of bronze alloys.
With our cutting parameters database system and comprehensive quality control process developed by us, we guarantee a machining pass rate exceeding 99.8% on any part made from bronze.
Our edge in competitiveness lies in our never-ending pursuit of details, as we make use of German-imported five-axis machining centers, which have a spindle speed of 24,000 rpm and a position accuracy of ±0.003 mm, while our professional temperature-controlled workroom ensures our environment has a ±1°C variation in ambient temperatures, thus, there are no effects due to hardware-related thermal deformation.
Following the ISO 9001:2015 standard for quality management system requirements, we have successfully supplied beryllium bronze sensor parts with the tolerance requirement of ±0.02 mm to European customers and achieved the speedy delivery of 1.2-meter propellers with a 10-day delivery schedule for a shipping firm.
In case you have experienced any issues with CNC machining bronze, do not hesitate to contact the engineering team at JS Precision immediately. With your drawings and application, you will get a free customized machining solution that can effectively eliminate any machining risks.
How Does CNC Machining Unlock The Superior Performance Of Bronze?
The properties of bronze are inimitable in critical applications. The current CNC machining technology effectively solves the machining problems of bronze and has totally tapped its anti-wear, anti-corrosion, and high-strength properties.
The Superior Properties of Bronze: Surpassing Strength and Corrosion Resistance
Different bronze alloys exhibit significantly different properties, determining their application scenarios. Specific parameters are as follows:
| Bronze Grade | Tensile Strength (MPa) | Hardness (HB) | Coefficient of Friction | Typical Applications |
| C93200 Tin Bronze | 310-415 | 65-90 | 0.15-0.25 | Bearings, bushings, gears |
| C95400 Aluminum Bronze | 550-690 | 150-200 | 0.20-0.30 | Marine propellers, valves, wear-resistant parts |
| C17200 Beryllium Bronze | 1030-1380 | 300-400 | 0.18-0.28 | Springs, sensors, precision parts |

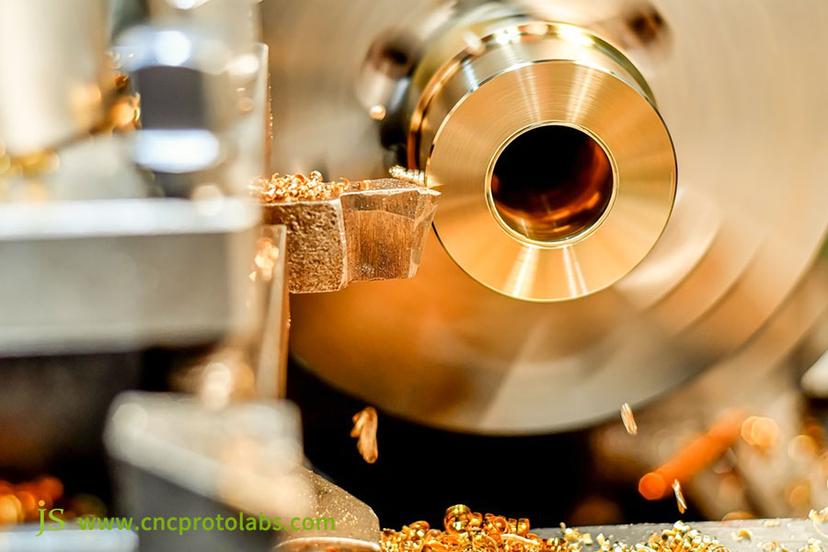

Issues and Achievements in CNC Machining
Key issues while machining the bronze material: The material has a sticky nature that prevents easy removal of the chip material and has toughness that causes the cutting forces to be high during machining. JS Precision’s Targeted Solutions:
- Tools: AlTiN PVD-coated carbide tools with sharp rake angles for enhanced wear resistance and chip evacuation capabilities.
- Parameters: Adjusted depending on the type of alloy. For example, the C93200 tin bronze precision machining line has a speed of 150-200mm/min and a feed rate of 0.05-0.1mm per tooth.
- Cooling: ≥ 30-bar high-pressure coolant directionally flushed to lower cutting temperatures.

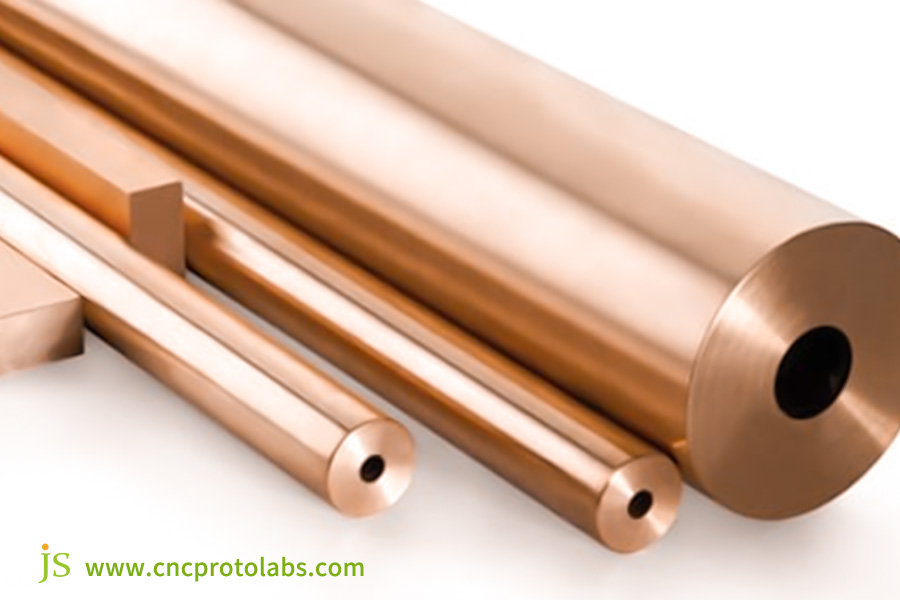

Blank to Finished Product: Machining Routes for Castings and Bar Stocks
The machining route for bronze components has to be adjusted depending on the type of blank, since the blank thickness, size, and material have an influence.
- Casting Blanks: Leave a margin of 3-5mm, support and clamp at multiple points, rough machining to release stress, and then let it stand for 24 hours for precision machining.
- Bar Stock Blanks: Allowance of 1-2 mm, hydraulic chuck centering, continuous cutting for cylindricity and co-axiality.
Bronze Or Brass? Make An Informed Material Choice For Your Critical Components
In precision parts manufacturing, there are large differences in processing and price between bronze CNC machining and brass CNC machining. Informed processing choices can help increase product competitiveness.
Performance Showdown The Triangular Relationship Between Strength, Wear Resistance, and Cost
The performance disparity between bronze and brass has a direct impact on the choice. The performance disparity is as below:
| Performance Indicators | C95400 Aluminum Bronze | C36000 Brass | Difference Analysis |
| Tensile Strength (MPa) | 550-690 | 340-415 | Bronze strength is 50%-70% higher than brass. |
| Hardness (HB) | 150-200 | 80-100 | Bronze hardness is 1.5-2 times that of brass. |
| Seawater Corrosion Resistance | Excellent | General | Bronze service life in salt spray environments is more than 3 times that of brass. |
| Raw Material Cost (USD/kg) | 8.5-10.5 | 4.2-5.8 | Bronze cost is 80%-120% higher than brass. |
Application Guide: When Must Bronze Be Chosen?
Bronze is the preferred choice for the following scenarios:
- High-load, low-speed bearings: Because of its tendency to self-lubricate, tin bronze outlasts brass by 2-3 times.
- Marine Propellers:Marine propellers made from aluminum bronze have high resistance to corrosion from sea water. In addition, the materials have high strength.
- Acid-resistant pumps and valves: The presence of both organic and inorganic acids makes bronze corrosion-resistant in such equipment.
- High fatigue springs: Beryllium bronze springs have high elasticity and can resist more than 10^7 loading cycles.
Machining Comparison - How it impacts your CNC Machining Prices.
- Brass: Reduction in cutting forces, 30% increased cutter feed rate, 50% reduced tool wear, and reduced CNC machining cost.
- Bronze: Heavily demands sharp tools and slow machining, meaning higher tooling costs by 40%-60% but offers higher surface quality with Ra≤0.8-μm.
If you are torn between the two options of bronze or brass materials, you can seek the free choice recommendation from JS Precision. You need to provide us the information on the application environment and the budget you can afford. In this manner, we can furnish you with the appropriate recommendation and CNC machining quote comparison between the two materials.

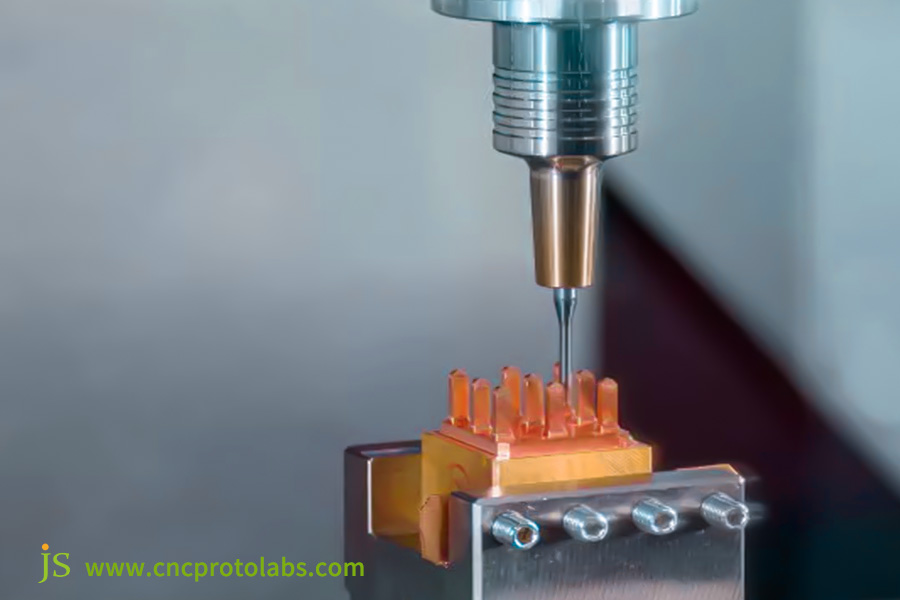

Realizing Micro Level Tolerance: The Core Process Of High Precision CNC machining bronze Parts
Meeting micron-level tolerances in bronze parts means multi-dimensional control of machine tools, tools, parameters, and quality control, which is basically the key technology of a professional custom bronze parts manufacturer.
The Cornerstone of Machine Tools: Rigidity, Precision, and Temperature Stability
The high-precision CNC machining bronze must meet the standards of ASME B5.54-2019 guidelines. The basic requirements for the machine:
- Rigidity: Bed of polymer concrete/cast iron, integral column and cross-beam, designed to withstand heavy cutting forces.
- Precision: Closed-loop linear encoder with full closed-loop accuracy, positioning accuracy of ±0.003mm.
- Heat Stability: Spindle constant temperature cooling, symmetrical heat dissipation of bed body, ensuring long-term processing stability.

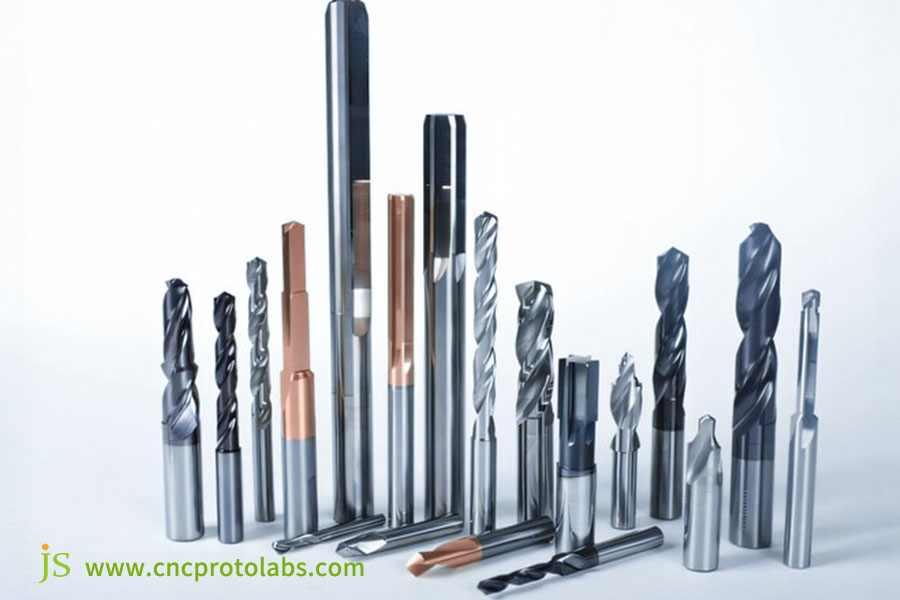

Enhanced Handling of Tools and Parameters
Tool and parameter correspondence is the key to precision. The optimal values of the tool and parameters for different grades of bronze and operating conditions are:
| Bronze Grade | Machining Condition | Recommended Tool Type | Linear Speed Vc (m/min) | Feed Rate f (mm/r) | Depth of Cut ap (mm) | Applicable Coolant Pressure (bar) |
| C93200 Tin Bronze | Roughing | AlTiN Coated Carbide End Mill | 80-120 | 0.15-0.25 | 2-5 | ≥20 |
| C93200 Tin Bronze | Finishing | Diamond Coated Carbide Boring Cutter | 150-200 | 0.05-0.10 | 0.1-0.3 | ≥30 |
| C95400 Aluminum Bronze | Roughing | TiCN Coated Carbide End Mill | 50-80 | 0.12-0.20 | 1-3 | ≥25 |
| C95400 Aluminum Bronze | Finishing | TiAlN Coated Carbide Ball End Mill | 100-150 | 0.03-0.08 | 0.05-0.2 | ≥35 |
| C17200 Beryllium Bronze | Finishing | PCD Polycrystalline Diamond Tool | 180-220 | 0.04-0.09 | 0.08-0.25 | ≥40 |
- Important Principle: Cutting edge should be kept sharp, wear should be checked after every 20 units and sharpened if wear measures above 0.1mm.
Rigorous Quality Control Process in a Professional Manufacturer
JS Precision's complete end-to-end quality control system consists of:
1. First Article Inspection: CMM inspection with full dimensions, producing FAIR.
2. Process Control: Statistical process control on important processes for continuous monitoring of parameters.
3. Final inspection: dimension & surface inspection, 100% inspection, & issuance of report.
From Inquiry To Delivery: How To Obtain a Transparent And Efficient CNC Machining Quote?
Obtaining transparent CNC machining quote is key to cost control, and a professional custom bronze parts manufacturer can avoid hidden costs and prevent CNC machining cost from exceeding expectations.
Understanding Your CNC Machining Quote: What Each Pricing Element Means
In a standard CNC machining quote, the following pieces of information should be provided:
- Material Costs: Real-time LME price of copper and material wastage (5%-10%) respectively.
- Programming and Preparation Time: Determined depending on part complexity. Parts that are simple require 3 to 5 hours, whereas curved surface parts require 10 to 20 hours.
- Machine Tool Running Time: Differentiated between three-axis ($80-120/hour) and five-axis ($150-200/hour).
- Tool-Amortization: Based on machining difficulty and tool life, bronze machining generally accounts for 8% to 15% of total cost.
- Surface Treatment Costs: Such as electroless nickel plating (2-3 USD/square decimeter), passivation treatment (0.5-1 USD/square decimeter).
- Quality Inspection Costs: Includes CMM inspection costs, dynamic balancing tests, and other specialized inspection costs.
Three major variables affecting the cost of CNC machining
1. Part geometric complexity: Greater complexity of geometry and deeper cavities raise programming complexity and processing time, and growing costs by 30%-50%.
2. Order quantity: For small orders (1 to 10 units), unit costs are high. For large orders (over 100 units), engineering preparation costs can be distributed, thereby reducing unit costs by 20 to 30%.
3.Tolerance and surface: Increasing the tolerance from ± 0.1mm to ± 0.02mm may increase the cost by 1.5-2 times. The surface roughness Ra decreased from 1.6 μm to 0.8 μm, resulting in a cost increase of 30% -40%.
Optimizing design to reduce total cost: The golden rule of Design for Manufacturability (DFM)
Optimizing through the use of Design for Manufacturability (DFM) helps minimize the CNC machining cost.
-
Avoid excessively deep closed cavities, control the aspect ratio within 8, reduce tool vibration and machining time.
-
Unified chamfer size (such as using C1.0 for all), reducing the number of tool changes and improving processing efficiency.
-
Reasonably setting tolerances and relaxing non critical dimensions from ± 0.025mm to ± 0.1mm can reduce costs by 15% -20%.

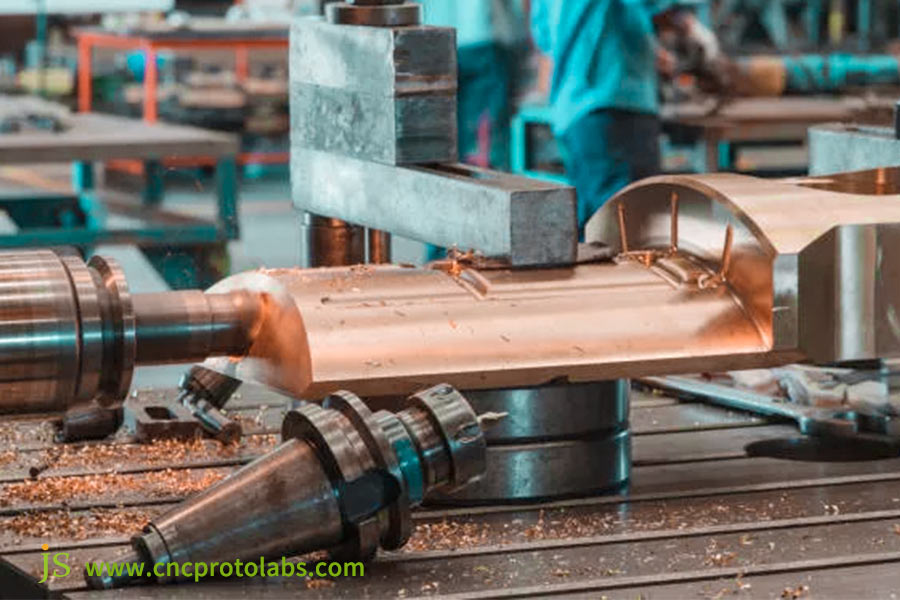

How To Ensure Both Large Size And High Precision In Large CNC Machining?
The pain point of “difficult to simultaneously guarantee large size and high precision” in large CNC machining is resolved. JS Precision, with advanced equipment and technology, can machine ultra-large bronze parts with micron-level precision.

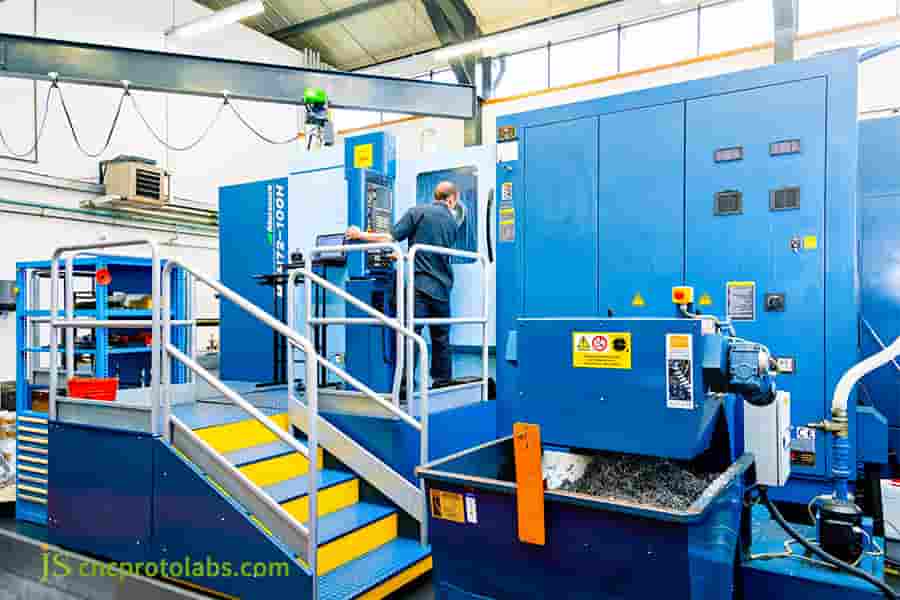

Combating Gravity and Thermal Deformation: Stability of Large Machine Tools
For machining large bronze components >500mm, the following are critical for the stability of machine tools:
- Gantry milling machine: Bed made of polymer concrete, damping capability increased by 3 to 5 times compared to cast iron, reducing vibrations.
- Structural design: Low center of gravity with heavy-duty guide rails to ensure smooth movement.
- Temperature compensation: Real time monitoring of temperature, automatic adjustment of parameters to counteract thermal deformation.
Defining Online Measurement and Compensation: Imposing "sense" capabilities on a machine tool
On-machine measurement technology provides large CNC machining accuracy by making measurements.
- Equipped with a ±0.002mm accurate Renishaw probe.
- Automatic dimensional measurements following rough machining. The program will be updated to account for any changes in dimensions caused by wear and tear.
- Real-time spot checks in finish machining to guarantee first pass yields.
Segmented processing and precision splicing strategy
For over-travel components like propellers exceeding 3 meters:
- Benchmark on a uniform basis employing the positioning technique: 3-2-1.
- On-site splicing using a laser tracker. Error ≤ ±0.05mm.
- Precision machining overall after splicing to remove traces.
If you are facing the machining of large bronze components and are concerned about precision? JS Precision offers its large CNC machining service and free feasibility study for the entire solution with high precision even for large scales.

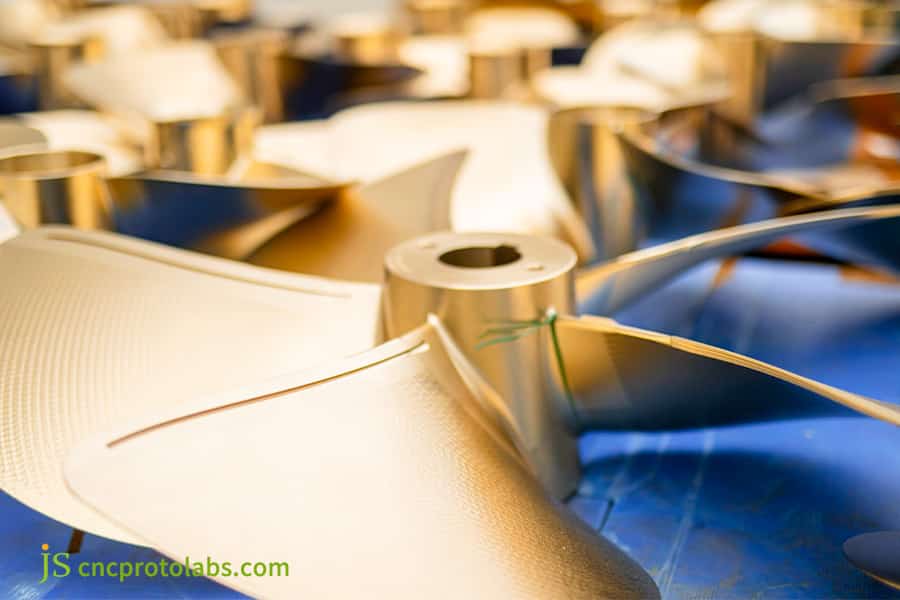

Why Are Global Customers Turning To Professional Bronze Parts Manufacturers In China?
The CNC machining service China has become the world’s best choice because of its overall strength. Since its establishment, JS Precision has won worldwide trust with its professional technology, high-quality service, and cost-effectiveness.
Equivalent and Surpassing Capabilities
The hardware facilities possessed by the top Chinese custom bronze parts manufacturer have reached an international advanced standard:
- Equipment Configuration: Usually equipped with five-axis gantry machining centers from world-class brands like Mazak and DMG MORI, with a spindle power of over 40kW.
- Machining Accuracy: Has the ability to achieve ±0.003mm positioning accuracy, able to steadily machine precision bronze components that require accuracies as high as ±0.02mm.
- Software Support: The use of advanced software for programming, such as Mastercam and UG software, for supporting accurate machining of curved surfaces.
Vertically Integrated Supply Chain and Cost Advantages
The cost advantage in the case of CNC machining service China arises from the well-organized supply chain system it follows.
- Material Supply: Regional high-quality alloy smelting and casting enterprises provide low-cost bronze blank suppliers with material costs 20% ~ 30% lower than in Europe and America.
- Supporting Industries: Industry chain development for tooling and fixtures helps to have easy access to good machining auxiliary materials, which keeps costs down.
- Logistics Efficiency: Because there is an efficient logistics network within the country and throughout the world, the waiting times for delivery are reduced, and the overall cost of logistics decreases.
Deep Collaboration, Engagement, and Rapid Action Environments
Collaboration with Chinese companies offers a great experience due to:
- Engineering teams are involved in complete DFM communication and are committed to part design for the purpose of helping the customer reduce machining costs.
- Fast turn-around times for project management, such as customer emails answered within 24 hours, and quotes given for technology design and CNC machining services.
- Facilitating rapid prototyping and staging with the cycle time of small-batch sample production reduced to 3-5 days, in compliance with the tempo of the agile development process.
To look for a competitive custom bronze parts manufacturer, you may consider JS Precision’s CNC machining service China, with the same quality standard inEurope and America, but with lower prices and faster turnaround times.
Case Study: 10-Day Delivery! Precision Machining Of a 1.2-Meter Diameter Aluminum Bronze Propeller
Phenomenon and Challenges:
In a European shipbuilding company, there was an urgent requirement for machining a 1.2-meter diameter propeller made of C95400 aluminum bronze material, with several challenging factors:
The scale of the tolerance of the casting tool blank (average value of 8mm), complex curved shape of the propeller blades, the surface tolerance of ±0.1mm, and the dynamic balance of G6.3 or better quality. The machining time taken with the conventional machine was 30 days, and it was difficult to complete the delivery time requested by the customer.
Solution
Upon receiving this order, JS Precision developed its machining scheme as follows:
- Equipment Selection: For supplying enough cutting power for machined work on the mold, a 2.5m travel 5-axis gantry machining center with a 40kW high-power spindle was selected.
- Programming of Optimization: The surface programming was done by the use of the UG software. The strategy applied was the contour cutting strategy. The strategy helps in ensuring that the surface finish of the blade is correct.
- Process Control: Equipped with a machine measurement probe, the size of each blade is checked after processing, and the processing parameters are adjusted in real time.
- Balancing: After the completion, the blades underwent a professional dynamic balancing machine, and through the help of counterweights, the dynamic balance was corrected to a higher standard.
Results
The machining in JS Precision took only 10 working days to complete the machining process from material to product. The tolerance of the propeller profile was ±0.08mm. This was beyond the requirement of the customer, the balance of the dynamic balance was G2.5.
This was greatly desirable as the requirement was G6.3, the surface roughness of the component was Ra=0.8μm. This fulfilled the hydrodynamic function for navigation for the ship. The customer highly recognizes the processing quality and delivery speed, and has established a long-term cooperative relationship.
If you also have urgent or difficult bronze parts processing needs, please feel free to contact JS Precision. We will provide you with fast and accurate processing services based on our rich practical experience and advanced technical equipment. At the same time, we offer free project evaluations to ensure timely delivery and worry free quality of your urgent orders.
FAQs
Q1: Which is the recommended cutting tool for machining bronze?
Carbide tools are preferred if they have a sharp rake angle. PVD layers of aluminum titanium nitride or diamond are suggested. These protective layers have good resistance to high temperature and built-up edge, besides having good chip removal properties and are suitable for different grades of bronze alloys.
Q2: What are some surface treatments that can be done on bronze components?
Chemical nickel plating can be carried out to increase the hardness and anti-corrosion properties, and passivation can also be done to improve the rust-proof performance, and if the self-lubricant properties are required, the surface can be retained after the machining operation.
Q3: What is the biggest problem encountered in machining large-sized bronze castings? How does one overcome it?
Deformation and inhomogeneous allowance due to the release of casting stress are the most important factors. Thermo-vibratory aging pretreatment is done to relieve the stress in the casting. To remove the excess material from the casting, a “probe CUT” machining approach is adopted.
Q4: How can the size stability and roundness of the bronze bearings be ensured?
Roughing—Natural Aging—Finishing. In finish machining, a precision boring cut is used with a continuous low feed rate. With this process, roundness accuracy within 0.005mm can be consistently assured.
Q5: What is the typical lead time for small-batch custom bronze parts?
For moderately complex components, the manufacturing cycle for small series production (from 10 to 50 pieces) generally takes 3 to 5 weeks from drawings to delivery or from drawing confirmation to delivery.
Q6: What details are required for an online bronze CNC machining quote?
A 3D model in STEP format, 2D views in PDF format, material type, and amount of parts needed, surface treatment specifications, and specific testing standards for penetrator testing and others.
Q7: Is it possible to machine Beryllium Bronze? What are the special precautions?
Yes, beryllium bronze (like C17200) can be machined. But the machining operation must take place in professional ventilation conditions in order to prevent the inhalation of the beryllium dust, since it is detrimental to human health. The machining parameters and the heat treatment conditions must be followed strictly.
Q8: Could communication or time zone differences become problems if I select a Chinese manufacturer?
No, they won’t be issues. We are able to give you a bilingual project team that is English and Chinese speaking, providing 24-hour responses via an online collaboration system with regular updates to ensure effective communication for you.
Summary
The development and maturity of CNC processing and machinery for bronze have enabled the bronze alloy, an alloy that has seen the development of human technology, to sparkle with renewed brilliance in the modern industrial era. Its unmatched precision and reliability offer a firm foundation for major areas like deep-sea exploration, shipbuilding, and precision instruments.
The core of mastering bronze lies in accurately grasping its material characteristics, matching suitable processing techniques, and working together with partners who possess both technical strength and business wisdom.
When your design demands the strength and durability of bronze, there's no need to compromise between quality, cost, and speed.
