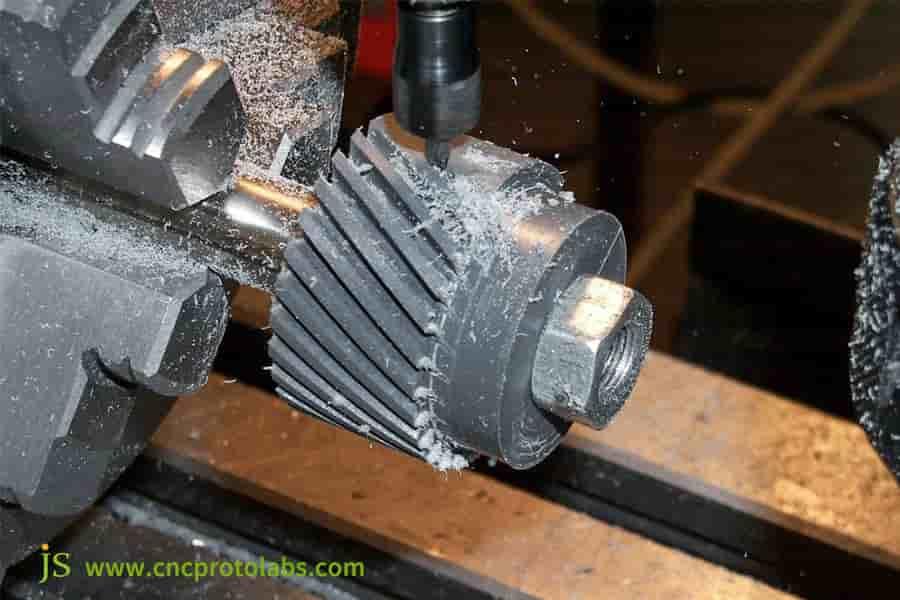

Helical gear milling is one of the key technologies in solving a series of industrial transmission problems.

The smoothness, quietness, and high torque of the helical gears manufactured by the helical gear milling technology have made them default choices for many high-class applications over spur gears, which are noisier and limited in load-bearing capacity. However, its complex spiral tooth shape also brings unique manufacturing challenges.

It will comprehensively analyze the helical gears and demonstrate how JS Precision provides you with a one-stop precision gear solution with our advanced helical gear cutting machine and professional gear cutting process on milling machine.

Summary Of Key Answers

Comparison Dimensions	Helical Gear Technology and Challenges	JS Precision's Solutions - Our Capabilities	Your Core Benefits
Why Choose Helical Gears?	Smooth meshing, low noise, high load capacity.	One-stop solution for Helical Gear Milling, from design consultation to finished product delivery.	Elevate your product performance and competitiveness, unlock advanced transmission components.
Manufacturing Difficulties	Precision in tooth profile, helix angle, tool interference, and vibration suppression.	Utilizing high-class helical gear cutting machine, professional gear cutting tools, with process maturity.	High yield rate and quality stability, avoiding trial-and-error costs and delivery delays.
Cost and Pricing	Affected by material, precision, and heat treatment, among other factors.	Transparent pricing online, with DFM reports to help optimize the gear cutting process on milling machine for cost savings.	Cost is controllable, and cost-effectiveness is optimized-professional advice on cost reduction.
Type of Processes	There are many types of gear cutting, such as milling, hobbing, and gear shaping.	We will recommend the best process, taking into account your gear variety(such as double helical gear), quantity, and precision requirements.	Obtain the most suitable manufacturing solution to avoid waste caused by improper process selection.

Why Trust JS Precision? Practical Analysis Of Helical Gear Milling

In the gear machining industry, experience and strength are the core of winning customer trust. JS Precision has 15 years of gear machining experience, focusing on helical gear milling services, and has served more than 200 customers in multiple fields such as automotive, aerospace, and industrial robotics.

For example, we have machined AGMA 10 grade helical gears for an automotive parts manufacturer. These are used in automotive transmissions, with a cumulative delivery volume of over 100,000 units and a continuously high product qualification rate of over 99.8%.

We also solved the symmetry challenge of double helical gears for an aerospace equipment company. By using high-precision helical gear cutting machine and optimizing the gear cutting process on milling machine, we controlled the product symmetry error within 0.005mm.

This helical gear milling guide is a summary of our years of practical experience, from design to machining and from cost control to service provider selection. You can completely trust its content.

If you need reliable Helical Gear Milling services, JS Precision is the perfect option. We have mature gear machining technology, and you only need to submit gear parameters or a 3D model to start your customized process and enjoy an efficient and precise machining service.

Beyond The Basics: Why Choose A Helical Gear Over A Spur Gear?

When choosing gear types, the most frequent problem people struggle with is spur gears versus helical gears. In fact, their applicable scenarios and performance are quite different. Knowing the differences will help you choose a more appropriate helical gear milling service.

Performance Advantages

• Smoothness and Noise: Helical gears have teeth that are constantly engaging and use a longer continuous contact line. Consequently, the vibration and noise are much lower, especially for high-speed applications. For instance, in higher motor drives above 3000 rpm, helical gears are much quieter than spur gears by about 8 to 10 decibels.
• Load Capacity: Because of the bigger contact area of helical gears, they are able to transmit higher torque and have longer service life. For the same size, helical gears have a 30%-50% higher load-carrying capacity than spur gears.
• Design Flexibility: The existence of the helix angle permits changing the transmission ratio to requirements when the center distance is constrained, therefore making the gear machining solutions adaptable to a range of equipment structures.

Operating Scenarios Comparison

To help you make a clearer choice, I've compiled the following table, which compares the scenarios in which spur gears and helical gears are applicable:

Gear Type	Applicable Scenarios	Typical Application Cases	Recommendation of Helical Gear Milling?
Spur Gear	Low-speed, light-load, and low-noise requirement cases.	Hand tool transmission, simple conveyor belts, small toy motors.	No
Helical Gear	Scenes with high speed, heavy load, and high requirements for smoothness and noise.	Automotive transmissions, industrial robot joints, high-speed fans, precision machine tool spindles.	Yes

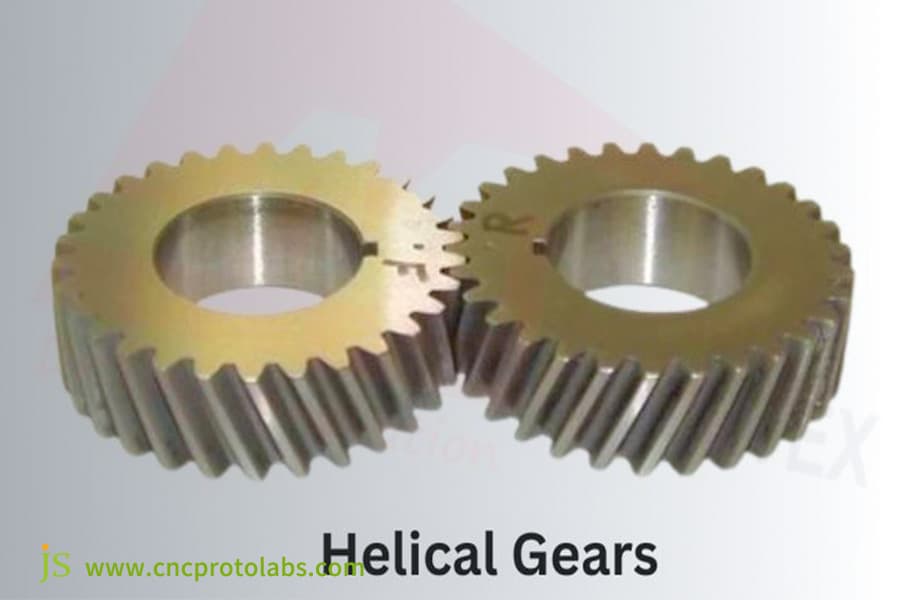

Figure 1:Helical gears,offer several advantages over other gear types, including smooth operation, higher load-carrying capacity, and reduced noise.

Navigating Complexity: What Are The Key Challenges In Helical Gear Milling?

Although helical gear milling offers several advantages, a lot of challenges are associated with the machining process. These can, however, be effectively overcome by mastering the right approaches.Following are five core challenges and countermeasures:

1. Precise Helix Angle Control:

Precision in the helix angle decides the performance of gear meshing. High precision requires CNC linkage and a reliable helical gear cutting machine. JS Precision uses a 5-axis CNC machining center, which allows for control within an error of ±0.05° in the helix angle.

2. Tool Selection and Interference Avoidance:

Improper tool selection would generate interference in machining. Therefore, correct selection and clamping of gear cutting tools should be properly done, including angle milling cutters. Our engineers match the most suitable gear cutting tools based on gear module and number of teeth to avoid collision issues.

3. Tooth Surface Finish and Precision:

Poor tooth surface finish increases wear. For this reason, optimization of the cutting parameters, stable clamping, and effective cooling are required. In the gear-cutting process on the milling machine, we ensure a tooth surface roughness of Ra 0.8μm by adjusting the cutting speed and feed rate, and with the high-pressure cooling system.

4. Control of Deformation Resulting from Heat Treatment:

Gears can easily go into deformation after heat treatment. A deep understanding of the process of heat treatment after gears cutting process on milling machine will help address this with a pre-deformation compensation strategy. We preset the deformation compensation amount based on material properties before processing to reduce post-heat treatment errors.

5. Symmetry Guarantee for Double Helical Gears:

Double helical gears need symmetry both on the left and right helical tooth profile, which requires extremely high equipment and process stability. We use special fixtures and a real-time measurement system to guarantee that the symmetry error of left and right helical teeth is within 0.01mm.

From Design To Quote: How Is Helical Gear Milling Service Priced?

Most clients ask about the cost of a Helical Gear Milling service. In fact, the price quotation mainly depends on several key factors. Grasping these factors will enable you to have a clear plan in terms of cost.

Key Elements of the Quote

I have tabulated the various factors and how they affect the quotation, as can be viewed in the table below.

Component	Specific Content	Impact on Cost	Example (Unit Cost)
Gear Parameters Module	1-10mm, Number of Teeth: 10-100. Helix Angle: 5°-45°. Tooth Width: 5-50mm.	Larger, more complex parameters increase both machining time and the cost of tooling.	Module 2mm, 20 Teeth: $50. Module 8mm, 80 Teeth: $180.
Materials and Heat Treatment	Ordinary Carbon Steel (45#), Alloy Steel (40Cr), Copper Alloy (H62). Heat Treatment Method: Carburizing and Quenching, Nitriding.	Alloy steel costs 40%-60% more than ordinary carbon steel. Adding heat treatment increases the cost of a particular piece of metal by 20%-30%.	45# Steel without Heat Treatment: $50. 40Cr after Carburization and Quenching: $85.
Precision Grade	AGMA 6-12, DIN from 5 to 8.	For each level of precision improvement, the cost increases by 30%-50%.	AGMA Level 8: $50. AGMA Level 10: $85. AGMA Level 12: $150.
Order Quantity	1-100 pieces, 100-1000 pieces, more than 1000 pieces.	Small batches have higher costs due to setup and programming fees. Large batches offer a unit cost reduction of 20%-40%.	10 pieces, US$120-piece. 1000 pieces, US$35-piece.

How to Quickly Get a Quote for "Gear Cutting Near Me"

For a rapid quotation, you don't need to search everywhere for "gear cutting near me." Please provide JS Precision with a Gear Parameter Sheet (to include module, number of teeth, helix angle, etc.), or even better, a 3D model. Our system will generate a transparent quotation within 24 hours, with no hidden fees.

JS Precision has clearly defined the prices of Helical Gear Milling and develops a quote tailored to suit your needs. Along with a fast quotation, you can enjoy local after-sales support when you use our gear cutting near me service. Place an order by confirming the quote and signing a contract.

Smarter Manufacturing: How To Optimize The Gear Cutting Process On Milling Machine For Cost Savings?

In Helical Gear Milling, cost reduction may be effectively done by optimizing the gear cutting process on milling machine without losing sight of product quality. The approach needs to consider both design and manufacturing.

Design for Manufacturability

Working with JS Precision's engineers in the design phase can lower costs while maintaining performance. Specific optimizations include:

• Relaxing non critical tolerances appropriately: for example, relaxing the tolerance of non mating surfaces from ± 0.01mm to ± 0.05mm can reduce precision machining time.
• Optimize root fillets: Standard root fillets (such as 0.38m, where m = module) avoid special tooling and reduce tooling costs.
• Select the parameters for adapting standard cutting tools: For example, choosing a common module specification of 2mm or 4mm allows one to leverage any already-purchased existing gear cutting tools instead of having to purchase more.

Process and Tool Optimization

• High-Speed ​​Cutting Technology: Enhance the effectiveness of gear cutting process on milling machine and shorten the single-piece machining time. We adopt high-speed cutting tools, increasing the cutting speed from 80m/min to 150m/min. It reduces the single-piece machining time by 40%.
• Tool Life Management: High-quality gear cutting tools are used, and the tool life is scientifically managed to minimize the tool switch time and tool consumption. Record the number of working procedures of every tool, replace them before expiring to avoid scraps that happened because of a tool wearing problem.
• Intelligent Scheduling: Optimize the machining path and cut parameters in batch orders to achieve more effectiveness with less cost. For instance, arrange all gears of the same module to be machined together to reduce the frequency of tool changes and improve equipment utilization.

JS Precision can help you comprehensively optimize the gear cutting process on milling machine by reducing costs through design for manufacturability and process optimization. You could also use high-quality gear cutting tools with our service and would not need to invest in tool costs yourself, you just need to place the order to get the advantage of optimized and efficient machining.

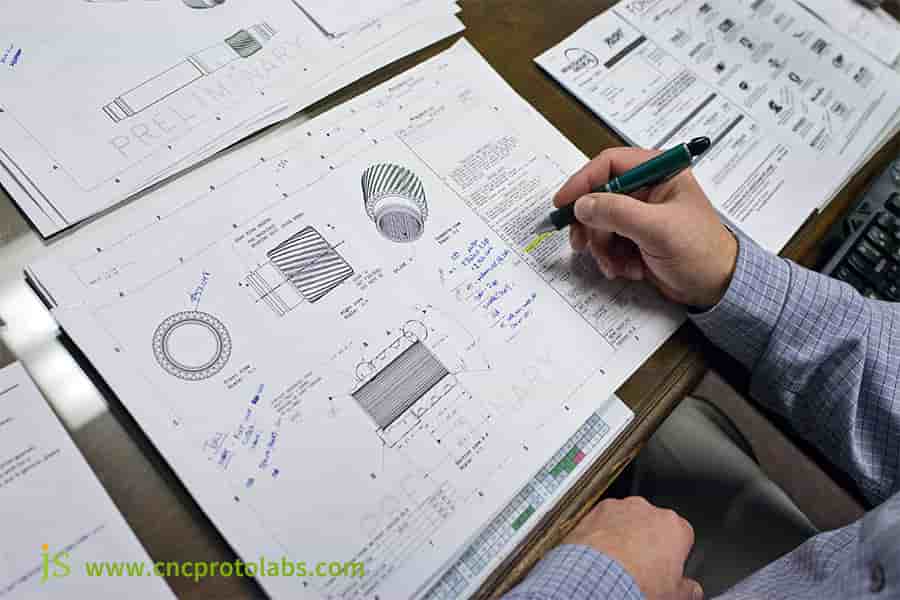

Figure 2:Design for manufacturability. It helps to identify potential issues early in the design phase and fix them at the lowest cost.

Tooling Up: What's The Investment In High-Performance Gear Cutting Tools?

Gear cutting tools are very important in Helical Gear Milling. To many customers, this means an additional investment cost, but the truth is that high-performance tools eventually can be more cost-effective. In addition, different types of gears cutting require different tools.

Cost of Tools

It is generally accepted that high-performance gear cutting tools such as powder metallurgy high-speed steel, and carbide-coated tools-have a high initial purchase price but in the long term are cheaper. For instance, we may consider the following approximate data for carbide-coated tools compared to ordinary high-speed steel tools:

• Initial Cost: Coated tools are around $200 per tool, compared to regular high-speed steel tools which are about $50 per tool.
• Processing Quantity: Carbide-coated tools can process 800 gears, while ordinary high-speed steel tools can only process 200.
• Cost per Tool: For 800 gears, with 4 tool changes required, an additional 1.5 hours of equipment labor at a cost of $150 increases the cost.

Selection of Tools for Specific Types of Gear Cutting

The tools used may vary for different processes of gear machining. I have, therefore, put together a comparison of tools applied for some common types of gear cutting:

Types of Gear Cutting	Tool Type	Tool Cost per Tool	Applicable Scenarios	Machining Efficiency
Helical Gear Milling	Angle end mills, form end mills	$150-300	Small to medium batches, complicated tooth profiles, such as double helical gears.	Medium
Hobbing	Gear hobs	$300-$800	High-volume, standard tooth profile helical gears.	High
Gear Shaping	Shapers	$200-$500	Internal gears, multi-gears.	Medium

However, JS Precision has already provided you with a complete tooling solution, including all kinds of gear cutting tools that are needed for any types of gear cutting. No need to buy, you only have to state your machining requirement.

JS Precision has a whole set of high-performance gear cutting tools to adapt to different types of gear cutting processes. Choosing our helical gear milling services means eliminating tooling costs and enjoying professional tooling management, ensuring processing efficiency and quality. Production can be immediately arranged once the order is placed.

Choosing Your Partner: What To Look For In A Domestic CNC Gear Cutting Service Provider?

Your Helical Gear Milling project needs the right service provider to make it successful. You have to assess the capabilities of the service provider from several angles:

Five Key Factors in Choosing a Service Provider

1. Technical Equipment: Is the provider equipped with state-of-the-art helical gear cutting machines, such as 5-axis machining centers and dedicated CNC gear hobbing machines, and measuring equipment like gear measuring centers? It has 20 5-axis CNC machining centers and 3 gear measuring centers, capable of meeting high-precision machining requirements.

2. Manufacturing Expertise: Is the supplier able to proficient in handling various types of gear cutting, including some very complicated products like double helical gear? Backed by 10 senior engineers with rich experience, we have finished more than 500 double helical gear machining projects.

3. Quality System: Does the firm have a full quality control process with relevant industry certifications? JS Precision is ISO 9001 and IATF 16949 certified, with quality inspections in every stage to ensure the quality of the product.

4. Collaboration Capability: Is the engineering team willing and able to intervene early to perform DFM analysis? We participate in the design process right from the beginning of the project, with manufacturability advice that helps you optimize your design.

5. Response Speed: When searching for "gear cutting near me," while the convenience brought by geographical location is a plus in the aspects of communication and logistics, that is not all. The core is still about technical capability. JS Precision has three production bases nationwide, enabling rapid response to needs and thus shortening the logistics cycle by 2 to 3 days.

If you are in search of a reliable service of CNC gear machining, then JS Precision fully meets the five most essential requirements highlighted above. We have advanced helical gear cutting machine capable of performing complex machining, such as double helical gear. With our gear cutting near me service, effective communication and fast delivery are assured by an assigned account manager who will follow up on your order after placement.

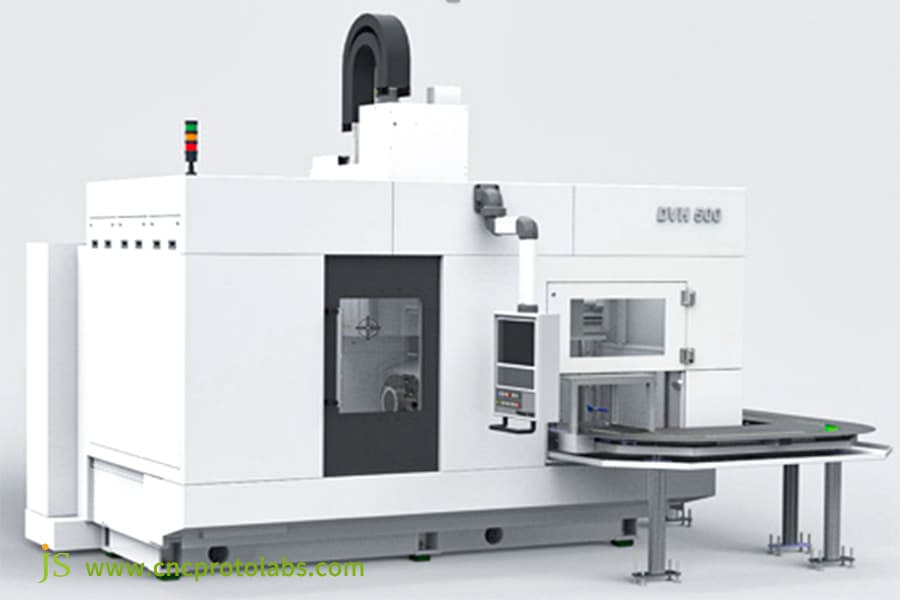

Figure 3:Modern helical gear cutting machine for power skiving with integrated automation and part supply via conveyor belt.

Case Study: 40% Cost Reduction – Optimizing A Helical Gear For High-Speed ​​Automation

Now, let me illustrate with a real case study to give an intuitive idea about the capability of JS Precision in helical gear milling and what advantages are related to optimize gear cutting process on milling machine.

Customer Pain Points

An industrial robot manufacturer developed a transmission system for its high-speed sorting robot. The helical gears in this system presented two major problems:

• The original process used conventional milling, which had a low machining accuracy, needed several reworks, and a unit cost of up to $200.
• At a high speed of 1500 rpm, the gear noise reached 65 decibels, exceeding the customer's requirement of ≤ 60 decibels for quiet operation and affecting the product's high-end positioning.

JS Precision Solution

We then reviewed the gear design and gear cutting process on milling machine upon the request and came up with the following targeted solution:

• Design Optimization: A DFM analysis showed that the gear's non-mating surfaces were too tight in their tolerance, originally set at ±0.01mm. We recommended that it be widened to ±0.05mm, reducing finishing requirements and machining time.
• Process Optimization: We used high-speed cutting technology, applied carbide-coated gear cutting tools, optimized the toolpath, and increased the machining speed from 60m/min to 120m/min. Simultaneously, we adjusted the cooling parameters to avoid overheating of the gear surface.
• Optimizing Heat Treatment: The preheating process was optimized, the annealing temperature was adjusted from 850℃ to 820℃ with prolonged holding, and the heat-treated deformation was effectively controlled.

Our Results and Data

• Cost: The cost per unit fell from $200 to $120, a decrease of 40%.
• Quality: Gear noise level reduced from 65 dB to 59 dB, fully meeting the customer requirement for quiet operation, gear precision reached AGMA Grade 10, far exceeding the customer's original AGMA Grade 8 requirement.
• Delivery cycle: From 4 weeks down to 2.5 weeks, this helped to speed up the customer's product launch.

Figure 4:Transmission system helical gear

FAQs

Q1: What are the major advantages of helical gears?

Unlike spur gears, helical gears operate much more smoothly, generate less noise, and can bear greater loads applied to high-speed heavy-load gear machining situations. This helps to improve the comprehensive operational stability of the equipment.

Q2: What is a double helical gear and its use?

A double helical gear has two rows of helical teeth with two different directions of rotation. It automatically counteracts axial forces, thus eliminating gear misalignment in operation. Application: major equipment like heavy loaded installations, large ship propulsions and turbomachineries.

Q3: How do I get a quote for helical gear milling?

You only need to send your gear drawings, parameters such as module, number of teeth, helix angle, etc., or upload a 3D model with JS Precision. Shortly, you will get a quotation for helical gear milling.

Q4: What are the common types of gear cutting processes?

The general processes for gear cutting include milling, hobbing, gear shaping, and grinding. JS Precision recommends the optimal process based on gear type, precision requirements, and quantity ordered.

Q5: What is the lead time for prototype helical gears?

Most of our simple helical gear prototypes can be delivered within 1-2 weeks. Of course, it depends on a lot of elements, such as complexity in structure and sourcing difficulty in specific raw material. We will inform the exact time in advance.

Q6: Do you offer design for manufacturability analysis?

Yes, JS Precision offers free manufacturability analysis for your gear design. It optimizes the design to reduce manufacturing difficulty and cost while maintaining performance.

Q7: How to find reliable 'gear cutting near me'?

When searching for "gear cutting near me", in addition to considering the geographical location, one must also pay attention to the service provider's equipment, technical case studies, and quality certification. JS Precision serves customers all over the country, and its technical strength is guaranteed.

Q8: Can you repair or reproduce damaged gears?

Even without the original drawings, JS Precision is able to replicate and repair damaged gears by measurement, thus, the compatibility between repaired gears and original equipment will be good.

Summary

The helical gear milling is the key technology for solving high-speed, heavy-load transmission. The right service provider with optimized solutions can make the transmission system more efficient and economical.
