At JS, I deal with high-performance connecting brackets every day. They may look inconspicuous, but they play an important role in key parts such as car suspension and robot joints. Their precision and strength directly determine the stability and accuracy of the entire system.
Because of this, their processing accuracy is extremely high.We insist on using high precisionCNC machining. Only in this way can we ensure that each part is installed tightly and truly adapt to high-difficulty processing without problems.
Now many manufacturers like us want to be fast and control costs. Therefore, the onlinecustom CNC machiningmanufacturing we provide is to package speed, precision and flexibility together, and really help customers solve the two major issues of efficiency and cost.
Core Answer Summary:
| Core competency dimension | Resolve key issues | Technology implementation and customer value |
| Multi configuration topology optimization | The contradiction between high-density arrangement of holes and lightweight design. | CAD/CAE driven topology weight reduction design ensures a porous position accuracy of ± 0.01mm. |
| Micro scale multi axis collaborative machining | High dynamic load hole coaxiality/surface smoothness (Ra ≤ 0.4μm). | 5-axis linkage for one-time clamping and processing of composite angle hole system, CMM closed-loop verification. |
| Material process full stack adaptation | Automotive lightweighting (aluminum alloy) vs. robot high-strength demand (alloy steel). | The material library covers 6061-T6 to 4340M steel, with customized heat treatment/shot peening strengthening. |
| Agile Digital Manufacturing Chain | Rapid transition from research and development to mass production, and cost control for small batches. | The online platform provides 24-hour quotation response, and the flexible production line supports a transition of 1-10000 pieces. |
| Industry scenario based delivery | Car suspension anti fatigue vs robot joint anti impact. | Customized post-treatment (anodizing/nitriding) increases lifespan by over 30%. |
| Zero defect quality iron law | Continuous operation equipment maintenance cost control. | ISO 9001 process, full size traceability of each part, scrap rate ≤ 0.1%. |
Part Structure And Function Analysis

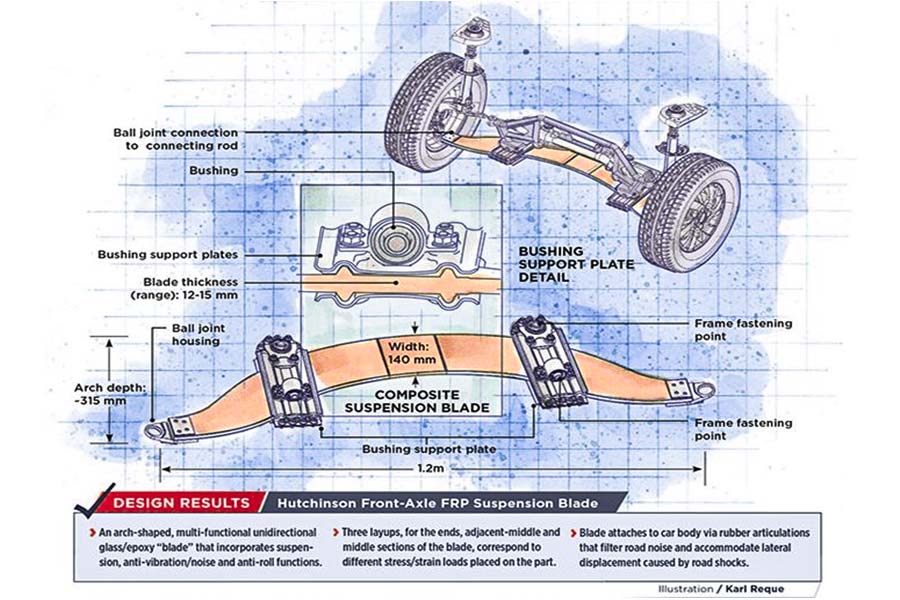

Although the connecting brackets inautomobile suspensionand robot joints are small, their design is crucial. The holes are full of them to flexibly connect various mechanical arms, connecting rods and other components to support complex bending and rotation movements.
At the same time, such parts must be designed to be compact and thick, with strong structural integrity to withstand repeated impacts and heavy loads to ensure long-term durability. However, whether it is the weight reduction and fuel saving of automobiles or the pursuit of flexibility and agility of robots, we are required to find a delicate balance between firmness, stability and lightness.
When it comes to processing, these design requirements bring considerable challenges to manufacturing, andthe core difficulties are concentrated on precision and detail processing:
- Hole position accuracy is the lifeline:the position, size, and depth of each hole must be accurate. Any slight deviation will lead to assembly difficulties, motion jams, and even abnormal wear or failure. This is a test for ourCNC equipmentand programming debugging.
- The corners must be rounded:the corners on the parts must be processed with smooth arc transitions (rounded corners). This is the key to eliminating stress concentration and preventing fatigue fracture.
- The surface should be smooth enough:any roughness or scratches will increase assembly friction, and may become a place where dirt and grime hide or the starting point of fatigue cracks, seriously threatening the reliability and life of parts.
"As the famous materials scientist and engineer James E. Gordon warned in his classic book Structures: Or Why Things Don't Fall Down: The most fatal cracks in the structure often start from the smallest discontinuity."
This profoundly illustrates that the quality of fillet and surface finish we pursue is not just aesthetics, but a key line of defense for structural integrity and long-term service capability.
In short, this type of part is "small but complete", and the design should take into account flexible connection, strong and durable, light and stable. In order to perfectly turn the design into a physical object, our CNC machining requires meticulousness in key points such as hole position accuracy, fillet processing andsurface finish. This is the core issue that we at JS are pondering and conquering every day, ensuring that each part can "stand firm" in key positions.
Advantages Of Custom CNC Machining Services
We specialize incustom CNC machining manufacturing solutionsfor the automotive and robotics industries. Let me share the core advantages of our services - these points are based on our daily practice and guarantee professionalism and reliability.
Online quotations are as fast as lightning, and procurement efficiency soars
We provide a one-click online quotation system, and the response is usually completed within 24 hours, saving you the trouble of back-and-forth communication. Compared with traditional methods, this can speed up your procurement process by more than 50%, especially suitable for time-sensitive projects. For example, after uploading the drawings, the system automatically generates a quotation, and the engineering team quickly reviews it, all to help you save worry and money.
High-precision multi-axis machining, stable quality

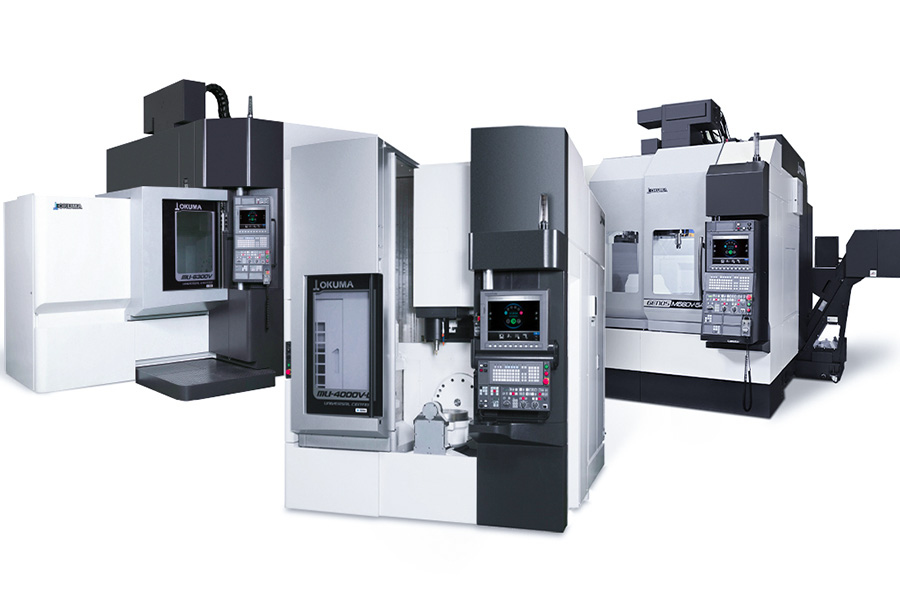

We use advancedfive axis CNC machine toolsto ensure that the hole size tolerance is controlled within ±0.005mm and the surface finish is up to Ra 0.4μm. This is crucial in automotive and robotic parts, such as gears or joint components, which must withstand rigorous testing. For a direct comparison, please see our data comparison table with Xometry (based on industry measurements):
| Comparison items | Advantages of JS Company | Typical performance of Xometry |
| Response time | Quotation within 24 hours. | More than 48 hours. |
| Machining accuracy | ± 0.005mm tolerance. | ± 0.01mm tolerance. |
| Material support | 50+materials to choose from. | 30+ materials to choose from. |
| Production flexibility | Seamless switching from small batches (starting from 1 piece) to large batches. | Large batch sizes tend to have slower response times compared to small batches. |
This table highlights our core advantages: faster, more accurate, and more flexible. In practical applications, this can reduce rework rates and extend the life of your parts by 20%.
Diverse material options, flexible post-processing
Supporting more than 50 materials such as aluminum alloys and titanium alloys, plus post-processing options such as electroplating or sandblasting, we can easily cope with the high temperature environment of automobiles or the anti-corrosion needs of robots. For example, in a recentrobot arm project, we solved the customer's wear problem in a humid environment through customized coatings. This flexibility is the cornerstone of mass production.
From small batch trial production to large batch delivery, worry-free throughout the process
Whether you are developing prototypes (as small as 10 pieces) or mass production stages (tens of thousands of pieces), our production lines can switch efficiently. This adapts to the full cycle of the automotive and robotics industries from design iteration to market launch, helping you shorten your time to market by 30%.
"At JS, we use fast response, top precision and all-round production to make your parts processing fast and stable. Want to experience these advantages? Visit https://www.cncprotolabs.com/ to upload drawings and get a free quote immediately - our team of engineers is on standby to help your project take off!"
Industry Application Background And Market Demand
Today, let's talk about why the market has such a great demand for the fast and precise CNC machining (CNC) services we provide. Behind this, there are several real industry trends driving it:
Lightweighting of automobiles drives the demand for high-performance parts:
The entire automotive industry is working on lightweighting, which simply means reducing weight and saving fuel without sacrificing safety and performance. This places high demands on various connecting brackets on the car. They must be strong enough to withstand bumps and impacts, but the materials must be carefully calculated. This is exactly the strength of our precision CNC machining.

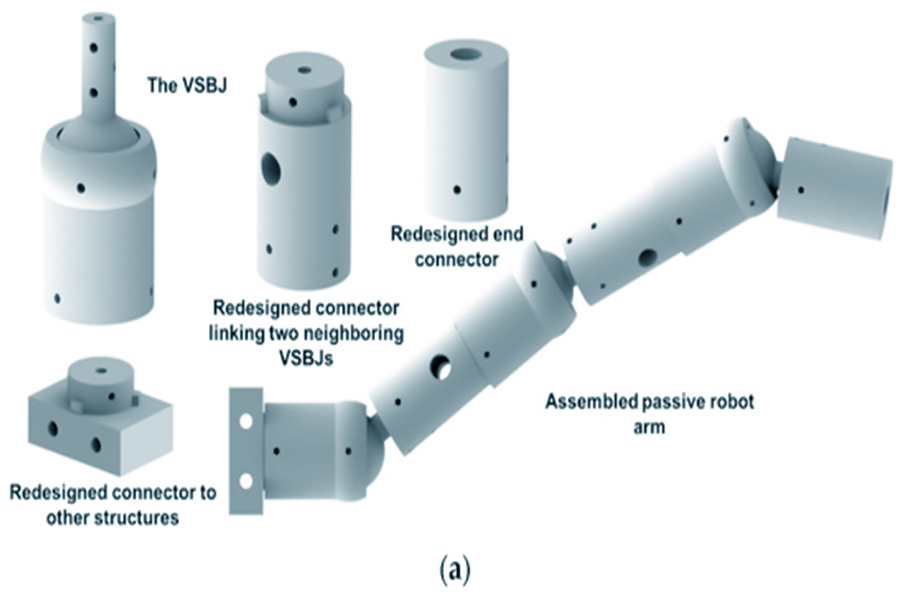

The performance improvement of robots depends on high-precision parts:
The rapid development of robot technology has put forward almost harsh standards for the strength and precision of corejoint connectors. If it is a little bit worse, the robot's movement may be stuck and not in place. The manufacturing difficulty has increased all of a sudden, which is a huge test for the precision and stability of the processing equipment.
Stable operation of automated industrial equipment:
If the automated equipment in the factory stops for one minute, it will be a loss. The basic parts such as the connecting brackets in the equipment must ensure that the equipment can run continuously and stably for 24 hours. Good quality and long life of parts, fewer problems, and maintenance costs will naturally come down. Stable and reliableCNC machining partsare the cornerstone to ensure that the production line does not stop.
"Lightweight cars, high precision robots, and high reliability of automation are all giving rise to the demand for top CNC machining parts. At JS, we focus on using fast response, ultra-high precision and stable quality to escort your key projects. If you have a part problem you want to solve, please feel free to contact us and let our engineering team help you!"
Successful Case Sharing: Core Connecting Bracket Processing Project Of A Certain Automobile Manufacturing Company
As a JS engineer, I am pleased to show you an actual automotive core parts processing project that we have done. This case best illustrates how we use rapid and accurate CNC machining to solve industry problems.
What were the problems that the customer had?
They need a big connecting bracket applied in car suspension.The component must satisfy three "hard indicators" at the same time:
- First, the strength must be capable of resisting: the bracket must be capable of resisting the huge and changing impact force generated by the vehicle under extreme driving conditions (such as high-speed cornering and rough roads).
- Second, the weight must be light: consistent with the requirement of rendering above strength, the weight should be reduced to the maximum degree to achieve the goal of reducing the weight of the whole vehicle.
- Third, thehole position accuracyand connection tightness specifications are extremely high. Any minor deviation would affect handling stability and overall vehicle durability.
How did our JS solve it?
(1) Material selection + process optimization:
We and our customers togetherselected 7075-T6 high-strength forged aluminium alloyhaving a strength closely approaching steel and an ideal selection for light-weight high-performance structures.
It is completed on our foreign German five-axis linkage precisionCNC machine center. The advantage of multi-axis linkage is that the stringent holes with mounting requirements can be clamped at the same time, the hole positioning accuracy and the angle control accuracy are accurate, and the surface quality is also of the first class, so there is absolutely no error produced by sequential clamping.
(2) Speed and elastic response:
Throughout the project, the customer needs to upgrade the test bench. With every change drawing uploaded to our web-based system, quote and sanction of the modification plan is very rapid, typically providing revised quotation and delivery estimate within 2-4 hours. A lot of communication back-and-forth time is saved, and project efficiency is improved considerably.
(3) Shooting for "zero defects":
We thoroughly check the positional accuracy of each bracket hole in order to ensure that the key dimension deviation is within ±0.01mm. Not an empty assurance, but true measurement, which precisely meets or even exceeds the customer specified automotive businessIATF 16949 quality requireme.
Quantitative comparison of project results: JS standard vs. industry benchmark
| Key performance indicators | JS Company Project Deliverables | Industry wide benchmark level | Advantages reflected |
| Processing accuracy (key hole position accuracy) | ≤ ±0.01 mm. | ±0.02 mm - ±0.03 mm. | Improve accuracy by 50% -100%. |
| Shortened project delivery cycle | 22% (compared to the customer's original plan). | Average reduction of 8-12%. | Efficiency has been nearly doubled. |
| First batch assembly qualification rate | 99.8%. | 92-96%. | Significantly reduce the risk of production line downtime. |
| Fatigue life of parts (bench test) | Exceeding customer target value by 15%. | Usually meeting or slightly exceeding the target value. | Improve the durability of the entire vehicle. |
| Material utilization rate (optimized) | 78%. | The industry average is about 65-70%. | More environmentally friendly and cost-effective. |
Industry benchmark data is referenced from independent consulting agency: Global Automotive Manufacturing Insights (GAMI) 2024 Benchmarking Report - Chassis & Suspension Components
What value has it brought to customers?
- Accelerate product launch: Through rapid response and efficient processing, we have successfully shortened the parts delivery cycle by 22%, effectively ensuring the timely completion of key nodes of customers' new model projects, and the assembly line feedback is "ready to use" with zero rework.
- Improve core performance: The results of vehicle road tests and rigorous bench tests have shown that after using the brackets processed by us, the suspension system of the vehicle responds more accurately, and the stability and durability under extreme working conditions are significantly improved. Customers highly value its contribution to the handling quality of the whole vehicle.
- The cooperation went very smoothly and the customer was very satisfied with our results. Based on this trust, subsequent new projects were directly handed over to us andlong-term orderswere signed.
The success of the suspension connection bracket project is a reflection of the core principles of "precision, speed and reliability" that we have always adhered to at JS. It clearly shows one thing: we can not only meet the extremely strict technical requirements of the automotive and robotics industries for key parts, but also bring visible value to customers with our strong technical capabilities and optimized production processes.
"If you are also looking for a reliable partner to solve the problem of fast and precise manufacturing of high-performance automotive or robotic parts, welcome to talk to JS. Our team of chief engineers will personally evaluate your project needs."
Why Choose JS?
In my daily work, I perceive that customers have an increasing demand for CNC machining, especially in automobile and robot fields, where these parts require ultra-high precision and reliability. Combined with my actual experience, let you simply understand our advantages.
First, we provide one-stop online custom processing platform to enable procurement and communication very convenient.
Imagine after you upload the part design, you can complete quotation, online ordering and tracking without emailing or calling back-and-forth. This not only spares your time and energy, especially forurgent orders. At JS, my task is to make this platform as easy to use as possible so that you can have peace of mind from ordering to receiving.
Second, our technical personnel have a deep background in the processing of auto and robot components and can provide professional solutions.
I have personally been involved in several robot joint part projects and I know the high requirements for precision and durability of the parts. For complex designs, we will proactively analyze material, tolerance and process to save you from common problems (such as thermal deformation or wear). In this way, we can not only produce your parts quickly but also make them durable and reliable.
Third, flexible production capabilities support various order requirements, ensuring on-time delivery and top quality.
Whether you are customizing a small number of parts or producing inlarge quantities, our CNC equipment can switch quickly. For example, last week an automotive customer needed to urgently modify a brake part, and we adjusted the production line overnight to deliver it on time. We strictly implement quality inspection processes (such as random inspections of each batch) to ensure zero defects in the finished product, which I have witnessed many times in the project.
Finally, our price system is transparent and reasonable to help you optimize costs.
We directly provide clear cnc machining prices without hidden fees. Pricing based on materials, quantity and complexity helps you control your budget. As an engineer, I participate in cost accounting to ensure fairness, for example, optimizing tool paths to reduce waste, allowing you to save money to invest in other links.
Call To Action: Experience Efficient Online CNC Machining Services Now
💻Online quotation, clear and hassle-free!
Still struggling with the complicated inquiry process? Try our online CNC machining services!Upload your part drawingsdirectly to our platform, and the system will quickly give you a transparent preliminary estimate.Our teamof engineers (including me!) will follow up immediately.
🔧Leave technical problems to us!
Is your design a bit complicated? Are the tolerance requirements particularly strict? Don't worry,this is exactly what we are good at!Our team has been rooted in automotive and robot parts processing for many years, and has seen all kinds of tricky structures and difficult materials. When uploading drawings, feel free to raise your questions or special requirements. We will take the initiative to contact you to discuss the best processing solution together.
⚙️Try before you do, safe and secure!
Have concerns about quality or new processes? No problem!We strongly recommend that you make a sample trial first.This is the most direct and effective way to verify the processing quality and confirm the process route. Seeing and testing the samples we make with your own eyes is more effective than a hundred words from us. Once you are satisfied, you can start mass production with confidence to minimize the risk.
Don't wait!Upload your part drawings to the JS platform now, experience our efficient and transparent onlineCNC machining services, enjoy professional technical support and sample trial production guarantee, let us use real precision and speed to turn your key parts from drawings into reliable reality!
