Think of the core equipment that moves the world forward, from probes that dive into the deep sea to spacecraft that explore the universe, from precision instruments that save lives in operating rooms to tireless robotic arms in automated factories. Behind these cutting-edge applications,there is often a group of obscure but critical components:Gears.

But let’s be honest, for these demanding applications, the “standard” gears on the shelf are usually not enough. They require truly tailor-made custom gears that must withstand specific huge forces, fit tightly into limited spaces, use special materials, and be as stable as a rock in extreme environments.

This is where we at JS specialize.Whether it is mining, shipbuilding, large printing presses, papermaking equipment, heavy construction machinery, modern agricultural machinery, or racing cars that pursue extreme performance, our rich experience allows us to accurately grasp the unique needs of various industries for high-performance, long-life precision gears.

Every set of custom gears we manufacture is precision-machined and rigorously tested to ensure that they not only meet industry authoritative standards such as AGMA, but also meet everystringent toleranceand specific requirements you have. No matter how big your project challenge is, give us the drawing and we will do it!

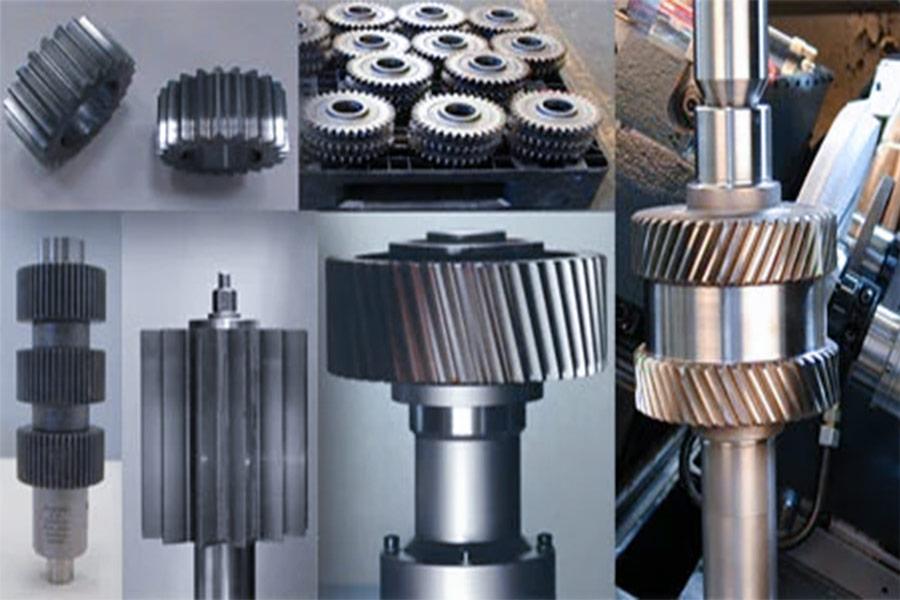

Custom gears play an irreplaceable role in many industrial fields.We have sorted out a core list for you and explained the reasons behind it.

Industry field	Customized core requirements	Typical customization types
Aerospace and defense	Extreme temperature stability, lightweight and rigid requirements, absolute reliability, compatibility with special alloy materials.	Spiral gears, planetary gears, nickel based alloy gears.
Robots and automation	Zero backlash transmission, micrometer level positioning accuracy, compact space adaptability, and ultra quiet operation.	Harmonic reducer, Worm Gears, micro module gears.
Medical equipment	Biocompatibility certification, miniaturization integration, sterile environment adaptation, vibration free and silent operation.	Medical plastic gears (ISO 10993 certified), miniature stainless steel gears, ceramic transmission components.
High performance cars/racing cars	Ultra high torque carrying capacity (2000Nm+), track specific speed ratio, lightweight (titanium alloy), high temperature resistance.	Strengthen the gearbox gear set, herringbone tooth structure, and surface nitriding treatment gears.
Energy industry(including oil/natural gas/renewable)	Corrosion resistance (H₂S/salt spray), heavy-duty conditions (MW level), and long-term operation in extreme outdoor environments.	Large module gear (Module 12+), special brass gear set, fully sealed gearbox.
Prototype development and research and development	New transmission scheme validation, non-standard structure implementation, rapid iteration (72 hour delivery), and minimal batch production.	3D printing functional samples, single piece precision gears (DIN 5 grade), and special tooth profile test pieces.

Why Is This Guide Recommended? It Integrates JS's Practical Experience In Gear Engineering Design For Many Years

This guide condenses the essence of our JS team's practical experience in the field of gear machining parts for more than ten years.

"Leonardo da Vinci said: Experience will not make mistakes. Only judgments that rely too much on experience will make mistakes."

In our laboratory, we not only think about how to calculate the transmission ratio every day, but alsosolve real problems:

• For example, how to make the gears of medical robot joints as quiet as if there is no sound.
• Or how to prevent the gears oflarge industrialreducers from fatigue cracking during use.

In the past 15 years, hundreds of custom projects have been processed, which has really made us understand the door.

• For example, when you need the kind of transmission that is so quiet as a surgical instrument, we know that the depth of nitriding on the surface of 718 alloy can directly affect the noise level of gear meshing.
• When designing heavy-duty gears that can withstand hundreds of tons of impact in mines, we know that if the hardness change of the carburized layer of 20CrMnTi material is not controlled well, the root of the tooth will crack in minutes. These are the real skills we have picked out from a pile of accident analysis reports.

So, whether it is making a powder metallurgy pinion with an error as small as 5 microns (thinner than a hair) for a drone servo, orcustomizing a special tooth profile finishing solutionto preventtooth surfacepeeling for a large wind power gearbox, these living solutions are manufacturing tricks that you will never find in textbooks.

Standard vs. Custom Gears: A Quick Primer

Let me briefly talk aboutthe difference between standard gears and ready-madegear machining partsand the custom gears we specially make, to help you quickly sort out your ideas.

Simply put, standard gears are ready-made products produced in batches on the market. They have few size and material options, but they are cheap and fast to deliver, suitable for conventional equipment with low requirements. It is quick and easy just like buying off-the-shelf screws at a hardware shop.

Custom gears are a whole different thing. We manufacture them from the ground up based on your drawings or specifications.You can have complete control over any aspect of it,whether teeth count, module, pressure angle, material, or heat treatment.

When your equipment has special needs and standard parts are utterly not usable,custom gear manufacturingis our bottom-line service we provide so the gears are an ideal fit for your application conditions.

Aerospace & Defense: Where Failure Is Not An Option

In aerospace and defense applications, gears are not just a component,they are mission-critical.

Why do we need custom gears here?

(1) Space-grade reliability in extreme conditions:

Let us assume that our gear components must operate just fine in the -60°C subzero temperatures of an airplane at 10,000 meters and the +200°C temperatures of a re-entry missile. Regular gear materials or builds will not survive such a ride, even less so the extreme vibration and high-altitude radiation.

(2) Weight reduction is worth its weight in gold:

In satellites and airplanes,weight is money,even payload and range. Every gram of weight reduction can earn significant fuel savings or increased payload capability. Off-the-shelf components seldom can come near the optimum strength-to-weight ratio, and must rely on special configurations to "compare every gram.".

(3) Special application conditions:

It is remotely retracting and extending an aircraft landing gear with extremely precise control, carefully fine-tuning the infinitesimal fins of a missile's flight path, or precisely deploying thesatellite antennain outer space, the operations are extremely delicate and cannot be skipped. The position, weight, and motion trajectory of the device are extremely special, andthere is no off-the-shelf solution available in the market.

(4) Special requirements demand special investment:

In order to meet these demanding conditions, we have to use specialaviation-grade alloys(such as high-strength titanium alloys and special steels) and perform extremely strict heat treatment and surface treatment. Every link in custom gear manufacturing, from material selection to final inspection, ismuch more stringent than ordinary industrial gears,and the cost is naturally higher.

Consider the following table of information in an effort to understand why customization must be done "at any cost":

Key indicators	Typical requirements/benefits	Key points	Data sources
Weight loss value (satellite organization)	Saving 1 gram ≈ $8000- $10000.	Far exceeding the weight reduction value of aircraft.	SAE International Report.
Extreme temperature tolerance range	Stable operation from -60 °C to+200 °C.	Covering the most rigorous flight profiles.	Common Aerospace/Missile System Specifications.
Special alloy cost premium	Aviation grade alloy vs ordinary alloy: +300% -500%.	The purity of materials and the complexity of processes result in a premium.	Frost&Sullivan analysis.

"In the aerospace and defense field, "working" is far from enough, it must be "absolutely reliable". This determines that standard parts are basically useless, and custom gear manufacturing is the only way to ensure that key systems (landing gear, guidance mechanism) are foolproof under extreme conditions. If you have similar challenging project requirements, feel free to talk to JS."

Robotics & Automation: The Heartbeat Of Precision

In the field of robotic automation that our company JS focuses on,precision is the lifeline.The applications I come into contact with on a daily basis, such as the fine operating head of the surgical robot, the key joints of the collaborative robot, and the robotic arm that transports wafers in the semiconductor factory, all rely on our corecomponents-precision gears.

• These scenarios have extremely demanding requirements for precision. Imagine that a slight deviation in surgery or a micron-level error in wafer handling can have serious consequences. This requires that when the gears are meshing, the gap between the teeth (which we call backlash)must be infinitely close to zero. Otherwise, the movement will be distorted.
• What's more challenging though, is that space for gears in these applications is extremely limited. It needs to be moving very large force (torque) in a space of the size of a palm. It needs to be compact in size and strong enough.
• For example, in wafer transmission, the requirement for precision isnormally 0.0001 mm.If a gear is a little loose, the entire wafer would be wasted. Insurgical scenes, human life is at stake, and gear reliability and stability are hard indicators.

Therefore, the overall problem that JS is facing is actually very simple:

How to manufacture precision gears with almost no backlash, high torque loading, and reliable long-term operation in such a compact environment. This is actually the technical difficulty that our JS engineers are overcoming on a daily basis, and it is also the overall inspiration that drives us to continue improving.

Medical Devices: Miniaturization And Biocompatibility

From a JS engineer's point of view, this is what I perceive asthe core issue of medical device miniaturization and material safety:

At JS, when making medical devices, especially those precision parts that are to be placed in the human body or used around patients, such as the precision mechanism for controlling the amount of medicine in an infusion pump, thesmall gearsthat rotate hundreds of thousands of times per minute in a dental handpiece, or the key driving parts of a powered prosthesis, the two most important points are choosing the right materials and making them absolutely clean. This is no small matter.

• First of all, the material selection must ensure absolute safety and must not cause any harm to the human body. High-performance plastics such as PEEK or special grades of medical stainless steel arethe choices that JS often trusts.
• Secondly, these materials must be extremely durable. Think about it, the gears of dental drills and surgical tools have to withstand high-temperature steam boiling or repeated tossing of chemical disinfectants every day, and the materials must be able to withstand it and cannot deform or corrode.
• Finally, devices used on or around patients, such as infusion pumps or prosthetic joints, must operate quietly and smoothly without annoying noise or vibration, which is crucial to patient comfort and confidence.

"The key to medical micro-devices is safe and durable materials and ultra-high cleanliness. JS has been deeply involved in these core areas for many years and has strong experience and technology. If you are troubled by such challenges, talk to us JS and work together to create more reliable and safer medical solutions!"

The Rise Of Custom Plastic And Brass Gears

Let me talk directly about the selection and transaction focus ofcustom gears that you are concerned about:

The core of choosing custom plastic gears is to save money and be quiet, and they have a lubricating effect. Therefore, it is particularly suitable for places where office equipment andhome appliancesare used in large quantities, and some medical equipment also values it. When we do custom gear machining manufacturing, plastic has obvious advantages in mold opening and mass production, which can help you control the overall cost.

As for custom brass gears,its trump card is strong corrosion resistance, low friction coefficient, andspecial smoothness. Therefore, for precision instruments, valve actuators that control fluids, and equipment that are soaked in humid or even seawater environments all day long, brass gears are a reliable choice. Material selection and processing accuracy determine its performance under these harsh conditions.

In the final analysis:

• Want to control costs and reduce noise?Custom plastic gearsare a pragmatic choice.
• Pursuing super corrosion resistance and smooth transmission?Custom brass gearsare more reassuring.

"The key depends on where your specific needs are used and what you value most. Send us your application scenario and requirements, and JS will select materials and quote you based on your needs to ensure that the customized gears we make solve the problem and are worth the money. Talk about your needs directly, and we will connect you efficiently!"

Case Study: Custom Bevel Gears For A Deep-Sea ROV

Next, let me introduce a project we recently completed: customizing bevel gears for a deep-sea exploration company for the robotic arm of its underwater robot (ROV). This task is extremely challenging and fullydemonstrates JS's technical strength.

Difficulties encountered by customers:

• The environment is really harsh: Thousands of meters deep on the seabed, the water pressure is huge, and the seawater is salty and corrosive.
• The requirements are not low: The gears must transmit power very smoothly, so that therobotic armcan grab the seabed samples steadily and accurately.
• The space is very limited: The space left for gears in the joints of the robotic arm is very small, and standard parts cannot be inserted.

Our JS's response plan:

(1) The right material selection will lay a solid foundation:

• We did not choose ordinary steel, butrecommended a special material called "duplex stainless steel".
• This material is strong enough to withstand pressure, and the key is that it is highly resistant to seawater corrosion and is not afraid of rust at all. At the same time, we did a detailed manufacturability analysis (DFM) and optimized the support structure (spoke) in the middle of the gear. Under the premise of ensuring strength, the weight was minimized to perfectly adapt to the narrow joint space.

(2) Precise processing, one-time completion:

• When encountering processing situations with small space and high precision requirements,it depends on hard power.
• We enabled online gear machining services, and customers can follow up on key nodes in real time. We use top-level5 axis CNC machinetools, and the gear teeth and mounting holes are all clamped in one clamping. This ensures the ultra-high concentricity between the gear tooth surface and the mounting hole, which is the core guarantee for the robot arm to accurately grasp the seabed samples.

Results and customer-recognized value:

• The gears made fit tightly into the ROV's robot arm, running quietly and smoothly. Customers reported that the grasping action accuracy exceeded expectations.
• What makes them most happy is the lifespan.The deep-sea environment is extremely harsh, and ordinary gears may be scrapped soon. The estimated life of ourcustomized gear machiningparts far exceeds their original expectations.
• Although the price of gear machining is a little higher than that of ordinary goods, customers will see from a long-term perspective: less maintenance, less replacement, and no delay in precious offshore exploration time.This money is worth spending and is a real cost-effective investment.

Deep-sea ROV gears: custom solutions vs industry standards value comparison

Core value points	Standard industrial gear solution	JS custom gear (deep-sea ROV application)	Direct benefits to customers
Average unit price range	$500 - $2,000.	$3,000 - $8,000	High initial investment.
Comprehensive cost per hour	$8.5 - $12.0.	$4.2 - $5.8	Improved operational efficiency and long-term savings.
Average delivery cycle	2-4 weeks.	5-7 weeks	Customized design&special material processing.
Estimated service life	5,000-8,000 hours.	18,000-22,000 hours	Life extension>125%.
Annual average failure rate in deep-sea environments	18% (in the first 2 years).	<3% (first 5 years)	Significantly reduce the risk of maintenance shutdown.
Single voyage guarantee	Spare parts are required, which poses a high risk.	Reliable operating cycle coverage of the main gear.	Reduce spare parts inventory and replacement costs.

Data source: Statista 2024 - Offshore Engineering Equipment Market Report

"In the extreme environment of the deep sea, the cost of equipment problems is too high. General parts are difficult to withstand, and the problem must be solved by custom gear manufacturing experts who really know the business. For key parts such as ROV manipulators, choosing the right partner means choosing reliability and efficiency. If you also have special environment or strict requirements for gears, don't hesitate, talk to our JS directly, and we will solve it together!"

How To Choose The Right Custom Gear Manufacturer?

Choosing a partner for custom gears is like challenging friends. You can't let them down at critical moments. I have been doing this for more than ten years, and I think you have tokeep an eye on these points:

(1) DFM analysis is a touchstone:

Good manufacturers will take the initiative to review your design, makeoptimization suggestions, and help you reduce costs and increase efficiency. We often help customers save 15-20% of costs and improve reliability by using this trick. This is not nitpicking, but real value-added.

(2) The upper limit is determined by the material library:

When encountering extreme working conditions, all will be lost if the material is chosen incorrectly. From common steel to PEEK, titanium alloy, and Inconel, we understand their performance and can recommend the most matching and cost-effective solutions.

(3) Equipment & quality control is the foundation:

No matter how good the drawings are, they are useless if they cannot be made. The5 axis CNC machining center is our main equipment,with high precision and capable of processing complex gear shapes. With strict quality inspection processes, we ensure that each gear can stand the test.

(4) Don't let the response speed drag:

Projects don't wait. Use JS's onlinegear machining servicesplatform to upload drawings and get quotes quickly, check progress at any time, and communicate directly with engineers. Efficiency is competitiveness.

From Design To Delivery: Your Full-Service Machining Partner

You know that for a gear machining part to really perform well,it is inseparable from the "partners"such as shafts, bearing seats, and housings that work closely with it. Sometimes it is not enough to just make the gear itself.

This is the value of our JS:

• We don't just make gears.We can make all the key precision parts around gears, such as shafts, bearing seats, and housings.
• We are your comprehensive precision machining partner.We take care of the entire process, from the initial design concept to the final delivery of qualified parts to you.
• Do you have complex design requirements?No problem.JS focuses on making and delivering your most difficultdesign requirements.

FAQ

Q1: Can you copy my old gear sample?

Absolutely. Just give us your old gear.

• How do we copy: First use ahigh-precision 3D scanner to "copy"every detail of your sample, and then use precision measuring equipment to repeatedly check the key dimensions to ensure that the data is absolutely accurate.
• More than just copying: After getting the accurate data,we can make a brand new, identical gear.If your old gear is worn or you want to upgrade the performance (such as using better materials or processes), we can also work together to make the new part more durable and better to use.

Q2: How long does it take to make a custom gear?

How long it takes to make a custom gear depends on several key points:

• How complex is the design of the gear itself, what material you choose, and how many pieces you need to make.
• The more sophisticated the design, the more special the material, or the larger the quantity, the longer it will take.
• But don't worry, in order to give you a rough idea as soon as possible,JS has an online system.You can see the approximate delivery date and cost within a few minutes after submitting your requirements, which is convenient for you to plan in advance.

Q3: What is the "backlash" of gears, and why is it important?

Backlash is the tiny gap between the teeth when a pair of gears are engaged.

When we JS make plans for customers, especially for precision equipment such as robots, too loose backlash is very troublesome: it will make the motion instructions inaccurately positioned, and it may also vibrate during operation. Therefore, in such high-precision occasions, we usually need to customize gears with very small or even almost zero backlash to ensure accurate and stable movements. The higher the precision requirements, the more critical it is to control the backlash.

Q4: How big or small can you make gears?

The size range of our gears is actually very wide.

• Small, micro gears with a diameter of a few millimeters are no problem, such as those used in precision instruments.
• Large, large parts with a diameter of more than one meter, we also have special equipment to handle.

As long as you have a specific design idea, whether it is small and exquisite or large, we can basically meet the conventional size requirements. Want to know if your project can be done? The easiest way is to send us the drawings or ideas, and we willgive you an accurate quotation soon.

Summary

Customized gears, from aircraft engines to medical equipment, from deep-sea equipment to factory production lines, these inconspicuous gear machining parts are often the key to breaking through the limits of technology. If you want them to really play their strength,choosing the right materials, design and manufacturing partners is indispensable.

Choosing us, you can get:

• Break through the limitations of "standard parts":Don't let ready-made gears that may not be suitable limit your ideas. No matter how many loads your project requires to withstand, how fine the precision is, or how extreme the environment is,JS has a corresponding solution.
• Comprehensive professional support:From material selection, structural optimization to precision manufacturing, we are involved in the whole process to ensure that your design is perfectly implemented.
• Start your project immediately:No more guessing about costs and waiting for quotes.Upload your gear design drawings now,and we will give you a real-timegear machining priceevaluation, with professional suggestions from our engineers. Let your innovative ideas take the next step quickly and clearly!
